Description:

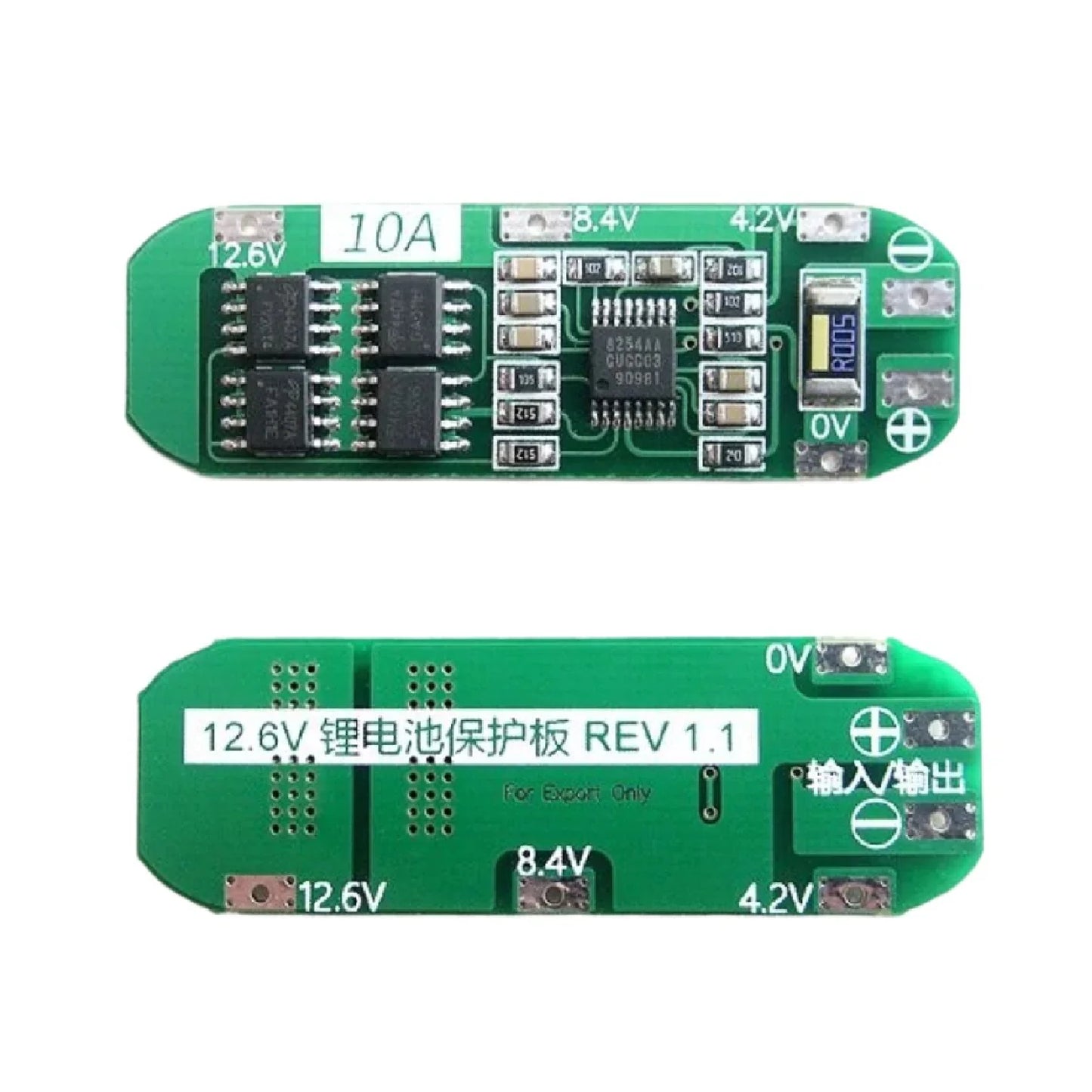

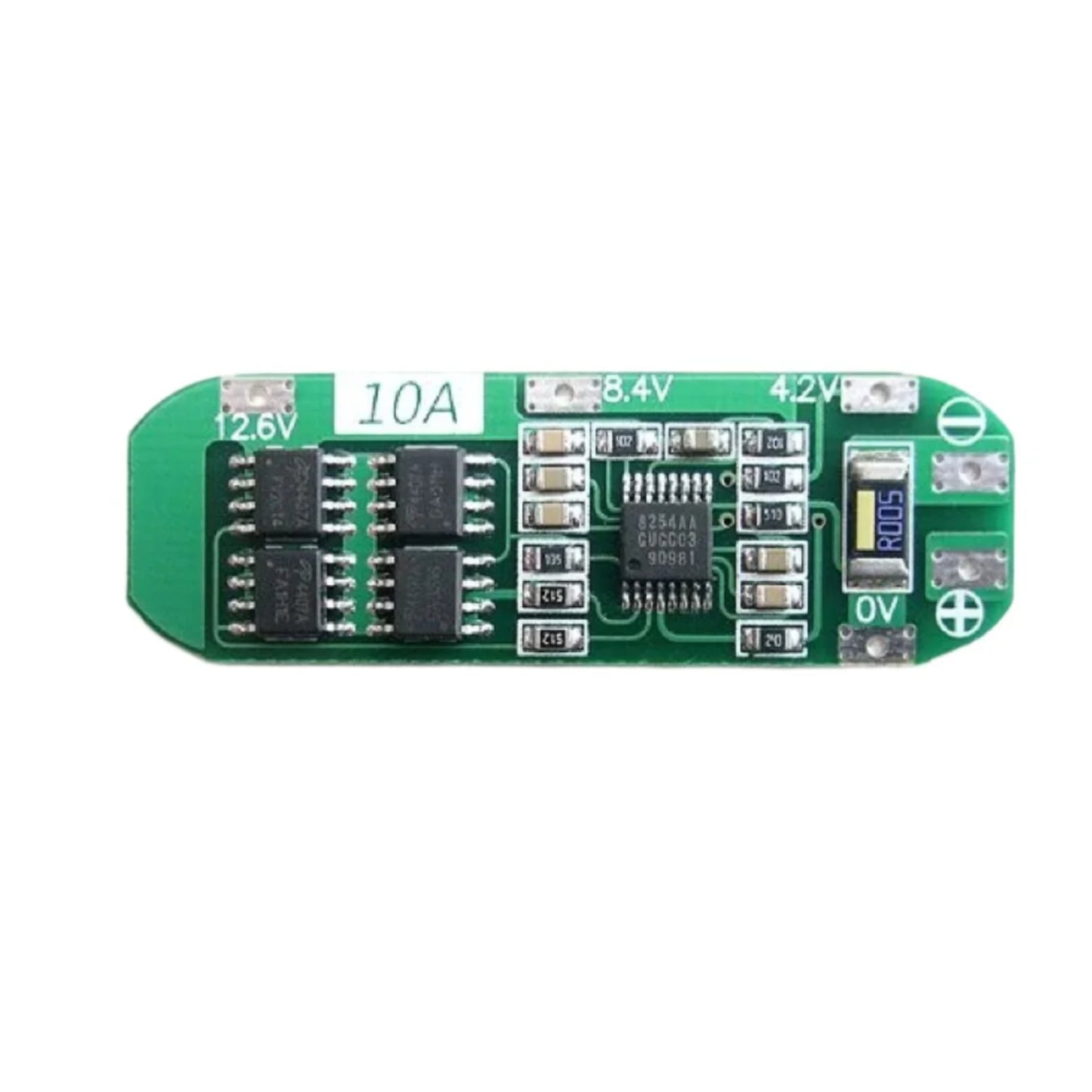

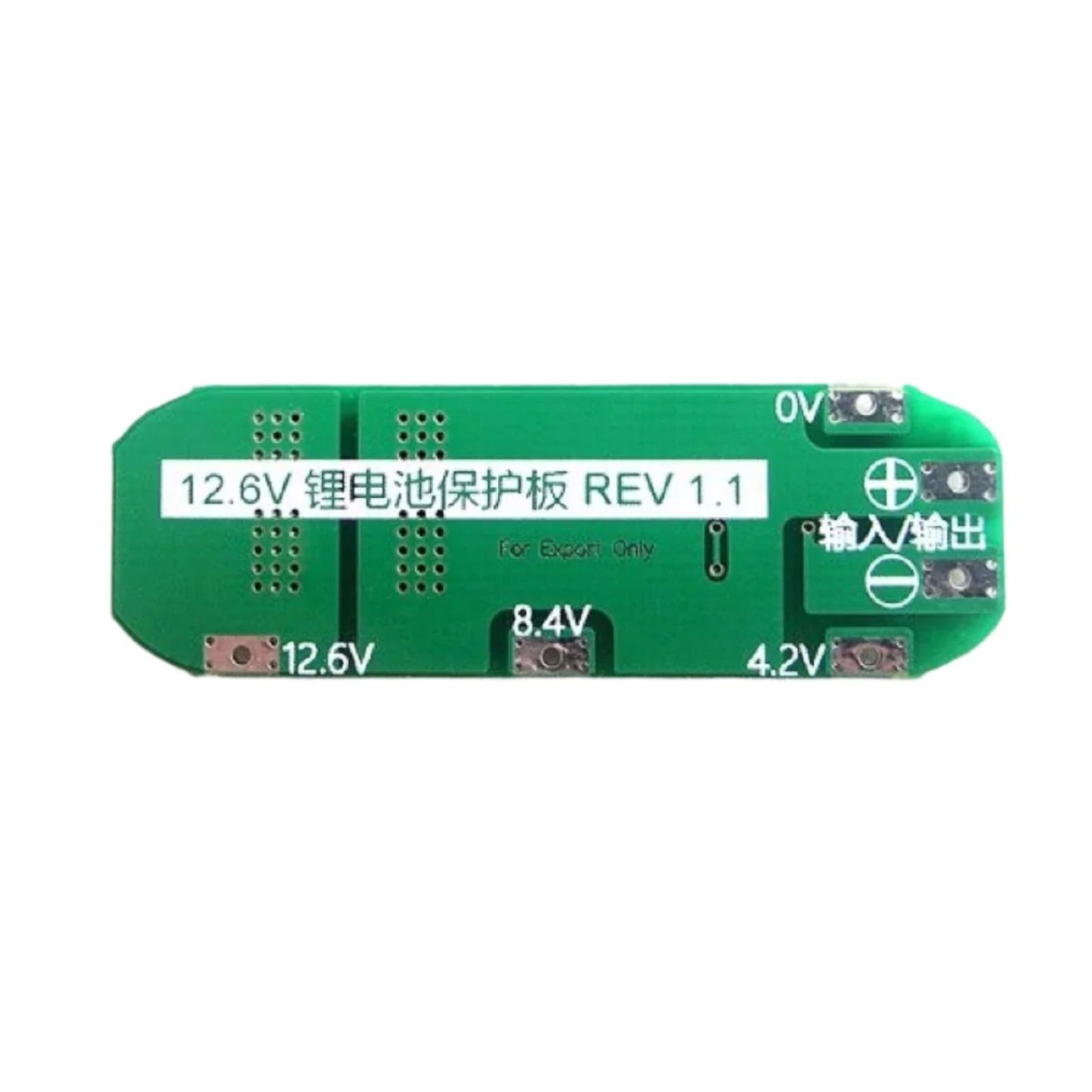

The 3 Series 6A 18650 Lithium Battery Protection Board 11.1V 12.6V with Balance for Drill Motor Lipo Cell Module comes with recovery function-AUTO Recovery and Integrated 10 low load resistance MOS tube.
It provides a continuous discharge of 6A, 100mA balanced current, for electric drill/sprayer/LED lights/low power inverter. The Scope of Nominal voltage of 3.6V, 3.7V lithium battery where Charging voltage can range between 16.8V to 18.1V.
The board operates smoothly with a Continuous charge current of (upper limit): 6A. The balanced version is suitable for starting current below 80A, power 135W below the drill (with balance)
Specifications:
- Charging Voltage: 12.6V-13V
- Overcharge Voltage Range: 4.25V-4.35V ± 0.05V
- Overpressure Voltage Range: 2.3V-3.0V ± 0.05V
- Upper Limit Operating Current: 5A-6A
- Upper Limit Instantaneous Current: 10A
- Quiescent Current: less than 30uA
- Internal Resistance: less than 45mohm
- Effective Life: more than 50,000 hours
- Operating Temperature: -40- 50 degrees
- Storage Conditions: -40- 80 degrees3S 11.1V 12.6V 6A 18650 lithium battery protection board (comes with recovery function-AUTO Recovery)
- Application: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650.26650, a polymer lithium battery)
- Continuous discharge current (upper limit): 10A (if the cooling environment is not good, please reduce the load current use)
- Continuous charge current (upper limit): 6A.
Features:
- Excellent PCB design, excellent workmanship
- Seiko lithium protection IC, perfect protection function
- The United States MOS tube, low resistance, low loss
- Alloy resistance, high-temperature resistance, and stability
Precautions:

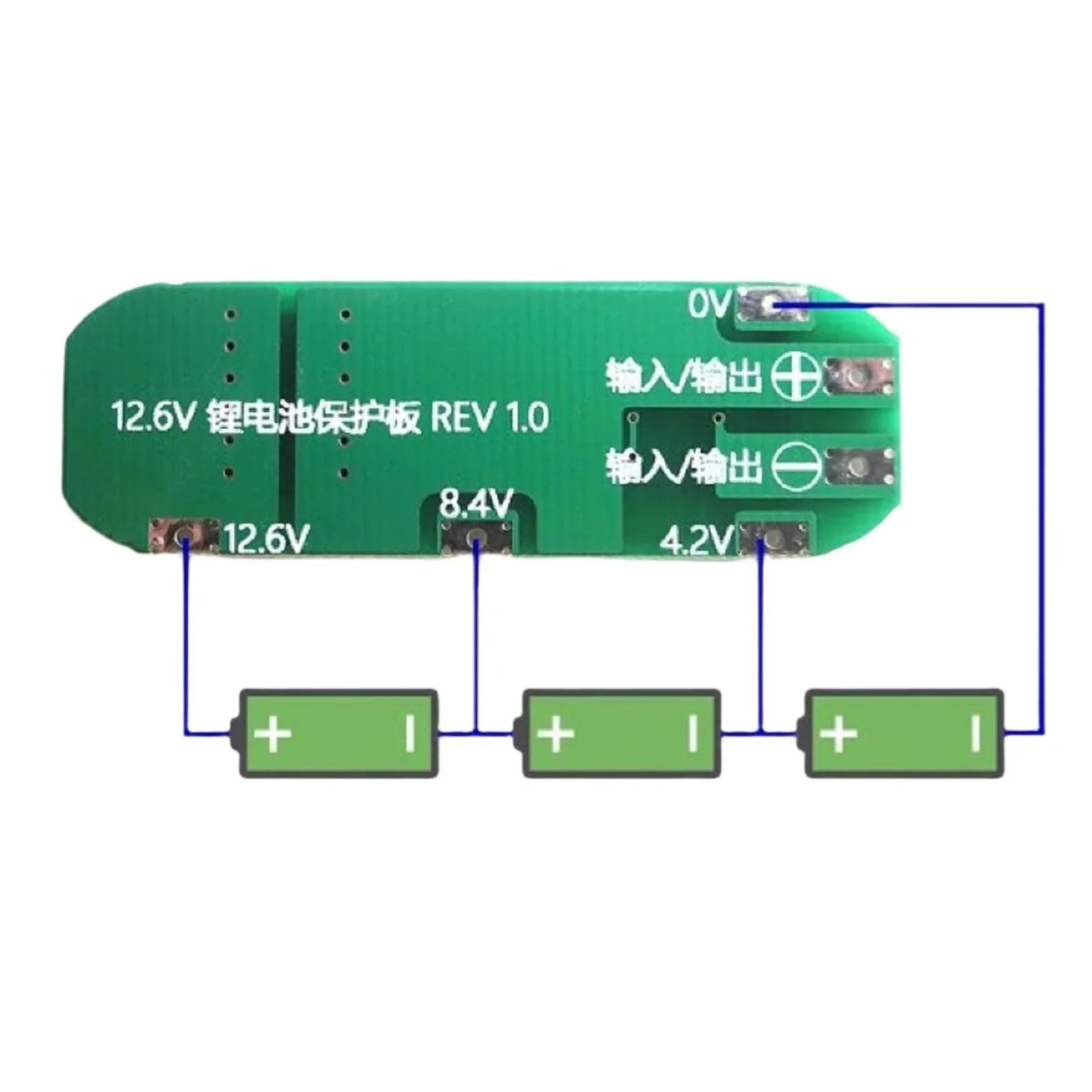

- Please strictly follow the wiring 0V (B -), 3.7V (B1), 7.4V (B2), 11.1V (B ), do not deliberately short circuit.
- Please charge after connecting the line, then it will have output.
- When connecting three groups of batteries, please ensure that the voltage of each group of batteries, if not the same, please fill each battery separately and then use in series. Discharge test, the voltage drops quickly when the group of battery time difference battery.
- Please do not mix the battery and the poor battery together! 3 sets of battery capacity/resistance closer to the better! (Two good batteries 1 a poor battery use effect = 3 poor battery use effect).
Package Included:
1 x 10A Protection Board For 3S 11.1V LiPo Batteries High Current 3S LiPo Protection Board
