Description:

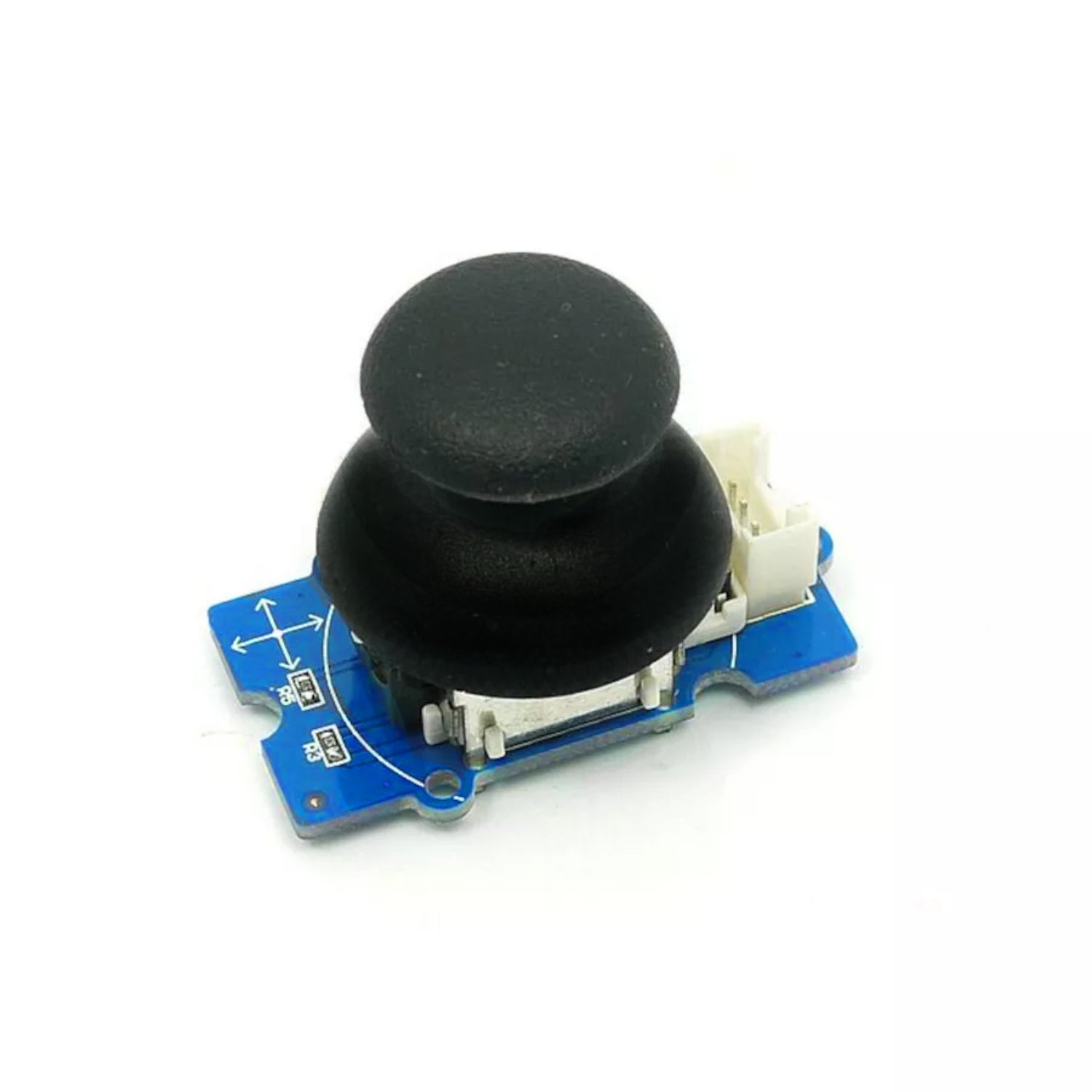

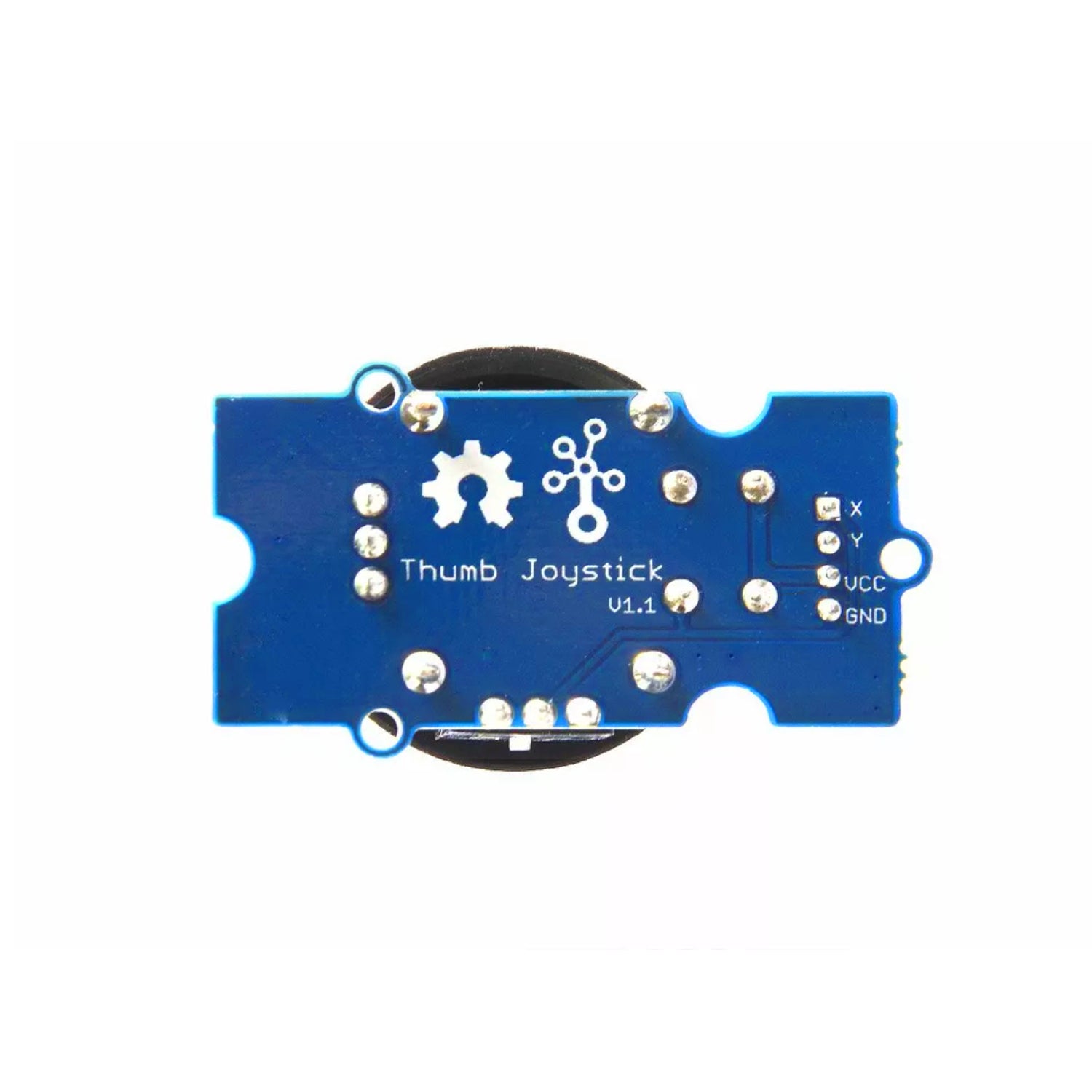

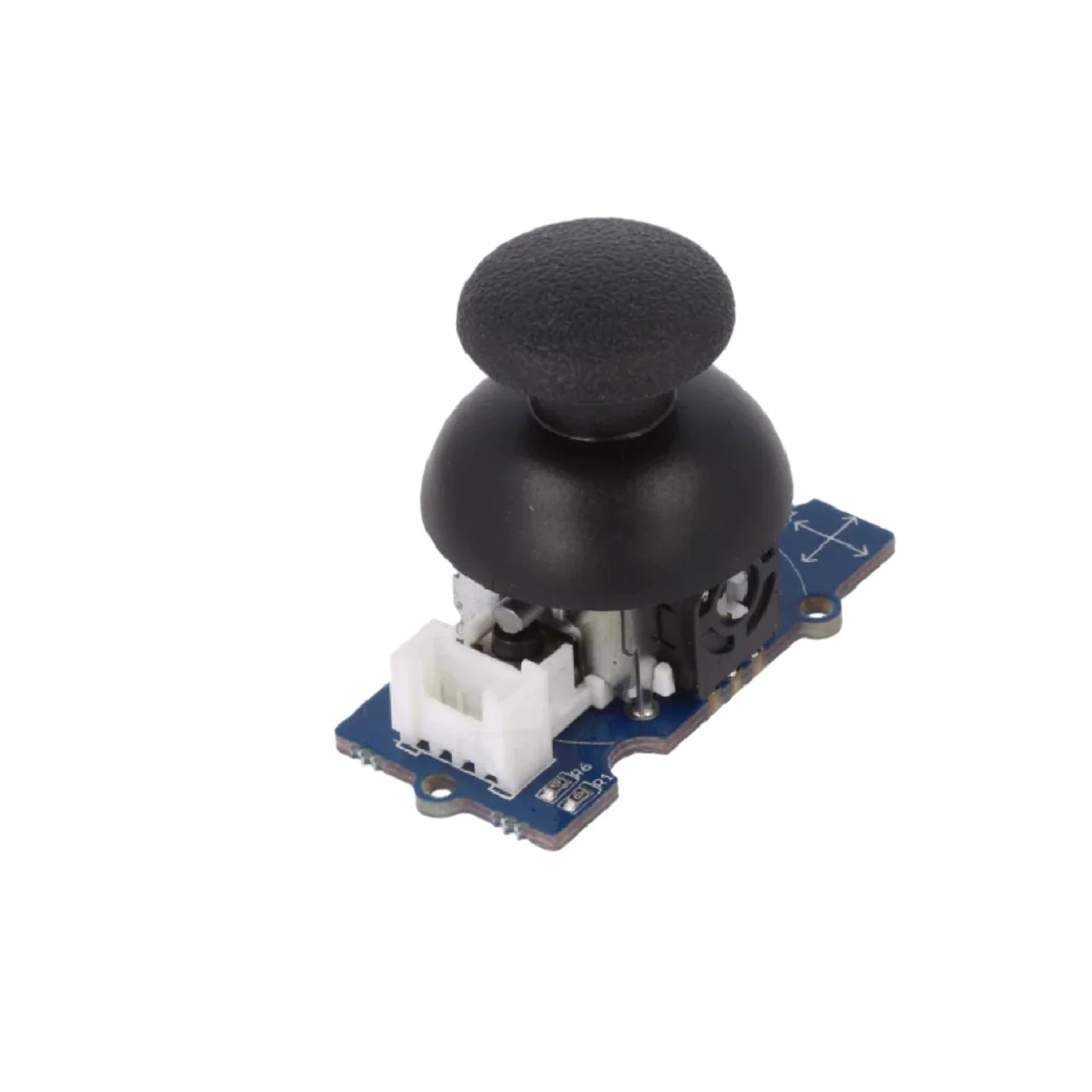

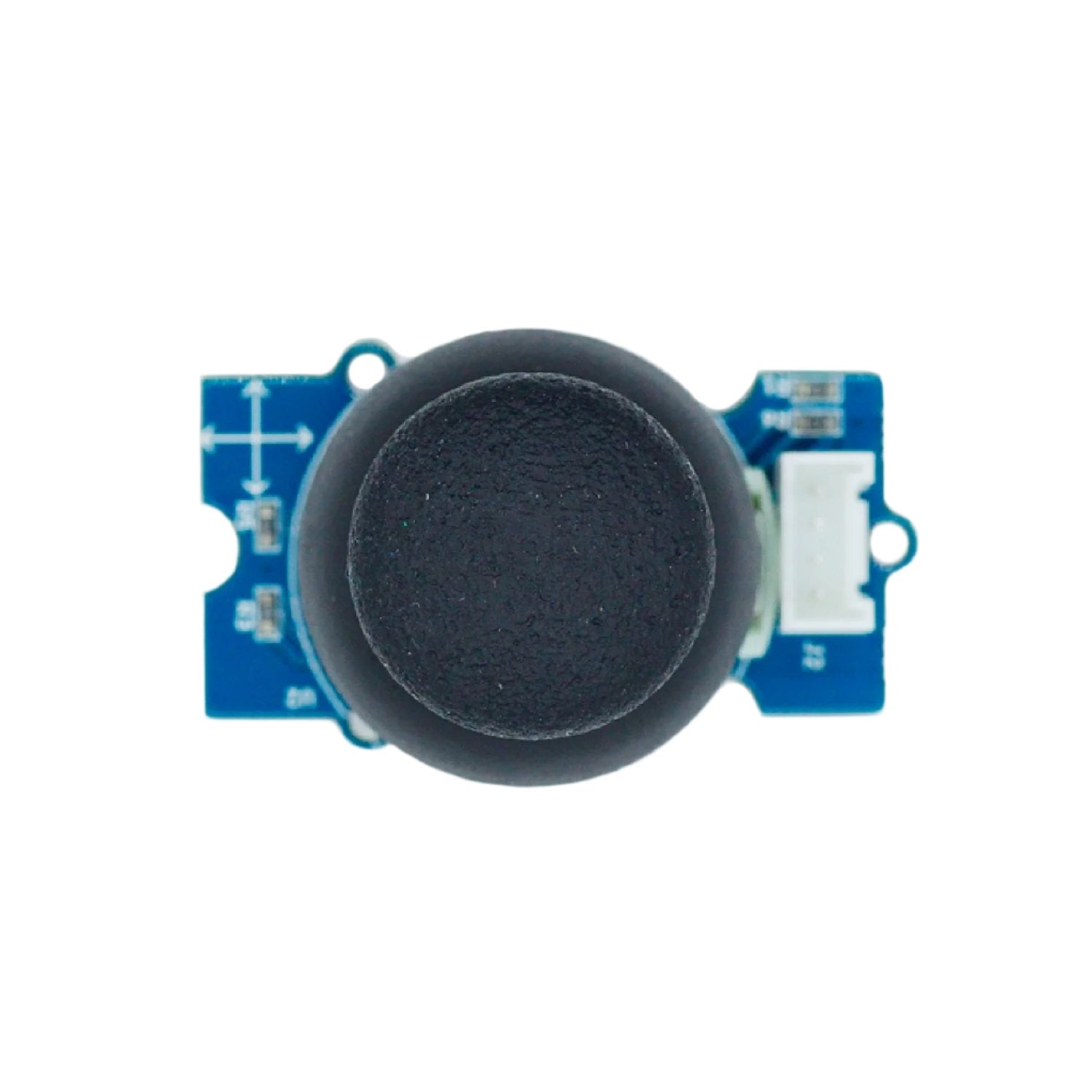

SeeedStudio Thumb Joystick Module is a compatible module that is very similar to the 'analogue' joystick on PS2 (PlayStation 2) controllers. Two-direction movements will output different analogue signals as they are actually two potentiometers. The resistor is ~10k for each.
The Grove Thumb Joystick Arduino Compatible also has a push button that can be used for special applications. The value is restricted in a smaller range (e.g 200~700)compared to the normal joystick is around 1023 when the button is pushed so that the MCU can detect the action of pressing.
Specifications:
- Operating Voltage: 4.75 - 5.25VDC
- Type: Joystick
- (X coordinate): 206 to 798
- (Y coordinate): 203 to 797
- Mounting Hole Diameter: 2mm
Features:
- Grove compatible with 4-pin universe 2.0mm connector
- Analog output (When you push button, you’ll get max. value)
- Easy to use
Package Included:
1 x SeeedStudio Thumb Joystick Module Grove Thumb Joystick Arduino Compatible Thumb Joystick Precision Thumb Joystick For Robotics and DIY Projects Joystick For Arduino
