Description:

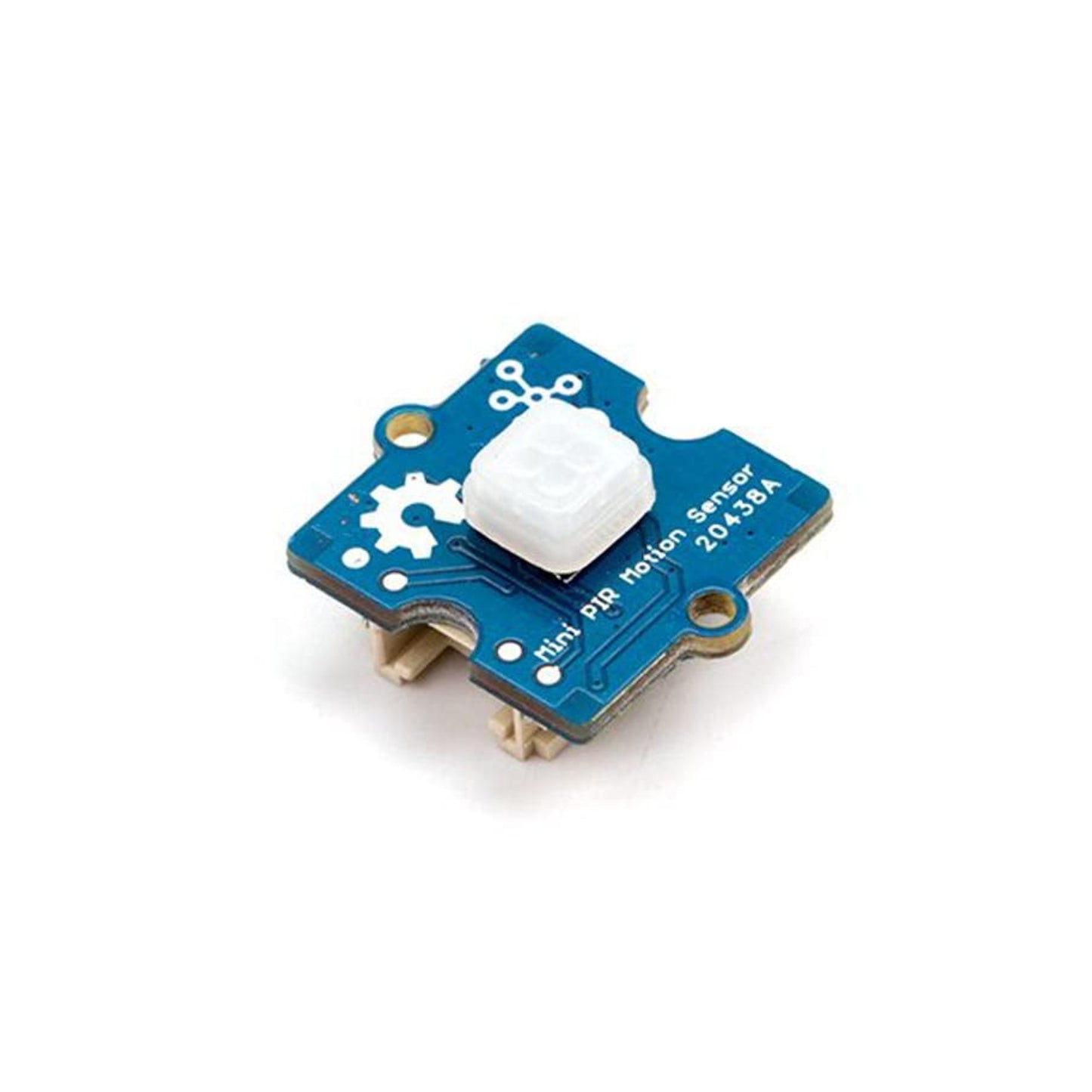

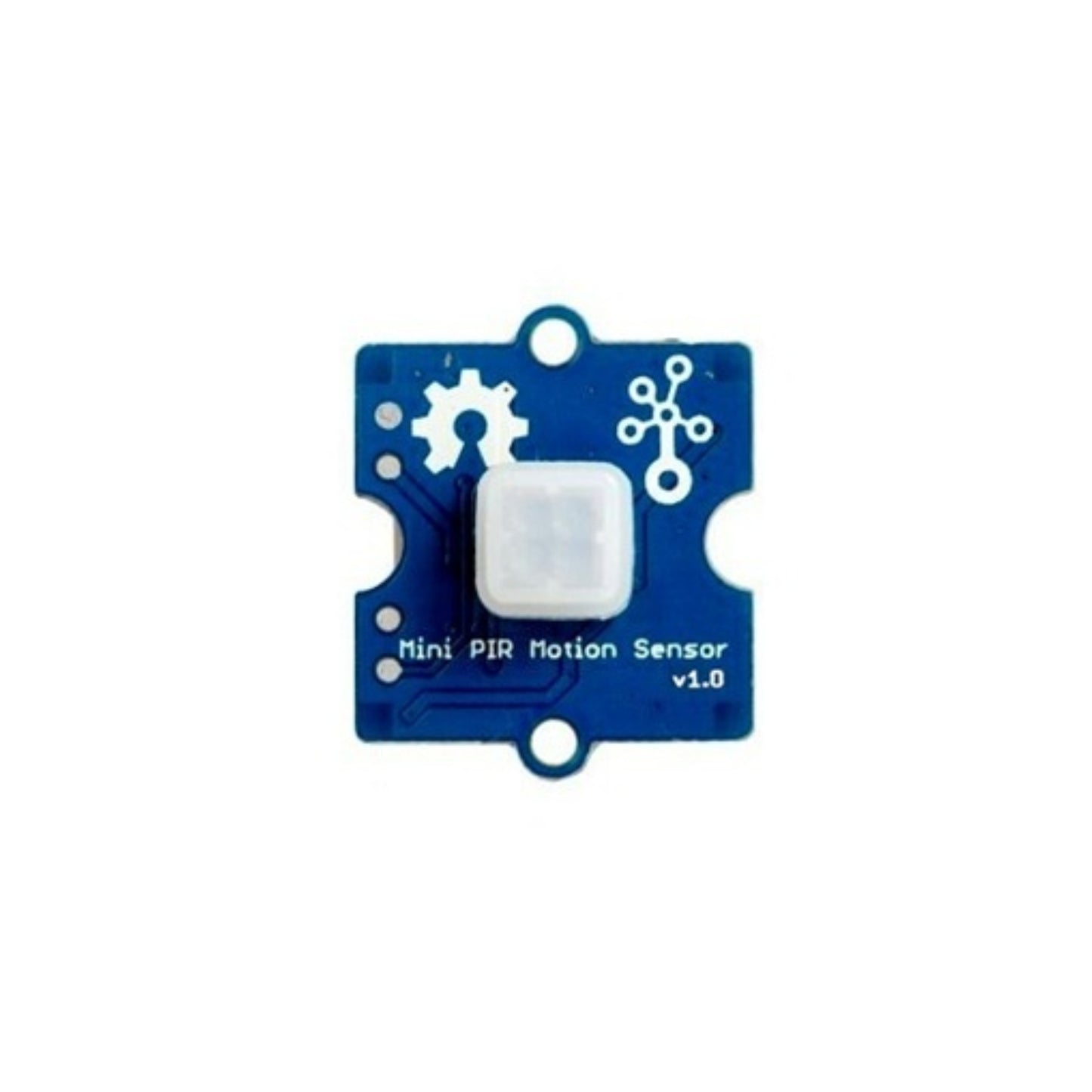

We have a Mini PIR Motion Sensor Module for it, SeeedStudio Grove Mini PIR Motion Sensor v1.0. PIR stands for Passive Infra-Red. Mini PIR Motion Sensor Modul measures infrared (IR) light radiating from objects in its field of view. You can use this Mini PIR Motion Sensor Module in various motion-detecting applications such as alarm burglar systems, visitor presence monitoring, light switches, and robots. Just simply connect it to Grove – Base shield and program it. When anyone moves in its detecting range, the sensor will output HIGH on its SIG pin and will indicate the movement.

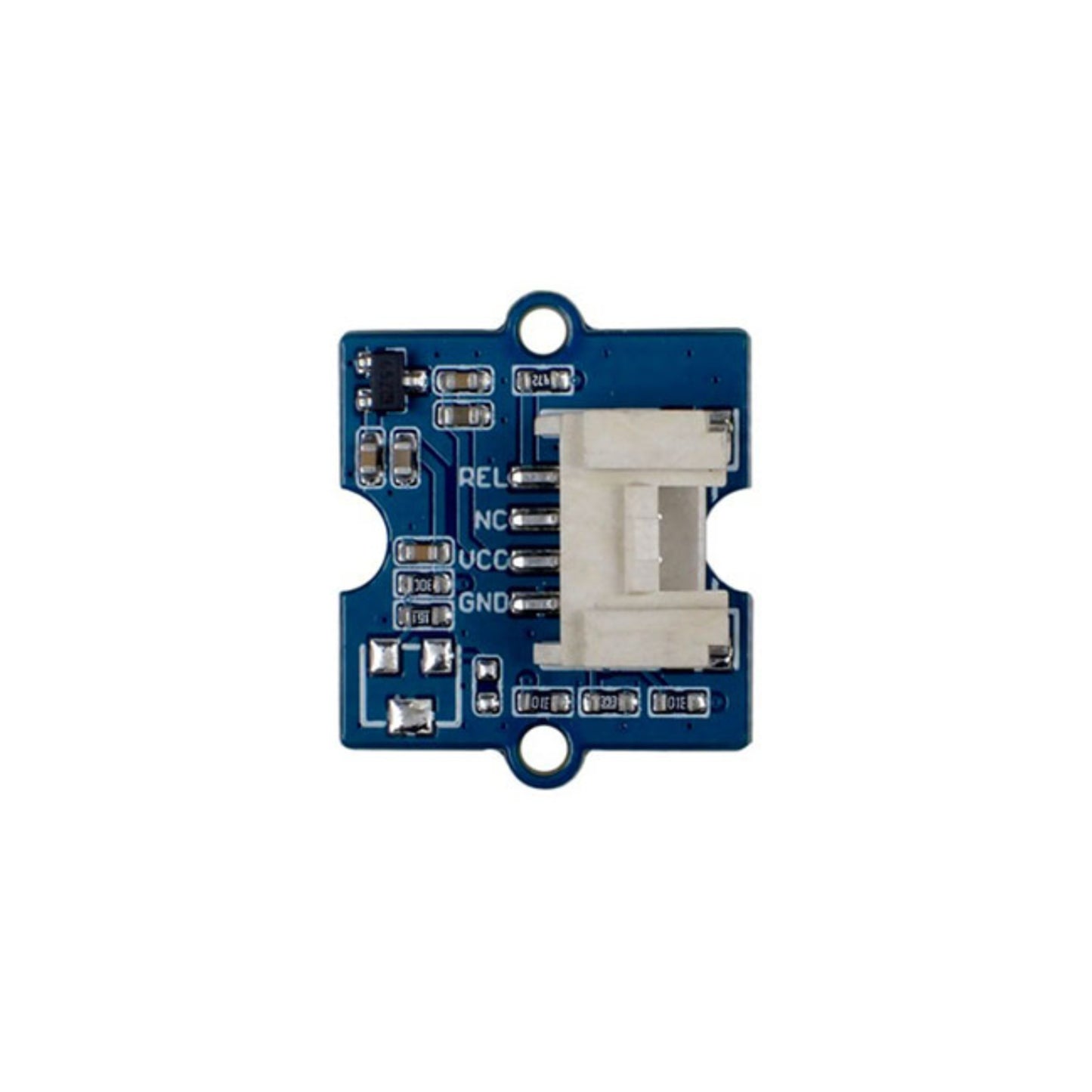

Mini PIR Motion Sensor is compact, cost-effective, and has low power consumption; moreover, this sensor has adjustable sensitivity and there is a reserved pin out on the back of the board so that you can solder a slide rheostat to adjust the sensitivity. If you think the sensitivity is not enough, here is a trick for you. Drag the plastic cap a little up and it will help enhance the sensitivity.
The detection distance in the datasheet is up to 3m to 5m, however, 2m is the recommended detection distance and also 25℃ is the most suitable temperature. It is a Mini PIR Motion Sensor Module completely suitable for applications with relatively fewer detection distance requirements and you can use this Mini PIR Motion Sensor Module in various applications such as Motion Sensor/Detector System, Security Alarm System, and Human Detection System.
Specifications:
- Type: Sensor Module
- Colour: Blue
- Input Supply Voltage: 3.3-5 VDC
- Working Current: 12-20 A
- Max. Detecting Range: 2m (25?)
Features:
- Low power consumption
- Compact size
- Cost-effective
- Adjustable sensitivity
- Grove compatible interface
Note:
- Please note that the orientation can influence the sensitivity, for more accurate detection, please place the sensor as in the picture below
- The Grove mini PIR motion sensor will work with the same library as the Grove PIR Motion Sensor. So, please refer to the wiki page of Grove PIR Motion Sensor and download the Library from there to get started with this sensor.
Package Included:
1 x SeeedStudio Mini PIR Motion Sensor Module Grove Mini PIR Motion Sensor High-Sensitivity Mini PIR Motion Detector Compact PIR Sensor for DIY Projects
