Description:

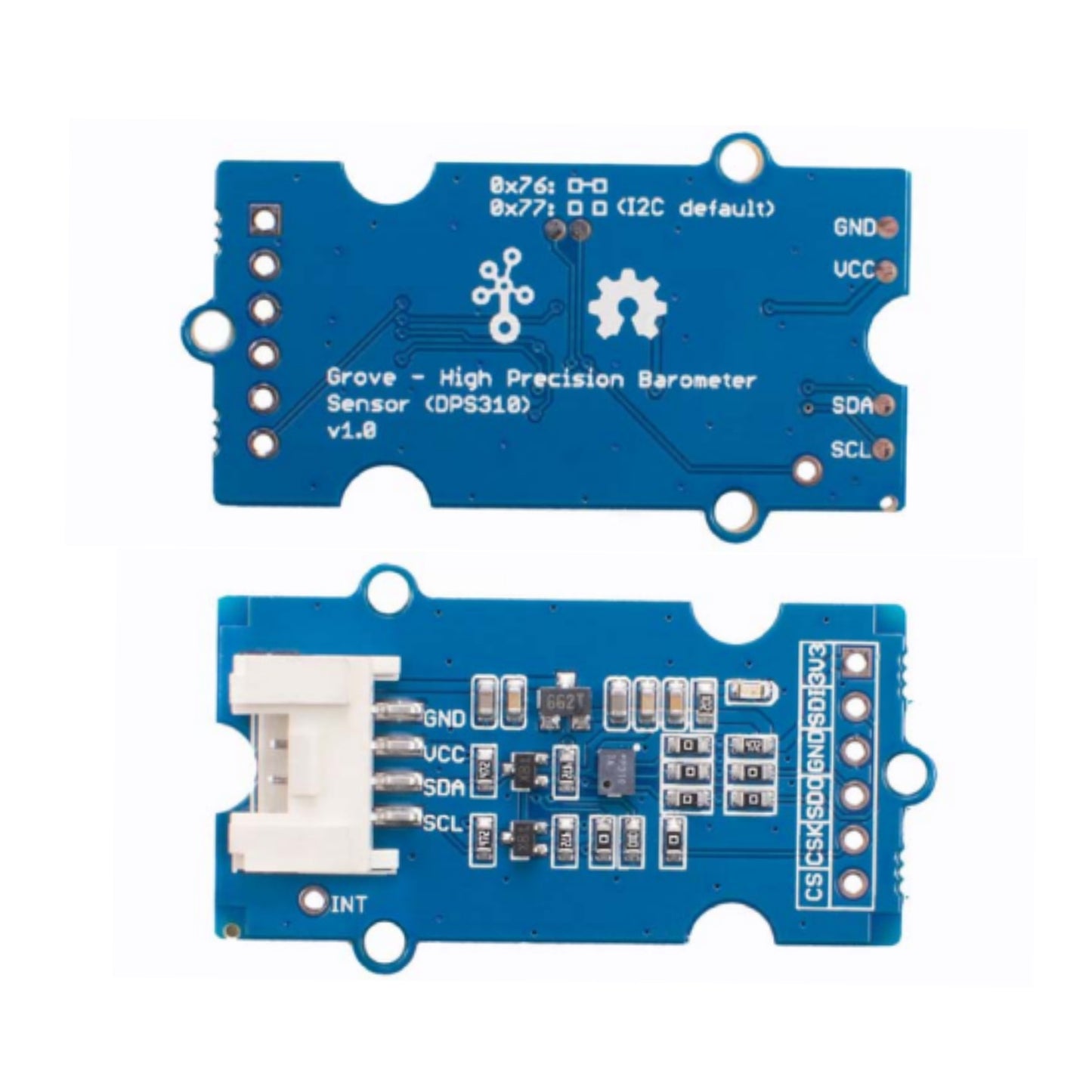

The SeeedStudio DPS310 Barometric Pressure Sensor is based on Infineon's latest sensor the DPS310. The Environmental Sensor is a miniaturized Digital Barometric Air Pressure Sensor with high accuracy and low current consumption, capable of measuring both pressure and temperature.
The Grove High-Precision Barometer Sensor pressure measurement range this sensor is 300 -00 hPa, and the temperature measurement range is -40-85 ° C. Therefore you can use it to measure the air pressure, altitude, temperature, and build your Arduino barometer.
This Accurate Barometric Pressure And Temperature Sensor is not only highly accurate but also extremely easy to use. You can flexibly choose the onboard Grove IIC interface or 6-pin SPI interface. When it comes to the Grove IIC port, you can just plug it into the Seeeduino or Arduino+ base shield. No wiring or soldering is required and it works in both 3.3V and 5V systems. All in all, it's a time and money-saving high-precision Arduino barometric pressure sensor solution.
Specifications:
- Model Type: Barometer Sensor
- Model No: DPS310
- Operating Temperature: -40 ~ 85 ˚C
- Communication Mode: I2C/SPI
- Pressure Resolution: 0.06 Pa
- Pressure Range: 30 to 120KPa
