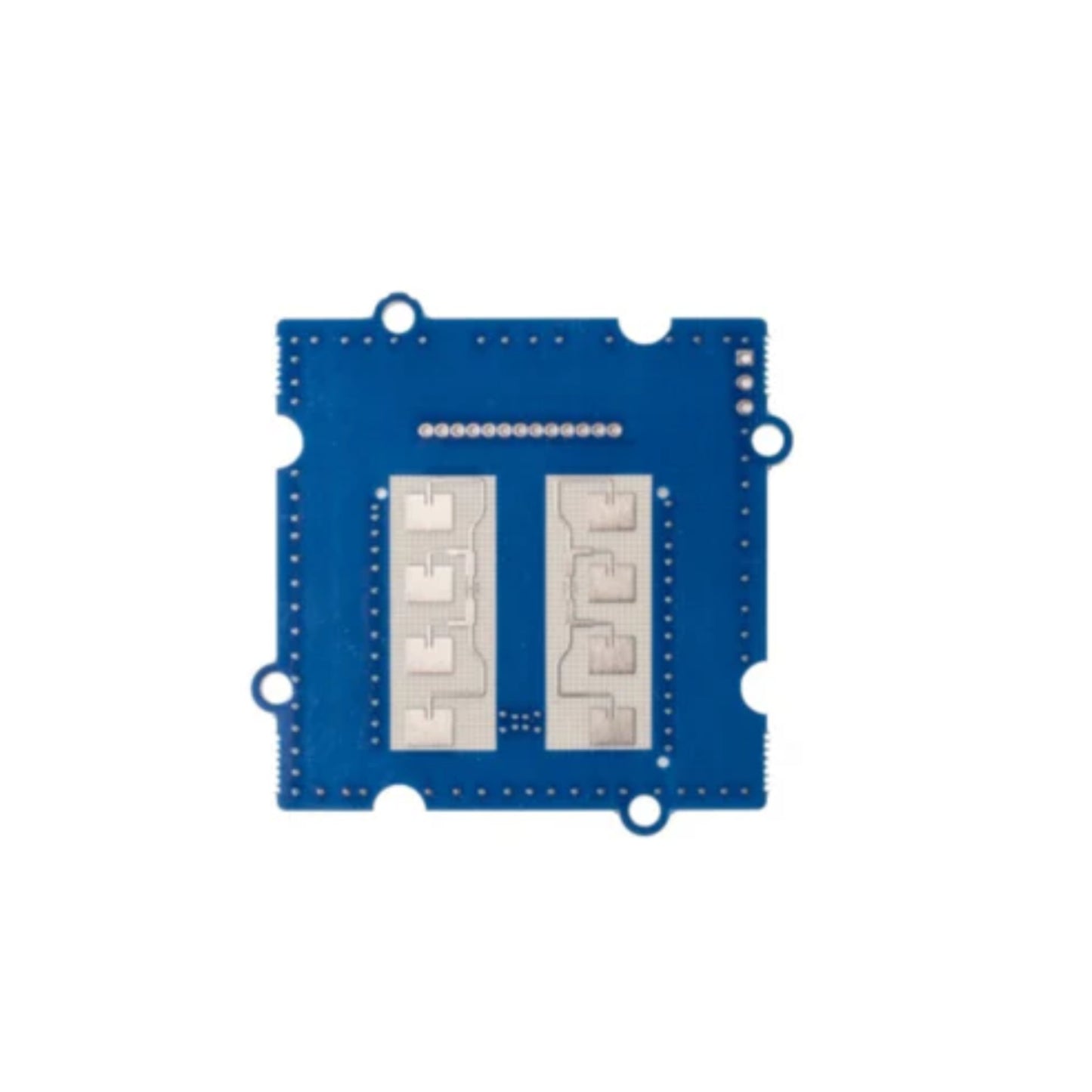

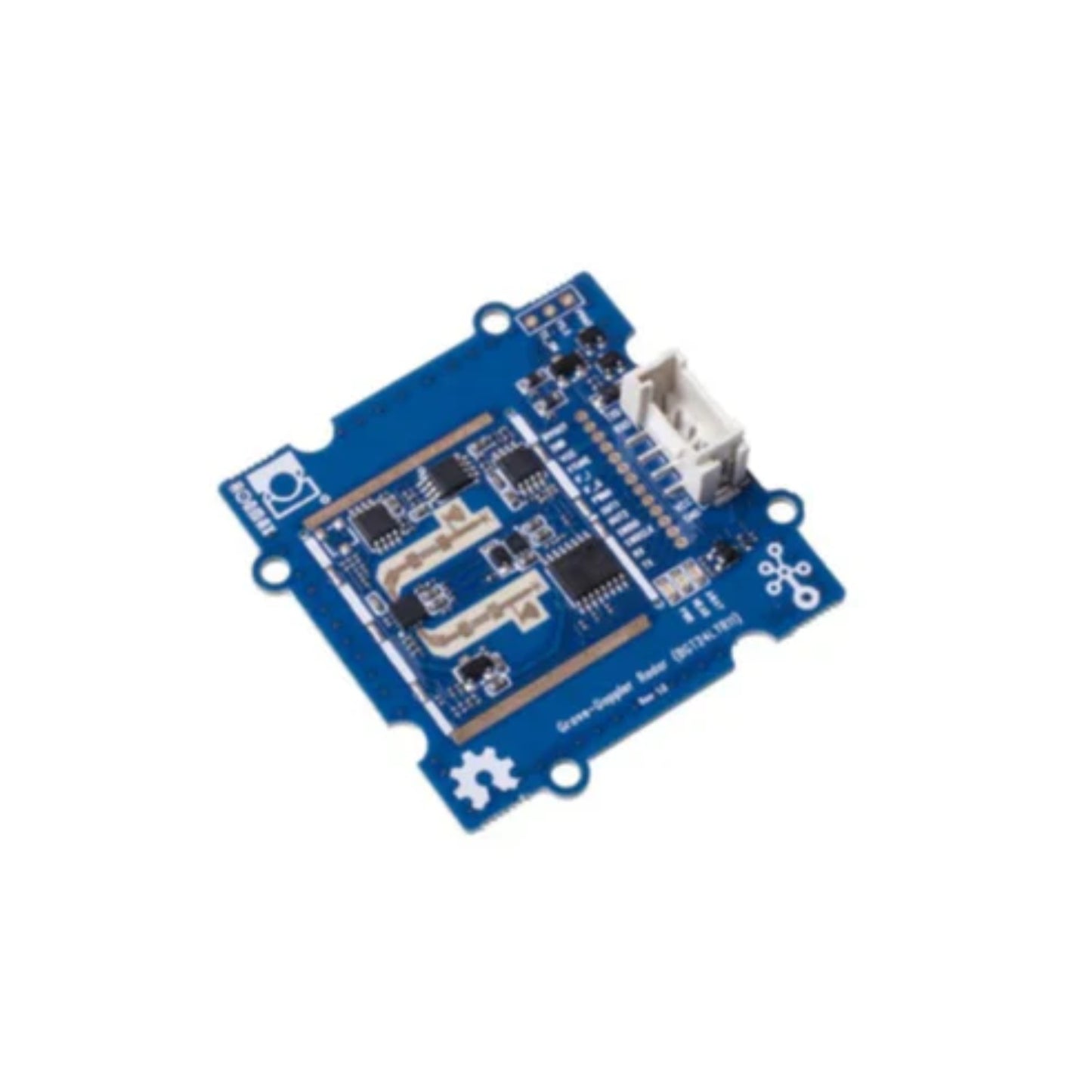

Description:
The Grove Doppler Radar Module is powered by the BGT24LTR11 Silicon Germanium MMIC, a 24GHz radar transceiver, and is driven by an XMC1302 MCU based on Arm® Cortex®-M0. Its compact design ensures low power consumption while delivering high-precision measurements.
The high-frequency radar enables exceptional penetration through objects, allowing it to be deployed behind surfaces, making it ideal for security systems. This module operates effectively in harsh environments, including extreme temperatures, dust, and rain, providing reliable proximity sensing and motion detection even in challenging conditions
Specifications:
- Model Type: Doppler Radar Sensor
- Operating Voltage (V): 3.3-5V
- MMIC: BGT24LTR11
- MCU Series: XMC1302 Arm® Cortex®-M0
- Transmission Frequency: Min 24GHz Typical 21.125GHz Max 24.25GHz
- Output Power(EIRP): 7dBm @ 25°C
- Update Time: 300ms
- Communication Mode: UART (115200)
Features:
- The first radar-based sensor in the Grove Family
- Compact size for easy deployment
- Light-weight design, suitable for UAV applications
- Low power consumption for prolonged usage
- 24GHz Transceiver MMIC for high-precision measurements
- Fast response using electromagnetic waves
- ESD protection to avoid system failures caused by ESD strikes
- High penetration which allows it to be deployed behind an object
- Maintains operation through harsh weather conditions (temperature, light, dust, rain)

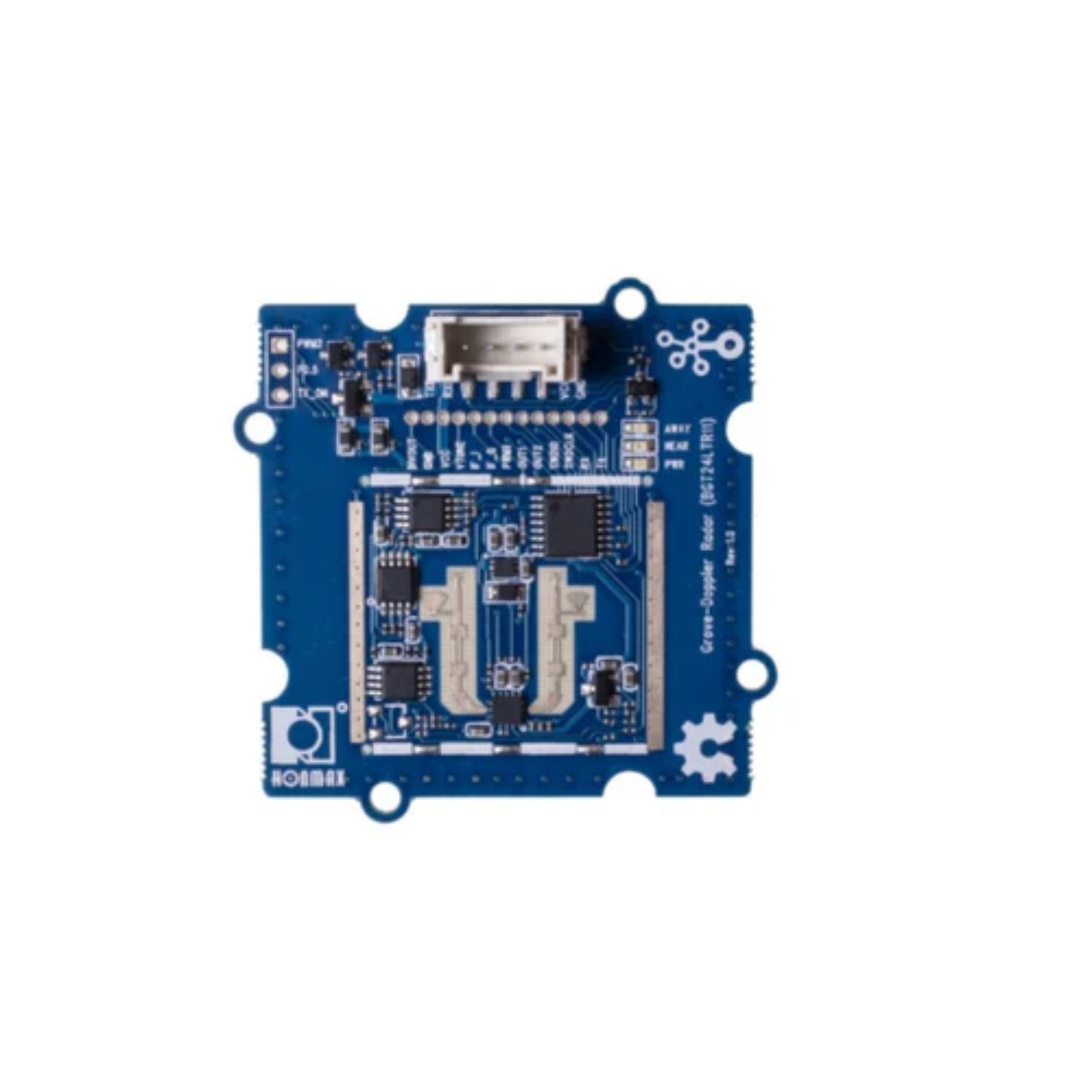

Pin Description:
- DIV_OUT: Frequency divider output from the BGT24LTR11
- GND: Ground
- VCC_5V_EXT: External+5.0V input power supply pin(maximum=5.5V)
- VTUNE VCO: frequency tuning voltage
- IFQ_HG BGT24LTR11: Q-channel-analog signal output-second gain stage
- IFI_HG BGT24LTR11: I-channel-analog signal output-second gain stage
- PWM_OUT: External user-configurable GPIO with CCU4
- OUT1: External GPIO pin (user configurable)
- OUT2: External GPIO pin (user configurable)
Package Included:
1 x SeeedStudio BGT24LTR11 Grove Doppler Radar Module Grove Motion Doppler Radar Sensor For Distance and Speed Measurement
