Description:

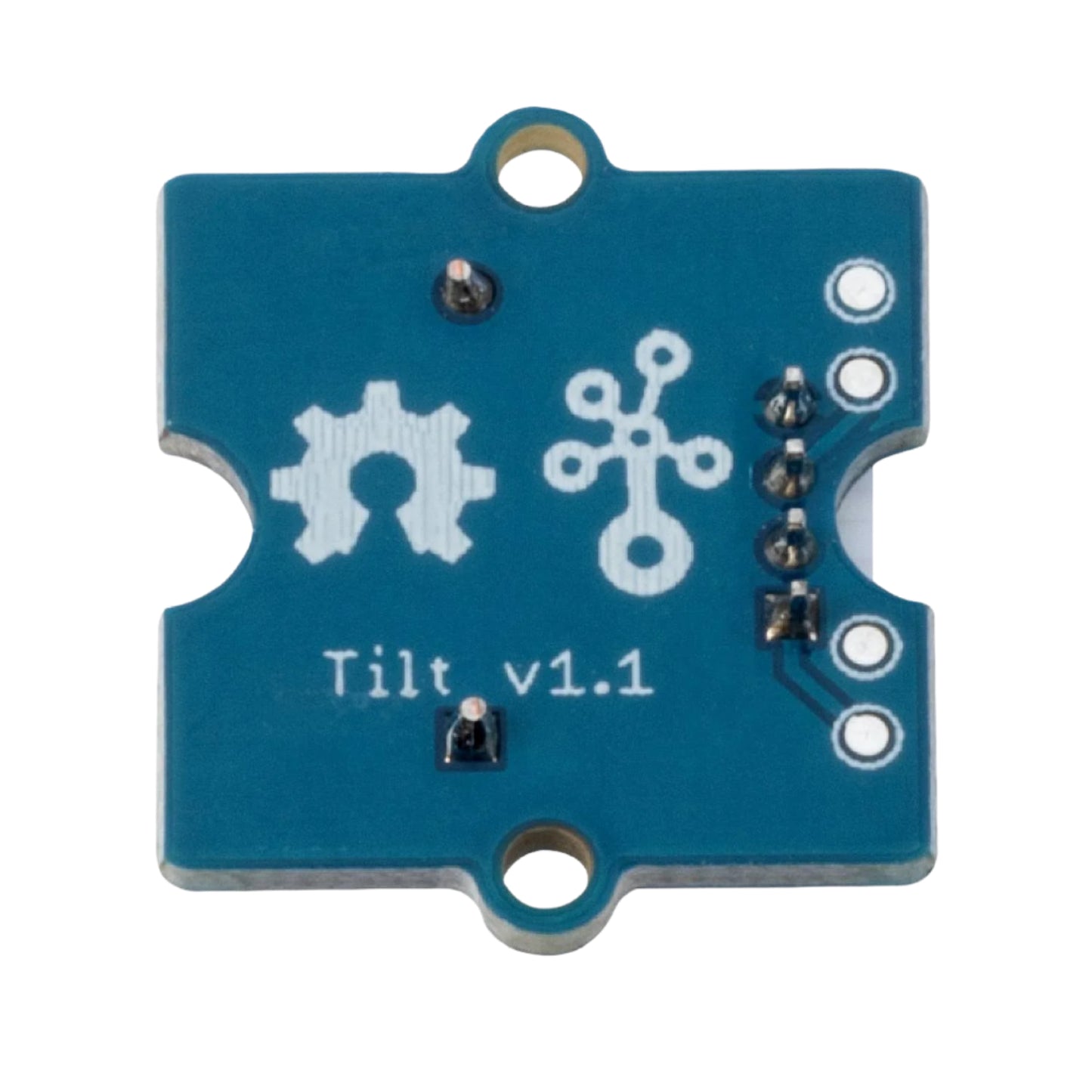

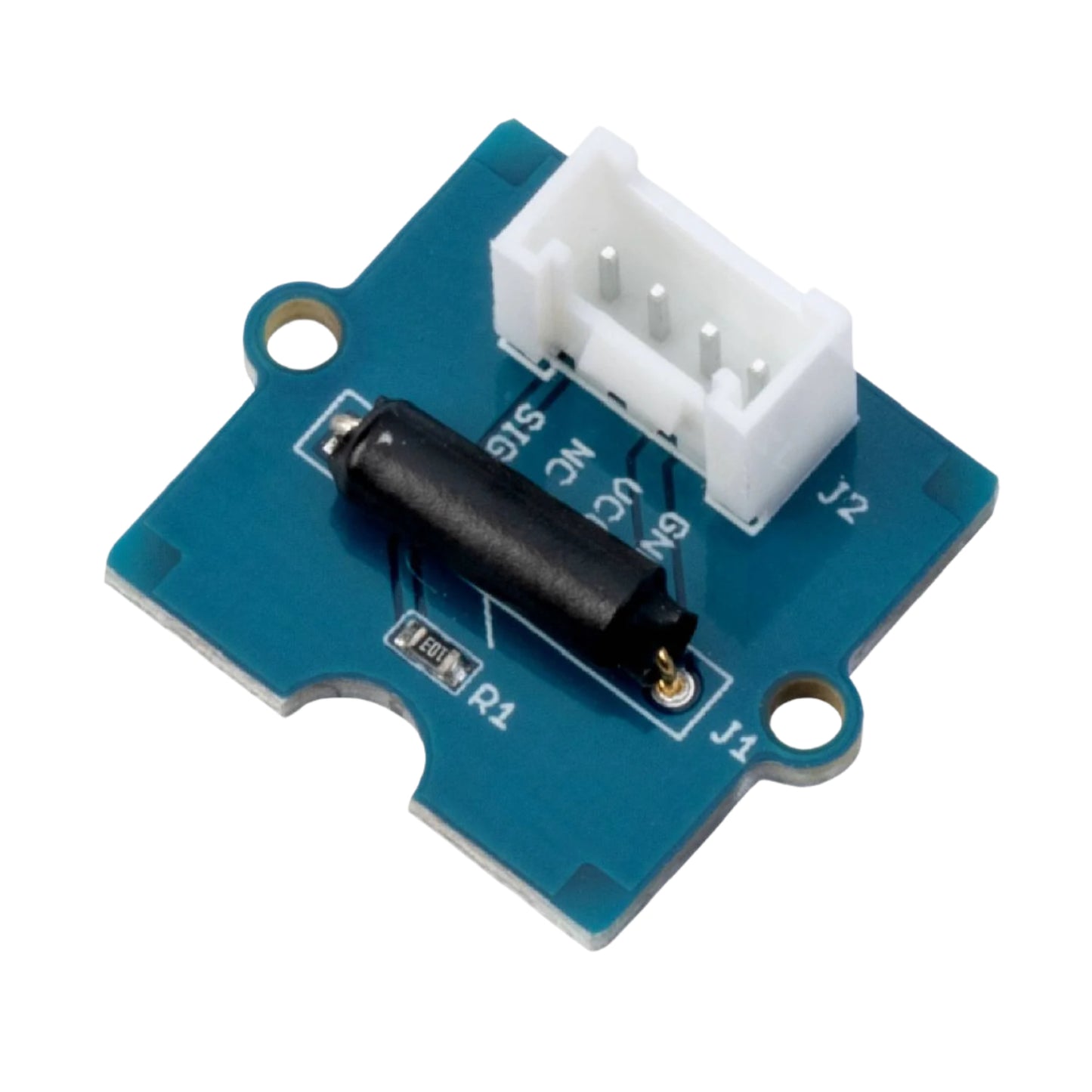

Experience the simplicity of inclination sensing with the Grove - Tilt Switch v1.1. This innovative module acts as a digital input for your microcontroller, offering a unique and intuitive way to detect changes in orientation.
At its core, the Seeed Studio Grove - Tilt Switch incorporates a clever mechanism. Inside the compact housing, a pair of internal balls are strategically positioned. When the Inclination Sensor is held level, the balls remain separated, maintaining an open circuit. However, tilting the switch causes the balls to roll and make contact, completing the circuit and signaling a change in orientation to the connected microcontroller.
Specifications:
- Model Type: Tilt Sensor Module
- Operating Voltage (VDC): 3.3 to 5
- Life Cycle: 100000
- Connecting angle: 10° ~ 170°
- Disconnect angle: 190° ~ 350°
Features:
- Easy to use
- Long-lasting life
- Grove compatible interface
- Simplicity
Package Included:
1 x Seeed Studio Grove - Tilt Switch Inclination Sensor
