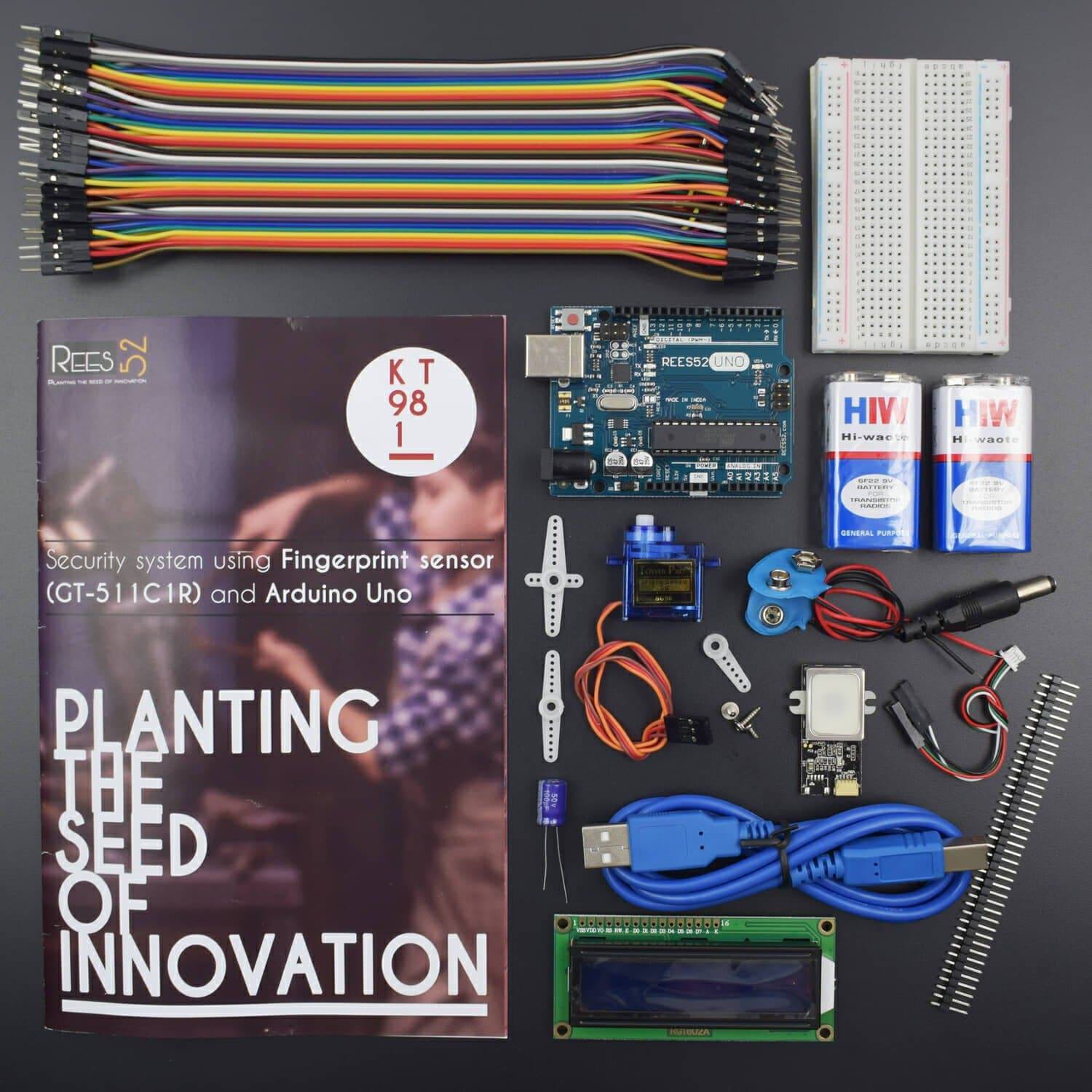

KIT INCLUDES

HARDWARE REQUIRED

SOFTWARE REQUIRED

Arduino IDE 1.8.5 (programmable platform for Arduino)

Click To Download :https://www.arduino.cc/en/Main/Software

INSTALL LIBRARY

For servo Motor: inbuilt library of Arduino or Download from https://drive.google.com/drive/folders/1XEyFZik_ENYtE4LOf3mOP3kqfqH3FNh2

16*2 LCD Display (Liquid Display): inbuilt library of Arduino

GT511C fingerprint Scanner: Click on this link to download this library: https://drive.google.com/open?id=1g3E45sI85X5k6p8wPOYKOTOs_ST3xxJg

CIRCUIT CONNECTION

Connect the GT511 Fingerprint scanner to arduino with fingerprint scanner’s red wire to 3.3v of Arduino uno
Black wire of fingerprint scanner to arduino uno’s ground pin
Green wire of fingerprint scanner toarduino uno’s digital pin D7
White wire of Fingerprint scanner to Arduino’s digital pin D8

Download the code given in the link below:

CODE-1

Click to see the code or copy the link

https://goo.gl/Bqbh5C

Now upload code 1

set the fingerprints using sdk software

Download the SDK Software:

https://learn.sparkfun.com/tutorials/fingerprint-scanner-hookup-guide?_ga=2.83121109.213978244.1515759134-440643312.1494316028

The image will be shown as given below:

when open as administrator then set com port and baud rate then enroll fingerprint upto 200 fingerprints as required.

Now connect the lcd to the breadboard
Connect pin 1 of LCD to ground
Connect pin 2 of LCD to positive rail on breadboard
Connect pin 3 of LCD to negative rail on breadboard
Connect pin 4 of LCD to digital pin 12 of arduino uno
Connect pin 5 of LCD to negative rail on breadboard
Connect pin 6 of LCD to pin 11 of arduino uno
Connect pin 11 of LCD to pin 5 of arduino uno
Connect pin 12 of LCD to pin 4 of arduino uno
Connect pin 13 of LCD to pin 3 of arduino uno
Connect pin 14 of LCD to pin 2 of arduino uno
Connect pin 15 of LCD to positive rail on breadboard
Connect pin 16 of LCD to negative rail on breadboard
Connect to breadboard with positive and negative rail
Connect a 100uf capacitor to the breadboard between Positive and negative rail
Now connect a servo motor
Connect orange wire of fingerprint scanner goes to pin 10 of arduino uno
Connect red wire to positive rail on breadboard and brown wire to negative rail on breadboard.

Now upload code 2

Click to download the code

CODE-2

Click to download the code or copy the link

https://goo.gl/5HWu9B

WORKING

In this security system using fingerprint sensor we used GT511C finger print sensor , in this we have to enroll the fingerprint using SDK software in this we can enroll up to 200 fingerprints. When we apply fingerprint

The gate will for the delay we provided and then it will close. The capacitor is used to reduce the spike voltage.
