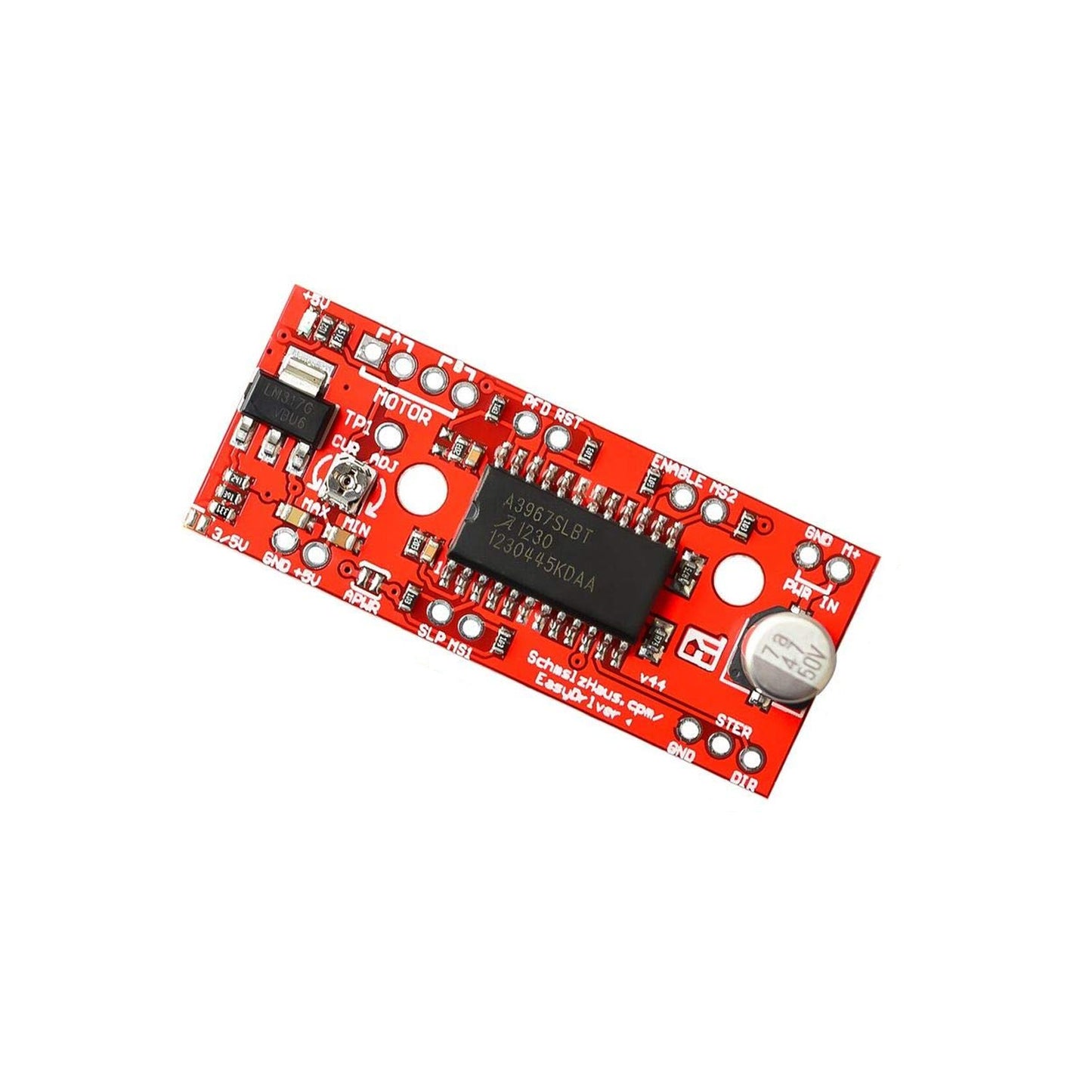

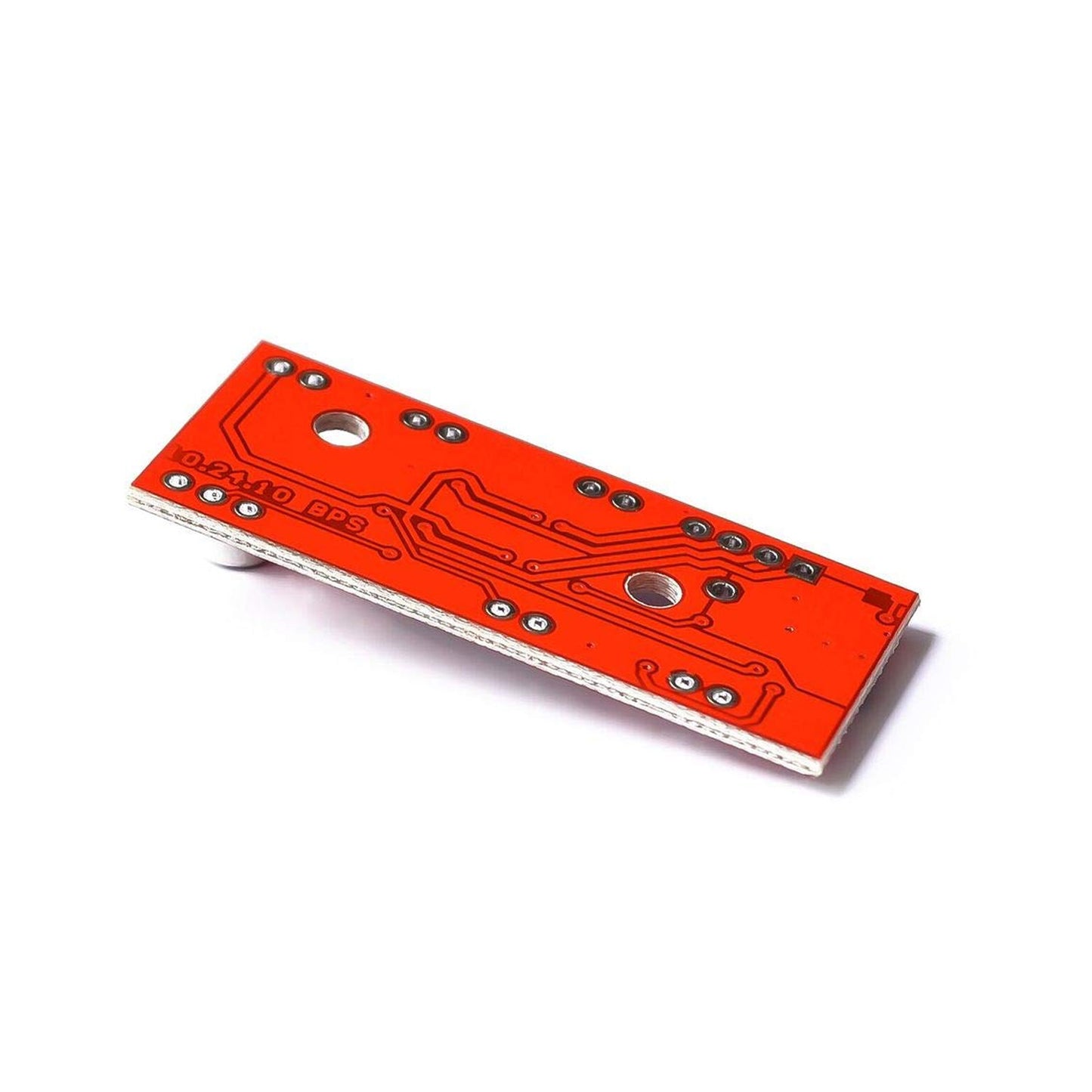

SD-A3967 SD-A3967 Easy Stepper Motor Driver Based On A3967 for Arduino, Raspberry Pi, Avr Pic- NA093

SD-A3967 SD-A3967 Easy Stepper Motor Driver Based On A3967 for Arduino, Raspberry Pi, Avr Pic- NA093

SKU:NA093

15 in stock

Regular price Rs. 145.00
Regular price Sale price Rs. 145.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

The EasyDriver is a simple to use stepper motor driver, compatible with anything that can output a digital 0V to 5V pulse. (or 0V to 3.3V pulse if you solder SJ2 closed on the EasyDriver). EasyDriver requires a 7V to 30V supply to power the motor and can power any voltage of stepper motor. The EasyDriver has an onboard voltage regulator for the digital interface that can be set to 5V or 3.3V. Connect a 4-wire stepper motor and a microcontroller and you've got precision motor control! EasyDriver drives bi-polar motors, and motors wired as bi-polar. I.e. 4, 6, or 8 wire stepper motors. It provides much more flexibility and control over your stepper motor when compared to older versions. The microstrip select (MS1 and MS2) pins of the A3967 are broken out allowing adjustments to the micro-stepping resolution. The sleep and enable pins are also broken out for further control.

Features:

  • MS1 and MS2 pins broken out to change micro stepping resolution to full, half, quarter and eighth steps (defaults to eighth)
  • Compatible with 4, 6, and 8 wire stepper motors of any voltage
  • Adjustable current control from 150mA / phase to 750mA / phase
  • Power supply range from 7V to 30V. The higher the voltage, the higher the torque at high speeds

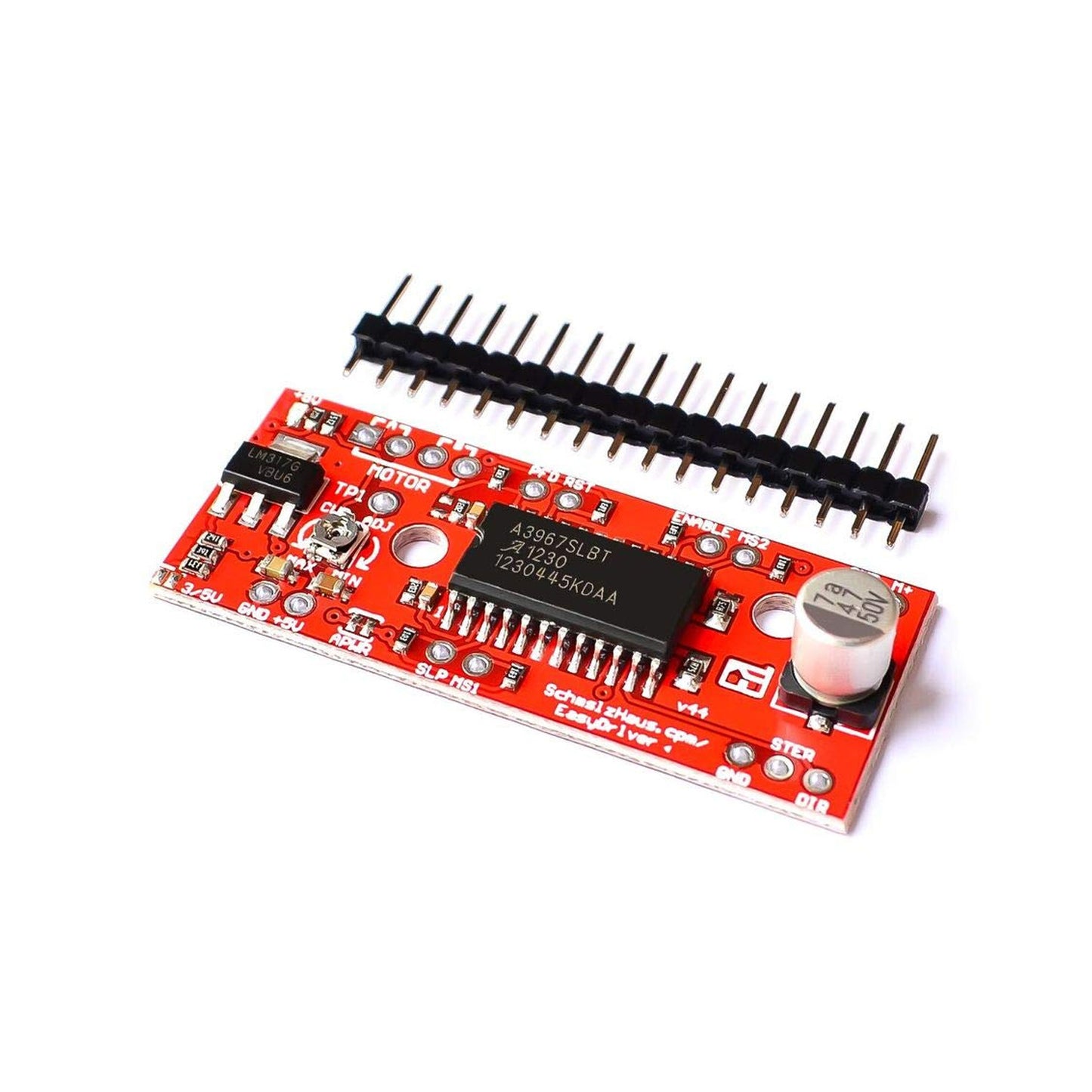

  • Distribution pin, not welded, this module is open source

Package Included:

1 x SD-A3967 Sd-A3967 Stepper Motor Driver
