Description:

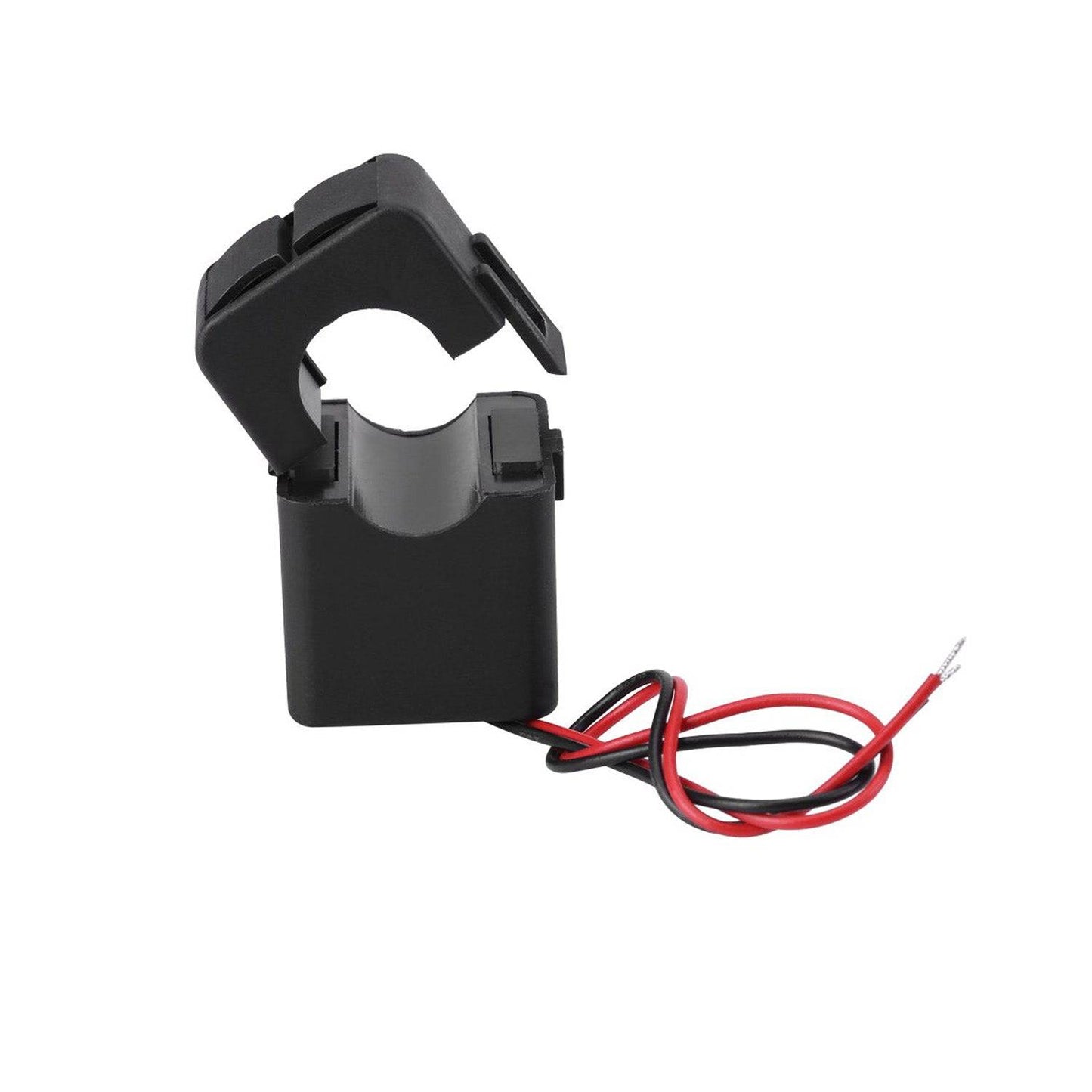

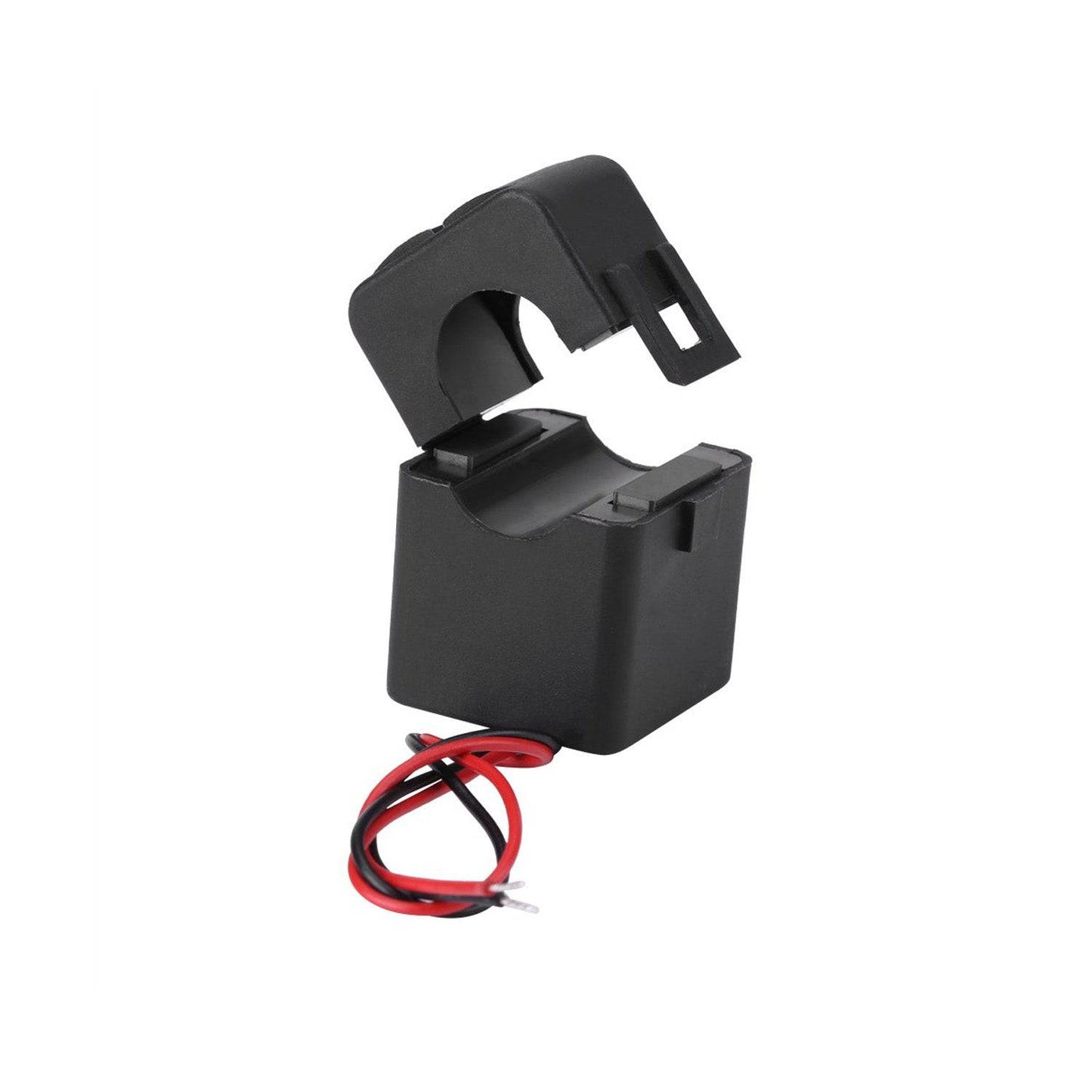

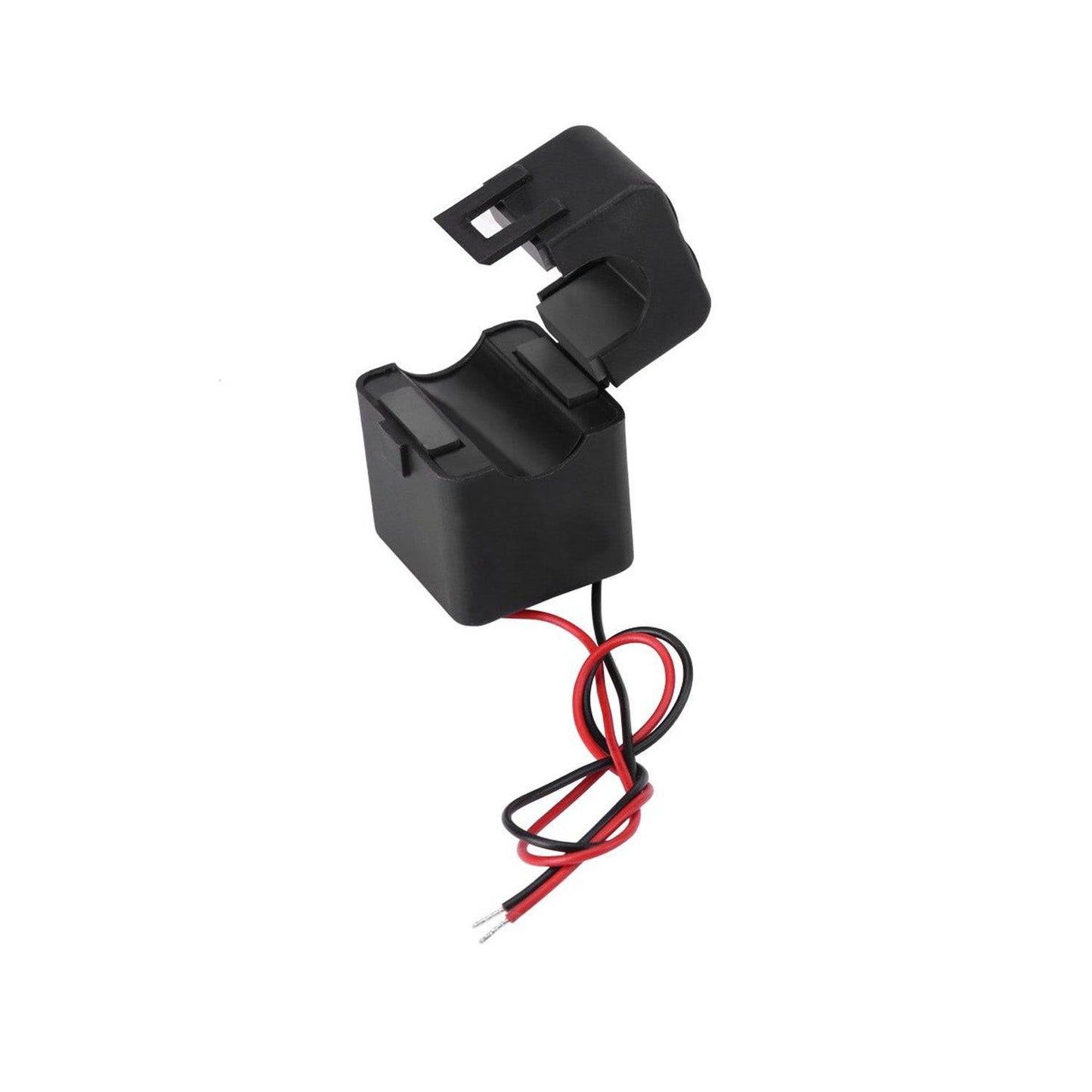

SCT016S Split Core Current Transformer provides accurate measurements of AC electrical systems and features a removable or hinged leg for easy installation without disconnecting wires or interrupting power. Both retrofit and semi-permanent metering applications can benefit from the split-cores non-invasive design.
SCT016S Split Core Current Transformer has a split in the core that allows the CTs to open and be placed around the conductor without having to disconnect the conductor or disrupt the wiring. Split core CTs may be more expensive but their convenience generally outweighs their cost when dealing with retrofit installations. SCT016S Split Core Current Transformer in a case if one winding is used other is un-used then the other winding must be short-circuited to avoid high induced voltage in unused winding
Specifications:
- Model: YHDC SCT016S
- Material of Core: Silicon steel sheet
- Work Voltage: 720V
- I/O Current 100A, Output 1A
- Operating Temperature: -25℃～+60℃
- Frequency Range: 50Hz～1KHz
Features:
- Safety lock buckle, easy to install
- Built-in over-voltage protection device (TVS tube)
- Lead type output and length can be customized
Package Included:
1 x SCT016S Split Core Current Transformer YHDC SCT016S-100A-1A Split Core Transformer, Coil Sensor, Energy Meter in Special
