Description:

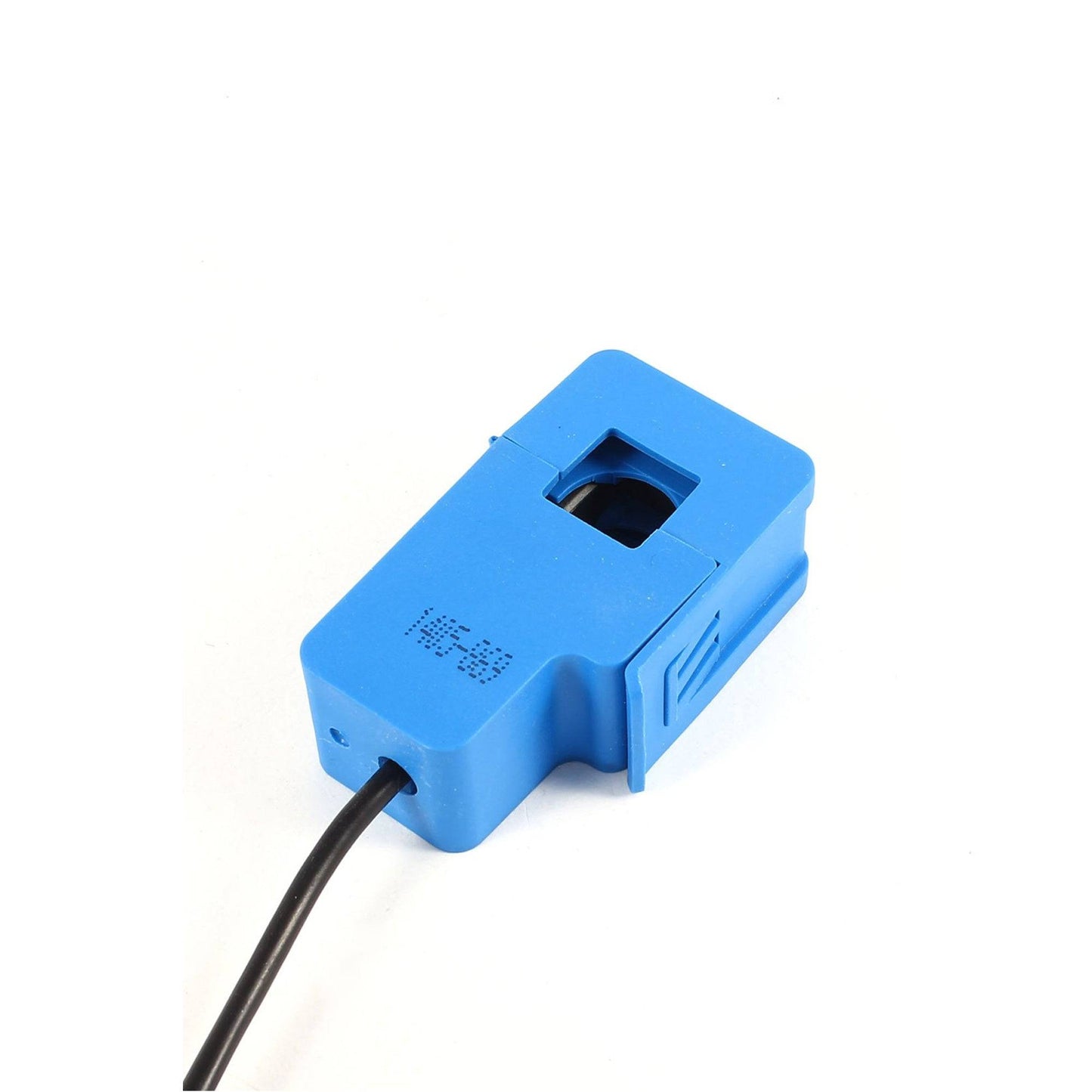

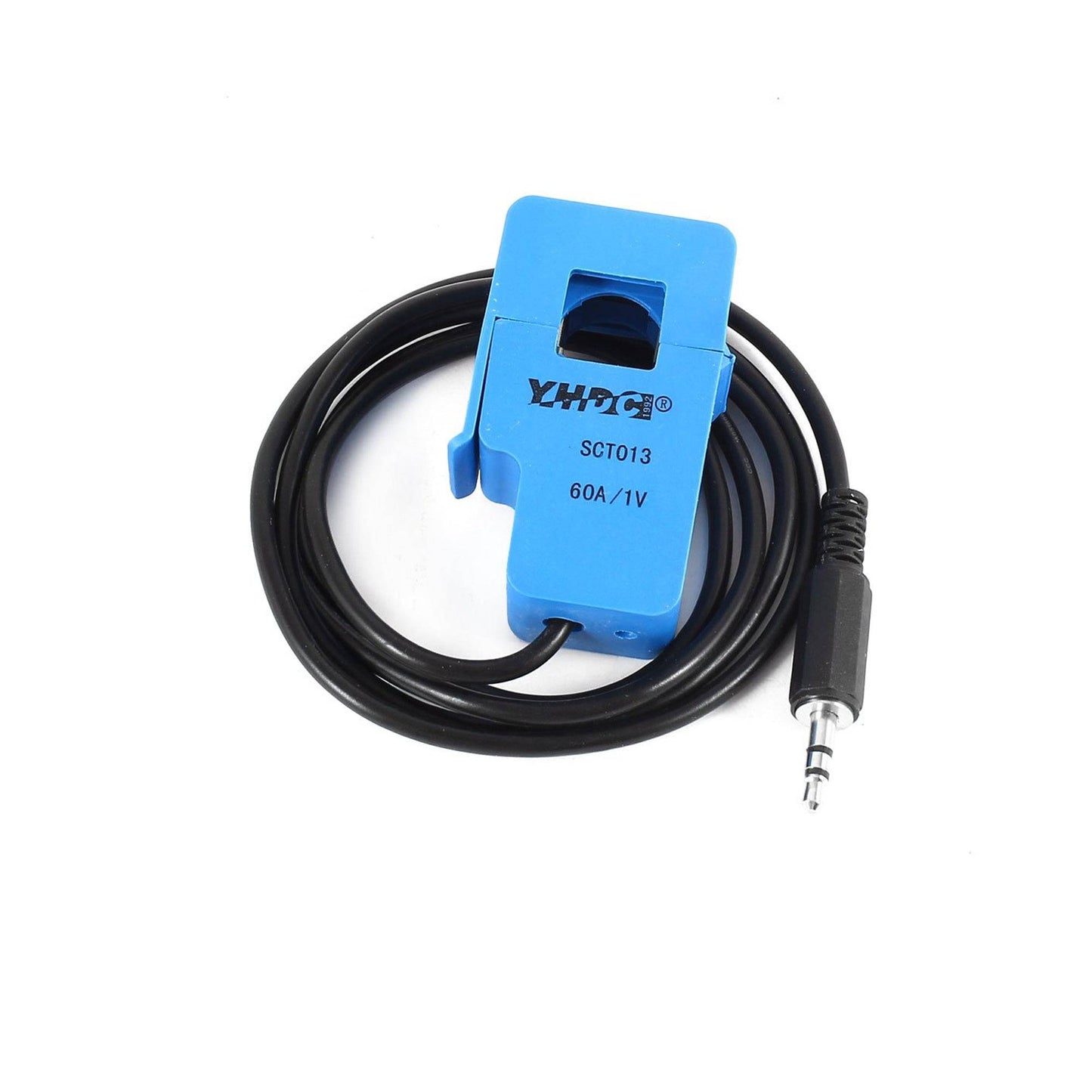

The SCT-013-060 Current Sensor offers a silicon steel sheet split core structure, hanging installation with a lead Length of 1m, used for current measurement, monitoring and protection for AC motor, lighting equipment, air compressor, etc. They are particularly useful for measuring whole-building electricity consumption (or generation for that matter).
The split-core type such as the SCT-013-060 Current Sensor in the picture is particularly suitable for DIY use. Clip this SCT-013-060 Current Sensor straight onto either the live or neutral wire coming into the building without having to do any high-voltage electrical work.
Specifications:
- Model: SCT03-013-060
- Rated Input: 60A
- Max. Input: 75A
- Rated output: 1V
- Linearity: <0.2%
- Accuracy: 1%
- Work Voltage: 660V
- Frequency Range: 50Hz~1KHz
- Dielectric Strength: 3.5 kV 50Hz 1min
- Operating Temperature: -25~70°C
Features:
- Non-invasive current transformer
- Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
- Meet UL94-V0 flame retardant properties
- Two forms of output current, voltage (voltage output built-in the sampling resistor).
Package Included:
1 x SCT-013-060 Current Sensor
