- Model : SCT 03-013-060
- Rated Input (rms) (A) : 60
- Max. Input (A) : 75
- Rated output (V) : 1
- Linearity : <0.2%
- Accuracy : 1%
- Work voltage (V) : 660
- Frequency range : 50Hz 1KHz
Description :

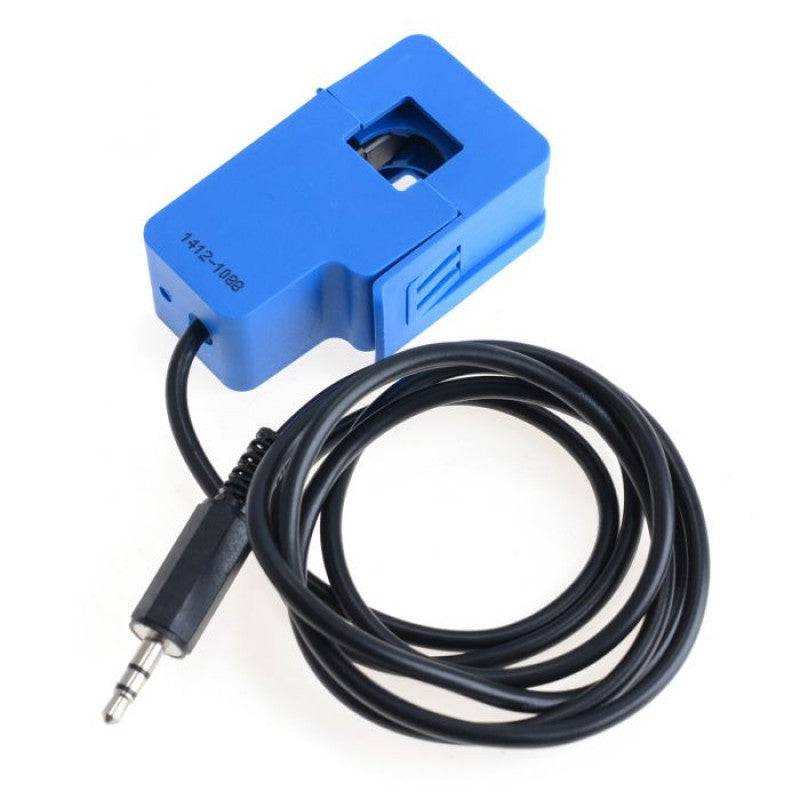

The SCT-013-060 Non-invasive current sensor offers a silicon steel sheet split core structure, hanging installation with leads Length of 1m, used for current measurement, monitor and protection for AC motor, lighting equipment, air compressor, etc.
Application :
- Suitable for the current measuring.
- Monitoring and protection of AC motor
- Lighting equipment
- Air compressor
Feature :
- Non-invasive current transformer
- Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
- Meet UL94-V0 flame retardant properties
- Two forms of output current, voltage (voltage output built-in the sampling resistor).
Specification :
- Model : SCT 03-013-060
- Rated Input (rms) (A) : 60
- Max. Input (A) : 75
- Rated output (V) : 1
- Linearity : <0.2%
- Accuracy : 1%
- Work voltage (V) : 660
- Frequency range : 50Hz 1KHz
- Dielectric strength : 3.5KV 50Hz 1min
- Operating Temperature (C) : -25 ~ 70
- Connecting cable length (m) : 1
- Length (mm) : 57.5
- Width (mm) : 34
- Height (mm) : 21
- Weight (gm) : 64
Package Included:

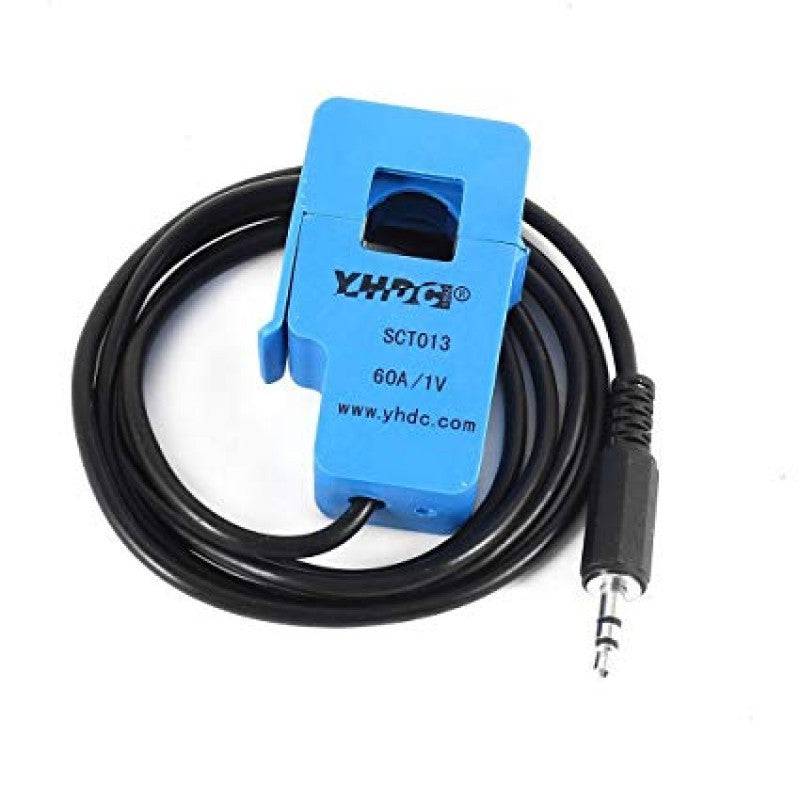

1 x SCT-013-060 Non-invasive AC Current Sensor Clamp Sensor 60A.
