- Input Current: 0-30A
- Output Mode: Current/33mA
- Output Plug: 3.5mm
- Dielectric Strength: 6000V AC/1min
Description:

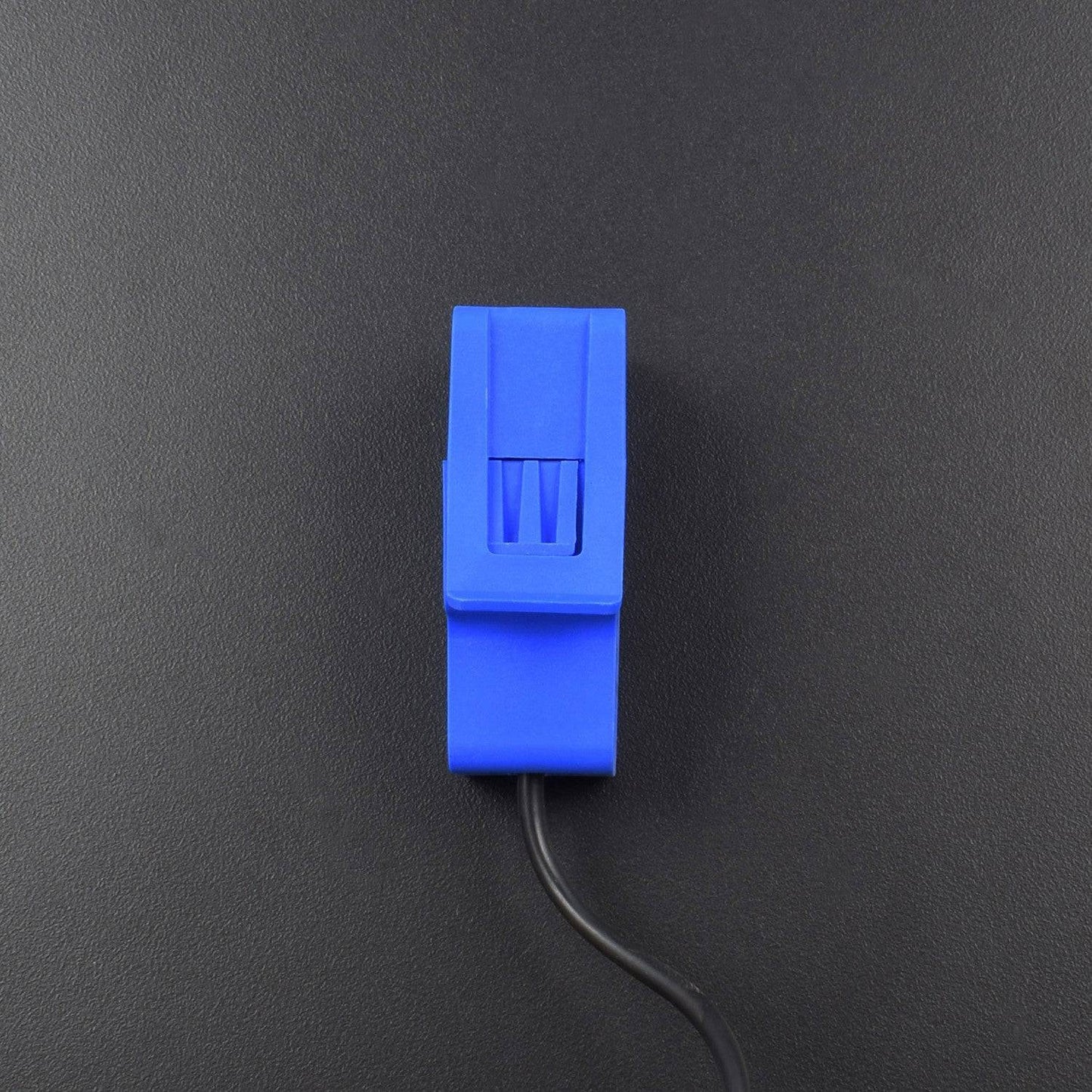

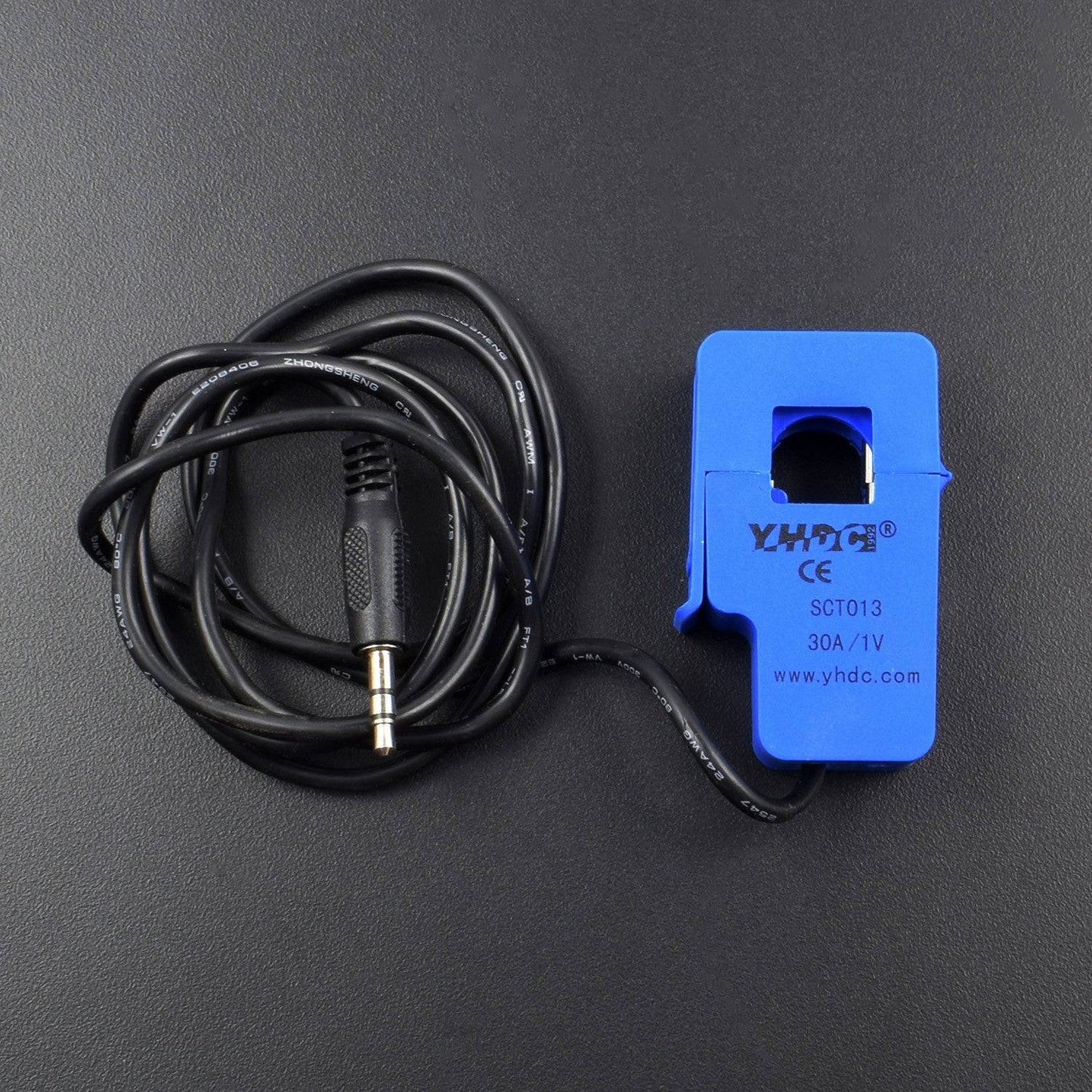

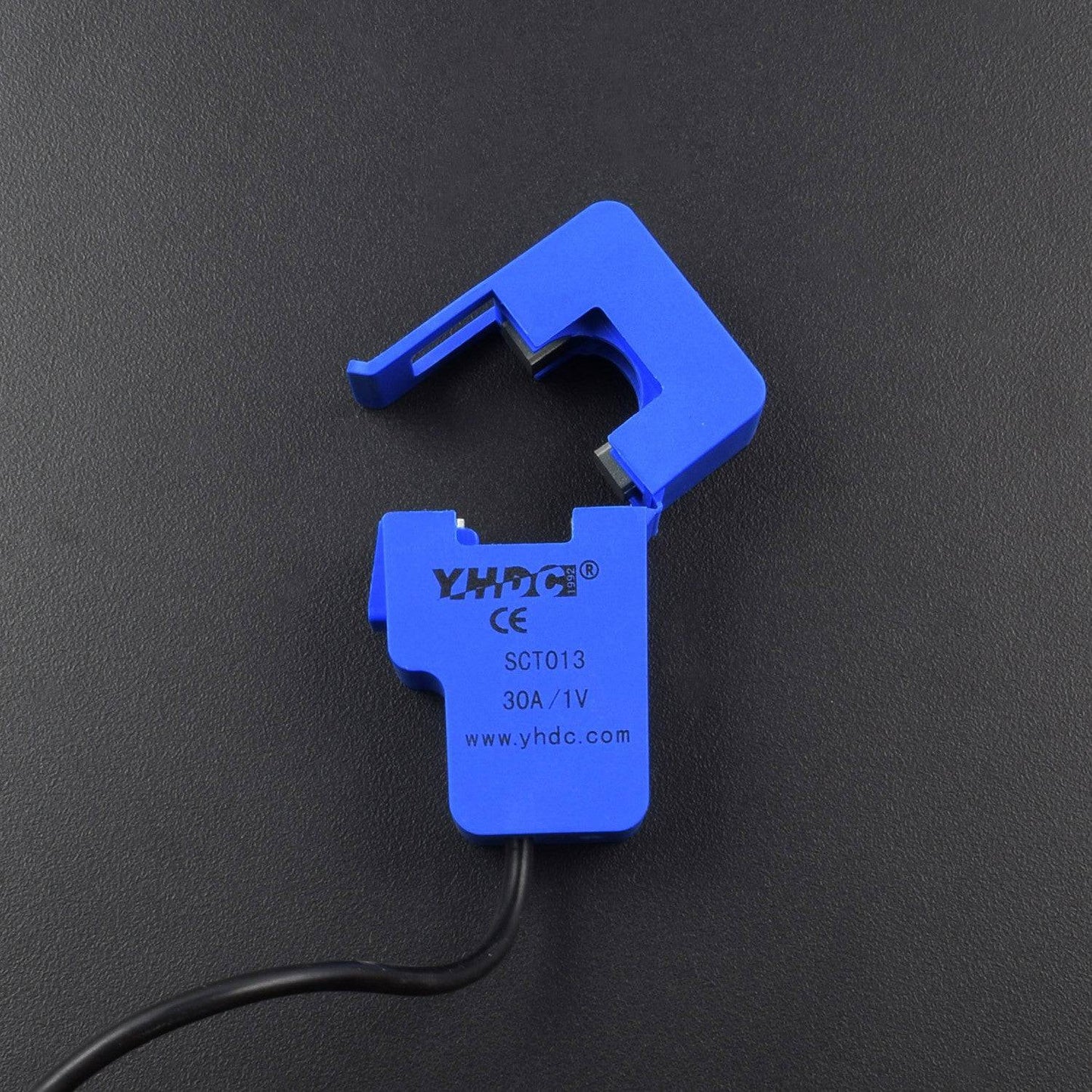

This is an AC current measuring sensor featuring CT technology, CT stands for current transformer, a transformer unit split in two half like a clamp for measuring alternating current source. Non-invasive AC Current Sensor can measure a load up to 30 Amps AC source, simply clamp the current sensor on the live wire or neutral wire. The sensor measures the amount of current flowing through the wire. The output is a small AC signal which can be further use for energy meter application or for over-current protection of AC devices. To facilitate the application need the sensor has 3.5mm jack on the output side. The popular application of Non-invasive current sensor is like safe working on the high voltage electrical lines, protection of overcurrent of the electrical device like AC motor, Air compressor.
Specification:
- Input Current: 0-30A
- Output Mode: Current/33mA
- Output Plug: 3.5mm
- Dielectric Strength: 6000V AC/1min
- Opening Size: 13 x 13mm/ 0.5" x 0.5"(L*W)
- Cable Length: 1.18m/ 45.4"
- Working Temperature: -25~70C
Features:
- Non-invasive current transformer
- Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
- Meet UL94-V0 flame retardant properties
- Two forms of output current, voltage (voltage output built-in the sampling resistor)
- Non-linearity ±3%(10%-120% rated input current)
- Output Plug 3.5mm.
Application:
- Suitable for the current measuring.
- Monitoring and protection of AC motor
- Lighting equipment
- Air compressor
Package Included:
10 x SCT-013-030 Non-invasive AC Current Sensor Clamp Sensor
