Description:

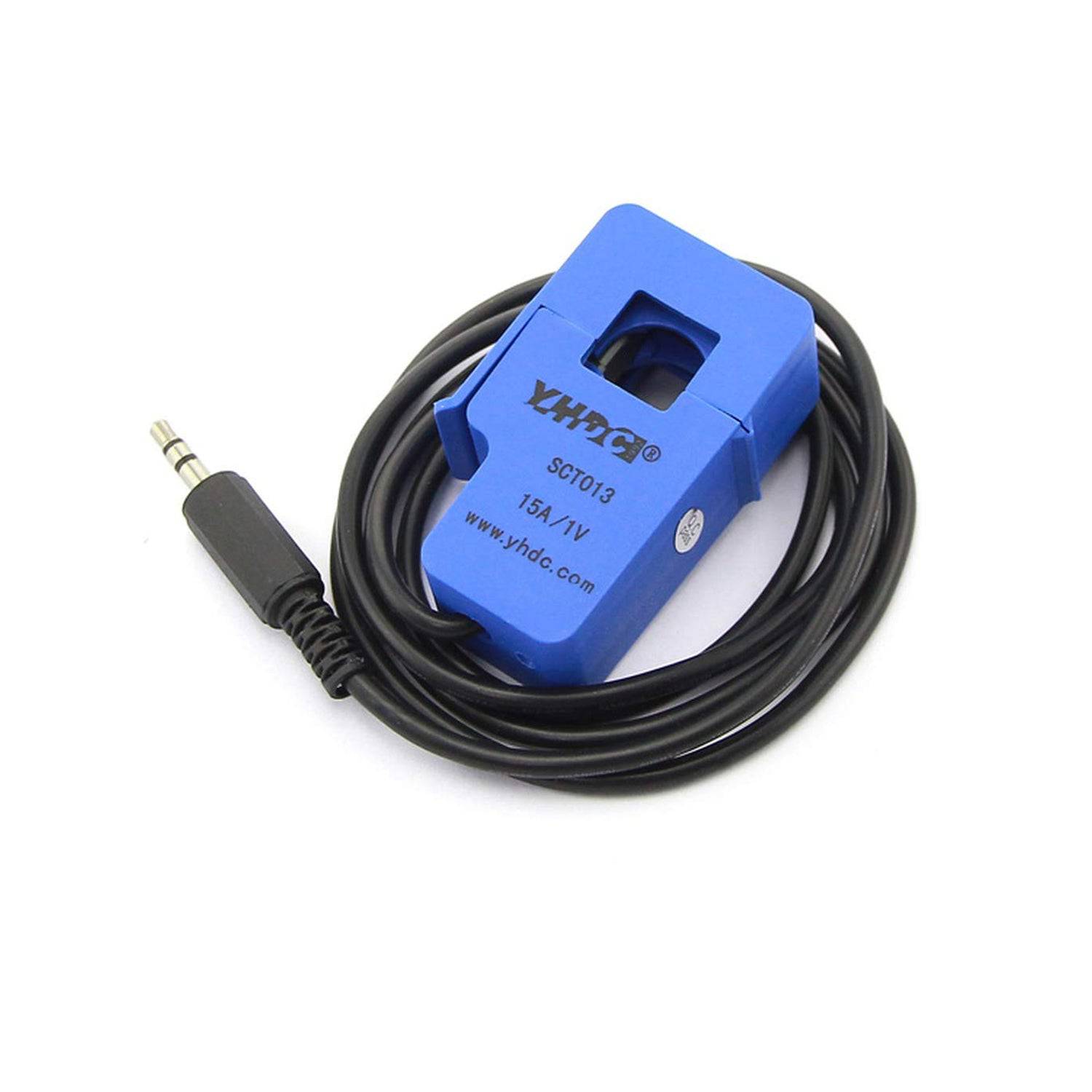

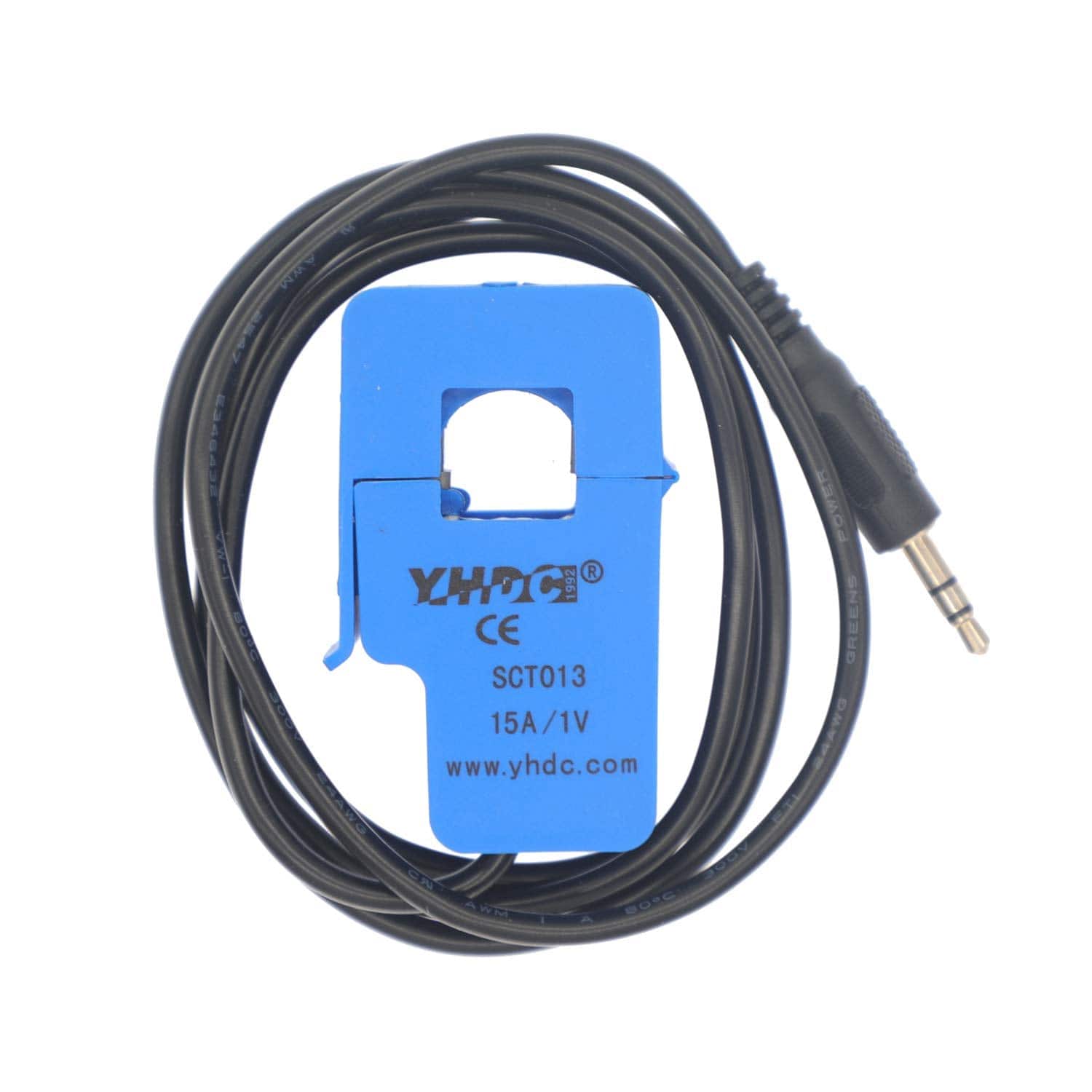

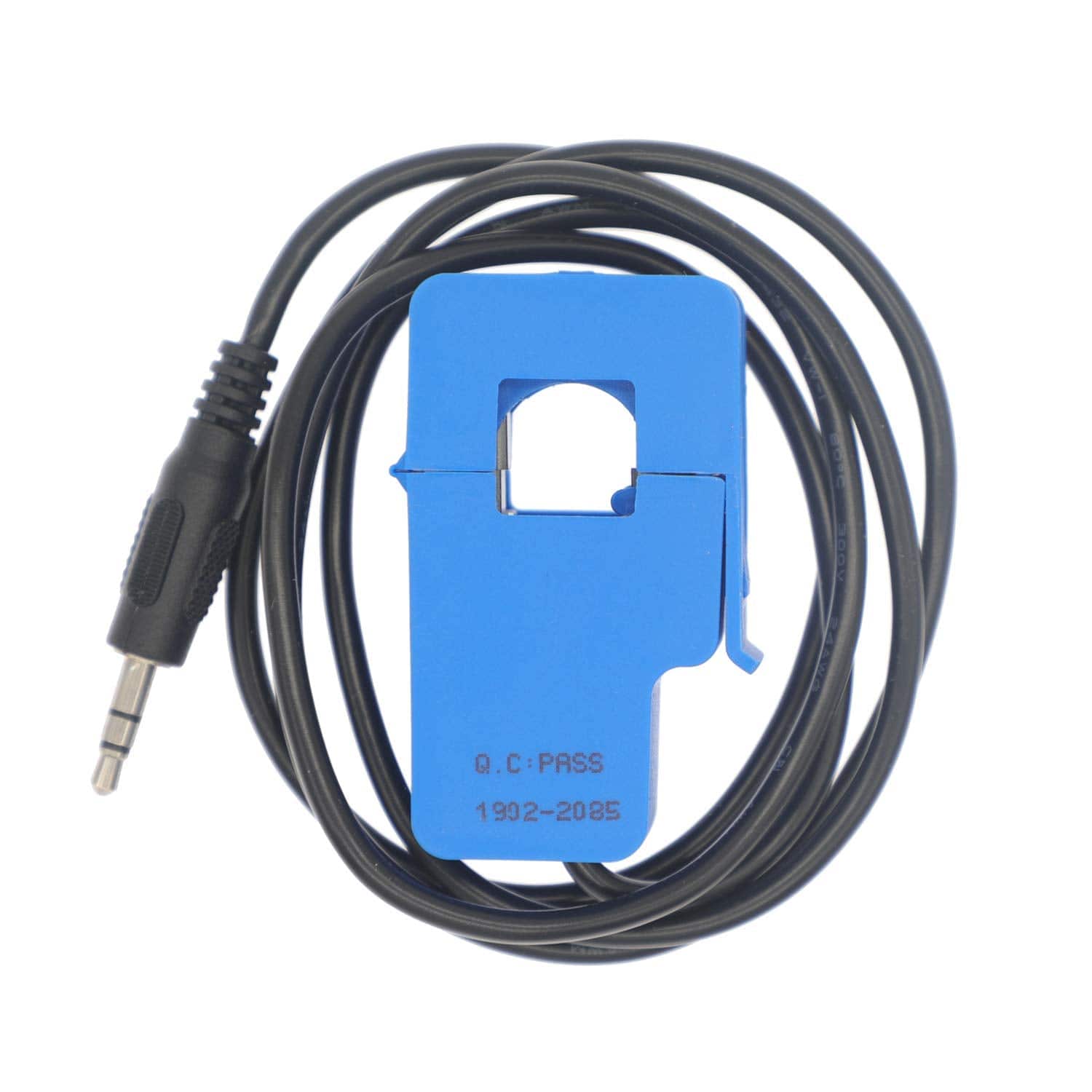

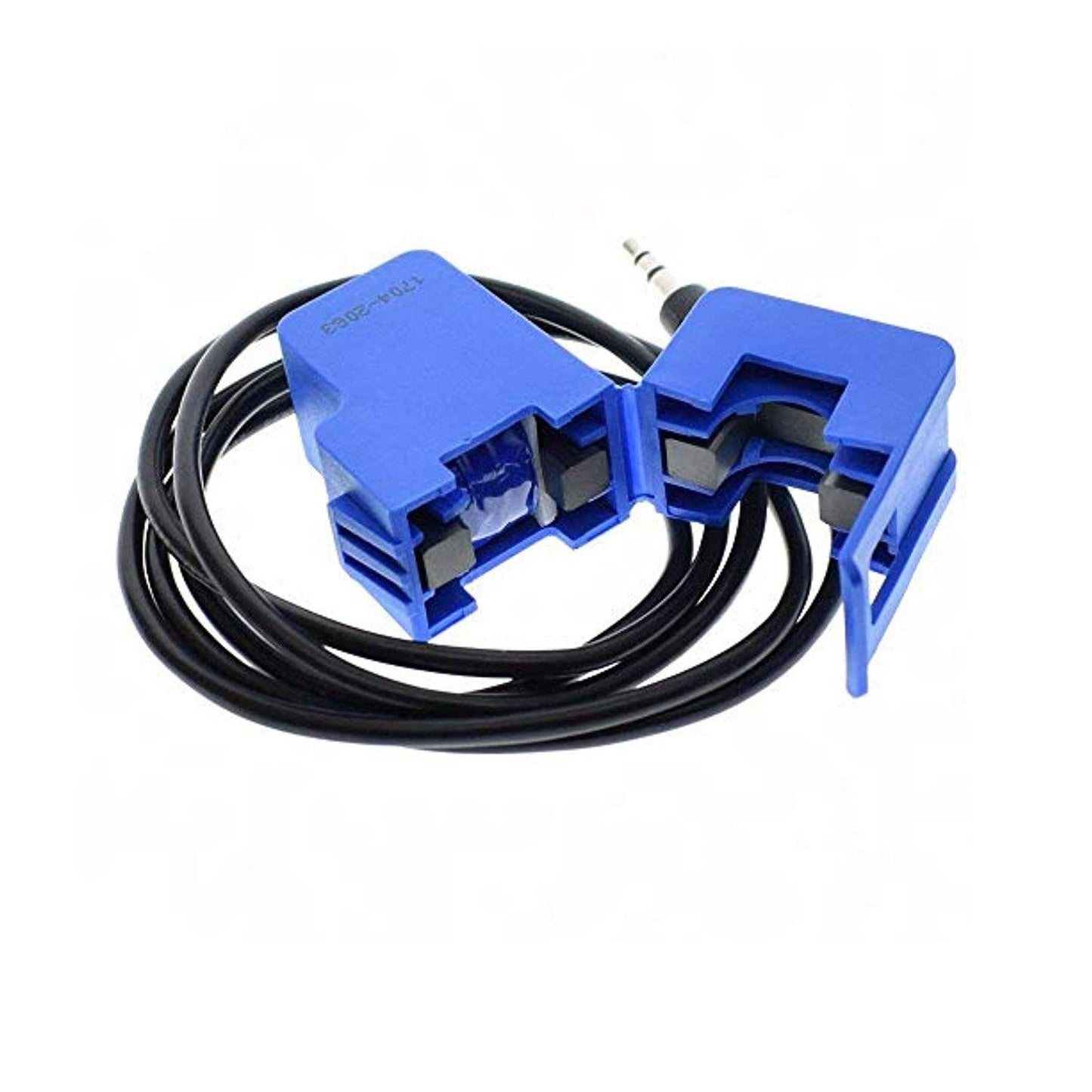

The SCT-013-015 15A AC Current Sensor offers a silicon steel sheet split core structure, hanging installation with lead Length of 1m, used for current measurement, monitoring and protection for AC motor, lighting equipment, air compressor, etc.
Specifications:
- Model: SCT-013-015
- Rated Input (rms): 15A
- Max. Input: 40A
- Rated Output: 1V
- Linearity: <0.2%
- Accuracy: ±1%
- Work Voltage: 660V
- Frequency Range: 50Hz – 1KHz
- Dielectric Strength: 3.5KV 50Hz 1min
- Operating Temperature: -25 ~ 70°C
Features:
- SCT-013-015 15A AC Current Sensor is a non-invasive current transformer
- Meet UL94-V0 flame retardant properties
- Two forms of output current, voltage (voltage output built-in the sampling resistor).
- Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
Package Included:
1 x SCT-013-015 15A AC Current Sensor SCT-013-015 Non-invasive AC Current Sensor Clamp Sensor 15A
