Description:

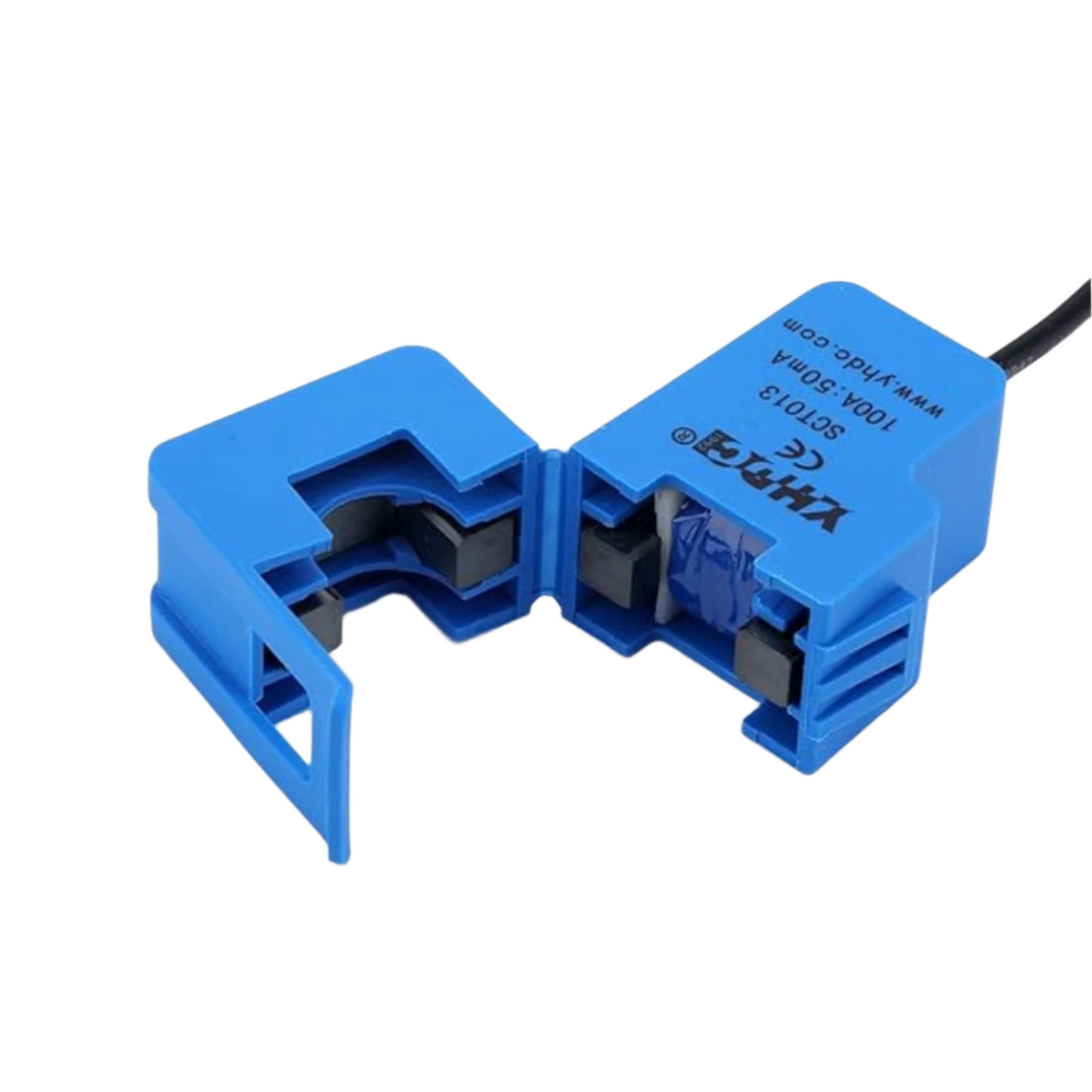

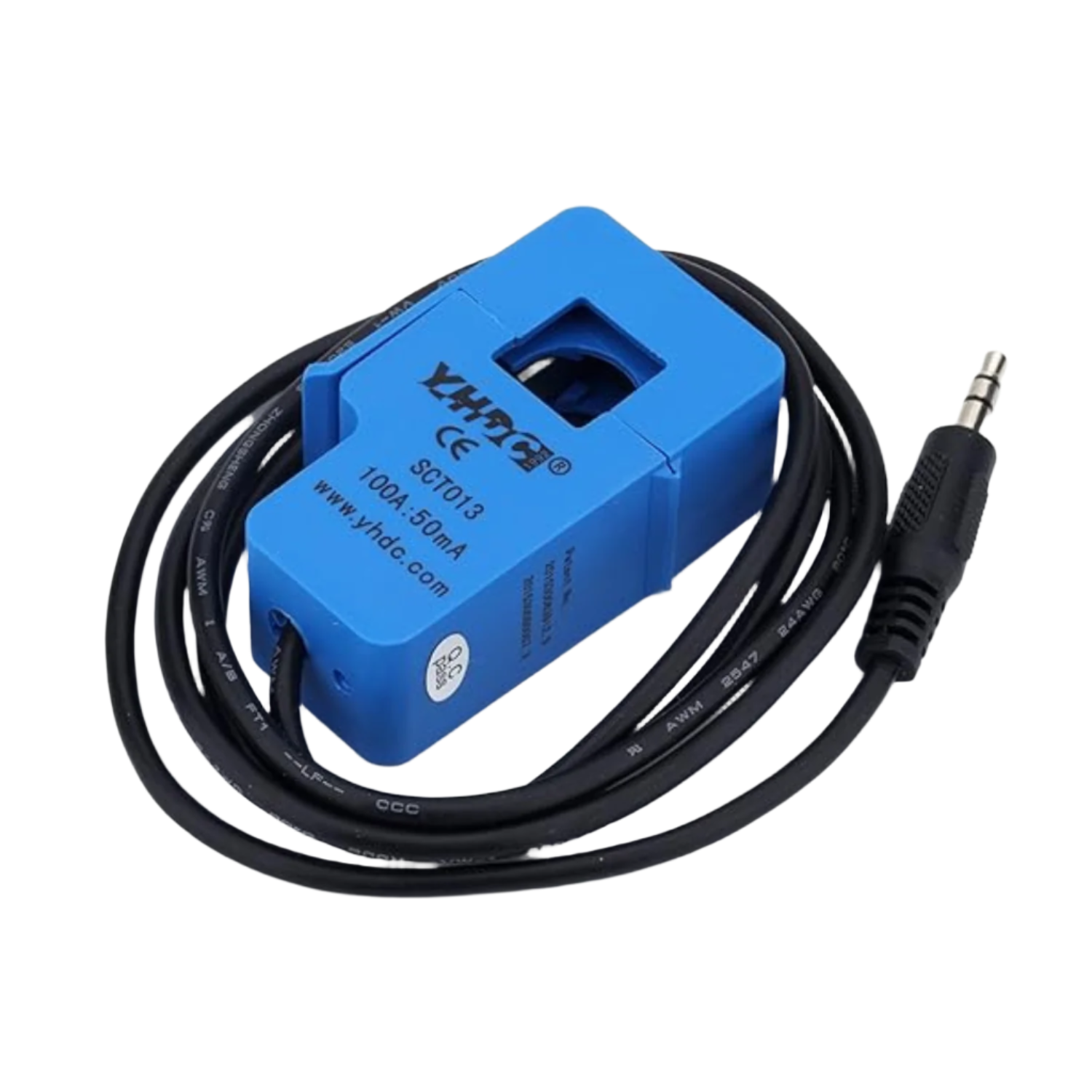

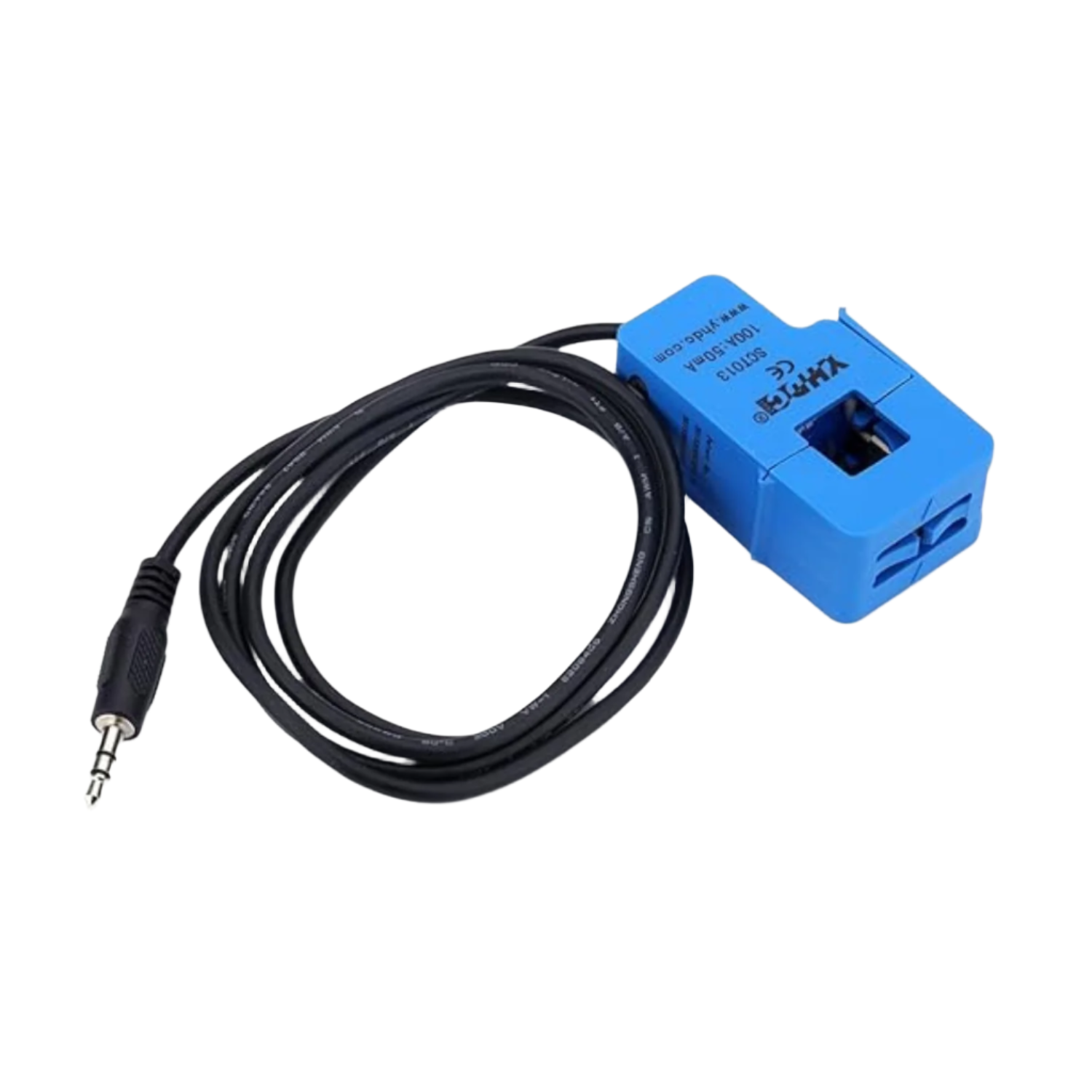

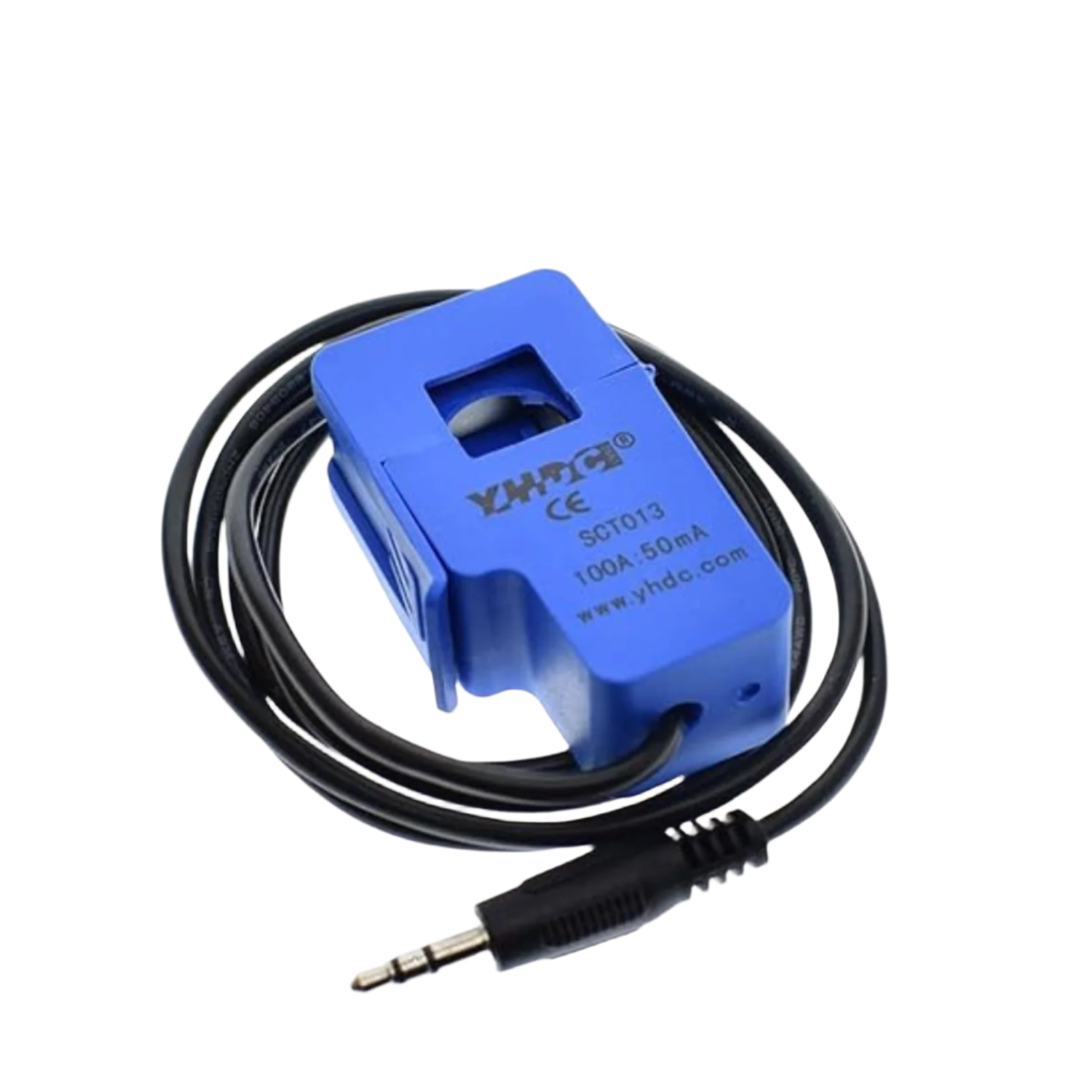

The SCT-013-000 non-invasive AC current sensor is your solution. This split-core type current transformer (CT) can measure alternating current up to 100 amperes. Its split-core design makes it perfect for DIY enthusiasts, allowing you to simply clip it onto a live or neutral wire for whole-building electricity monitoring without any high-voltage electrical work. Get quality current sensing at a reasonable price.
Specifications:
- Item Type: Current Sensor
- Model Type: Current Sensor Clam
- Operating Temperature: -25 to 85°C
- Input Current: 100A
- Frequency: 50Hz-150KHz
- Opening Size: 13 x 13mm/ 0.5″ x 0.5″(L*W)
- Output Plug 3.5mm
- Dielectric Strength: 6000V AC/1min
Features:
- Non-invasive current transformer
- Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
- Meet UL94-V0 flame retardant properties
- Two forms of output current, voltage (voltage output built into the sampling resistor)
- Non-linearity ±3%(10%-120% rated input current)
- Output Plug 3.5mm
Application:
- Suitable for the current measuring.
- Monitoring and protection of AC motor
- Lighting equipment
- Air compressor
Package Included:
1 x 100A AC Current Sensor Module
