- Collector-Emitter Voltage: -45 V
- Collector-Base Voltage: -50 V
- Emitter-Base Voltage: -5 V
- Collector Dissipation - 0.4 W
- DC Current Gain (hfe) - 60 to 1000
Description:

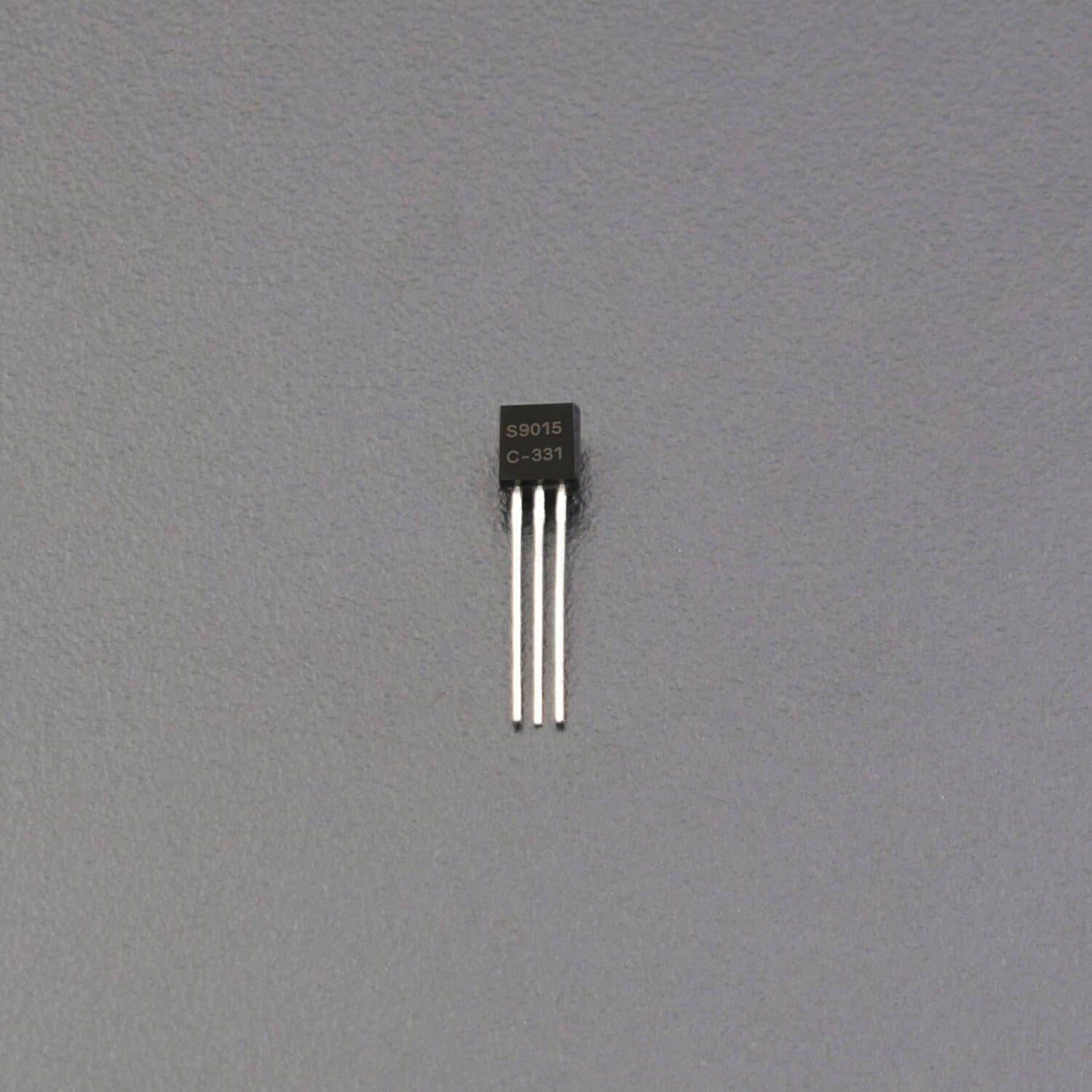

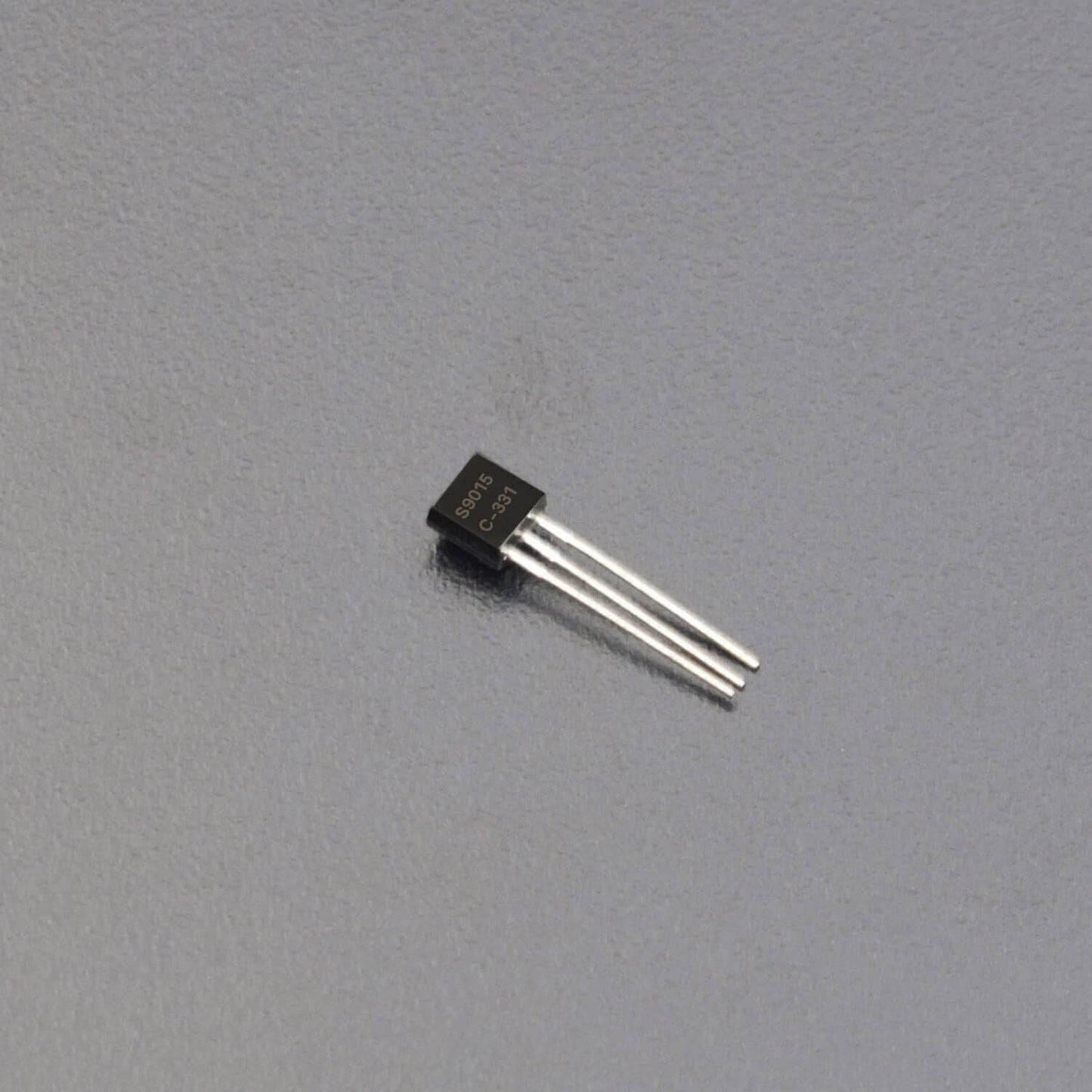

This is a PNP type S9015 C-331 Bipolar Transistor. It is basically used in electronic components, and mechanical fields, and in science projects, and DIY.
Specification:
- Type - p-n-p
- Collector-Emitter Voltage: -45 V
- Collector-Base Voltage: -50 V
- Emitter-Base Voltage: -5 V
- Collector Current: -0.1 A
- Collector Dissipation - 0.4 W
- DC Current Gain (hfe) - 60 to 1000
- Transition Frequency - 150 MHz
- Operating and Storage Junction Temperature Range -55 to +150 °C
Pin Description:
The S9015 is manufactured in a plastic TO-92 case. When looking at the flat side with the leads pointed downward, the three leads emerging from the transistor are, from left to right, the emitter, base, and collector leads.
Package Included:
1 x S9015 C-331 Bipolar Transistor - RS1519
