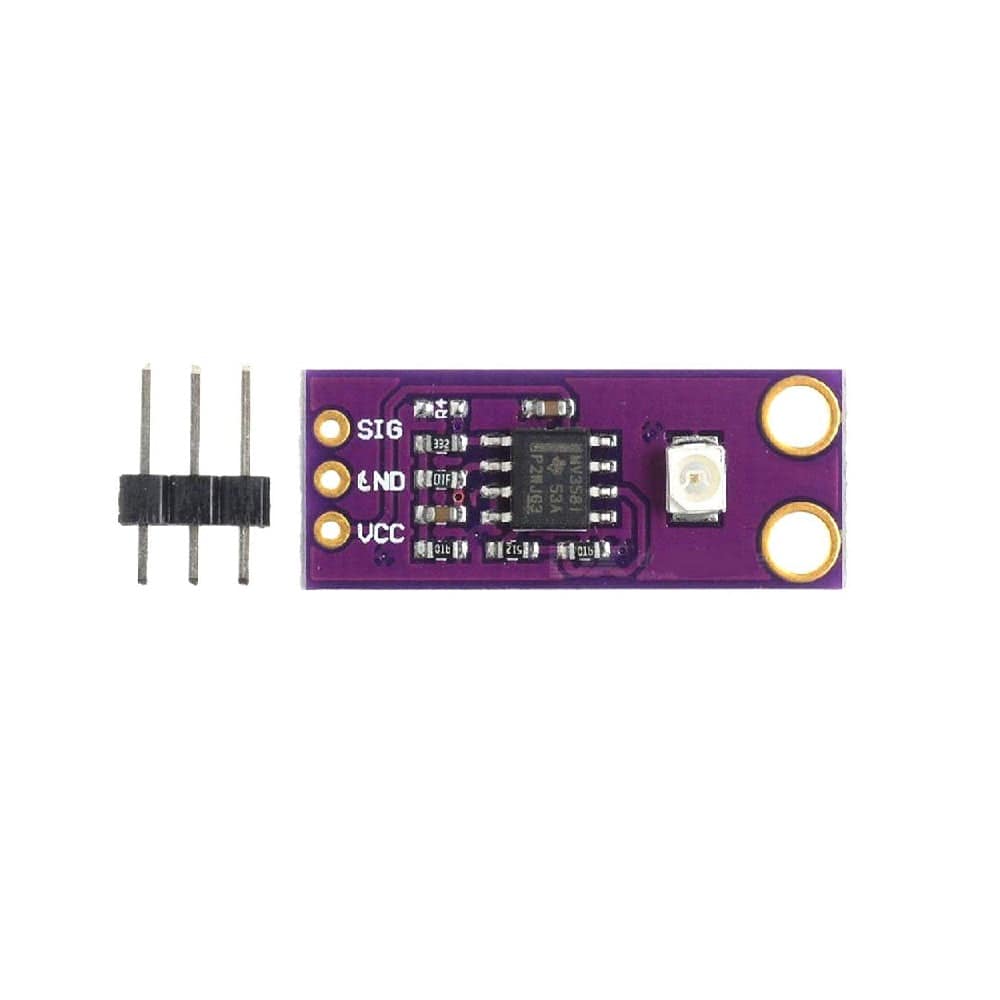

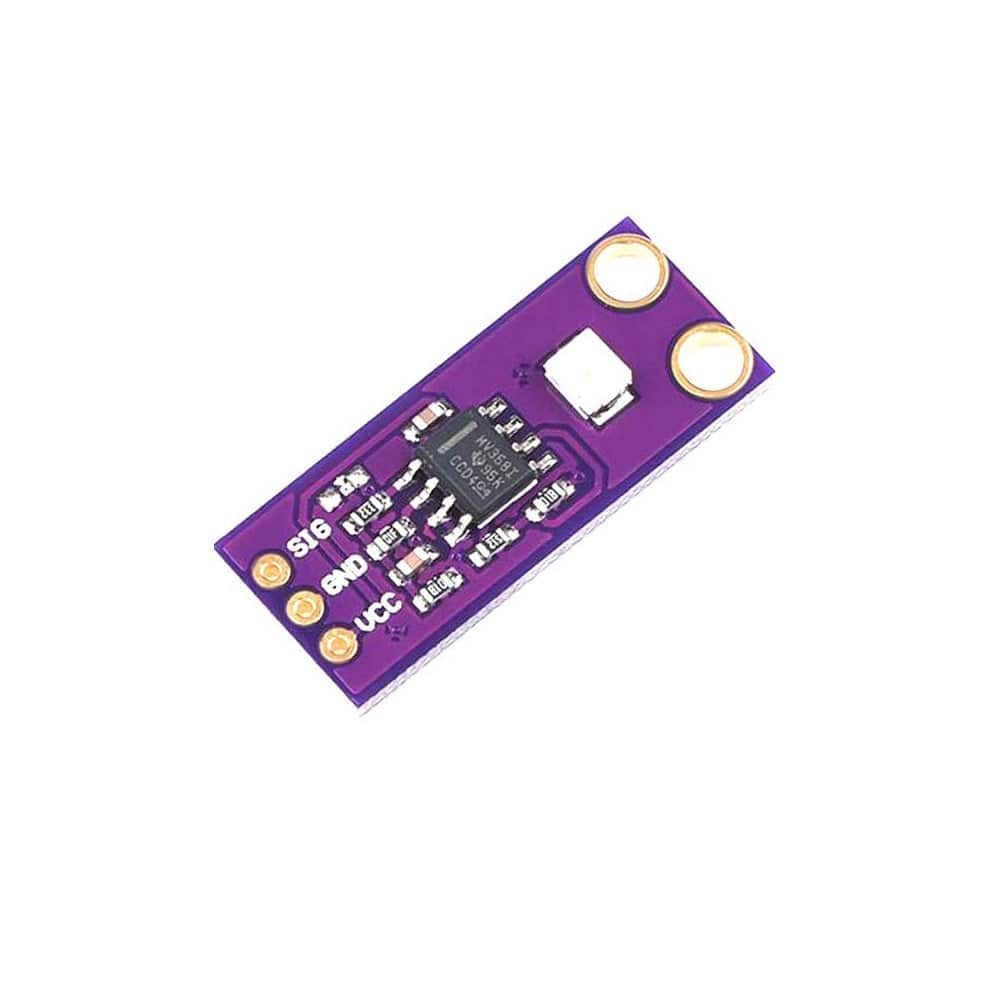

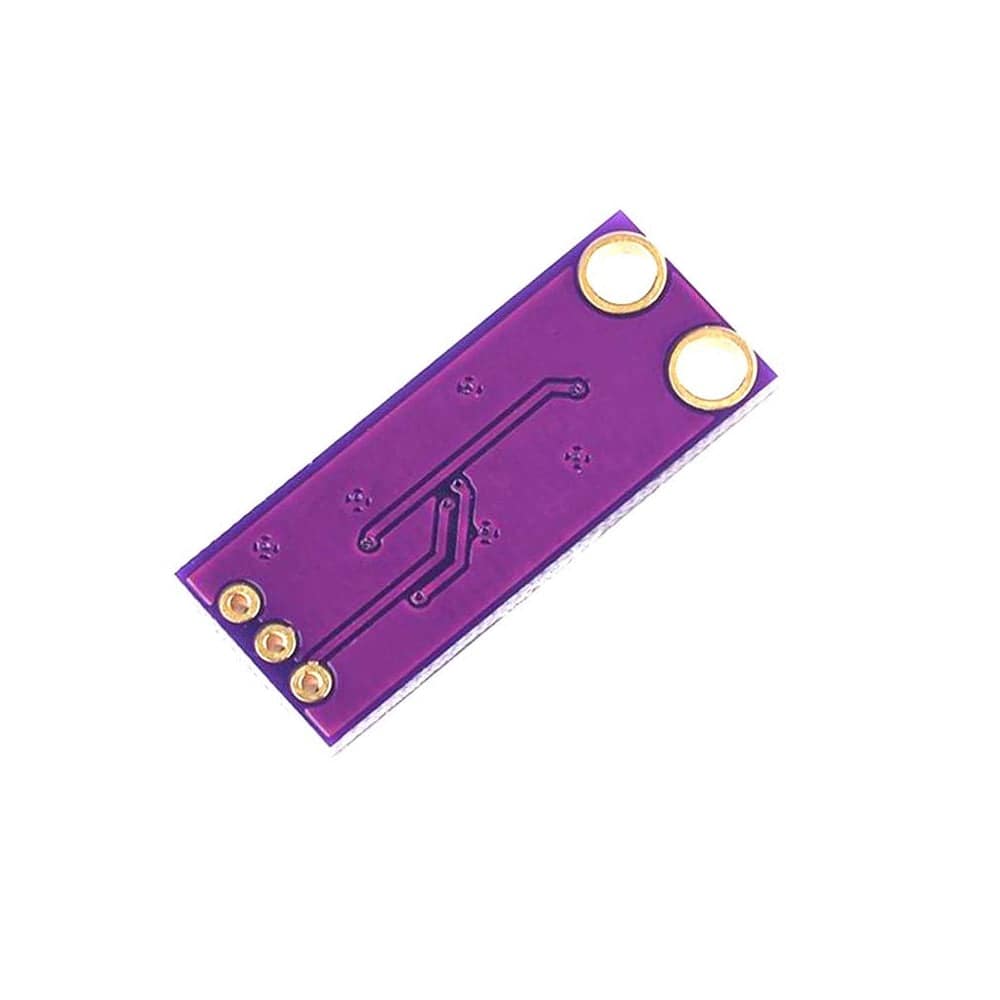

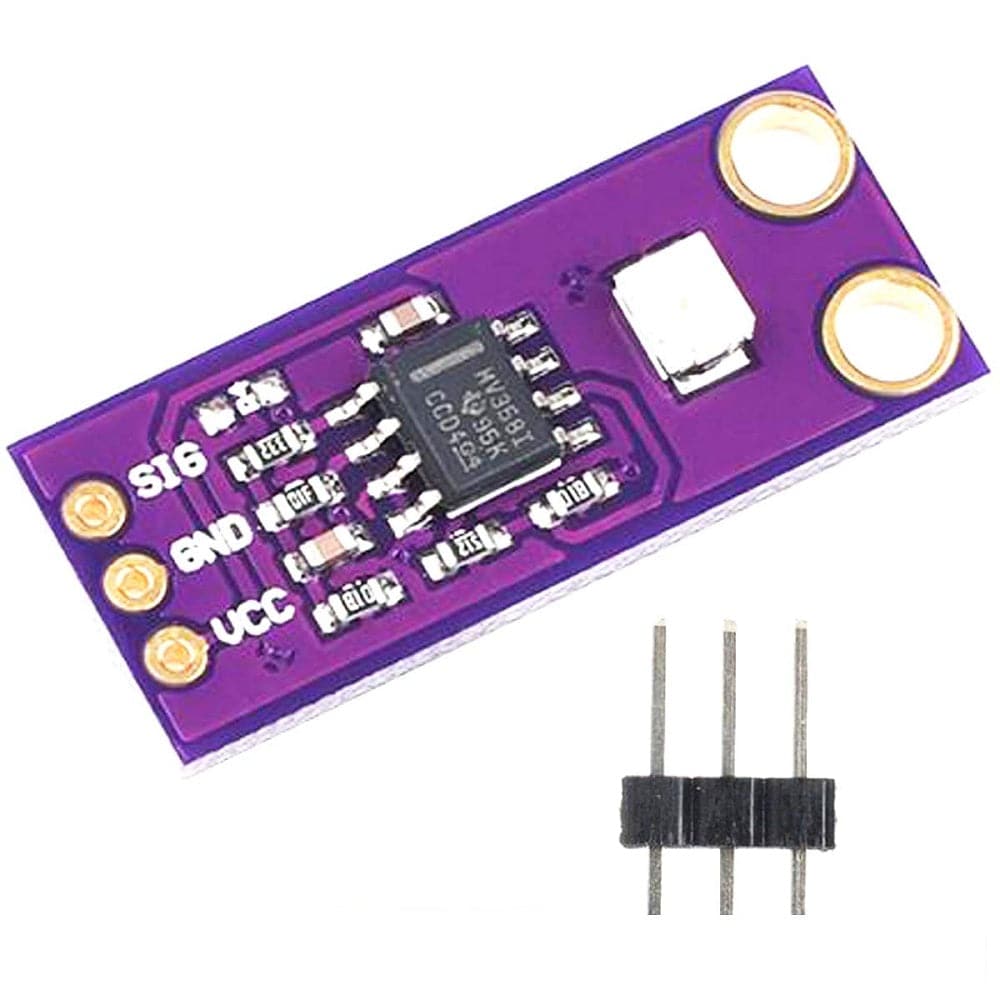

S12SD UV Sensor CJMCU-GUVA-S12SD Sunlight Ultraviolet Ray Intensity UV Sensor-RS5539

S12SD UV Sensor CJMCU-GUVA-S12SD Sunlight Ultraviolet Ray Intensity UV Sensor-RS5539

SKU:RS5539

Low stock: 9 left

Regular price Rs. 240.00
Regular price Sale price Rs. 240.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Power Supply Voltage: 2.5 V ~ 5 V
  • Wide Detection Range: 240 nm to 370 nm
  • Wide Angle: 130 degrees

Description:

This UV Sensor chip is suitable for detecting UV radiation in sunlight. It can be used in any application where you want to monitor the amount of UV light and is simple to connect to any microcontroller. The module, with a typical UV detection wavelength of 240 – 370nm, outputs a calibrated analogue voltage which varies with the UV light intensity so basically all you need to do is connect this to an ADC input and read the value.

Specifications:

  • Power Supply Voltage: 2.5 V ~ 5 V
  • Wide Detection Range: 240 nm to 370 nm
  • Wide Angle: 130 Degrees

Features:

  • Low power consumption
  • The working current is microamps
  • High sensitivity
  • High stability
  • Schottky type photosensitive diode

Pin Description:

  • GND: 0V (Ground)
  • VCC: 3.3V to 5.5V
  • OUT: 0V to 1V ( 0 to 10 UV Index)

Package Included:

1 x S12SD UV Sensor CJMCU-GUVA-S12SD Sunlight Ultraviolet Ray Intensity UV Sensor
