- Memory storage: 24C32 32K I2C EEPROM
- With reading and writing function
- Using time: About 1 year (Fully charged)
- Provide clock signal for microcontroller
- Cascade other I2C devices
Description:
Real-time clocks (RTC), as the name recommends are clock modules. The DS1307 real-time clock (RTC) IC is an 8 pin device using an I2C interface. The DS1307 is a low-power clock/calendar with 56 bytes of battery backup SRAM. The clock/calendar provides seconds, minutes, hours, day, date, month and year qualified data. The end date of each month is automatically adjusted, especially for months with less than 31 days. They are available as integrated circuits (ICs) and supervise timing like a clock and also operate date like a calendar. The main advantage of RTC is that they have an arrangement of battery back up which keeps the clock/calendar running even if there is a power failure. An exceptionally little current is required for keeping the RTC animated. We can find these RTCs in many applications like embedded systems and computer motherboards, etc. In this article, we are going to see one of the real-time clock (RTC), i.e. DS1307.
Features:
- Memory storage: 24C32 32K I2C EEPROM.
- With reading and writing function.
- Using time: About 1 year (Fully charged)
- Provide clock signal for microcontroller
- Cascade other I2C devices.
- With full BCD clock calendar chip of 56byte non-volatile RAM
- Address and data transmission via serial cable with dual-line dual-direction
- The chip can provide second, minute, hour etc information.
- AM/PM mark, for working 24-hour or 12-hour
- Built-in power sensor circuit in the chip, with brownout detection and battery switch function
- Under battery backup mode, power consumption is below 500uA
- Accurate calendar up to the year 2100
- Great for DIY project
Package Included:

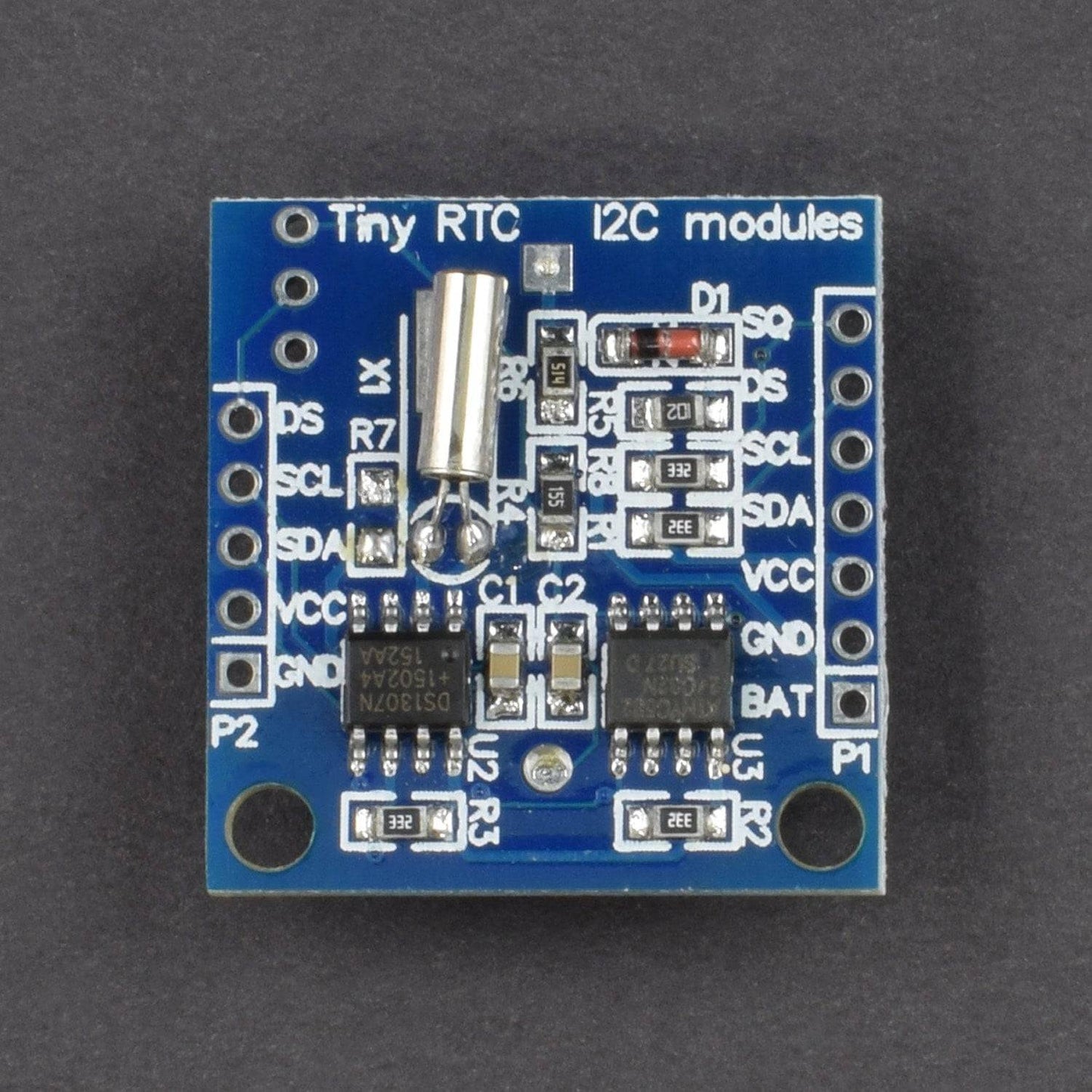

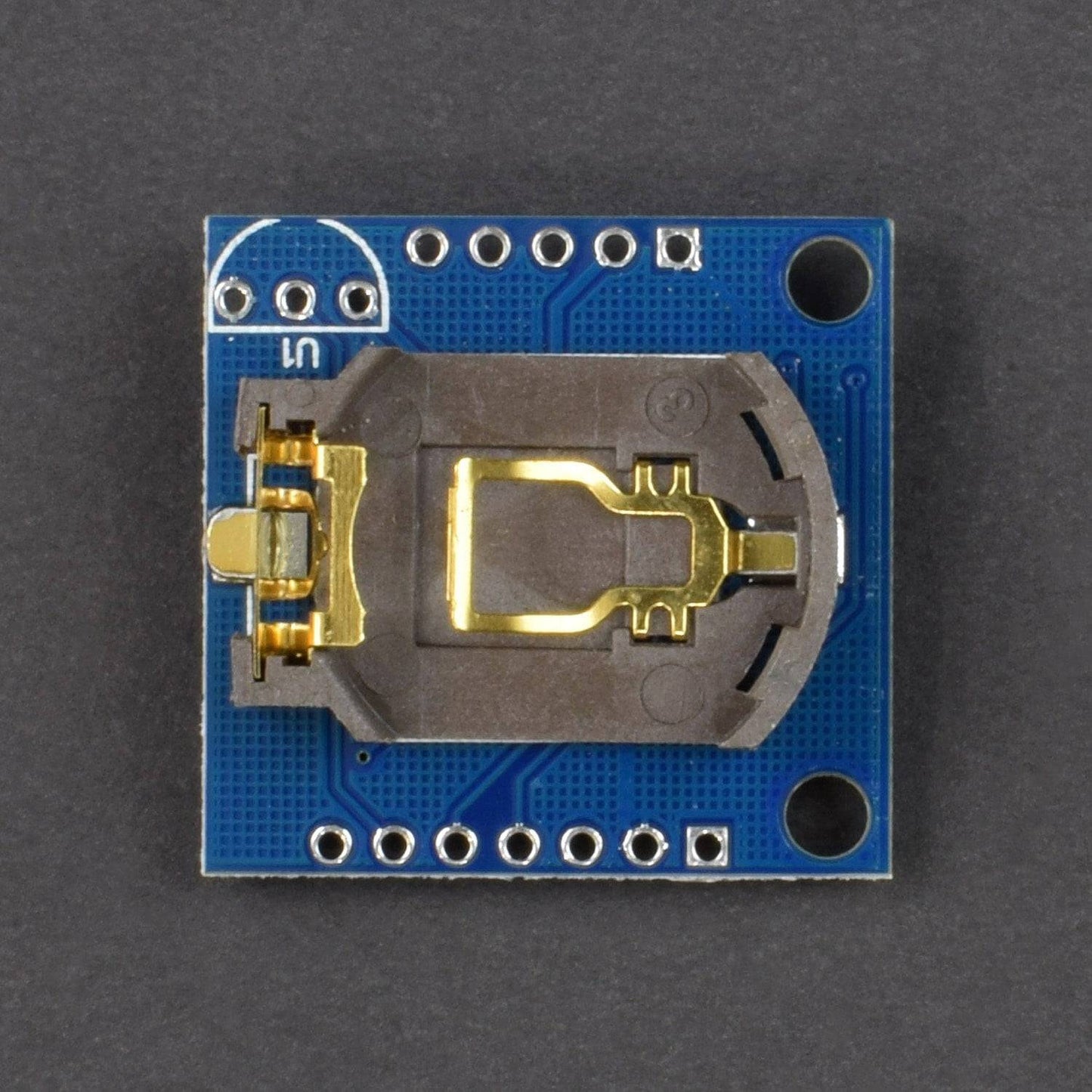

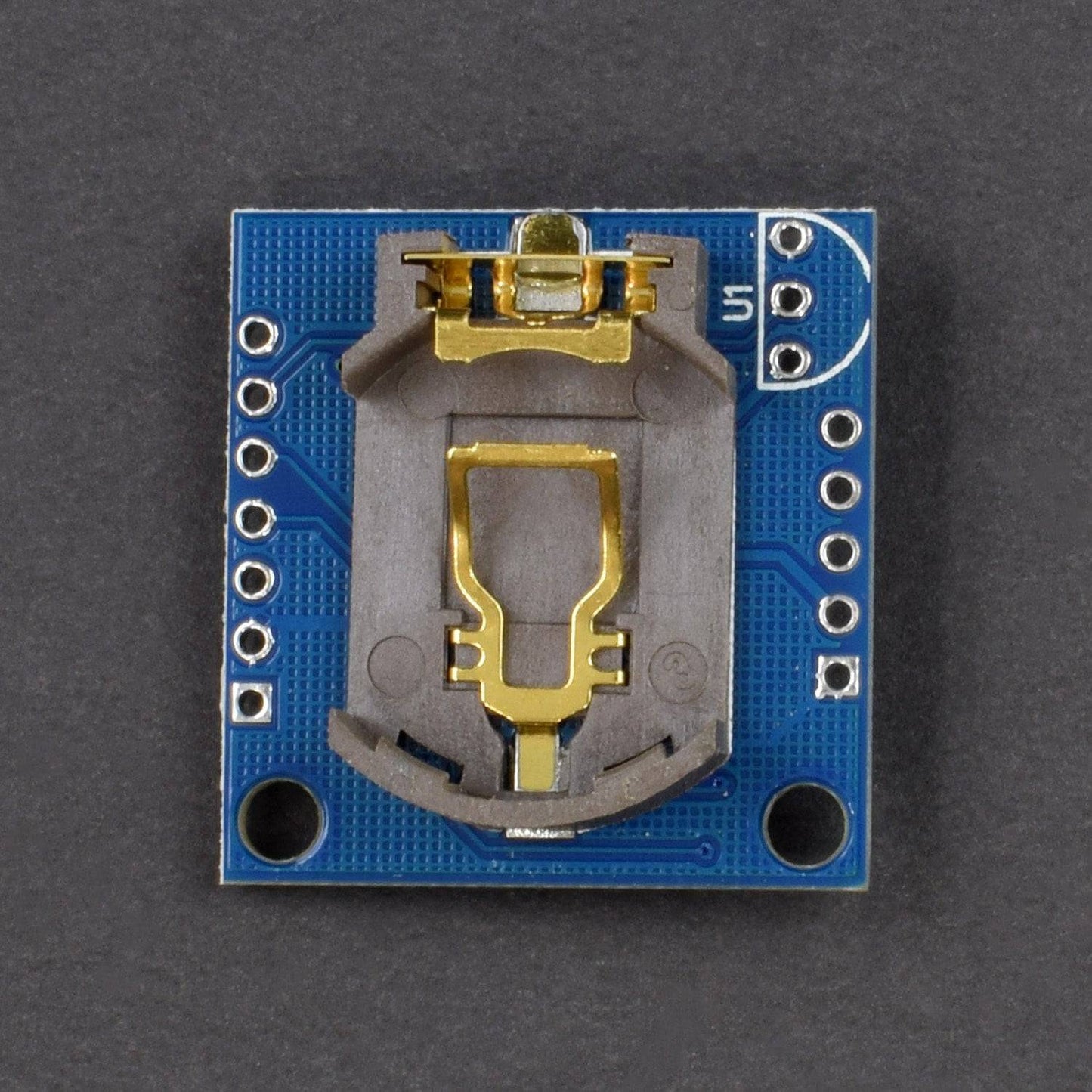

1 x RTC DS1307 24C32 Real Time Clock Module
