Description:

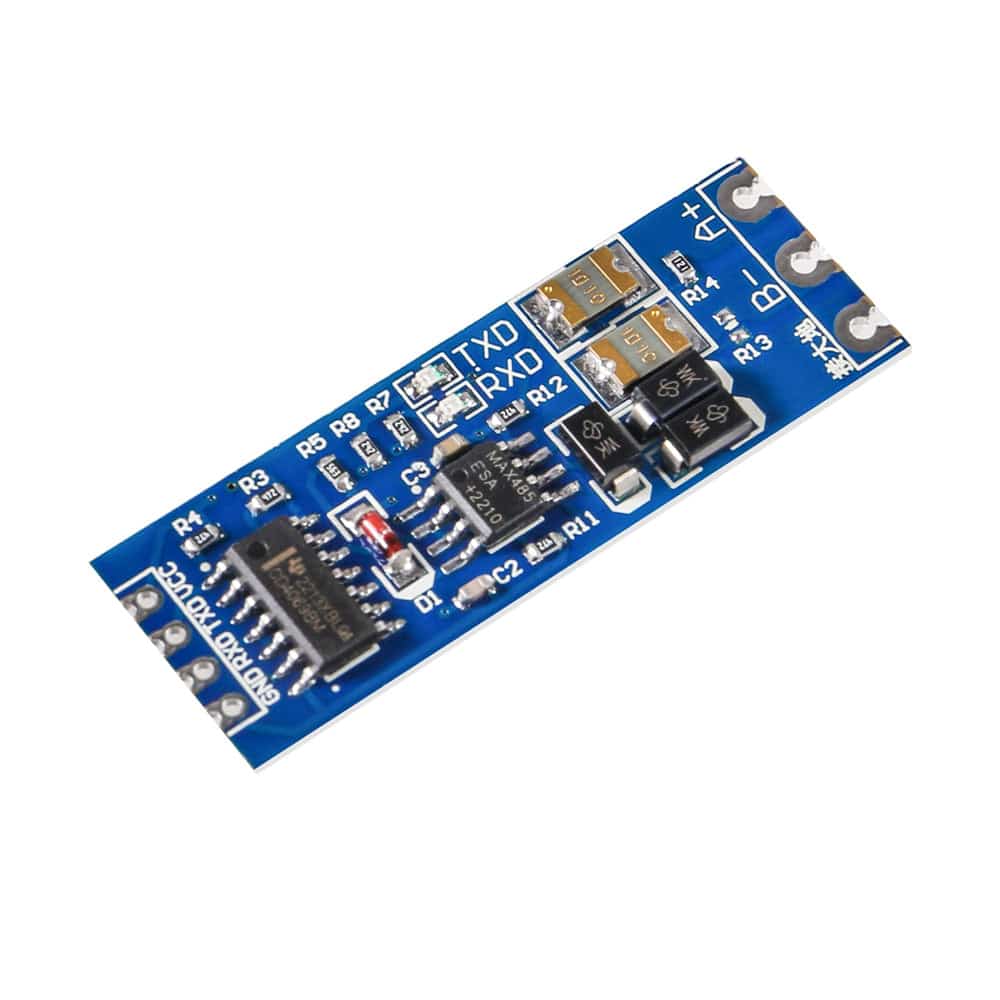

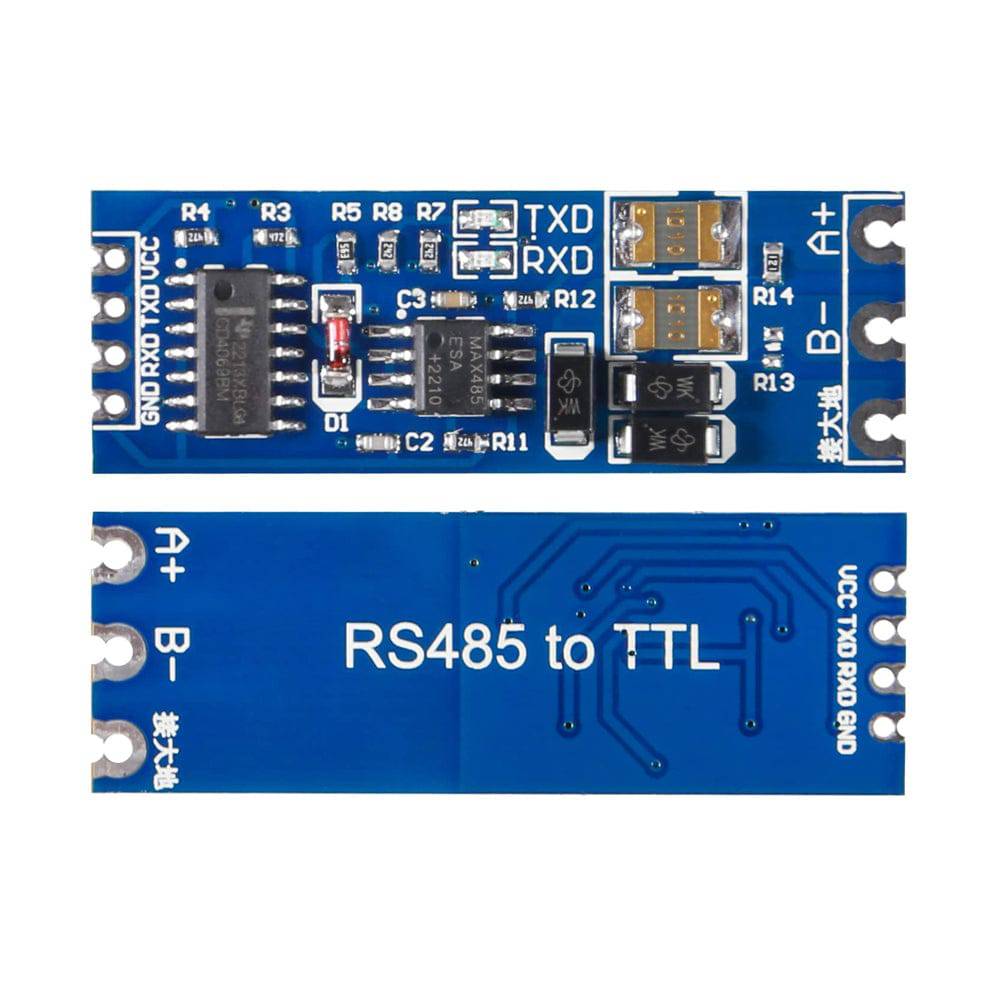

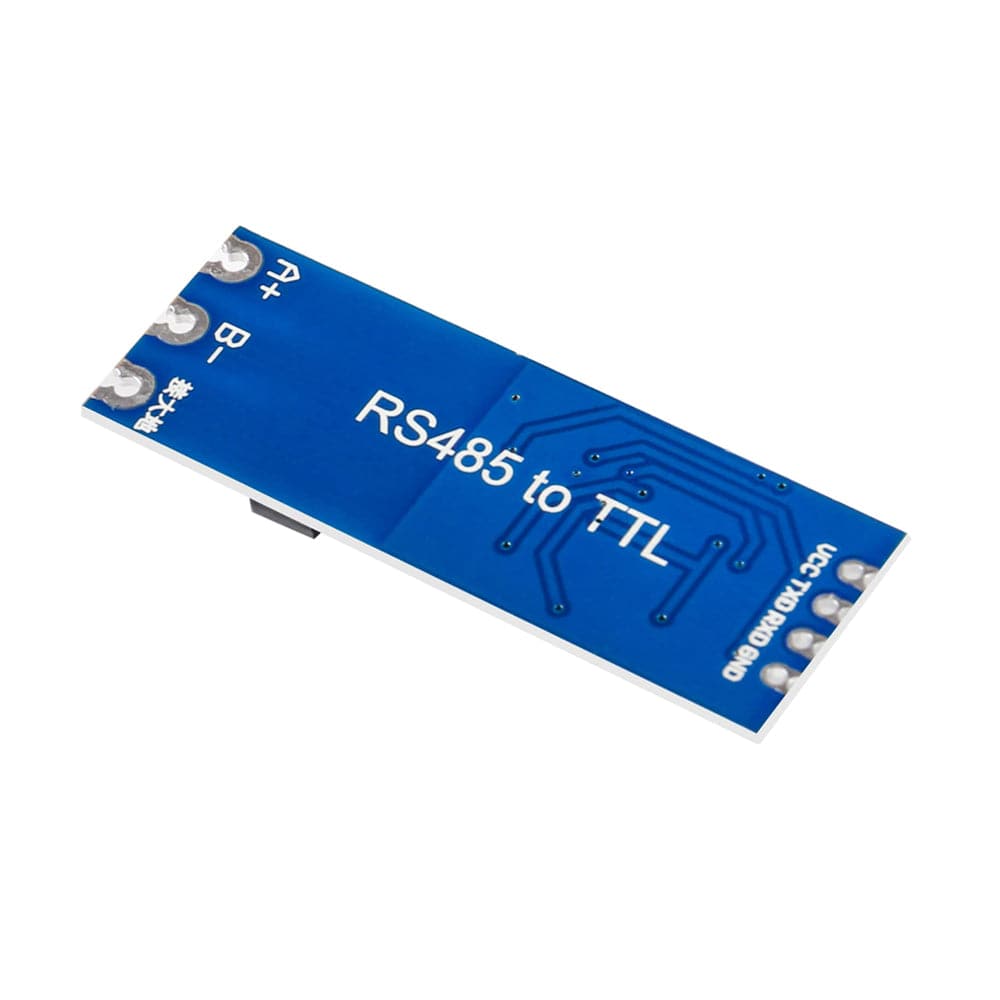

This RS485 to TTL Converter module is based on the MAX485 chip, which is one of the most relied on when working with the RS485 Bus. This RS485 to TTL Converter Module supports 3.3 V and 5 V power supplies, and TTL Levels. It can connect and identify up to 32 nodes on the RS485 bus. This module also supports the very long range of the bus. This RS485 to TTL Converter Module can support up to 800 meters of bus length. It has connections for RX, TX, +ve and GND, on one side, and the other side has a connection for the RS485 bus. It also has the Indicators for the Receive and Transmit Signals.
Specifications:
- Power Supply Compatibility: 3.3V and 5.0V
- Operating Voltage: 3V ~ 30V DC
- Baud Rate: 110 to 256000bps
- Operating Temperature Range: -40°C to +85°C
Features:
- Using the standard 2.54 pitch design, easy secondary development.
- RS485 to TTL Converter Module has 120 ohm termination resistors, shorted R0 to enable the termination resistor.
- Support multi-machine communication, allowing access to up to 128 devices on the bus
- It has RXD, TXD signal indicator light, monitor send and receive status.
- A large area of copper to prevent interference.
- RS485 to TTL Converter Module is compatible with 3.3V and 5.0V power supply.
Package Included:
1 x RS485 to TTL Converter Module Serial Port UART Hardware Automatic Flow Control Module
