Description:
RS422 to TTL Power Converter has an RS422 interface and two-way communication. B Y Z A ultra far transmission 1000 meters. The RS422 to TTL Power Converter Module has ESD 15KV protection. Onboard to increase the limit of 10 ohms current limiting current protection. Module with TVS diode. Anti lightning, peak voltage. The RS422 to TTL Power Converter Module has 120-ohm termination resistors, which can effectively reduce the interference of long-range communication. Have the power indicator light and the data receiving and sending indicator light. Panoramic view of state data. Module TTL side using 5V DC power supply TXD RXD compatible with 5V logic signal.
Specifications:
- Main Chip: RS422
- Input Voltage: 5V
- Interface: TTL, RS422
- Pin Number: 4 Pins
Features:
- RS422 to TTL Power Converter have the power indicator light and the data receiving and sending indicator light. Panoramic view of state data.
- Module TTL side using 5V DC power supply TXD RXD compatible with 5V logic signal.
- The RS422 to TTL Power Converter Module uses the original imported MAX490 chips, stability and communication speed are far more than domestic products, up to 2.5MBPS.
- Module with TVS diode. Anti lightning, peak voltage.
- The module has 120-ohm termination resistors, which can effectively reduce the interference of long-range communication.
- RS422 interface, two-way communication. B Y Z A ultra far transmission 1000 meters
- The module has ESD 15KV protection.
- Onboard to increase the limit of 10 ohms current limiting current protection.
Package Included:

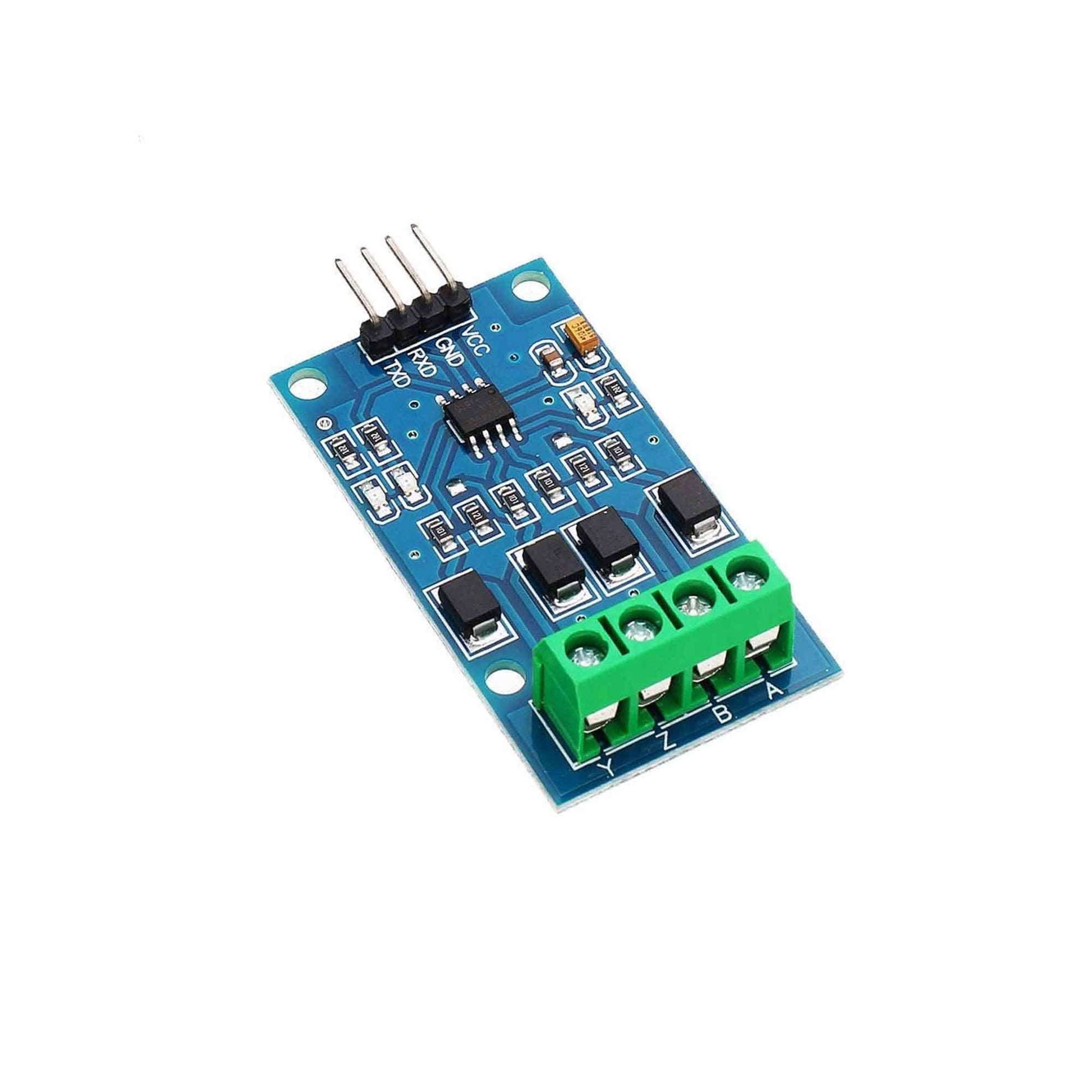

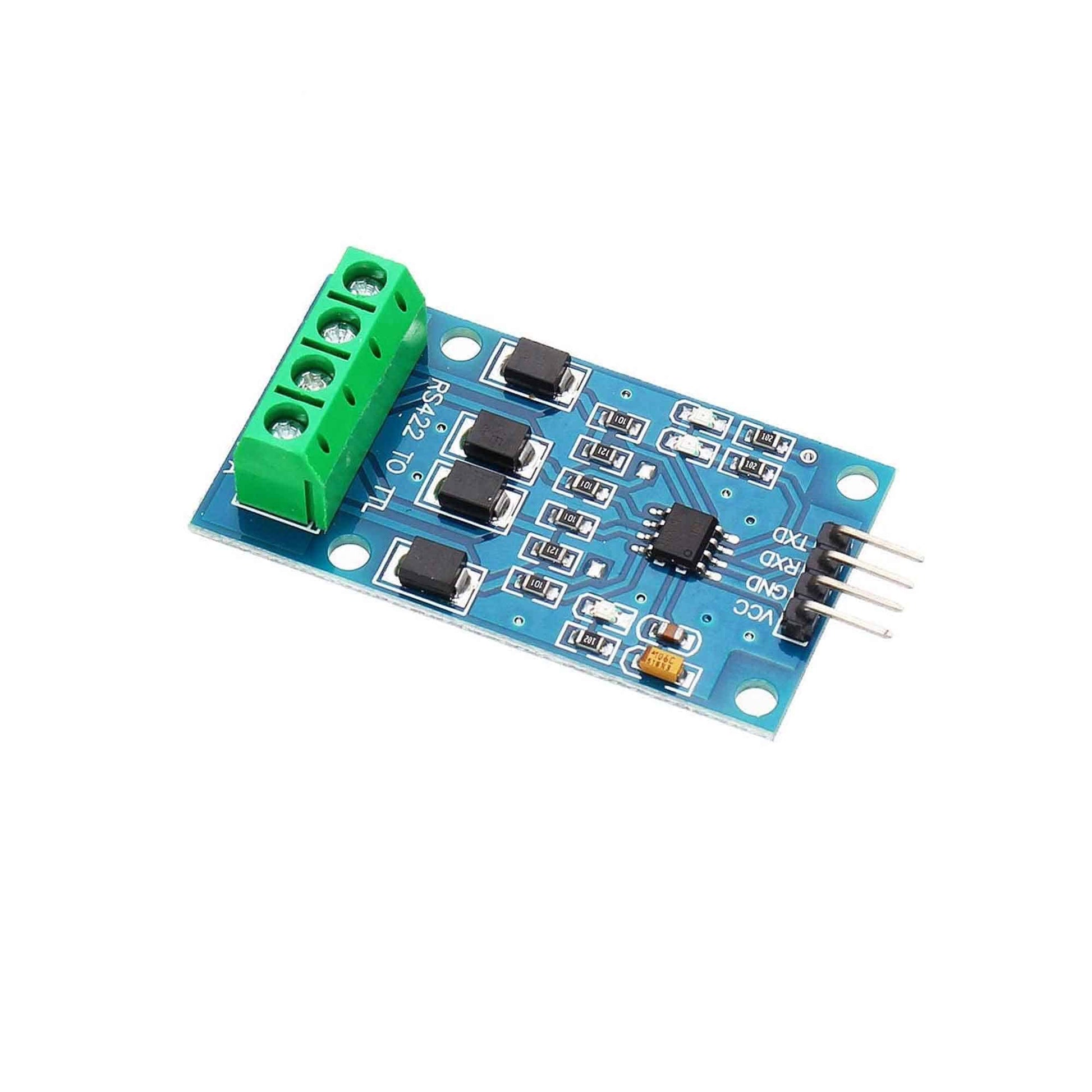

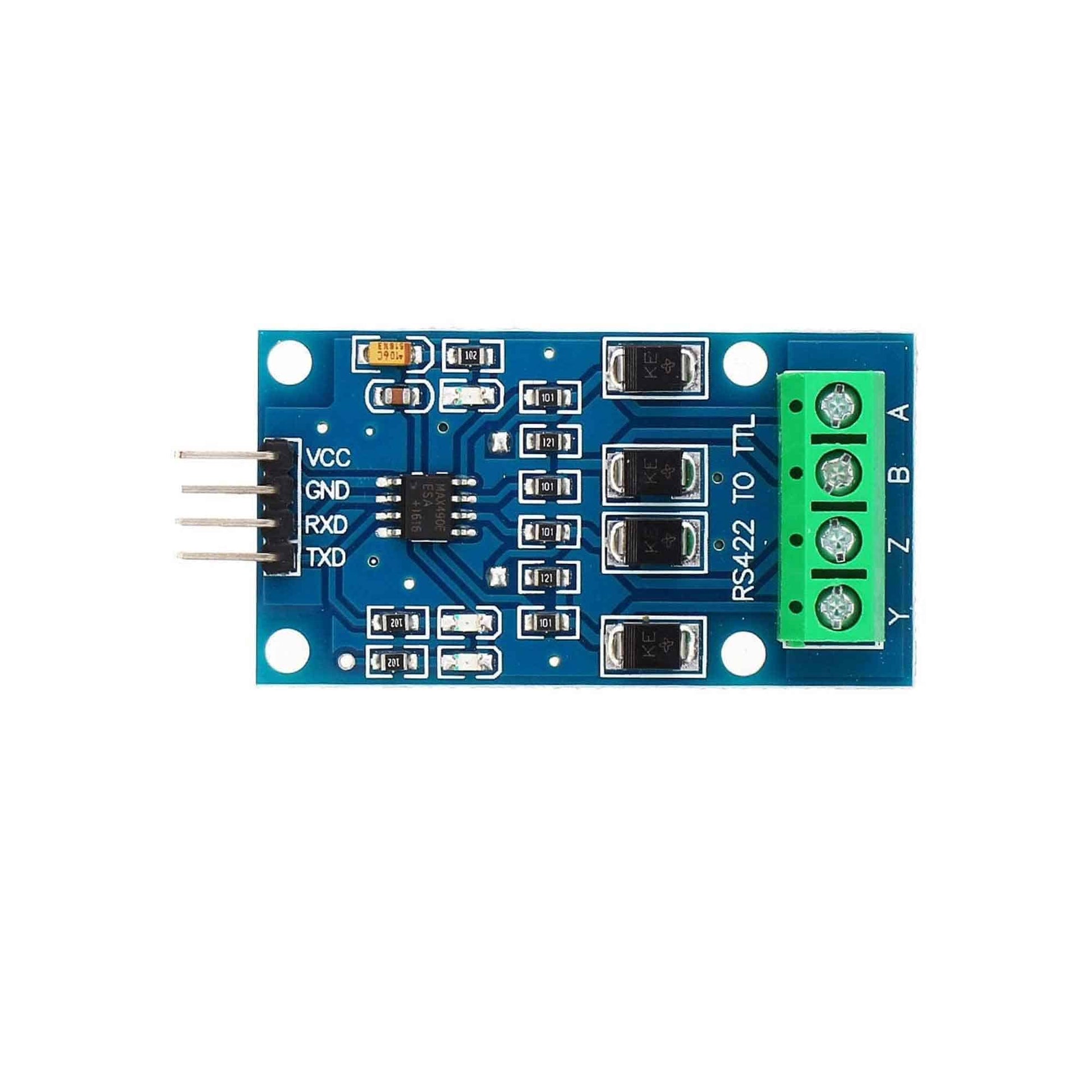

1 x RS422 to TTL Power Converter RS422 to TTL Power Supply Converter Board
