Description:

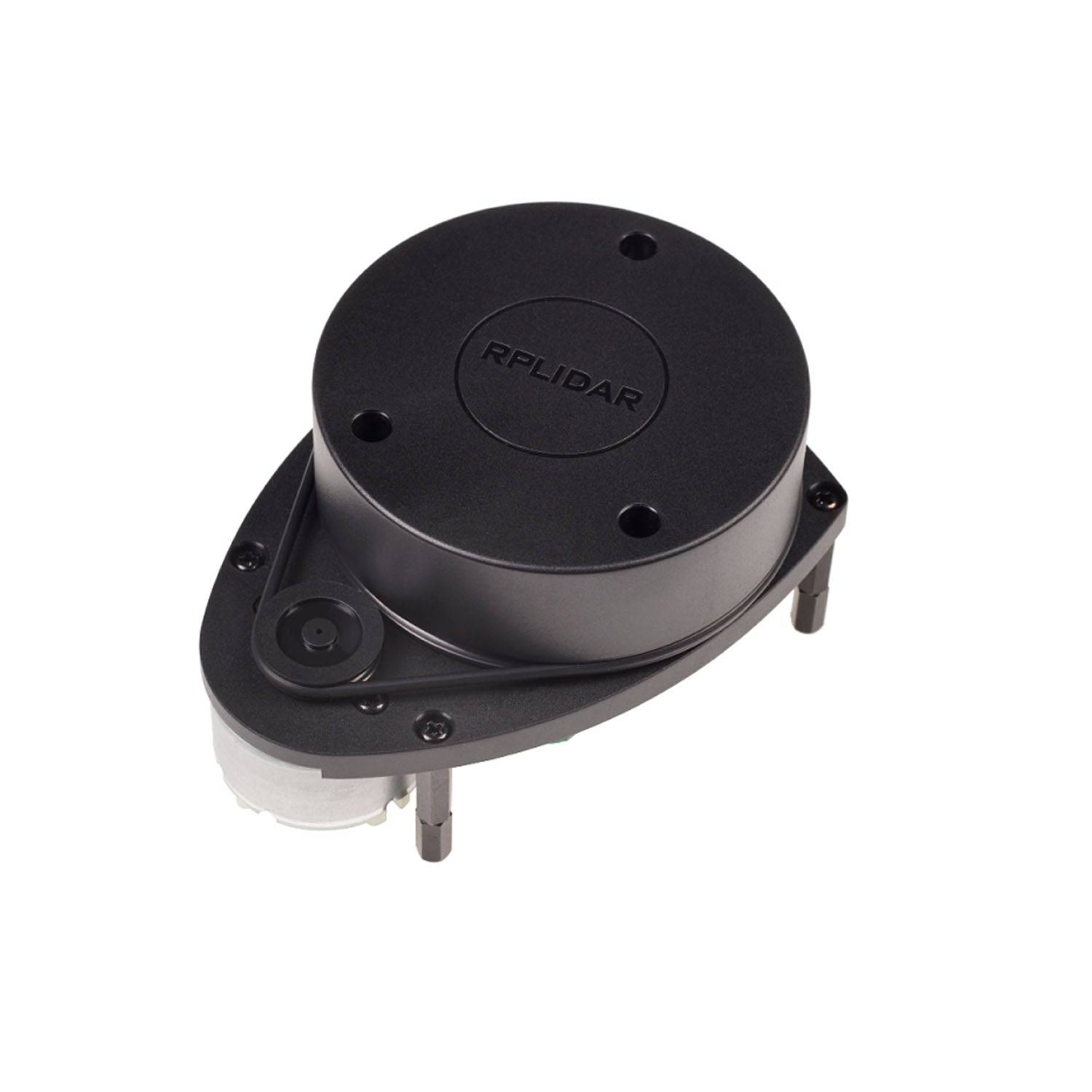

The SLAMTEC RPLiDAR A1M8 6m Radius Sensor is a compact, cost-effective 360-degree 2D laser scanner, offering a 12-meter range (6 meters for A1M8-R4). It captures 1450 points per scan with a maximum frequency of 5.5 Hz, configurable up to 10 Hz. Ideal for mapping, localization, and modeling, this LIDAR uses laser triangulation for precise distance measurements and works well in both indoor and outdoor environments, as long as direct sunlight is avoided.
Specifications:
- Model: RP LIDAR A1M8
- Type: Laser Range Finder
- Distance Range (Radius): 0.15m to 6m, white objects (Diameter Range – 12m)
- Angular Range: 0 ~ 360º
- Distance Resolution: 0.5mm
- Angular Resolution: = 1 º
- Sample Duration: 0.5 ms
- Sample Frequency: =8000 Hz
- Scan Rate: 1 ~ 10Hz, Typical 5.5Hz
Features:
- 8000 times the sample rate, the highest in the current economical LIDAR industry.
- Measures distance data in more than 8000 times/s.
- 360 Degree Omnidirectional Laser Range Scanning.
- Configurable Scan Rate from 2-10Hz.
- Ideal for Robot Navigation and Localization.
- Plug and Play.
Applications:
- Smart toy localization and obstacle avoidance.
- Environment scanning and 3D re-modeling.
- Home service /cleaning robot navigation and localization.
- General robot navigation and localization.
- General simultaneous localization and mapping.
Note:
- The range of this RPLiDAR Sensor is 6 meters if we are considering radius and 12 meters if we are considering diameter. So we can also name as RPLiDAR A1M8 360 Degree Laser Range Finder – 12M.
Package Included:
- 1 x SLAMTEC RP LIDAR A1M8 360 Degrees Laser Range Finder.

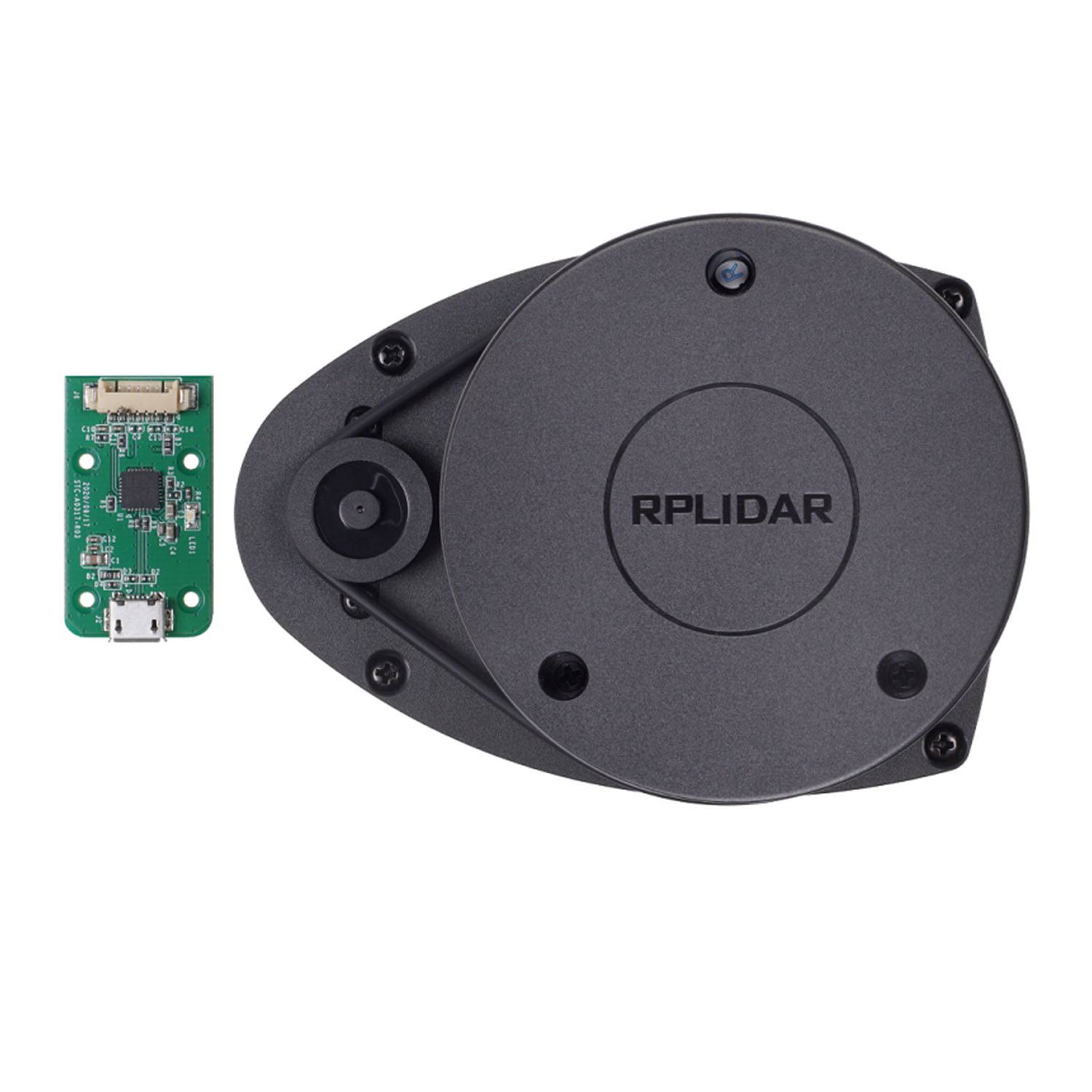

- 1 x Interfacing Controller and Connecting Cable.
