Description:
The RP LIDAR A2M8 360-Degree Laser Range Finder is an advanced, cost-effective 2D laser scanner designed for next-generation applications. Offering a 12-meter range, it can capture up to 8,000 laser samples per second with impressive rotation speed, ensuring fast and accurate data collection. Featuring OPTMAG technology, this LIDAR system overcomes the durability constraints of traditional models, delivering reliable, long-term performance for a wide variety of uses.
The RPLIDAR A2M8 is an advanced 2D laser range scanner that performs 360-degree scans within a 12-meter range. It generates accurate 2D point cloud data for mapping, localization, and modeling. With a typical scanning frequency of 10Hz (600 RPM) and adjustable settings (5-15Hz), it offers flexible performance and a resolution of 0.45°.
Specifications:
- Model: RP LIDAR A2M8
- Model Type: Laser Range Finder
- Distance Measuring Range(M): 0.15 to 12
- Scanning Range(°): 18M
- Distance Resolution: 0.5mm
- Angular Resolution (°): 0.45~1.35 degree,Typical 0.9 degree
- Additional Specs.: Sample Duration: 0.25ms, Sample Frequency: 2000~8000Hz,Typical 4000Hz,
- Battery: Excluded
System Connection:
The RPLIDAR A2 consists of a range scanner core and the mechanical powering part which makes the core rotate at a high speed. When it functions normally, the scanner will rotate and scan clockwise. And users can get the range scan data via the communication interface of the RPLIDAR and control the start, stop, and rotating speed of the rotating motor via PWM.
Mechanism:
The RPLIDAR A2 is based on the laser triangulation ranging principle and adopts the high-speed vision acquisition and processing hardware developed by SLAMTEC. The system ranges more than 8000 times per second.
The RPLIDAR emits a modulated infrared laser signal and the laser signal is then reflected by the object to be detected. The returning signal is then sampled by a vision acquisition system in RPLIDAR and the DSP embedded in RPLIDAR starts processing the sample data and outputs the distance value and angle value between the object and RPLIDAR via the communication interface. When driven by the motor system, the range scanner core will rotate clockwise and perform the 360-degree scan for the current environment.
Communications Interface:
The RPLIDAR A2 uses separate 5V DC power for powering the range scanner core and the motor system. And the standard RPLIDAR A2 uses an XH2.54 5P male socket. The detailed interface definition is shown in the following figure:
Features:

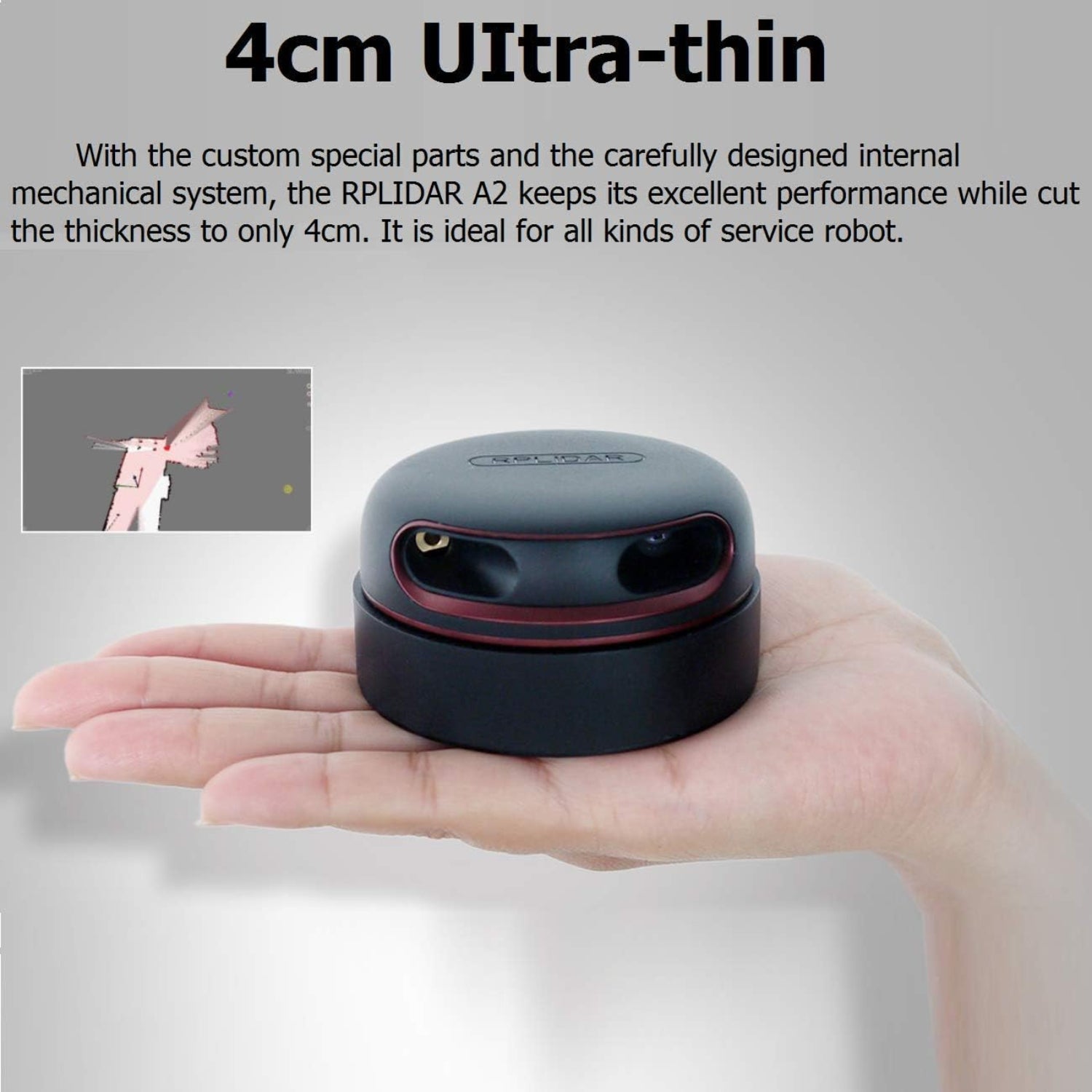

- 4cm Ultra-thin
- Ideal for all kinds of service robots.
- 8000 times the sample rate, the highest in the current economical LIDAR industry
- 360-degree laser range scanning
- Low Noise, Brushless Motor New Non-contact Drive
- 12m Range Radius
- OPTMAG Original Design prolongs the lifespan
- Class 1 Laser Safety Standard
- High-speed RPVision Range Engine: RPVision 2.0
- Five years ultra-long life.
Application:
- General robot navigation and localization.
- Environment scanning and 3D re-modeling.
- Smart toy localization and obstacle avoidance.
- Service robots or industrial robots work for long hours.
- Home service /cleaning robot navigation and localization.
- General simultaneous localization and mapping. (SLAM)
Package Included:
1 x RP LIDAR A2M8 360 Degree Laser Range Finder High-Speed Laser Scanner With 12 Meter Measurement Range For Robotics, Mapping, and Navigation
