- Potentiometer;Resistance Value :47K ohm
- Adjustment Type : Top Adjustment
- Total Height : 29mm / 1.1"
- Type : Single Linear (Type B)
Description:

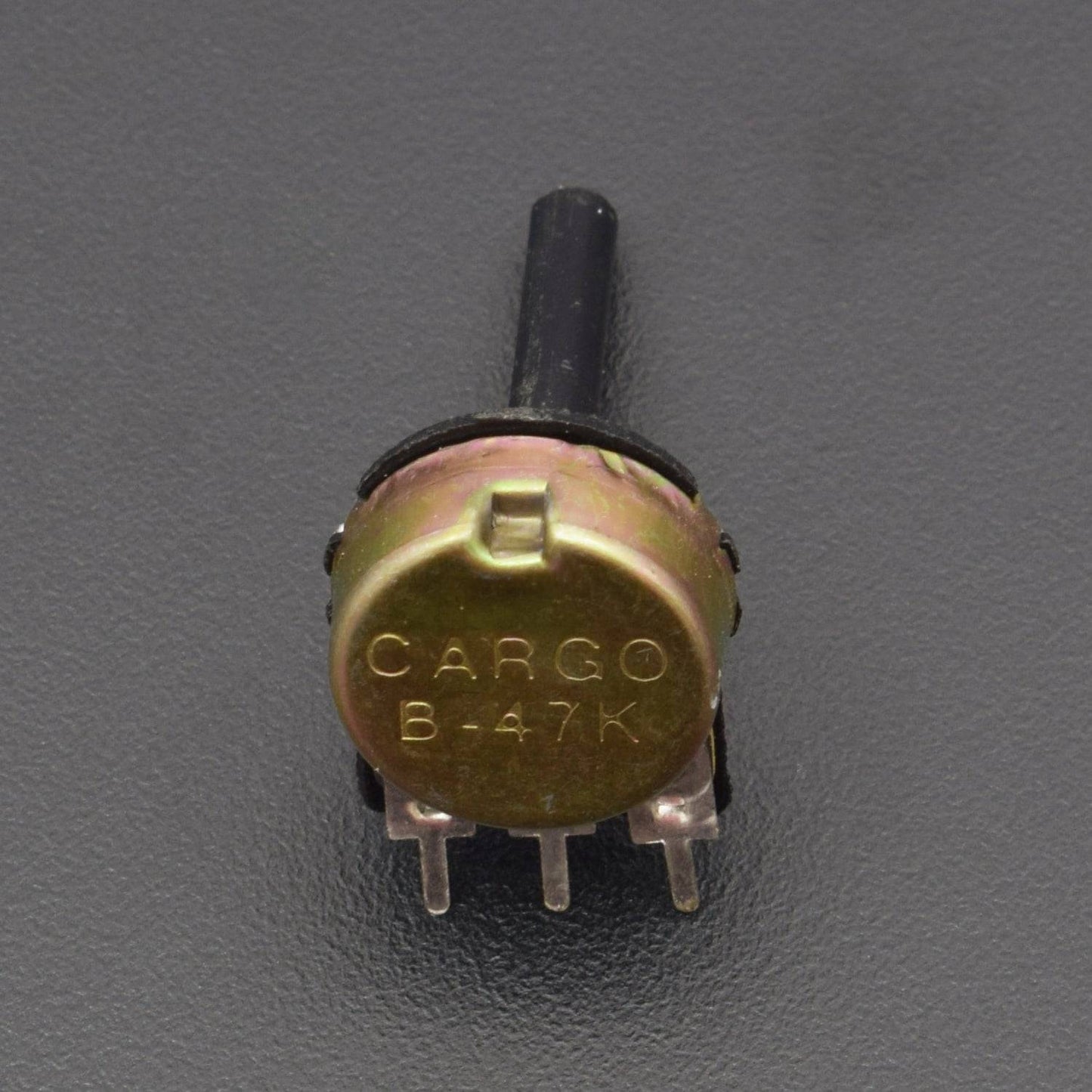

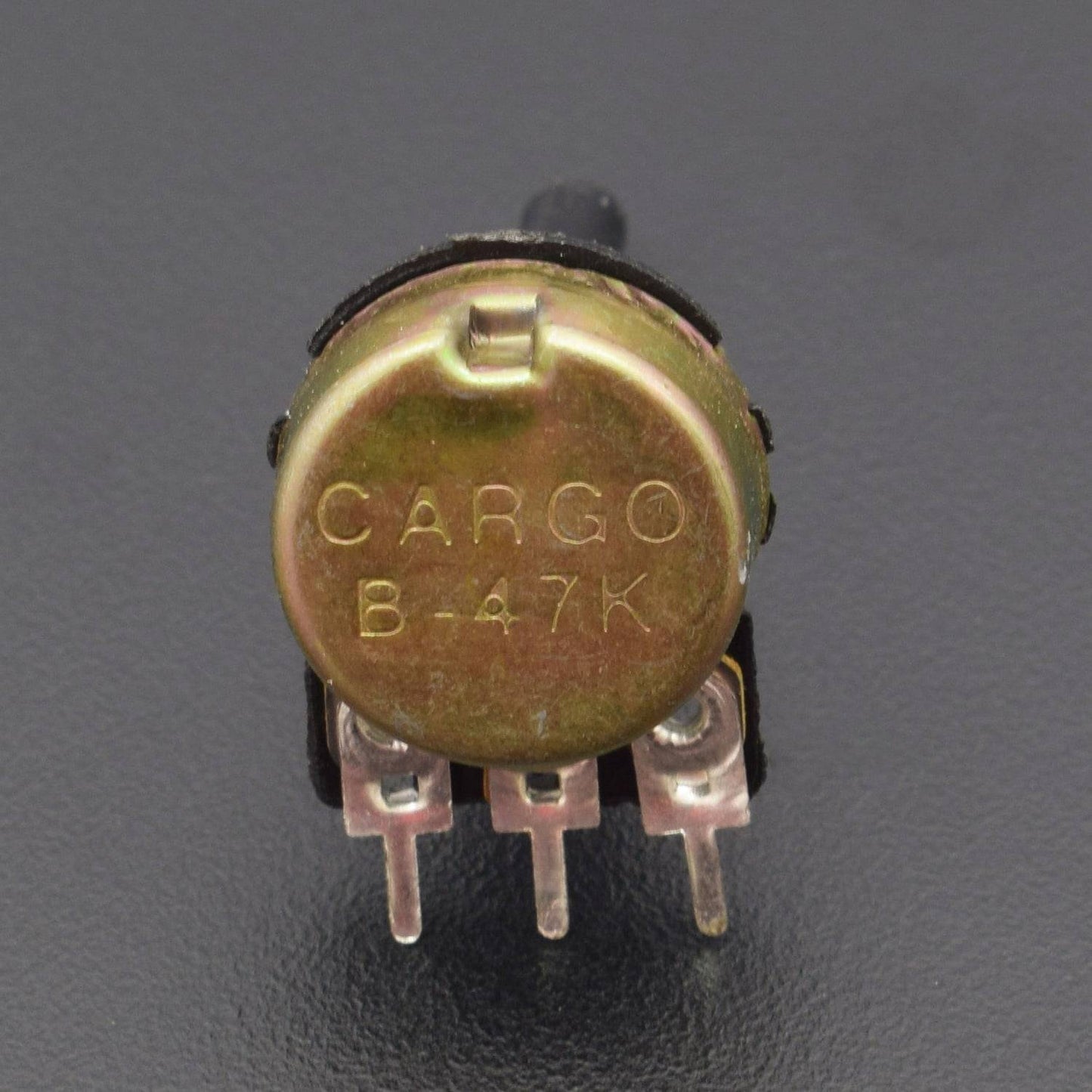

A 47K ø16mm 20% carbon track single potentiometer suitable for PCB mounting in commercial applications.
Features :
- Knurled Shaft
- Shaft Diameter : 6mm / 0.2"
- Shaft Length : 13mm / 0.51"
- Mounting Thread Diameter : 7mm / 0.3
- Base Size : 16 x 7.3mm / 0.63" x 0.29"(D*H)
Package Included:
1 x Rotary Taper Potentiometers Pot 47K Ohm
