- Material Type : Plastic
- Model Text : AWLC-141-000
- Power : Upto 1.5 hp
Description:
This model will automatically switch ON and automatically switch OFF the motor pump. It also indicates the level of water in the tank - 4 level indications (25%, 50%, 75% and 100%). The automatic operation will occur only when the pump has minimum level of water in it.
Specification:
- Power ON LED: It indicates the power supply to the unit.
- Motor ON LED: It indicates the motor ON condition.
- Tank Level Indication: Four level visual indications – 25% (Low Level), 50%, 75% and 100% (Tank full level).
- Sump Level Indication: Low Level Indication
- Manual/Auto mode switch:
- Auto mode: In AUTO mode, motor will automatically switch ON when the water level in the tank is low and automatically switch OFF when the tank becomes full.
- Manual Mode: Helps to switch ON the motor manually. In this mode, the motor will be constantly running.
- Semi-Automatic(Manual ON and Auto OFF) function is achieved by changing this switch position from Manual mode to Auto mode.
Features:
- Visual indication - Power ON, Motor ON, Four water level indication.
- Long Life
- Easy to install
- Suitable for AC motor up to 1.5 hp (Single phase motor - Monoblock, Jet Pump, Submersible,etc.)
- It supports Magnetic float switch/sensor, Contact type sensor
Application:
- Automatic water level controller is of much used in metro cities, bungalows, industries, hospitals and in luxurious apartments and homes. Use of this product saves water, saves electricity and saves time.
- Useful in case of under ground tank or ground level tank (sump) to tank set up.
- Helps in preventing overflow of water from the overhead tank.
Package Included:

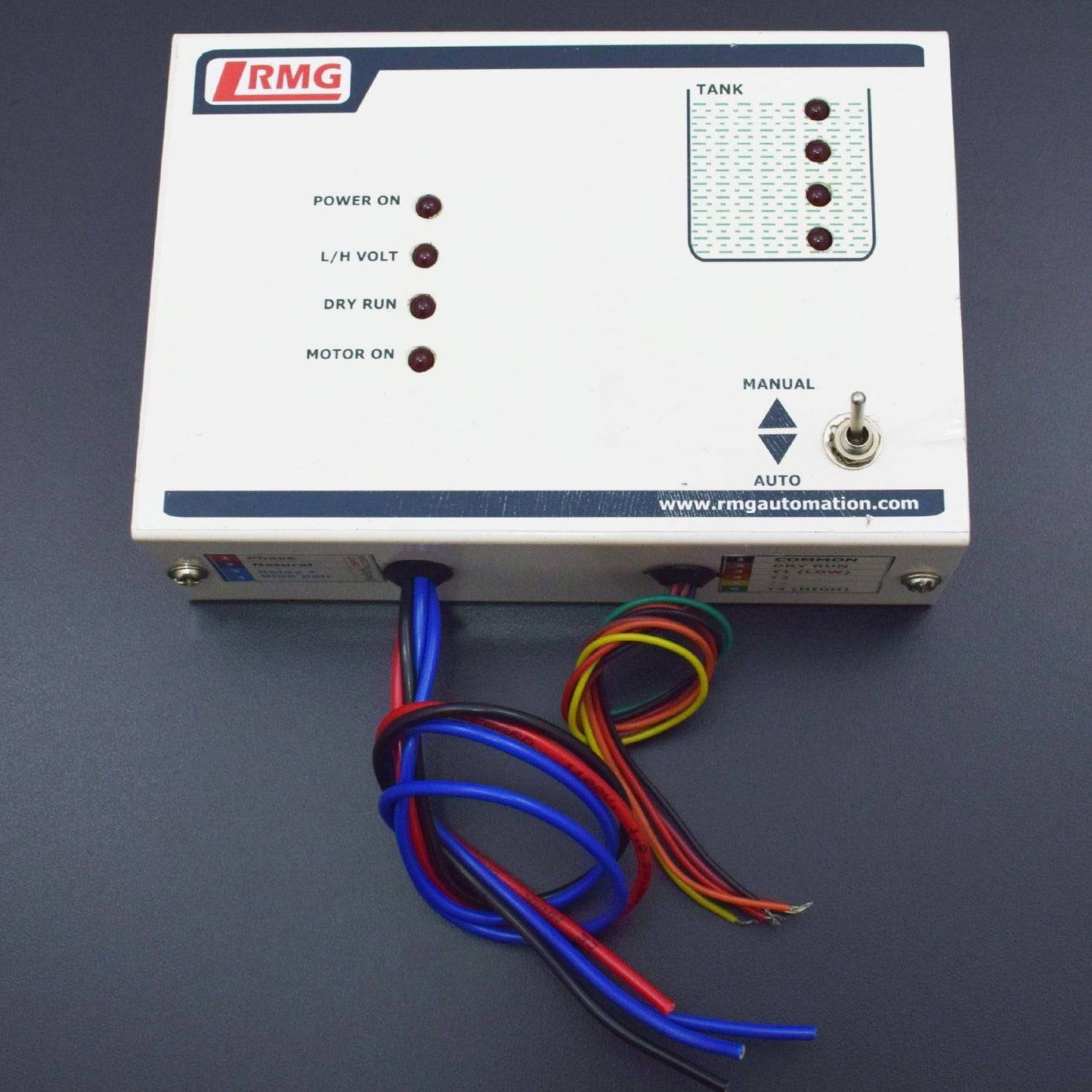

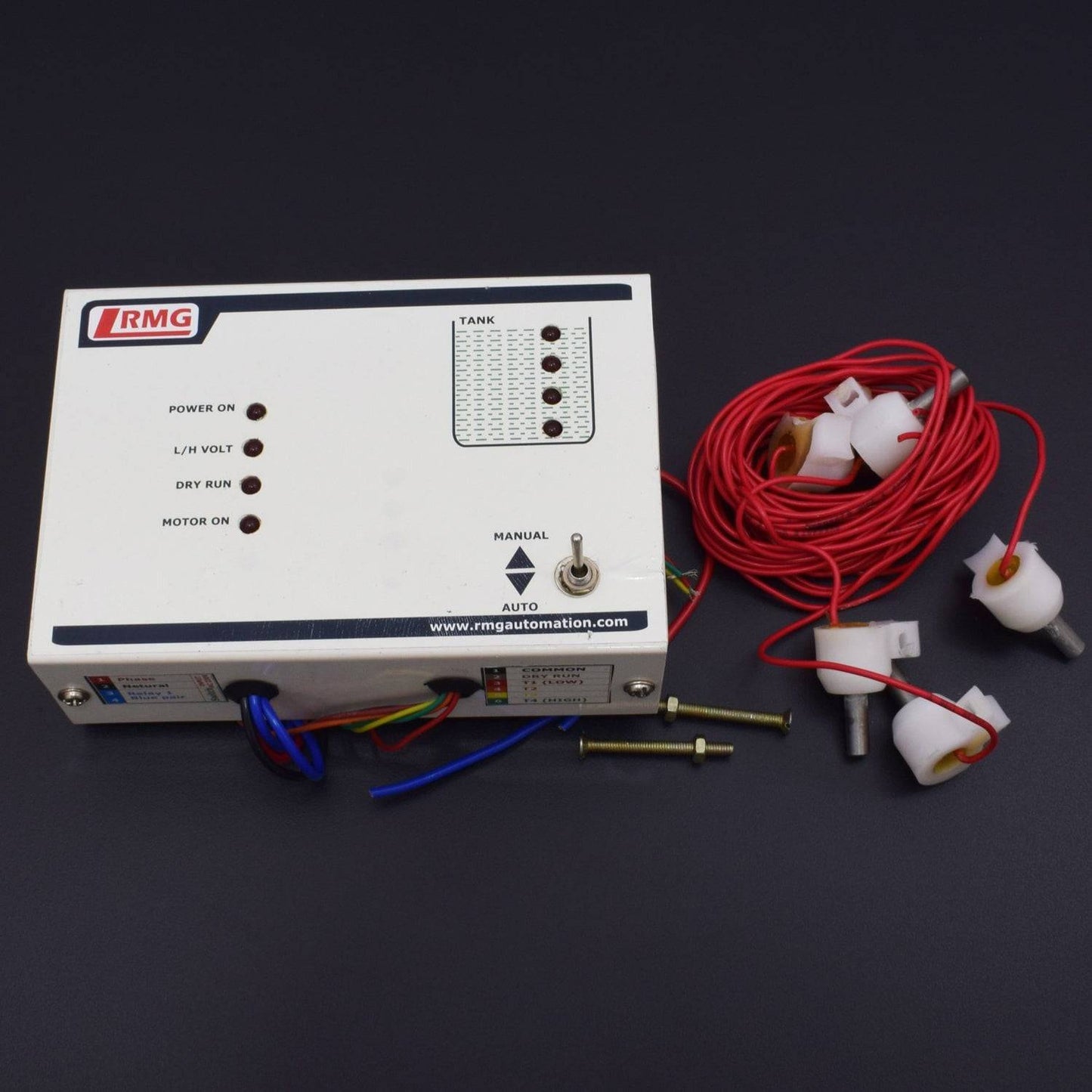

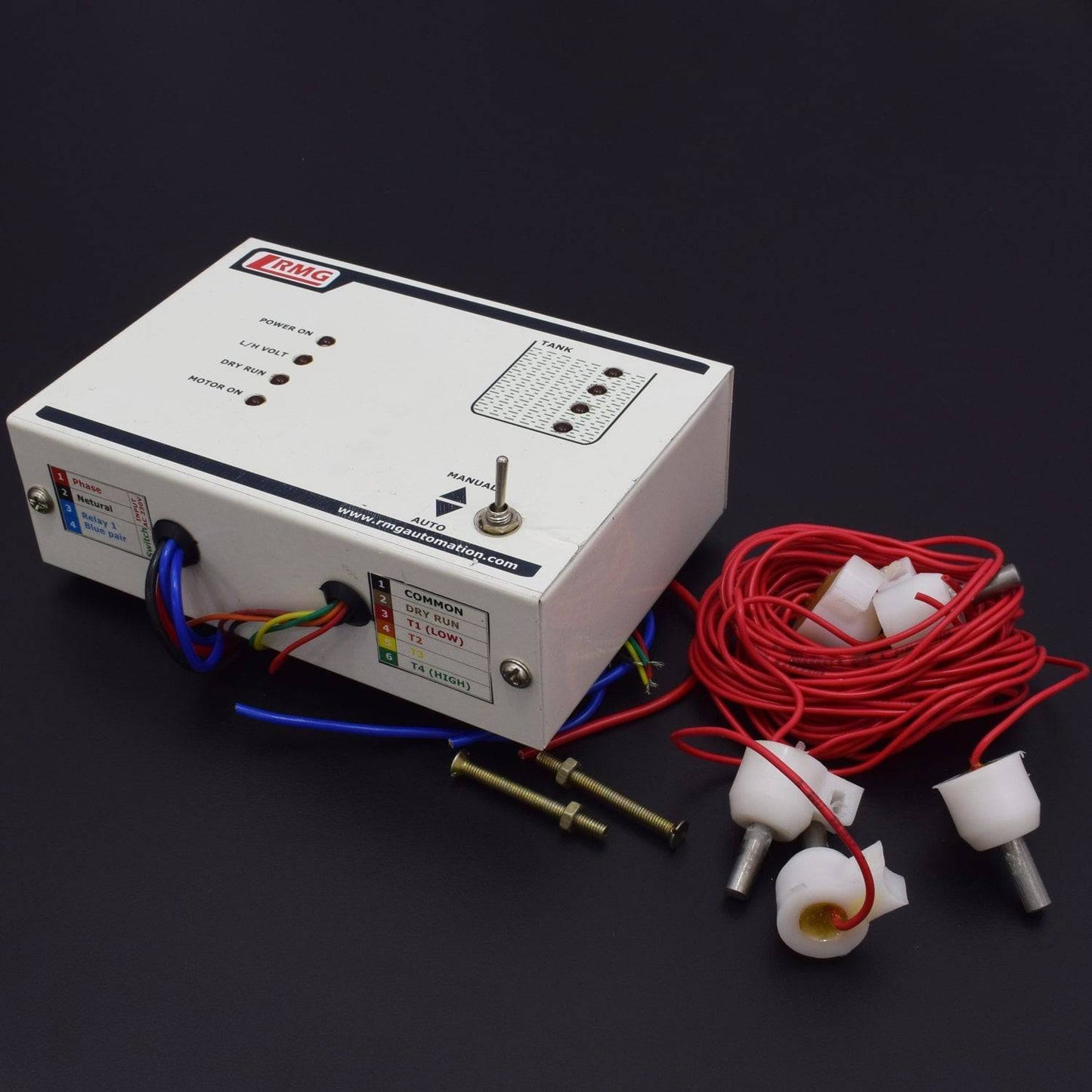

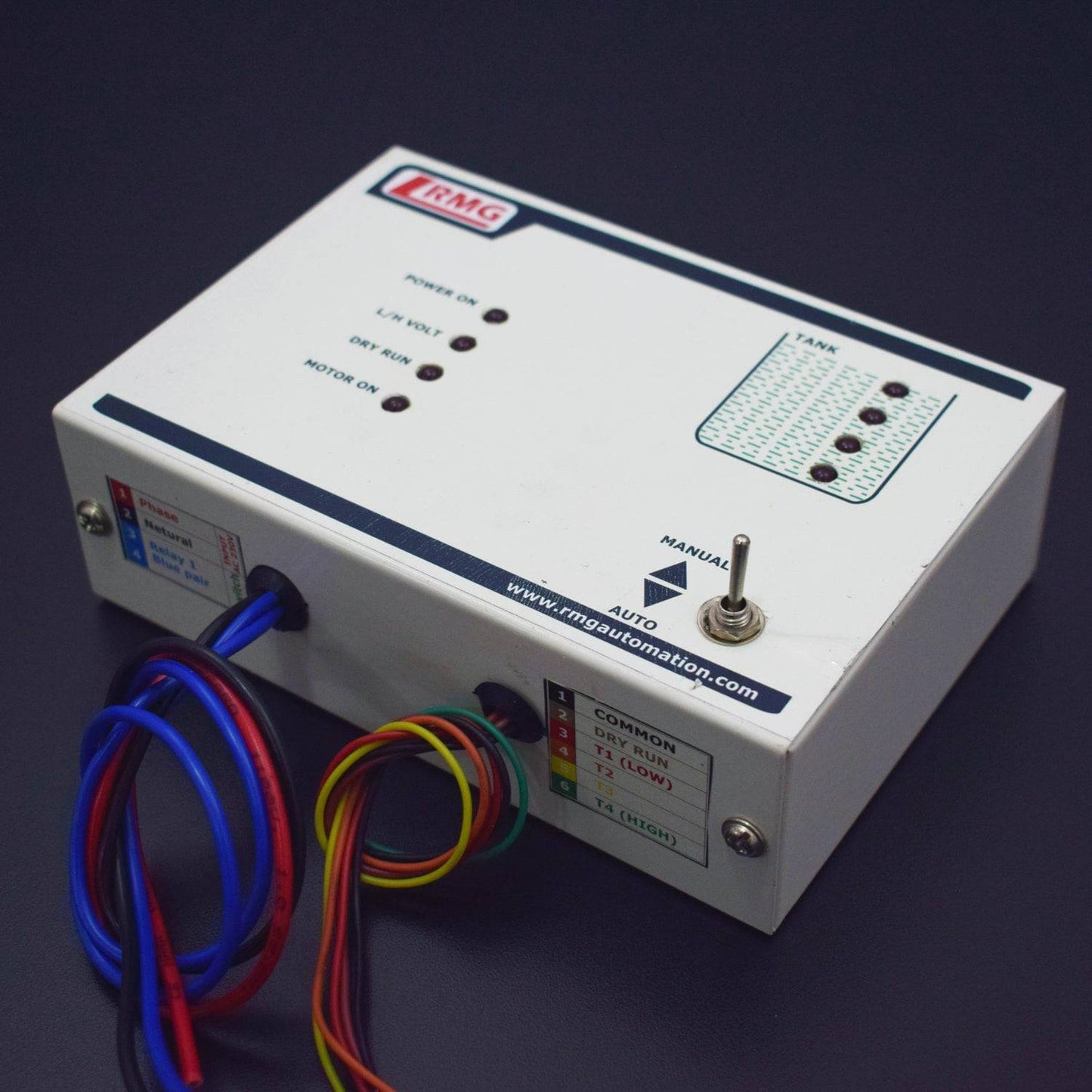

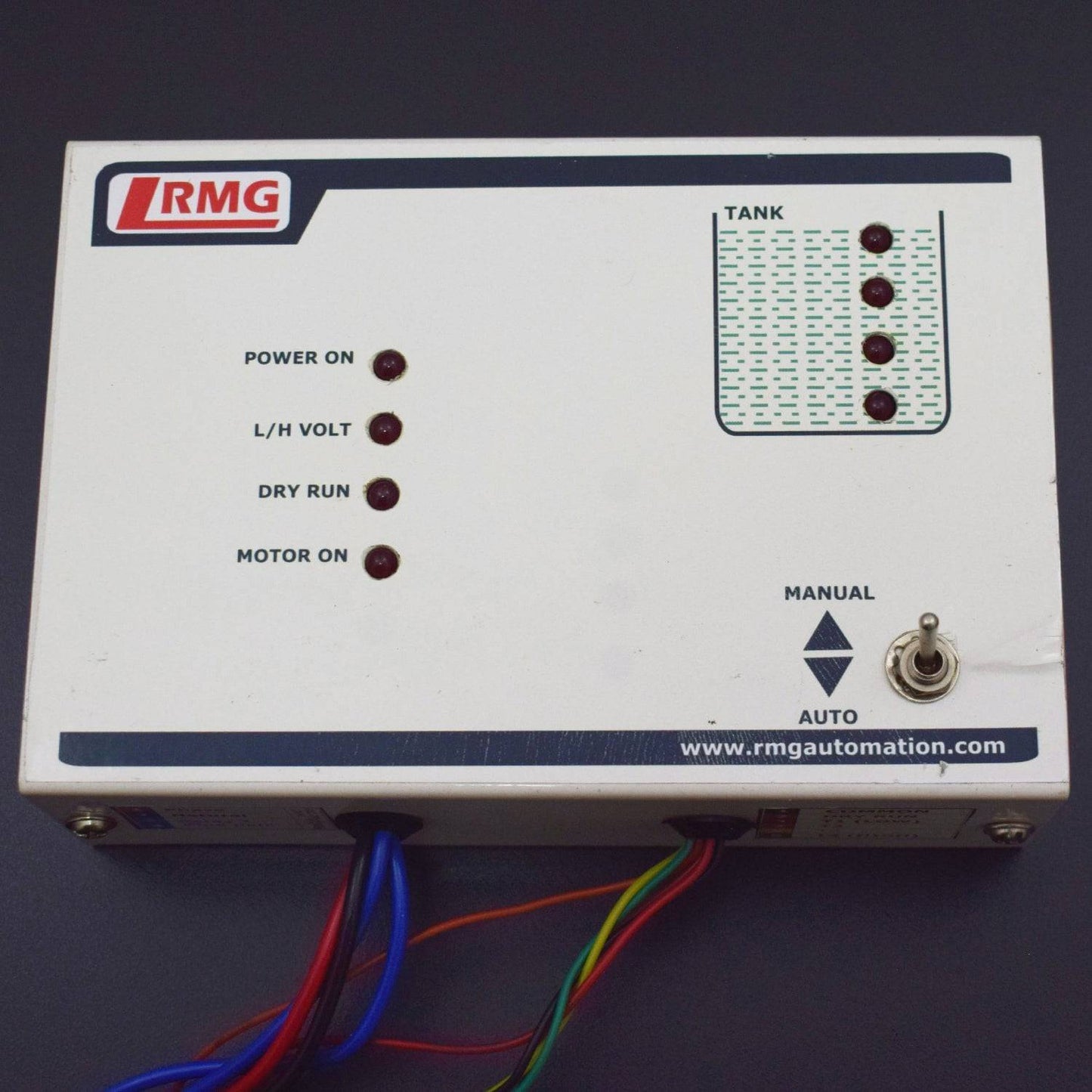

1 x RMG FULLY AUTOMATIC WATER LEVEL CONTROLLER WITH INDICATOR FOR MOTOR PUMP OPENING NY SWITCH
