Description:
MF RC522 has applied to 13.56MHz contactless card reader communication chips a member of the high level of integration. Is NXP, for the “Three Tables” application introduced a low-voltage, low-cost, small size and non-contact chip card reader is a good choice for smart meters and portable handheld devices developed? MF RC522 using advanced modulation and demodulation concept completely integrated into all types of passive 13.56MHz contactless communication methods and protocols. Support ISO14443A multilayer applications. The transmitter portion of its internal communications can drive the reader antenna and ISO 14443A/MIFARE cards and answering machine, no other circuits. The receiver part provides robust and effective demodulation and decoding circuitry for processing signals ISO14443A compatible transponders. The digital part handles ISO14443A framing and error detection (Parity & CRC). In addition, it supports the fast CRYPTO1 encryption algorithm used to verify the MIFARE products. MFRC522 support MIFARE? Higher-speed non-contact communication, two-way data transfer rates up to 424kbit/s. As a new member of the highly integrated 13.56MHz card reader series chip family, MF RC522 MF RC500 and MF RC530 and there are many similarities, but also have many other features and differences. It is the communication between the host and the serial communication using fewer connections, and can be based on different user needs to select one mode SPI, I2C or serial UART (similar to RS232), helps to reduce the connection, reducing the volume of PCB board and reduce costs.
Specifications:
- Sleep current: 50 μA
- Peak current: 30mA
- Working frequency: 13.56MHz
- Reading distance: 0-45mm
- Interface: UART TTL
- Product Type: MIFARE RC522
- Sleep current: 50 μA
- Peak current: 30mA
- Working frequency: 13.56MHz
- Reading distance: 0-45mm
- Interface: UART TTL
- Baud rate: 115200
- Data transmission: 10Mbit / s
- Operating temperature: -20 ℃ - +80 ℃
- Storage temperature: -40 ℃ - +85 ℃
- Humidity: 5% -95% relative humidity
- Agreement: Comply with ISO14443A standard, support Mifare1 S50, S70.
- Serial port supply voltage (VCC): 5V
Pin Description:
- RX: Receive a serial port
- TX: Send a serial port
- VCC: 5V power supply
- GND: Ground
Package Included:

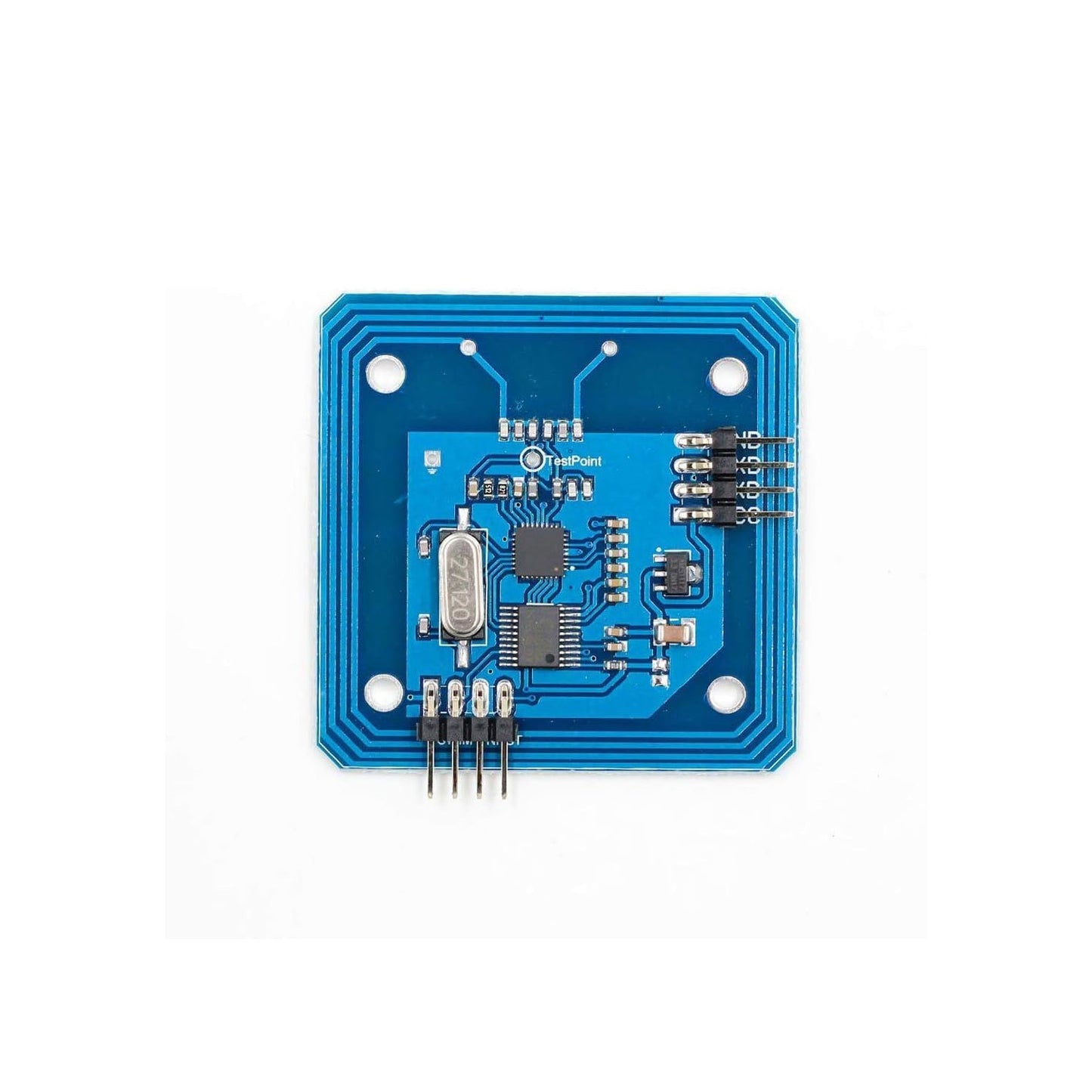

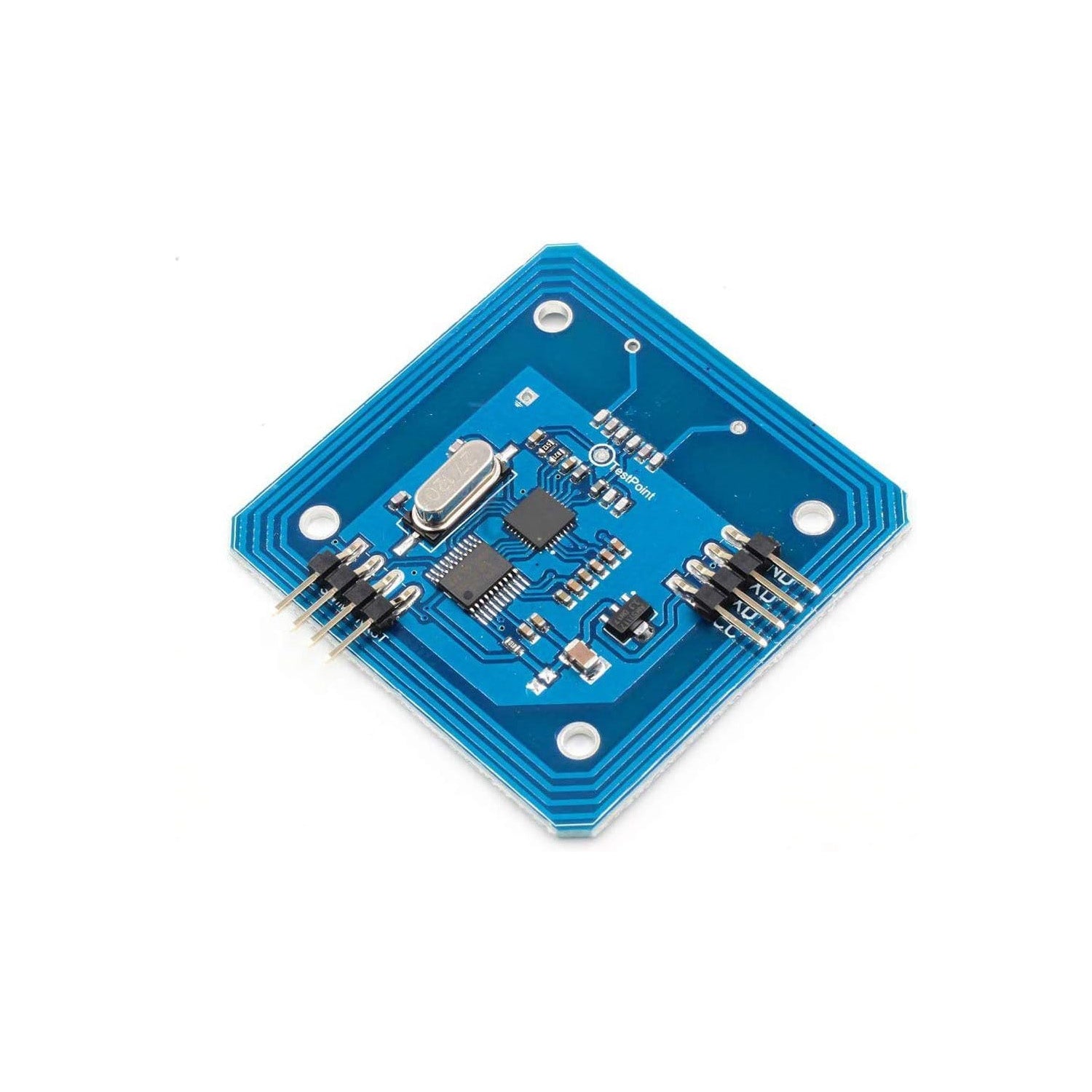

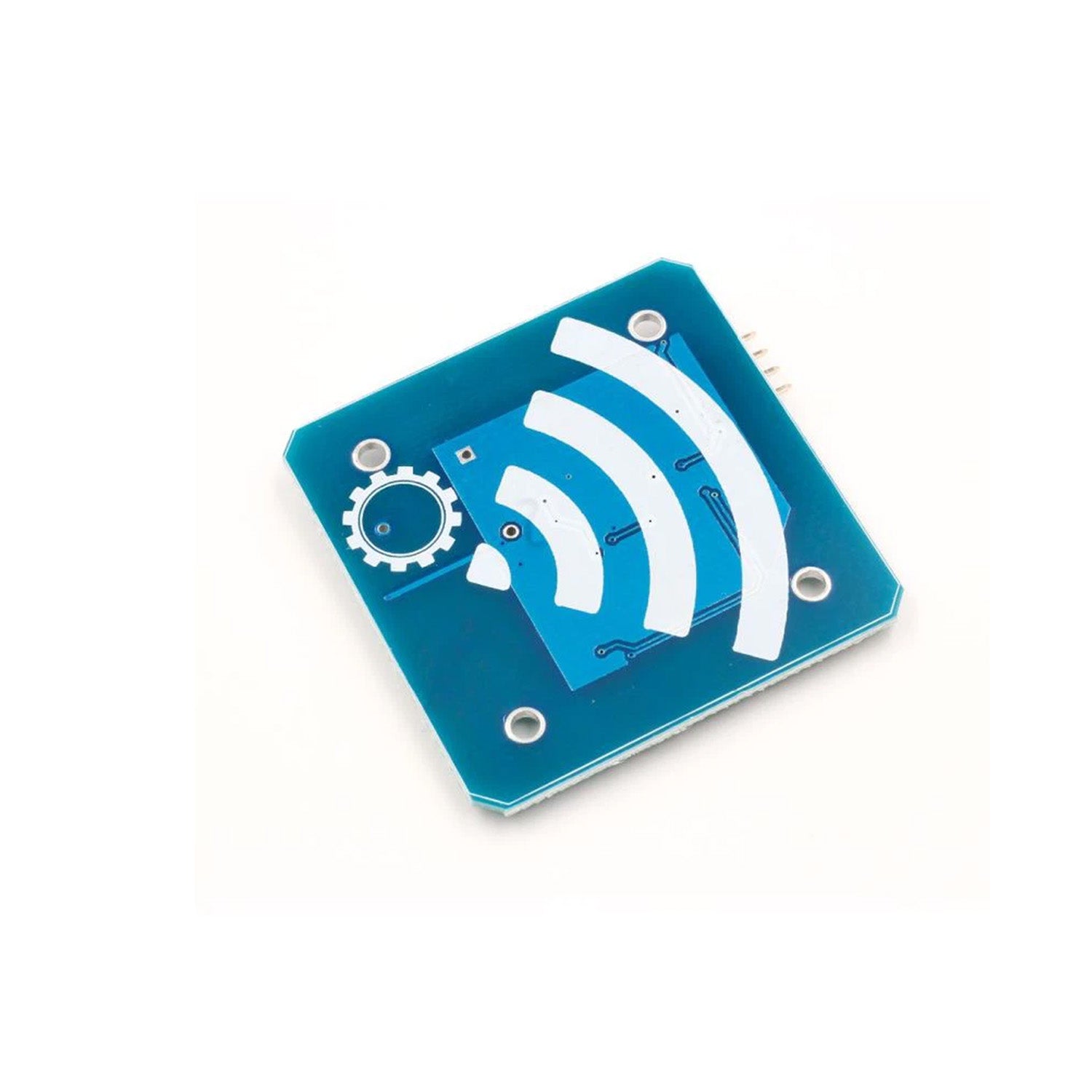

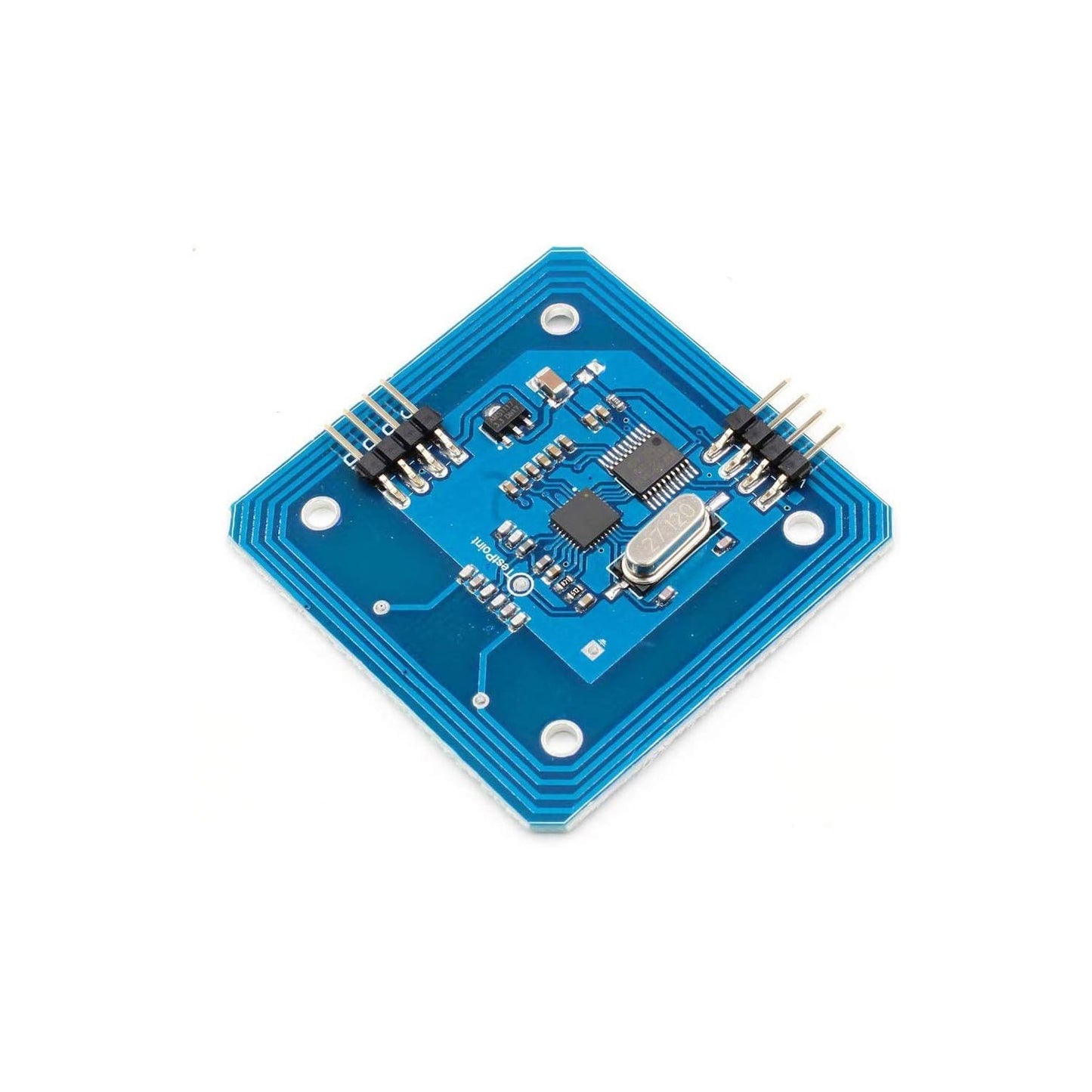

1 x RFID RF IC Card Sensor RFID Reader Module 13.56MHz for Arduino
