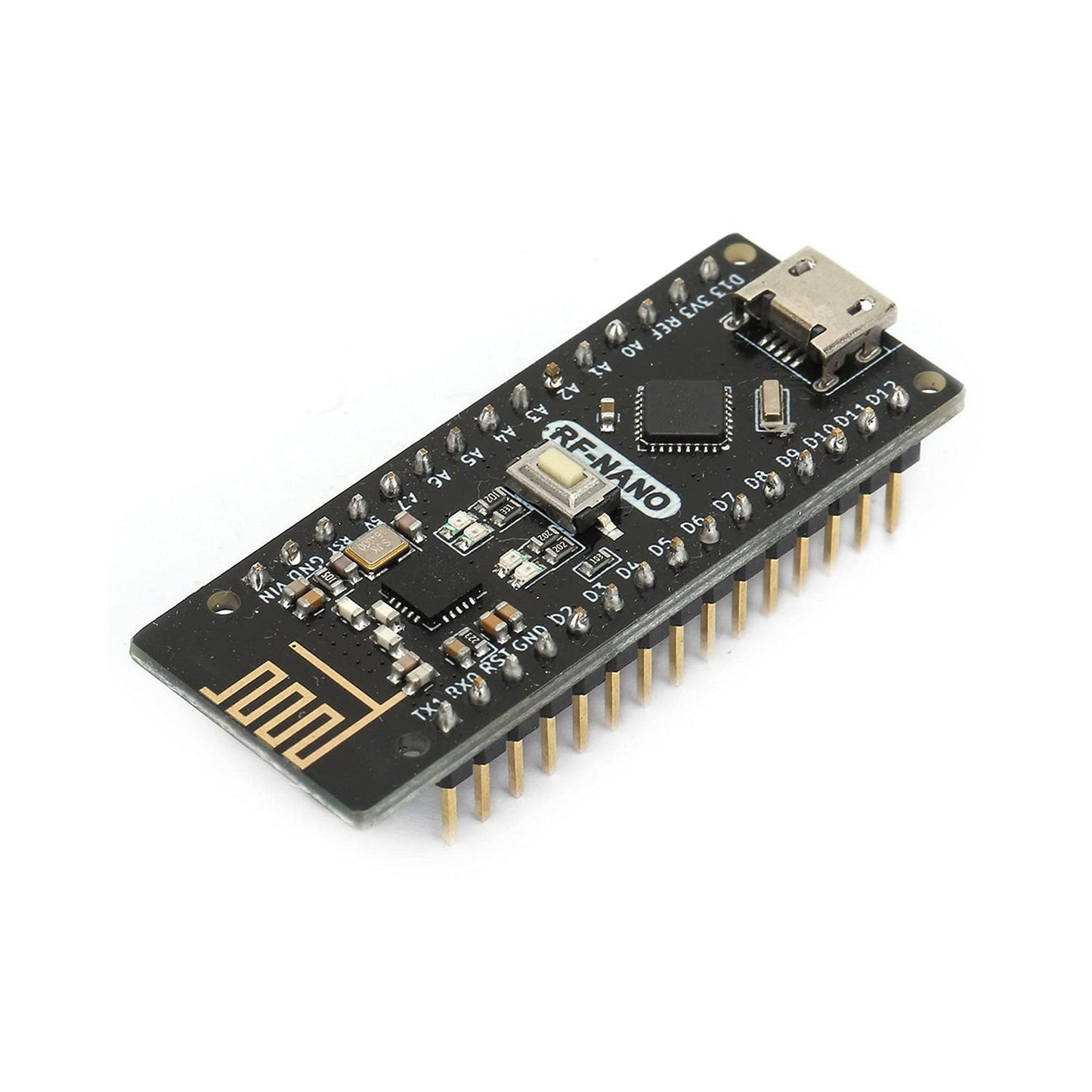

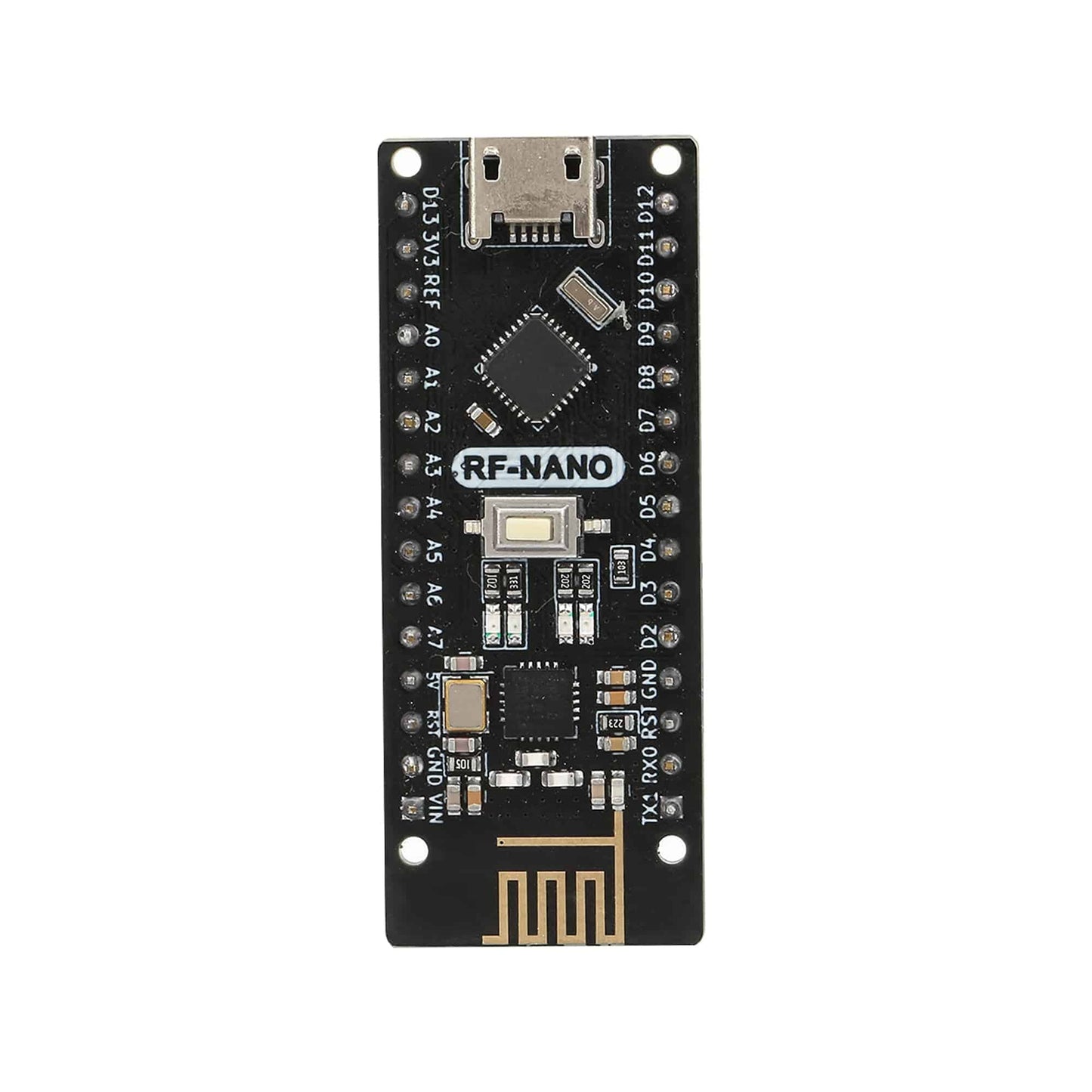

Description:
The RF Nano Board is a compact wireless communication module that incorporates the NRF24L01 transceiver chip. It is characterized by its compact size and integration capabilities, making it suitable for applications where space is limited. The RF Nano Board is designed to provide wireless communication capabilities to electronic devices and microcontroller-based systems. RF Nano Board operates in the 2.4GHz ISM (Industrial, Scientific, and Medical) band and supports various wireless protocols such as the Nordic Gazell protocol, which is commonly used for low-power applications.
The RF Nano Board typically includes an onboard antenna, a voltage regulator, and necessary circuitry for interfacing with a microcontroller or other electronic devices. It offers a simple and cost-effective solution for implementing wireless communication in projects that require low power consumption and short-range communication.
Specifications:
- Input Voltage: 7-12 V
- Digital I/O: 22 Pins
- PWM Output: 6
- Power Consumption: 19 m
- Operating Voltage 5 V
- Flash Memory 32 KB of which 2 KB used by the bootloader
- SRAM: 2 KB
- Clock Speed: 16 MHz
- Analog I/O: 8 Pins
- EEPROM 1 KB
- DC Current per I/O Pins: 40 mA (I/O Pins)
Features:
- RF Nano Board, which is very convenient for a 2.4G wireless connect application.
- Super small volume design, more convenient to use, no soldering needed.
- Designed to operate in low-power modes, making it suitable for battery-powered applications

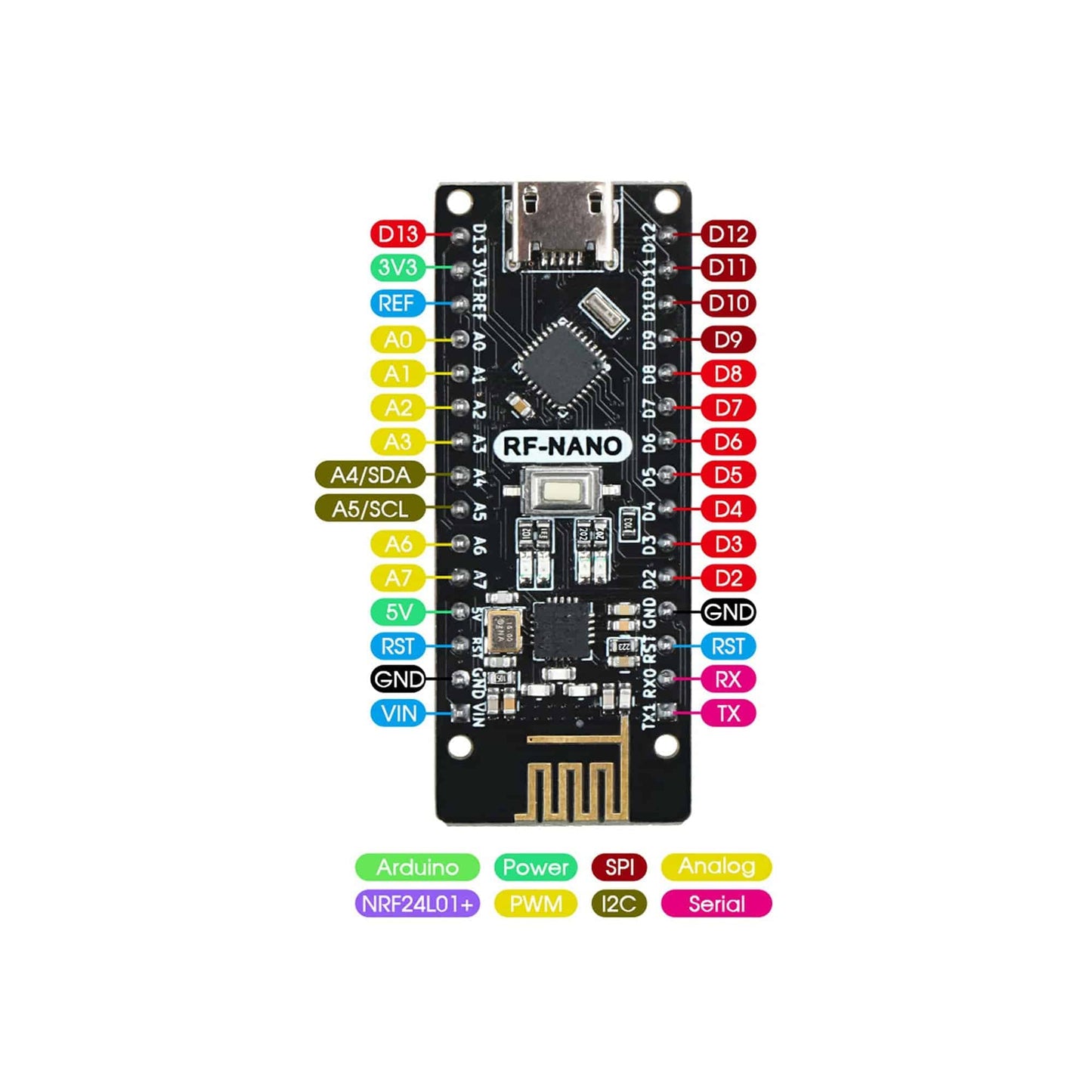

- RF-Nano board is PIN-PIN with Arduino Nano V3.0 and shares the same codes.
- The main chip is ATMEGA328P-MU QFN32 with the latest bootloader (Arduino IDE 1.8.8).
- More convenient for application: RF-Nano board integrates an NRF24L01+ module with Arduino Nano
Package Included:
1 x RF Nano Board RF Nano Integrated NRF24L01 Wireless Module with Soldering ATmega328P Micro-Controller Board
