Description:
The RS-DIP-N01-1 industrial inclinometer offers dual-axis tilt measurement with a focus on durability and versatility. Its IP rating (mention specific IP rating if known, e.g., IP67 or IP68) waterproof housing allows for reliable operation in harsh environments.
The device supports various installation methods and offers customizable measurement ranges and signal outputs. Communication is via RS485 using the Modbus RTU protocol, facilitating easy integration with industrial control systems.
Specifications:
- Model Type: Tilt Sensor Module
- Range: X, Z: -180°~180°, Y: -90°~90°
- Resolution: 0.01°
- Power output(V): 5-30V
- Output: RS485
- Protection level: IP65
- Accuracy: X, Y axis: static accuracy ±0.1°, dynamic accuracy ±0.5°, Z axis: static accuracy ±0.5°
Features:
- The overall housing of the tilt sensor is waterproof and corrosion-resistant. Design appearance suitable for harsh environments
- Various technologies including MEMS, fluid-based, and potentiometer designs
- Free cloud platform for data view.
- Using the Kalman filter algorithm, the accuracy is up to 0.05°
- It has a wide-angle measurement range and good output signal linearity, which can be used in most environments.
- Dual-axis inclinometer for horizontal and vertical mounting
Package Included:

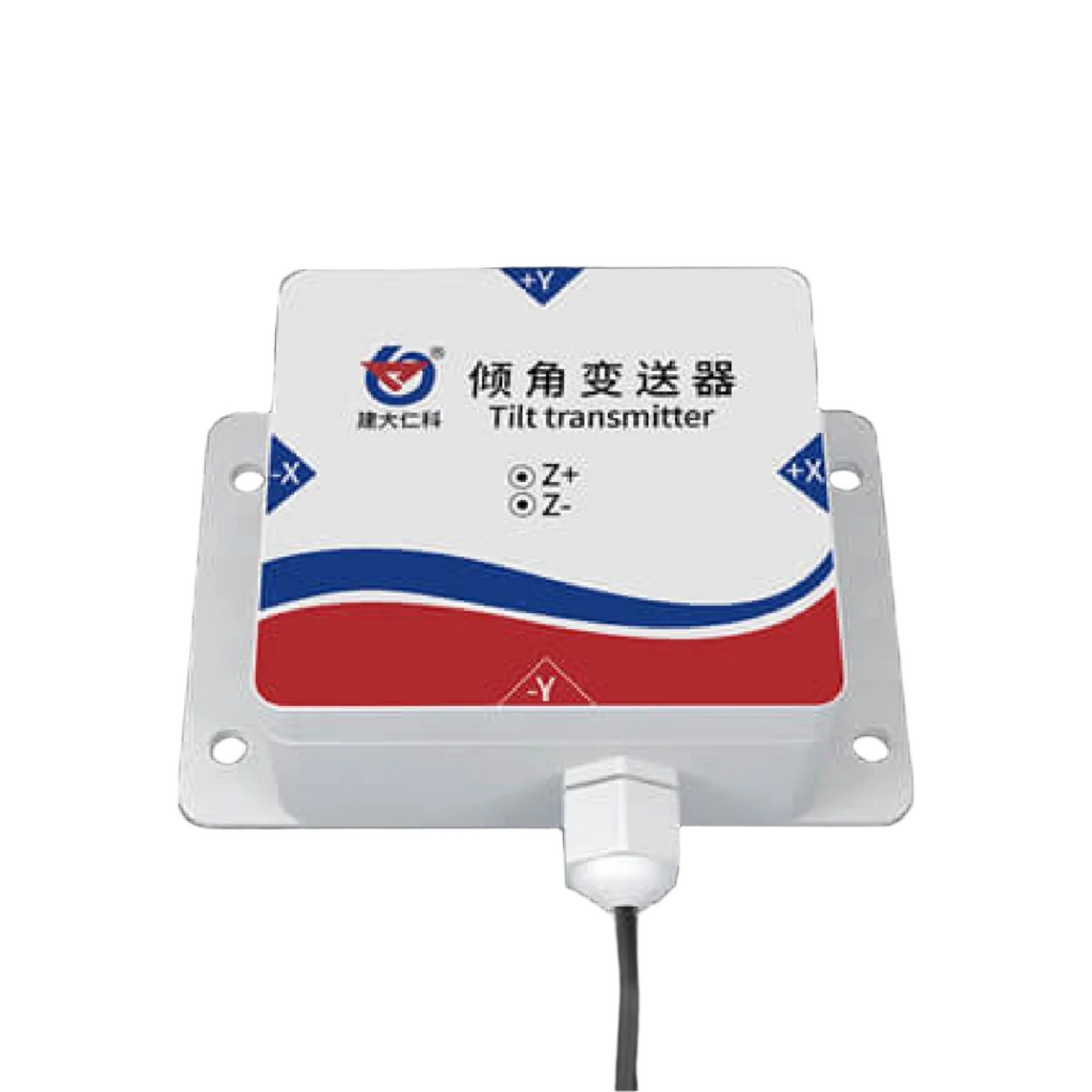

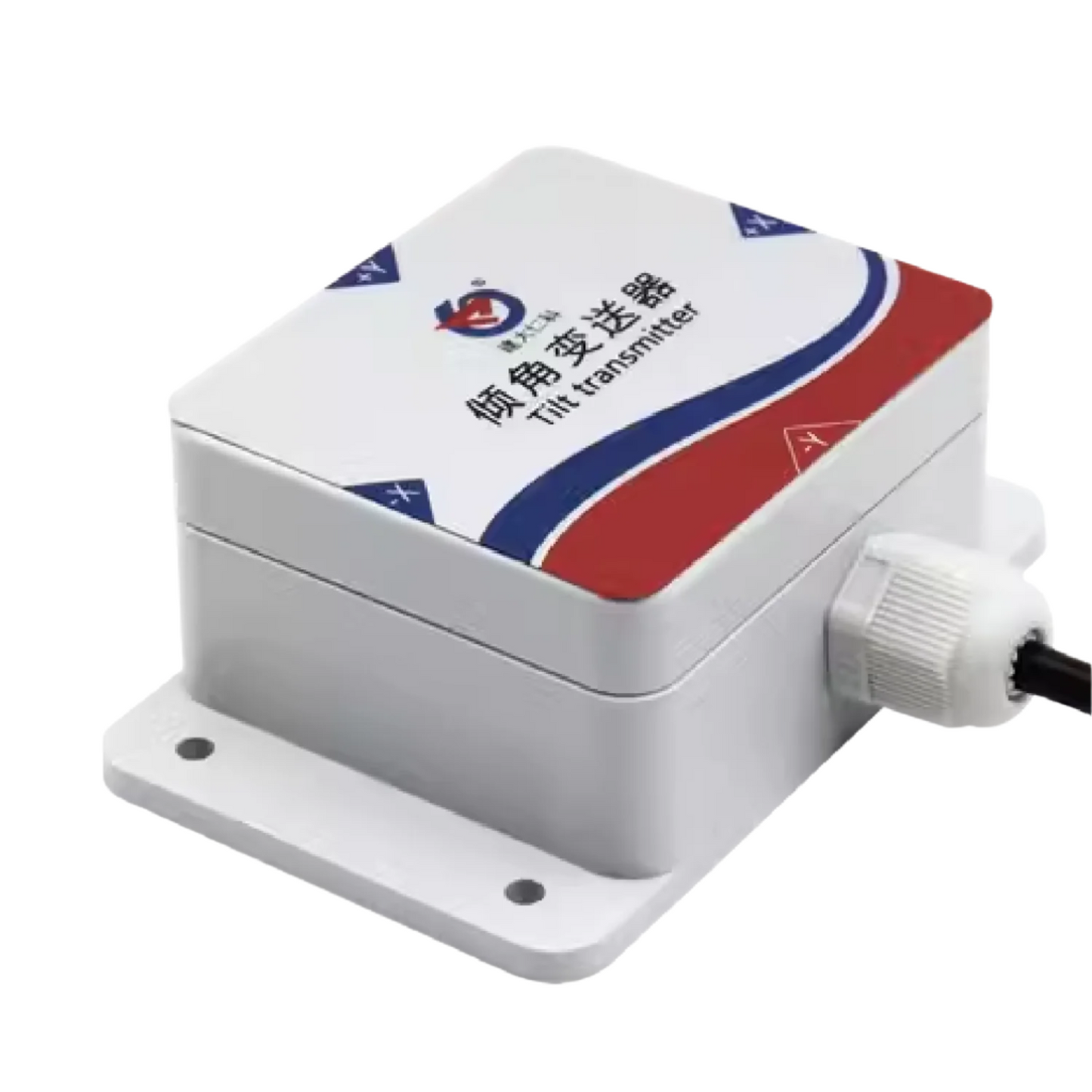

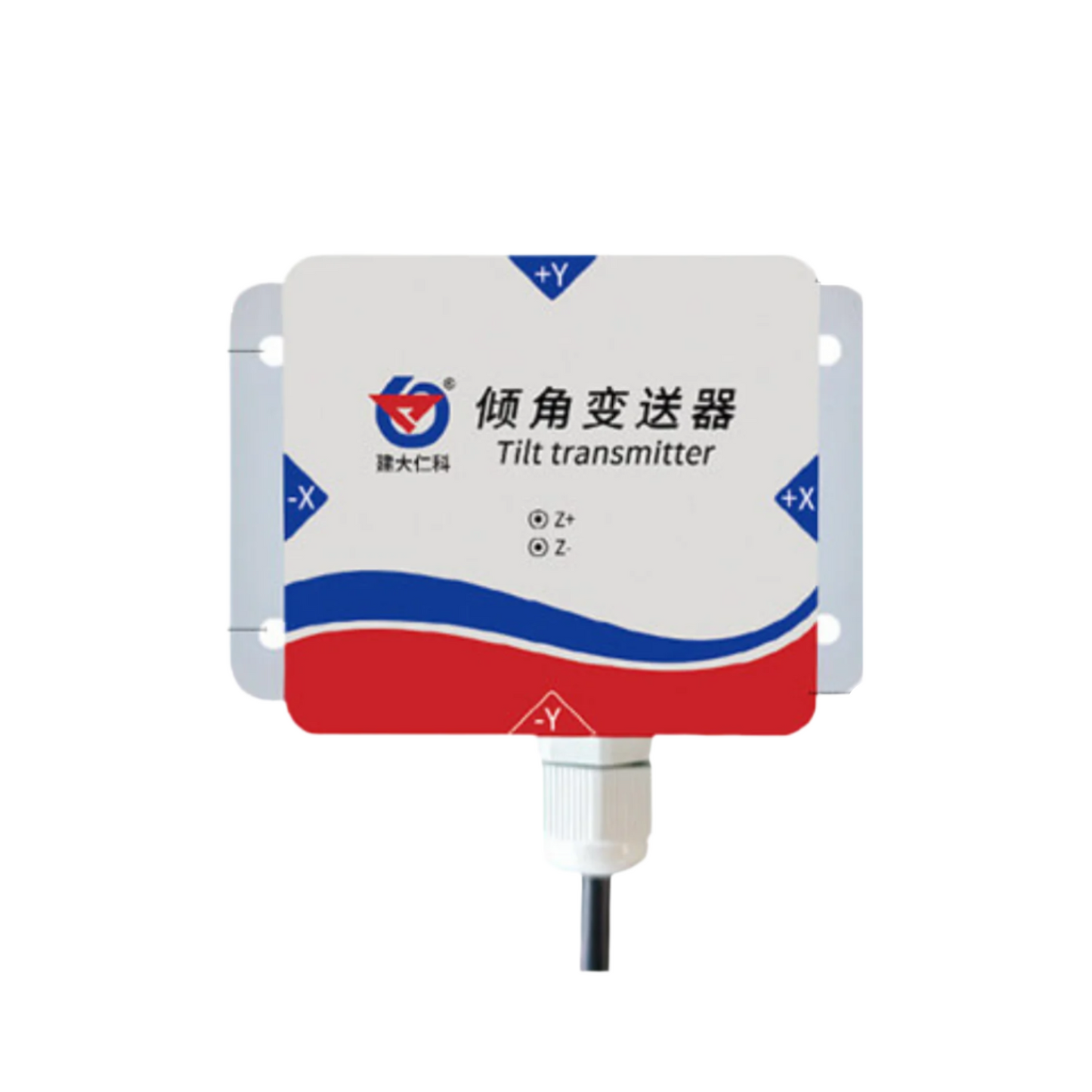

1 x Renke RS-DIP-N01-1 Inclinometer Tilt Sensor
