- Power Interface: 5V DC power interface
- Power consumption (at 5V):180mA
- Opening and closing time per minute: 30 times
Description:
The Relay Shield utilizes four high quality relays and provides NO/NC interfaces that control the load of high current. Which means it could be a nice solution for controlling devices that couldn't be directly controlled by Arduino's Digital I/Os. Standardized shield form factor enables smoothly connection with the Arduino. The shield also has four dynamic indicators show the on/off state of each relay. No Hasle connection to Arduino UNO or MEGA. Standardized shape design. Working status indicators for each relay. High quality relays. Provides NO/NC interfaces. Operating at 5V , direct driven by micro controller pin.
Specification:
- Power Interface: 5V DC power interface
- Power consumption (at 5V):180mA
- Opening and closing time per minute: 30 times
- Every channel maximum convert voltage: AC 125V / DC 24V
- Every channel maximum converts current: 3A
- Indicator: Four lights are red when the relay is driven high , the corresponding indicator will light up
Features:
- Standard Arduino Shield interfaces and shape
- Can continue to stack other Arduino expansion boards
- 3 M3 screw positioning holes for easy installation
- High Drive (5V or 3.3V) normally open contact closure
- Onboard relay indicator (red)
Relay Terminals:
Terminal high-power , high-current high voltage can be connected to the device . The 1st foot ( i.e. NOx) is a normally open pin , NCx pin is normally closed , COMx is common, i.e., when the relay is not driven , NOx and COMx open between two pins , NCx and COMx connection ; When the relay (x) control signal pin is high drive relays , NOx and COMx connection open between NCx and COMx.
Package Included:

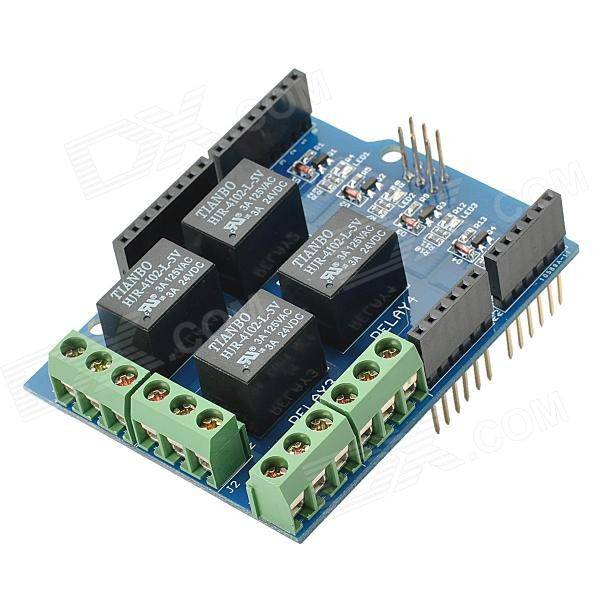

1 x Relay Shield V0.9B 5V 4-Channel Solid State Relay Module For Arduino
