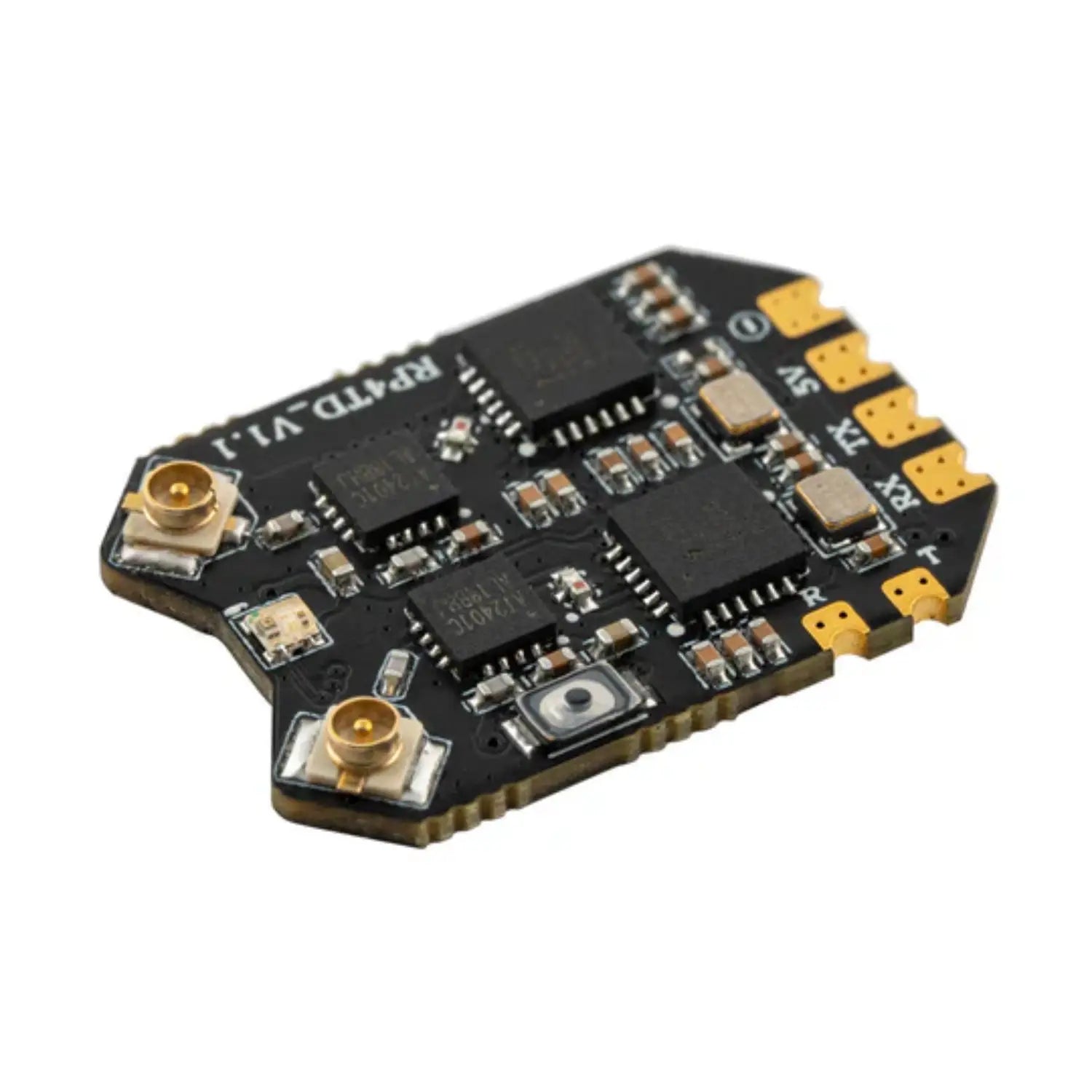

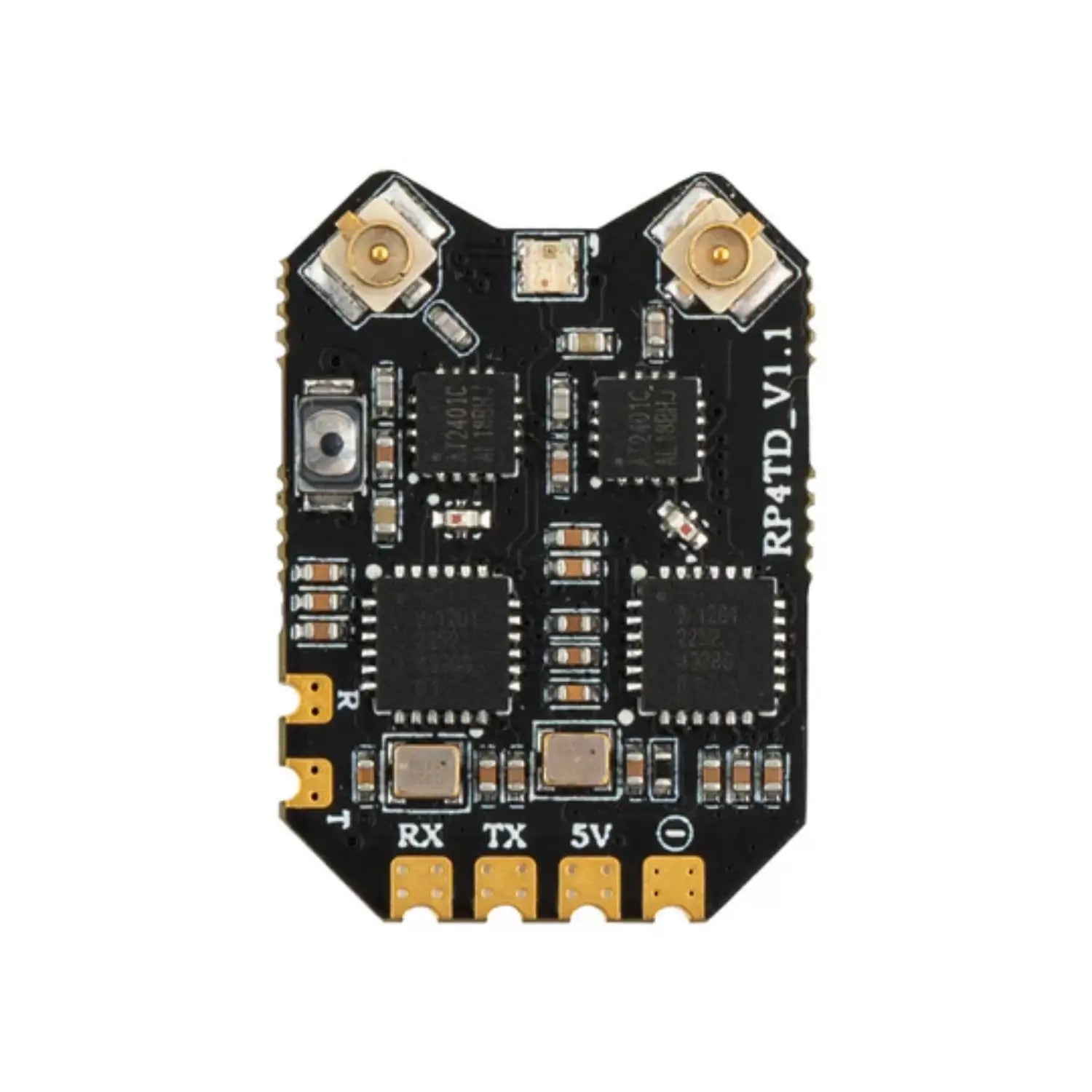

RadioMaster RP4TD ExpressLRS 2.4GHz Nano Receiver – Ultra-Stable True Diversity Dual-Antenna Link - RS7715
RadioMaster RP4TD ExpressLRS 2.4GHz Nano Receiver – Ultra-Stable True Diversity Dual-Antenna Link - RS7715
SKU:RS7715
Low stock: 2 left
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
Stop worrying about signal dropouts, poor range or interference on your next FPV flight. The RadioMaster RP4TD ExpressLRS 2.4GHz Nano Receiver gives you the true diversity performance you demand—dual antennas, dual RF chips, all optimized to keep your quadcopter or fixed-wing setup locked in and flying safe.
Featuring dual-channel 2.4GHz radios, the RP4TD excels in signal sensitivity, signal-to-noise ratio, and overall performance due to its optimized circuit design. The reliable DCDC power supply circuit ensures lower operating temperatures during extended usage. Additionally, the dual TCXO contributes to the utmost frequency stability and makes the RP4TD a leader in its class. The RP4TD features built in WIFI so you can wirelessly upgrade firmware to configure the receiver via the built-in WebUI with your PC or mobile phone.
Ready to elevate your FPV rig’s performance and reliability? Click Add to Cart now and ensure you’re flying with the best link possible!
Specifications:
- Type: ISM
- MCU: ESP32
- RF Chip: SX1281 x 2
- Antenna: 65mm 2.4GHz T Antenna x 2
- Frequency Range: 2.4GHz
- Maximum Refresh Rate: 500Hz / F1000Hz
- Telemetry RF Power: Max 2x 100mW
- Working Voltage: DC 4.5-12.0V

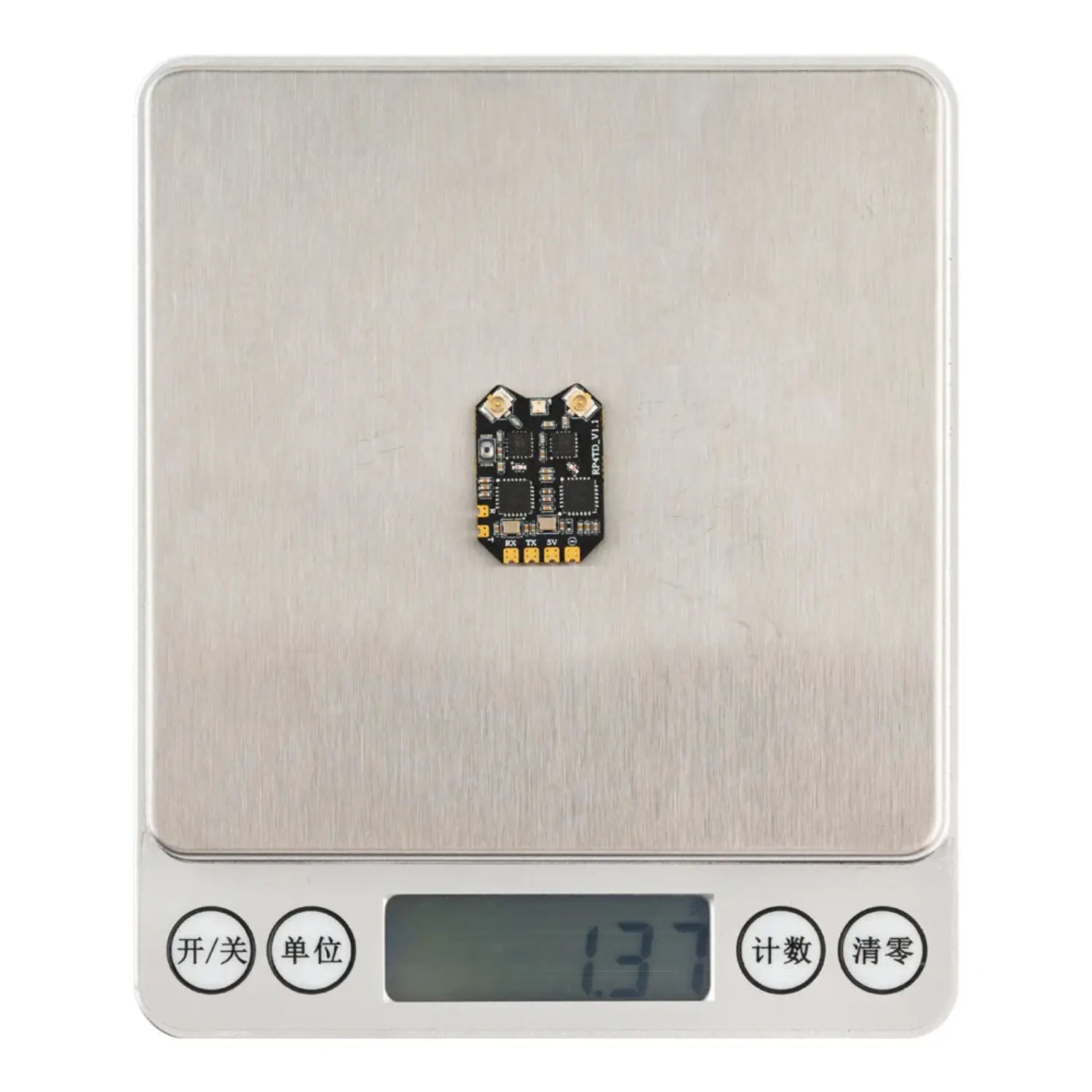

- Weight: 1.4g (without antenna)
- Dimension: 23.7*16.3*4.0mm
- Firmware Version: ExpressLRS V3.3.0 pre-installed
- FW Target: RadioMaster RP4TD 2400 RX
- Bus interface: CRSF
- Extend interface: UART
Features:
- Gemini mode compatible
- Reliable DCDC Power supply circuit
- Class leading SNR and RSSI performance
- Optimized PCB design for better heat dissipation
- Upgraded antenna with greater durability and performance
- UART pads for extended applications
- Dual TCXO (temperature compensated crystal oscillator)
- 2x 100mw RF Telemetry power output
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS.
- High Refresh Rate: Supports up to 500 Hz / F1000Hz refresh rate for ultra-low latency RC control.

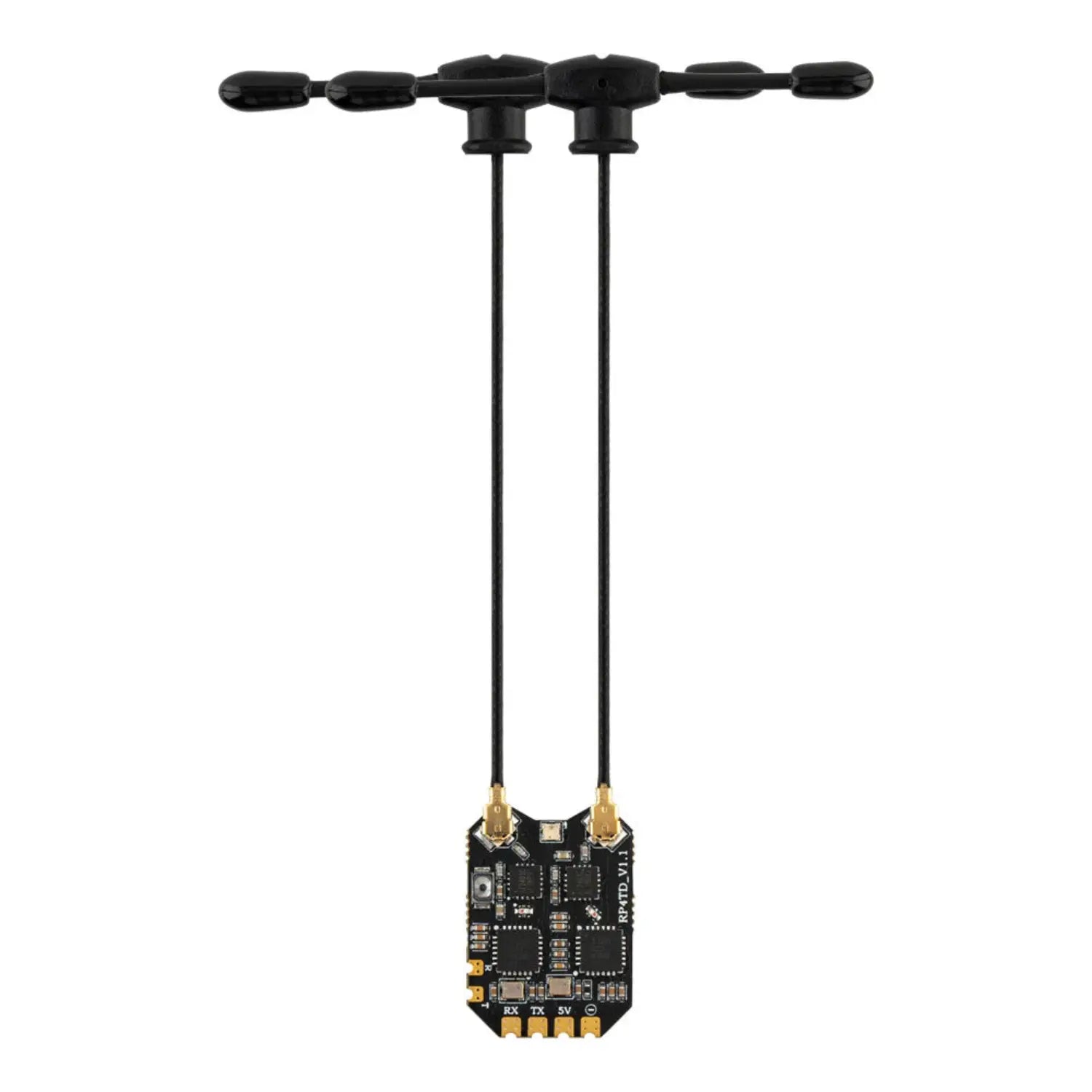

- True Diversity Dual-Antenna Design: 2 × 65 mm 2.4GHz T-antennas for improved reception and performance.
Useful Link:
Package Included:
- 1 x RP4TD ExpressLRS 2.4GHz Diversity Receiver
- 1 x CRSF wire
- 3 x Heat-Shrinkable Tube
- 2 x 65mm 2.4GHz T Antenna (Installed on receiver)
- 1 x User Manual
