REES52 HC-SR04 Ultrasonic Sensor, Distance Sensor, Ultrasonic Range Finder Compatible with Arduino UNO MEGA2560 Nano Robot XBee ZigBee - RS5561

REES52 HC-SR04 Ultrasonic Sensor, Distance Sensor, Ultrasonic Range Finder Compatible with Arduino UNO MEGA2560 Nano Robot XBee ZigBee - RS5561

SKU:RS5561

5028 in stock

Regular price Rs. 64.00
Regular price Sale price Rs. 64.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details

Description:

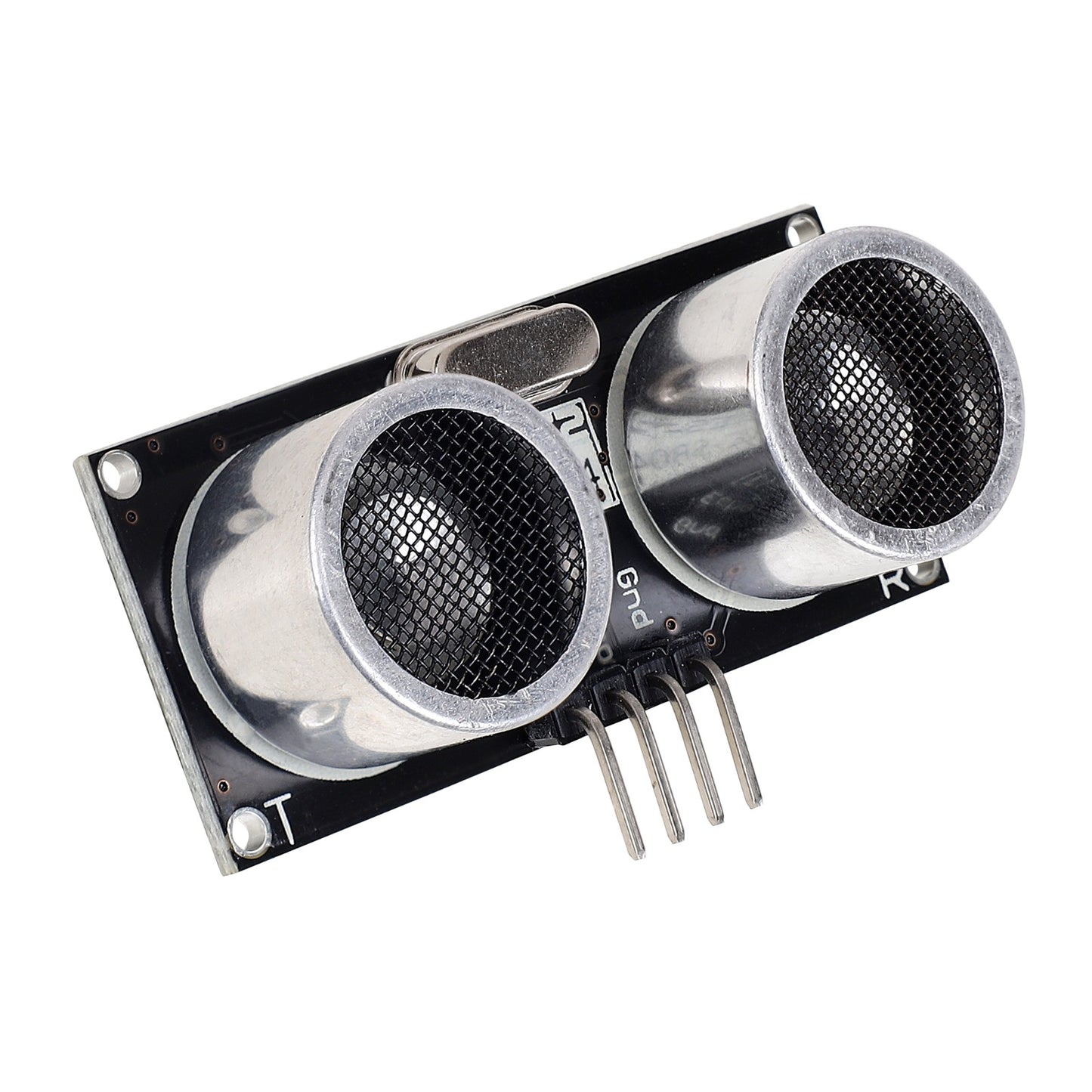

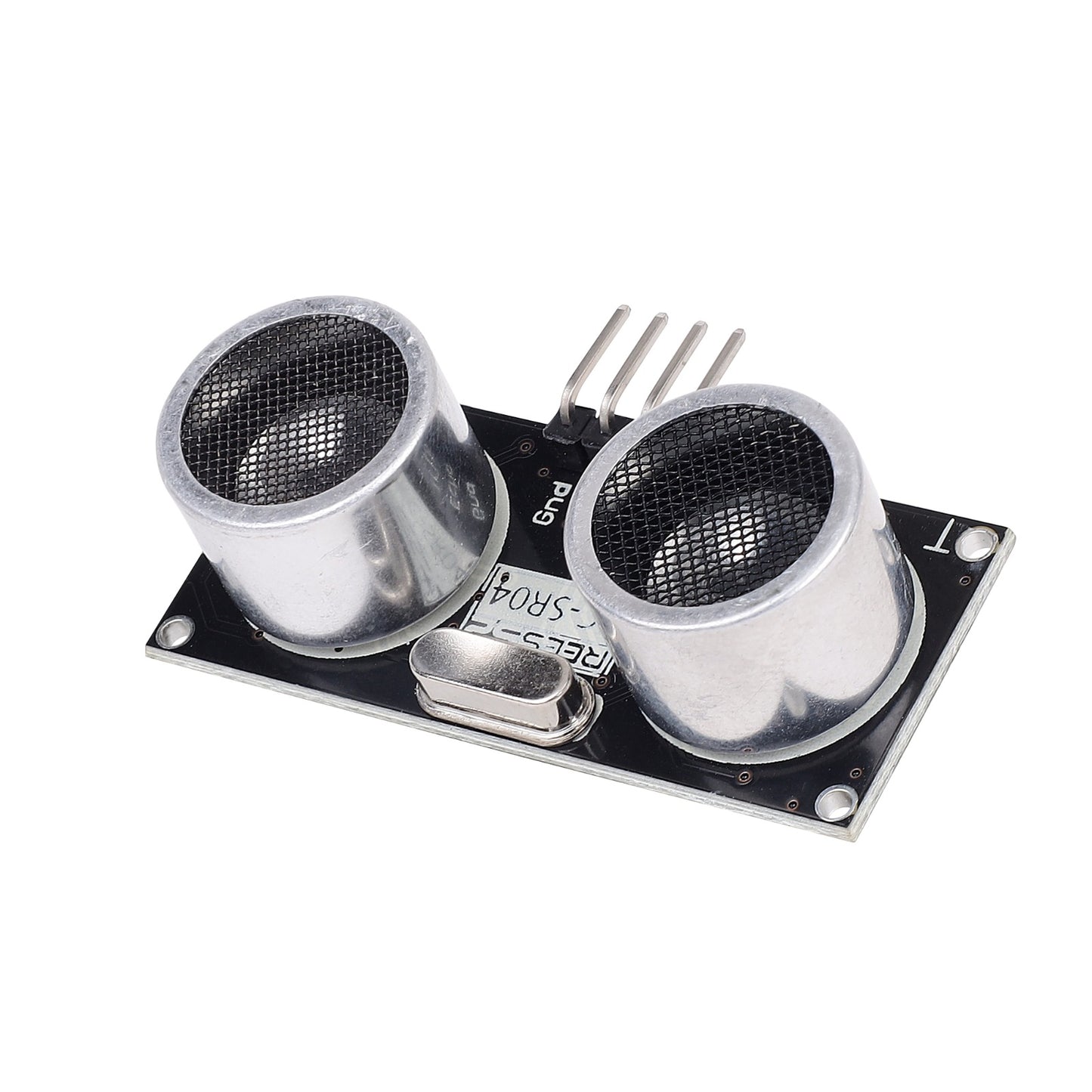

This REES52 HC-SR04 Ultrasonic Sensor is a very popular sensor that is found in many applications where it requires measuring distance and detecting objects. The Ultrasonic Sensor module has two eyes-like projects in the front which form the Ultrasonic transmitter and receiver.

REES52 HC-SR04 Ultrasonic Sensor uses sonar to determine the distance to an object like bats or dolphins do. This REES52 HC-SR04 Ultrasonic Sensor is a transmitter, a receiver and a control circuit in one single pack!! It has a very handy and compact construction. Ultrasonic Sensor offers excellent range accuracy and stable readings in an easy-to-use package.

Its operation is not affected by sunlight or black material like Sharp rangefinders are (although acoustically soft materials like cloth can be difficult to detect). The Trigger and the Echo pins are the I/O pins of this module and hence they can be connected to the I/O pins of the microcontroller/Arduino.

When the receiver detects a return wave the Echo pin goes high for a particular amount of time which will be equal to the time taken for the wave to return to the sensor. REES52 HC-SR04 Ultrasonic Sensor provides 2cm-400cm non-contact distance sensing capabilities, with a Ranging accuracy of up to 3mm.

Specifications:

  • Model: HC-SR04
  • Operating Voltage: 5V DC
  • Average Current Consumption: 2mA
  • Frequency: 4000 Hz
  • Sensing Angle: 15°
  • Max. Sensing Distance: 450cm

Features:

  • Measures the distance within a wide range of 2cm to 400cm
  • Accurate distance measurement
  • High-density and small blind distance

Package Included:

1 x REES52 HC-SR04 Ultrasonic Sensor, Distance Sensor, Ultrasonic Range Finder Compatible with Arduino UNO MEGA2560 Nano Robot XBee ZigBee
