Description:

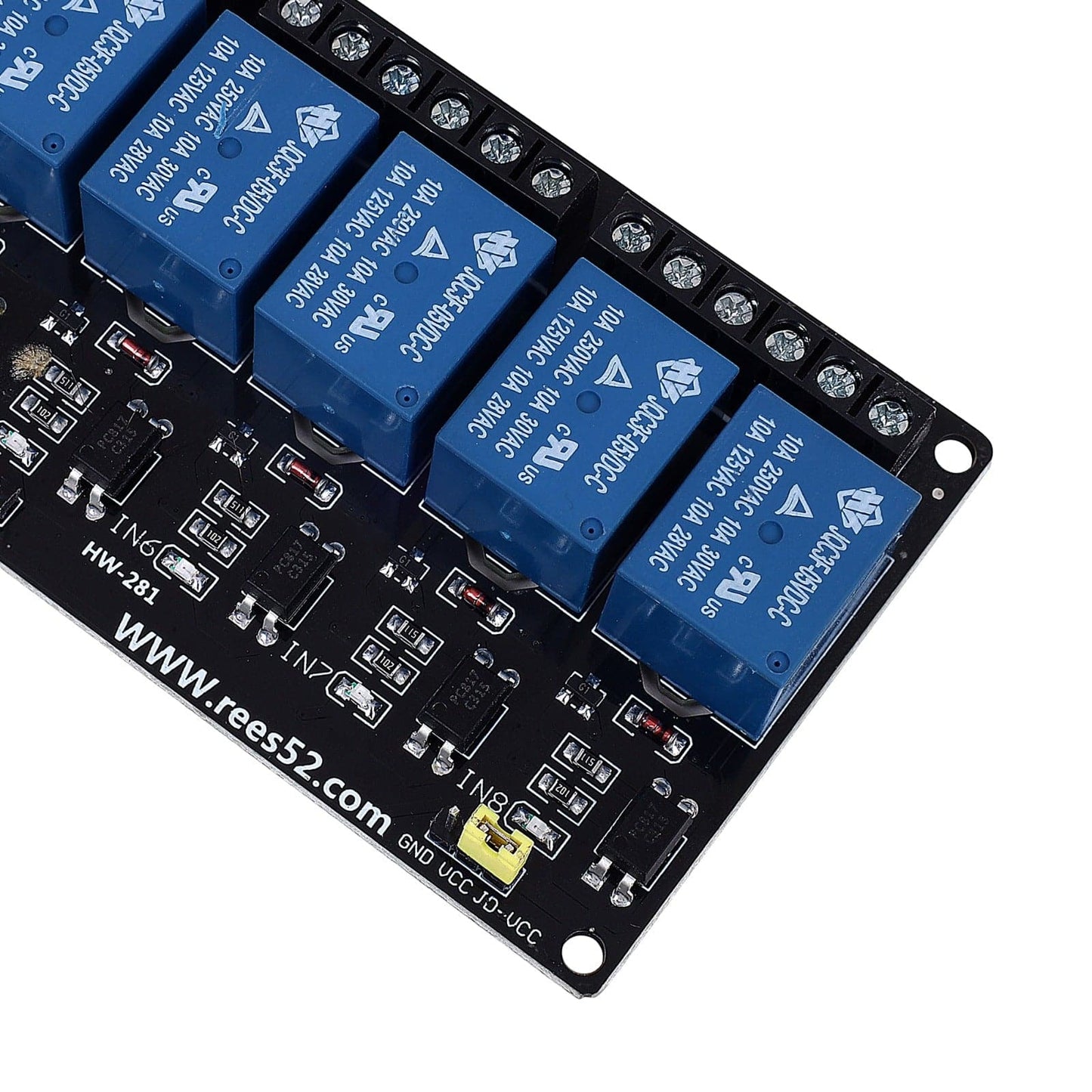

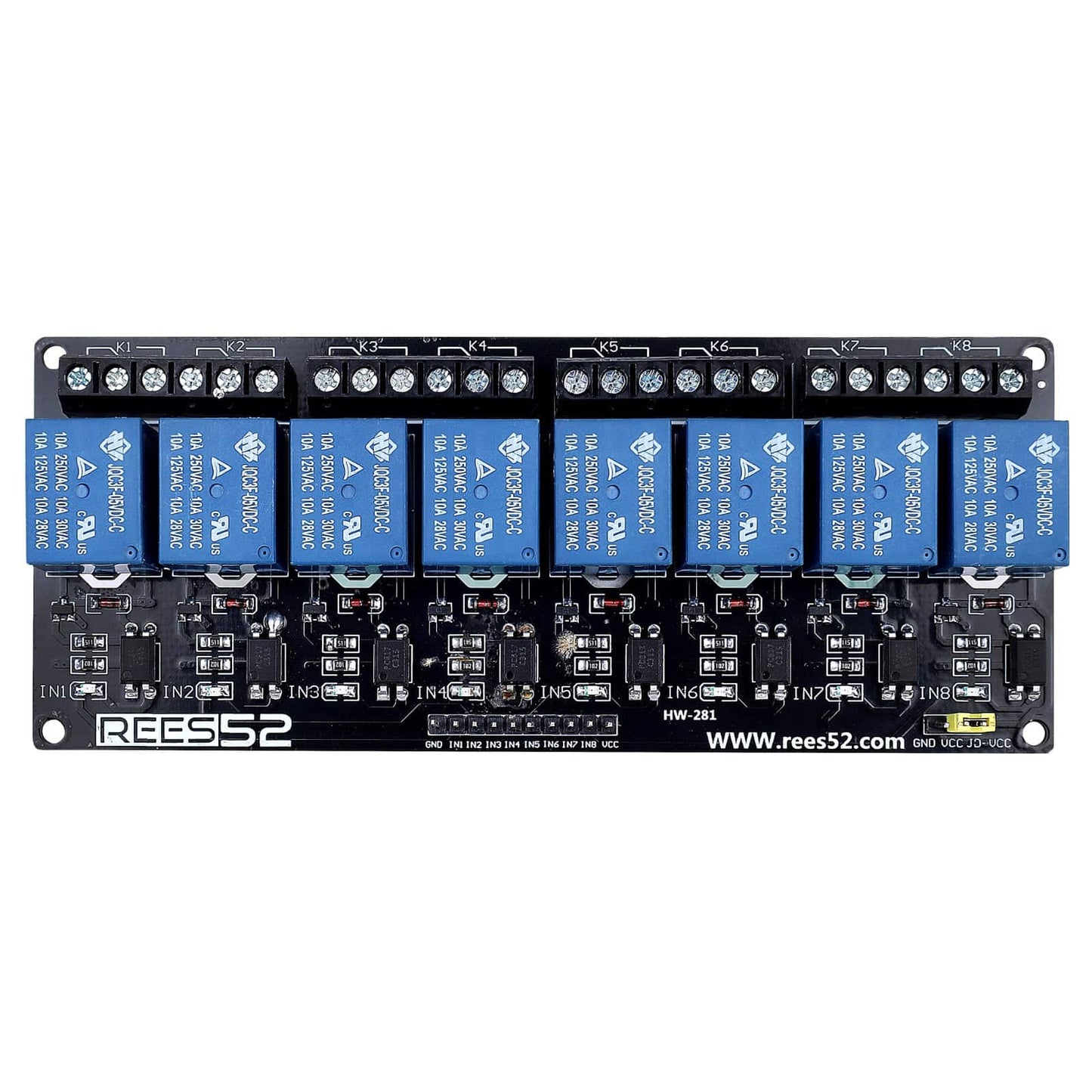

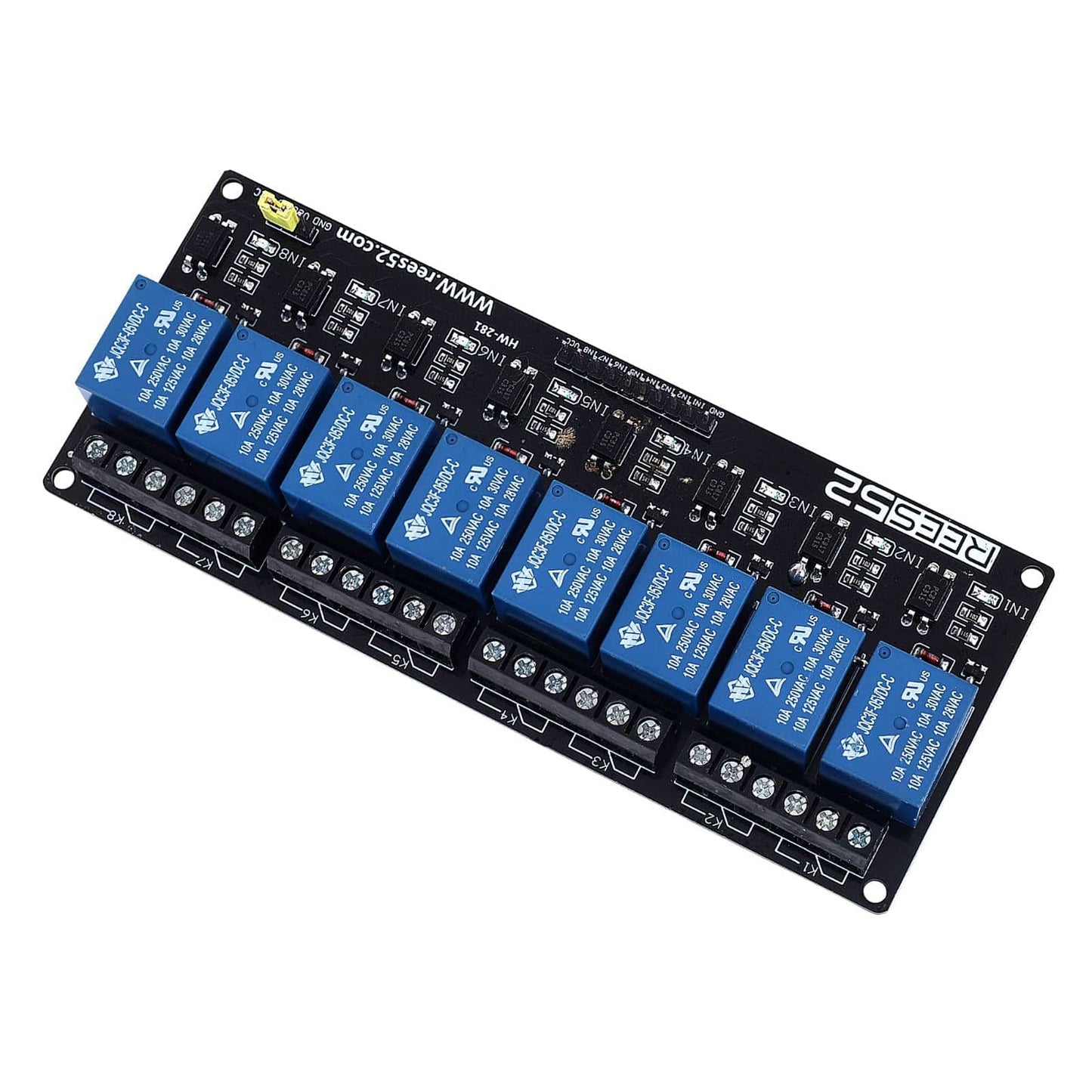

It is a 5V 8 Channel Relay Module, which can be controlled directly by various microcontrollers such as Arduino, AVR, PIC, ARM, PLC, etc. 5V 8 Channel Relay Module can also control various appliances and other types of equipment with a large current. 5V 8 Channel Relay Module output maximum contact is AC250V 10A and DC 5V 10A. One can connect a microcontroller with a standard interface directly to it. Red working status indicator lights are conducive to safe use. 5V 8 Channel Relay Module has a wide range of applications such as all MCU control, industrial sector, PLC control, and smart home control.
So, ready to get switching on your Raspberry Pi?! This neat 5V 8 Channel Relay Module features 8 x 5V relays rated at 10A/250V each. t is designed to switch up to 4 high current (10A) or high voltage (250V) loads with the help of a microcontroller! Each relay can individually switch to an on/off state. It only requires a voltage of approx 1.0V to switch the inputs on but can handle input voltages up to 5V. This makes it ideal for 3.3V & 5V devices.
Features:
- One normally closed contact and one normally open contact
- Triode drive, increasing relay coil
- High-impedance controller pin
- Pull-down circuit for the avoidance of malfunction
- Power supply indicator and Control indicator lamp
- The power supply and relay instructions are lit, and the disconnect is off
- Input signal, signal, common Terminal and start conducting
- Input signal, signal, common Terminal and start conducting
- Useful for appliance control
- DC or AC signal, control, you can control the 220V AC load
- There is a normally open and one normally close contact
- The module is compliant with international safety standards, control and load areas isolation trenches.
Package Included:
1 x REES52 5V 8 Channel Relay Module 8 Channel 5V Relay Module with Optocoupler for Arduino Raspberry Pi DSP AVR PIC ARM
