12V Mini LED Digital Timer Relay Red/Green LED Timer Relay Mini LED Timer Relay Module Versatile Timer Relay For Automation And Control - RS3432

12V Mini LED Digital Timer Relay Red/Green LED Timer Relay Mini LED Timer Relay Module Versatile Timer Relay For Automation And Control - RS3432

RS3432

In stock

Rs. 405.00
Rs. 405.00
Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

The REES52 Promise

We want you to build, not worry. Here is exactly what happens if something goes wrong with your order.

Dead on arrival or defective? We replace it.

If your item is dead on arrival or has a manufacturing defect, tell us within 7 days of delivery. Email support@rees52.com with your order number and a short video or a couple of photos showing the problem. Our team will get back to you within 24 hours and arrange a free pickup from your doorstep - you never pay return shipping for a defective item. Once we verify the issue, your replacement ships out right away. If the item is out of stock, you get a full refund instead.

Refunds, with real timelines.

  • Approved refunds go back to your original payment method within 6-7 working days.
  • Missing item in your package? Tell us within 7 days with photos of what arrived and the parcel label. Once confirmed, the refund for the missing item reaches you in 2-3 working days - or we ship the missing piece free, your choice.
  • Every refund comes with a reference number by email or WhatsApp, so you can track it with your bank instead of chasing us.

Wrong item or not as described?

Email us your order number and a photo of what you received. We arrange the return pickup, and ship the correct item as soon as the return is on its way. Prefer your money back instead? That is fine too - full refund, same 6-7 working day timeline.

About lead times on some products.

A few items on rees52.com are sourced from our overseas partner warehouses and are not sitting on our shelf. Those products show a lead time of about 20-25 working days on the product page, before you pay. If you order one, we keep you posted as it moves. Changed your mind while waiting? You can cancel any time before dispatch and get a full refund within 6-7 working days. No cancellation fee, no questions.

Talk to a human.

Email support@rees52.com or call/WhatsApp +91 95995 94520, Monday to Saturday, 10:30 AM to 7:00 PM. Real people, order number in hand, actual answers.

View full details

Description:

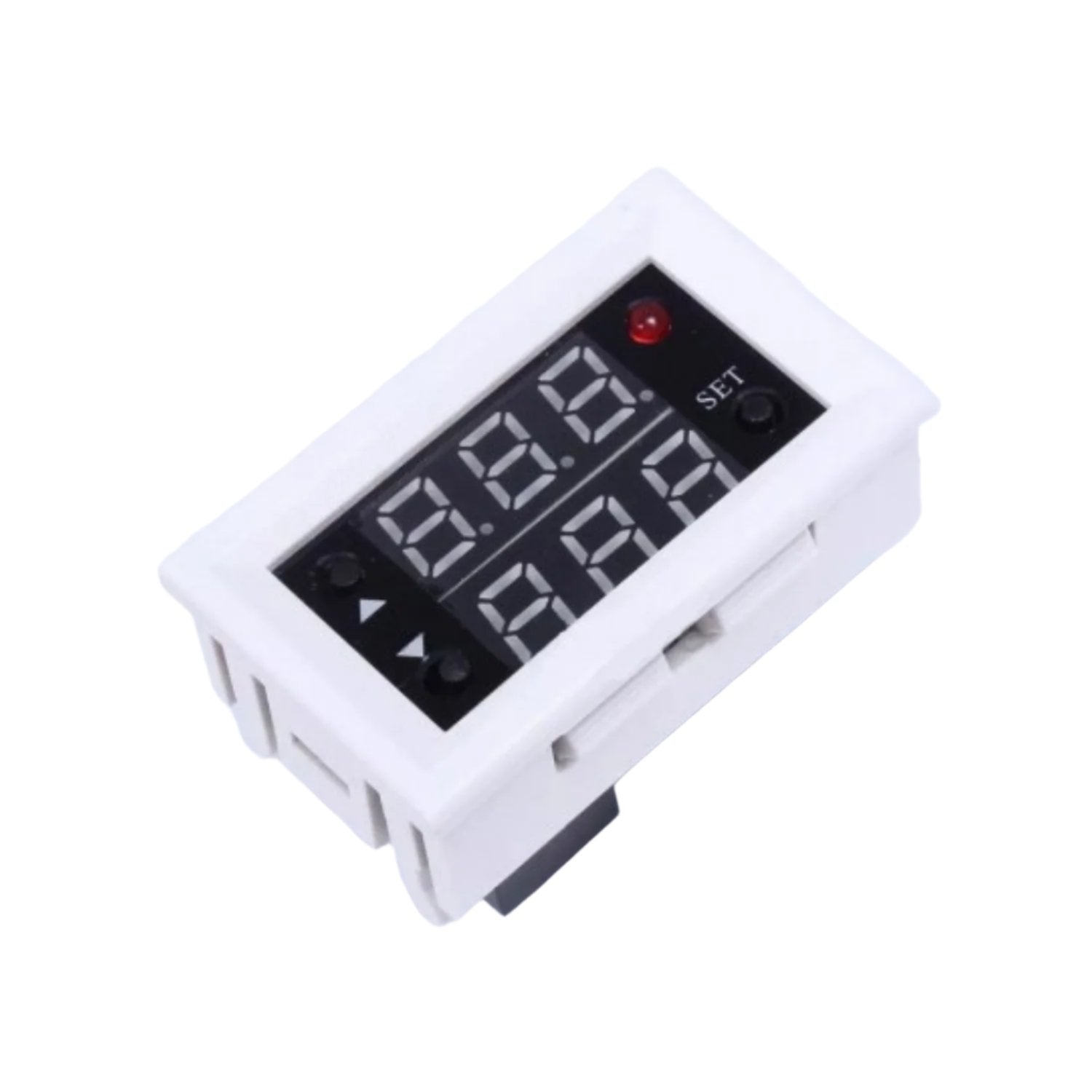

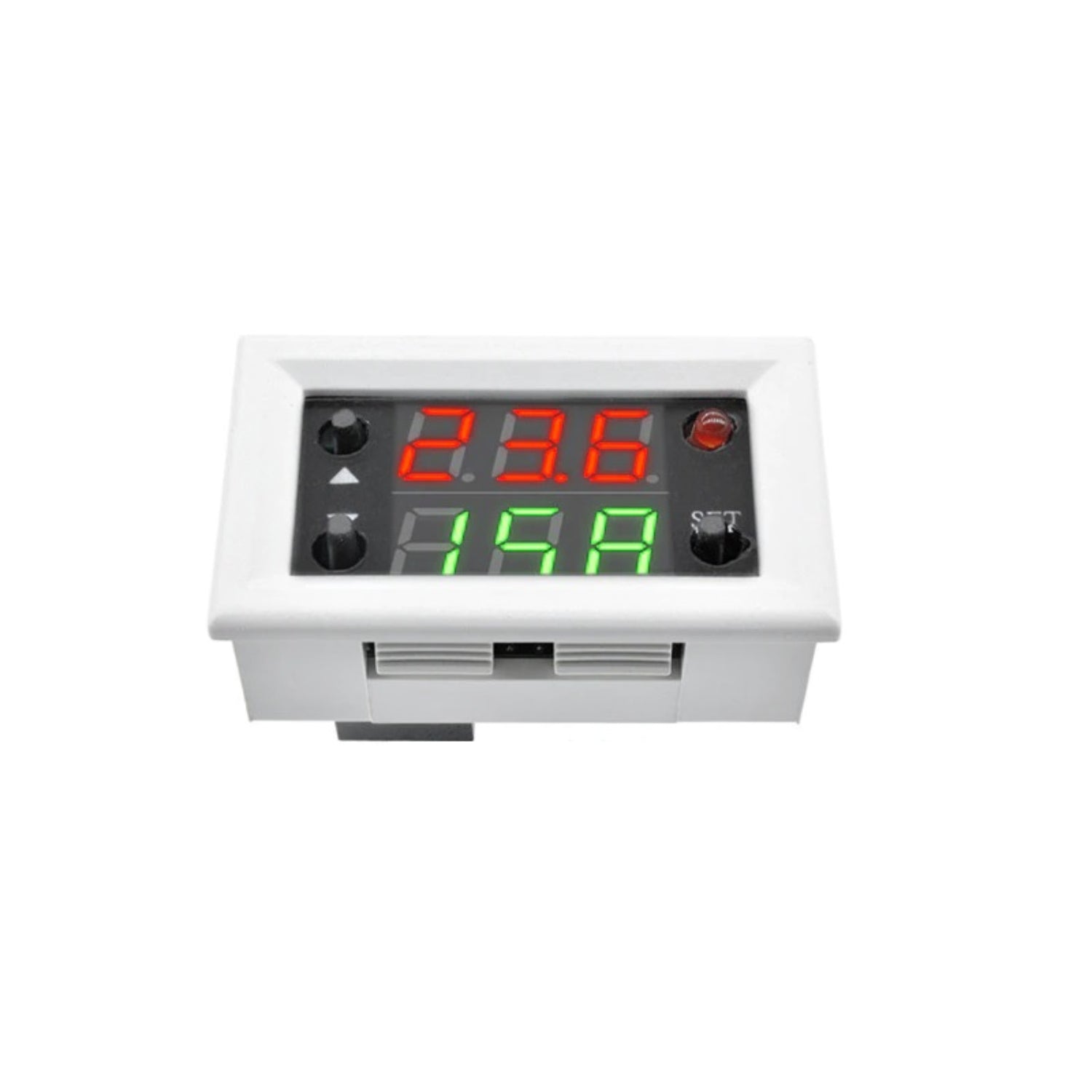

12V Mini LED Digital Timer Relay with three adjustable time intervals and two time channels. Both times can be combined differently. Time range 0–999sec, 0–999min, 0–999h, settings apply to both channels simultaneously.

Specifications:

  • Power Supply: 12 V
  • 6 Operating Modes - see below
  • Relay Contact 230VAC / 10A or 12VDC / 20A
  • Dimensions: 48 × 29 mm
  • Consumption in Idle Mode: 20 mA
  • Consumption with Closed Relay: 120 mA

Features:

  • The use of optoisolated input and output enhanced anti-jamming capability and consumption.
  • The last setting parameters can be memorized after powering off.
  • A signal terminal voltage signal can be maintained for a long time.
  • To ensure stability, industrial grade PCB board.

Operating Modes:

  • P1–0: the relay closes permanently after time T1 has elapsed
  • P1–1: the relay is closed for T1, then it switches off permanently
  • P1–2: the relay closes for time T2 after the time T1 has elapsed, then the module is idle
  • P1–3: the relay is closed for T1, then it is switched off for T2 and then it closes permanently
  • P1–4: the relay switches cyclically to time T2 after time T1 has elapsed - it is switched off at the beginning of the cycle
  • P1–5: the relay switches cyclically for time T1 after the time T2 has elapsed - it is switched on at the beginning of the cycle

Time setting:

  • P0–0 - setting to seconds mode
  • P0–1 - setting to minute mode
  • P0–2 -set to clock mode

Settings:

  • A short press of the SET button activates the time setting mode:
  • T1 - the red display flashes and the time T1 can be set with the arrows
  • T2 - the green display flashes and the time T1 can be set with the arrows
  • Saving of set values ​​is enabled by repeated short press SET or automatically after 6sec of inactivity.

Long press Of The SET Button Allows To Set Time Units And Operating Modes:

  • P0 - setting sec (0) - min (1) - hr (2) using the arrows. The settings apply to both channels at the same time
  • P1 - setting of operating modes 0–5, see above, also with arrows.
  • Saving of set values ​​is enabled by repeated short press SET or automatically after 6sec of inactivity

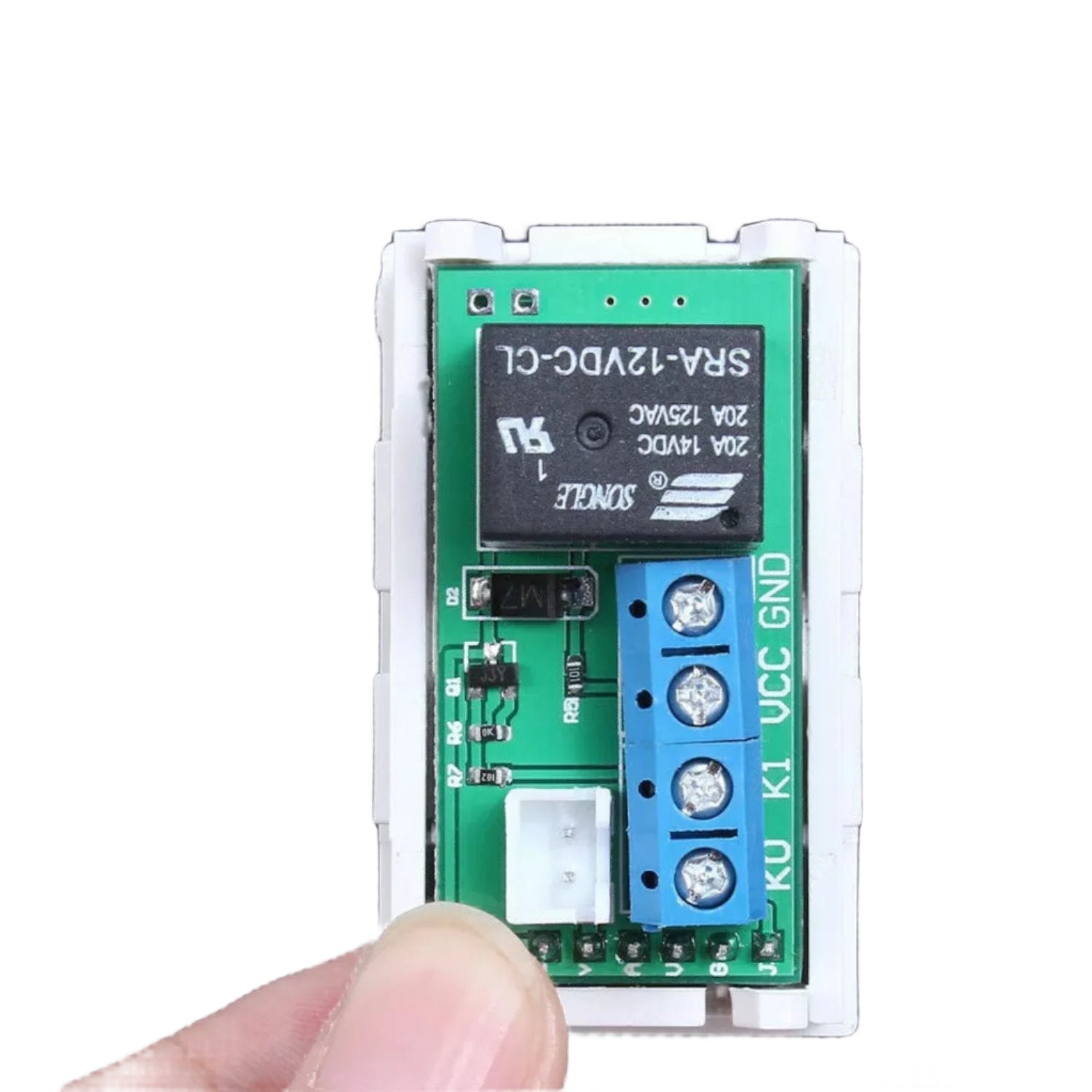

Pin Description:

Outer Layer

Inner Layer

Package Included:

1 x 12V Mini LED Digital Timer Relay Red/Green LED
