Description:

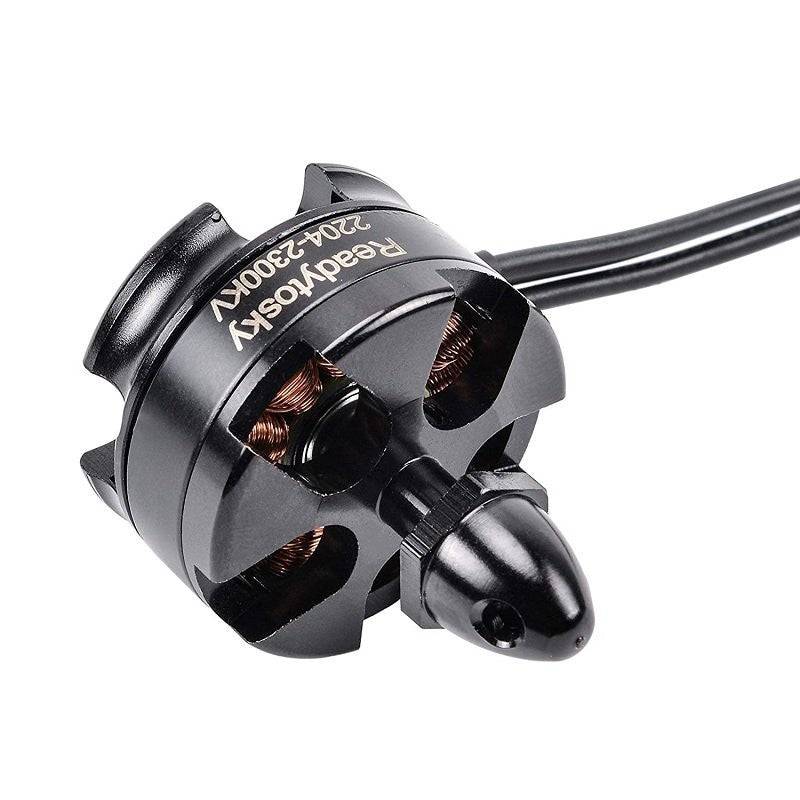

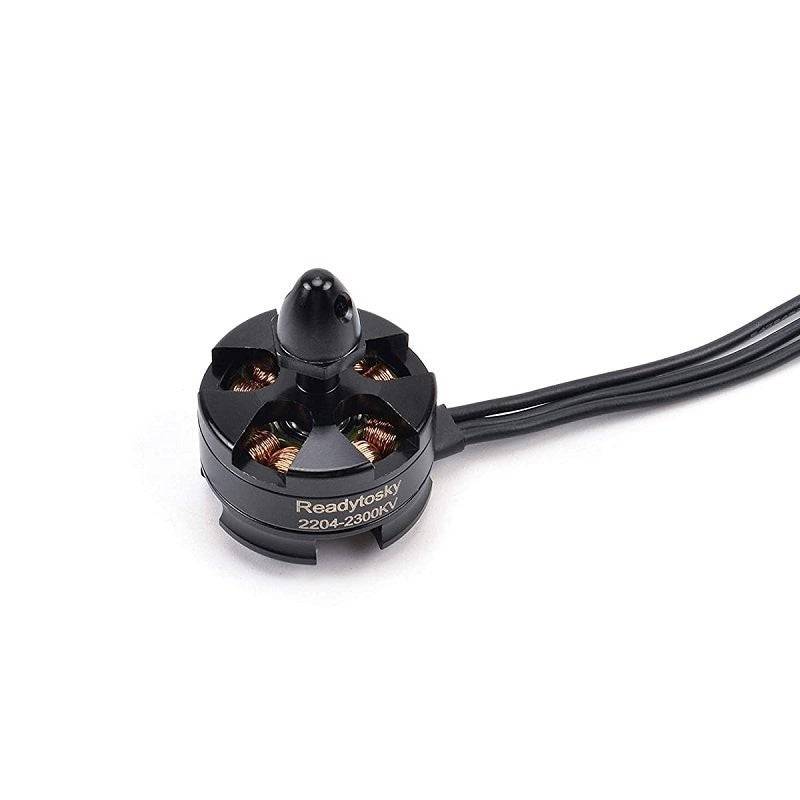

The Readytosky MT2204 2300KV Brushless Motor is designed with one thing in mind maximizing Multi-rotor performance!
The new Readytosky MT2204 2300KV is the new standard in Multirotor performance. Each motor is built for a specific type/application allowing for further refinement and efficiency/power to be optimized.
Built with the highest quality components from Japan bearings to N45SH magnets and 0.2mm lamination, 180 deg oxygen-free copper wire, 0.005 g balancing, the perfect wind laid down.
The MT2204-2300KV Multi-Rotor Motor is 100% QC approved, and then the design of each motor is also evaluated for their type of application and everything from their mounting to the prop type adapters is taken into consideration.
Readytosky MT2204 is a precision little gem of a motor designed for the mini range of multi-rotors and optimized for 5-inch props, perfect for those tighter frames where 5-inch props are the maximum. The MT2204 has a removable/replaceable knurled prop shaft for those occasional crashes.
The lower motor frame is chamfered for easy fitment on tighter frames and has plenty of height for mounting hardware to winding clearance.
Multi-star Elite is unmatched in quality and value, and the performance speaks for itself. It can be paired with 3S Premium Li-PO and 5" Propeller for a unique multirotor flight experience.

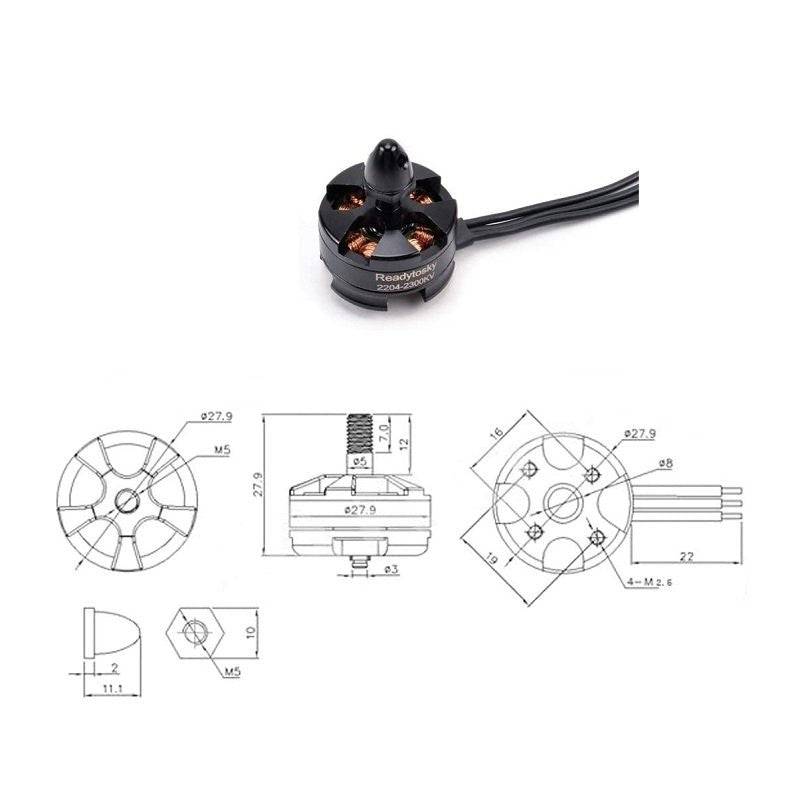

Specifications:
- Brand: ReadytoSKY
- Model: 2204
- Motor Type: Brushless Outrunner
- Max Thrust: 440G
- Motor KV (RPM/V) : 2300
- Rotation: CW
- Poles: 12/14
- No-Load Current: 0.6A @10V
- Max. Efficiency Current: 11.5 A
- Maximum Current(A): 25 A
- Maximum Voltage(V): 15 V
- Maximum Watts(W: 350
- LiPO Batteries: 2S-3S
- Shaft Diameter mm): 5
- Suitable Propellers: 5 inch
- Height (mm): 30
- Weight (gm): 27
- Body Diameter (mm): 28
Features:
- Equips high-quality Japan Bearings for smooth operation.
- It has N45SH Magnets for long life.
- Designed with 2mm Laminations for best operational characteristics.
- 180deg oxygen-free Copper wire makes them more durable in class.
- Shows 0.005g Or better balancing.
- Perfect lay-down windings.
Package Included:

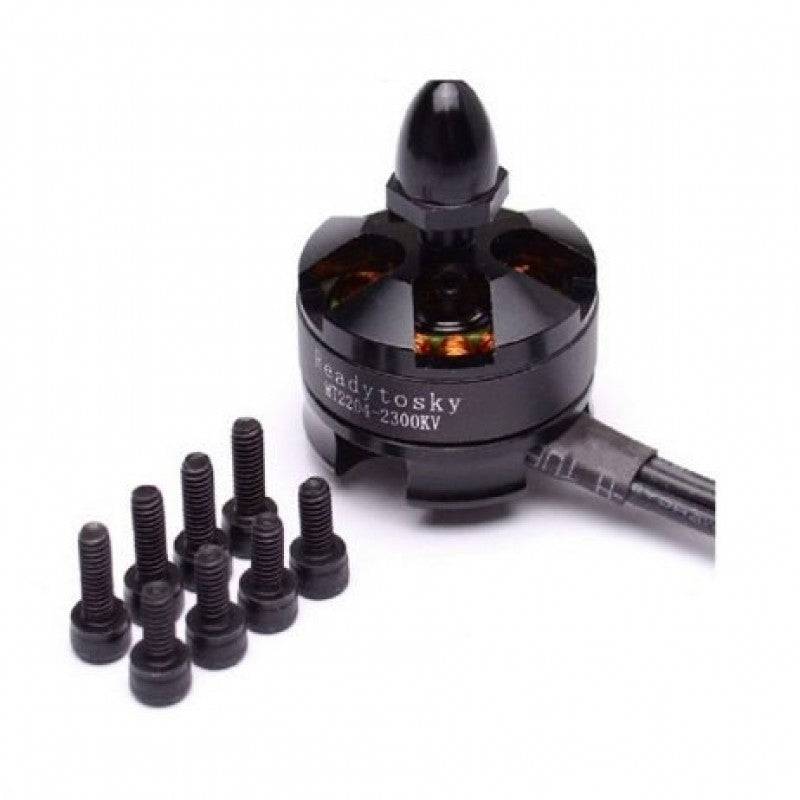

- 1 x Readytosky MT2204 2300KV CW Brushless Motor
- 1 x Compatible Allen Screw-8pcs
