Description:

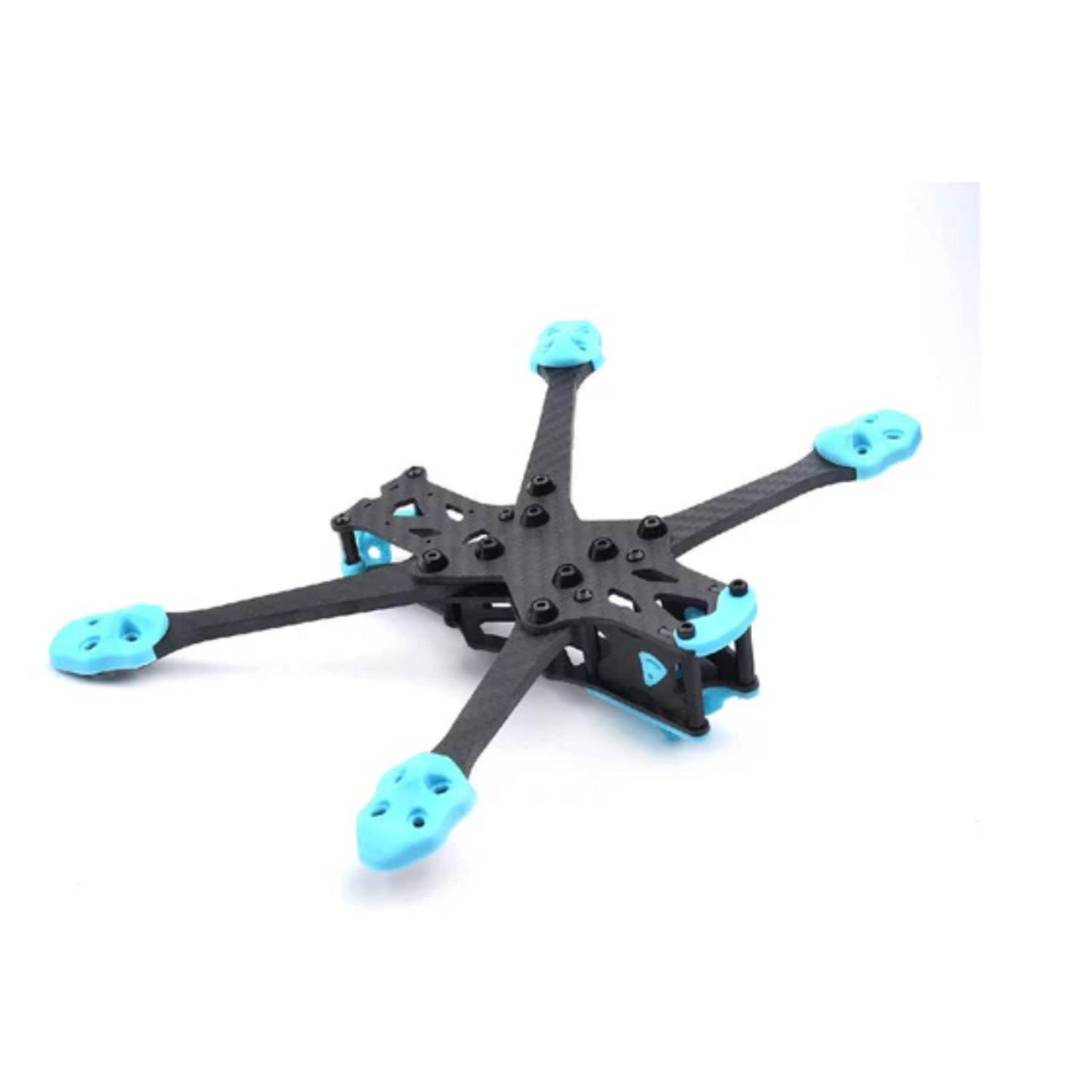

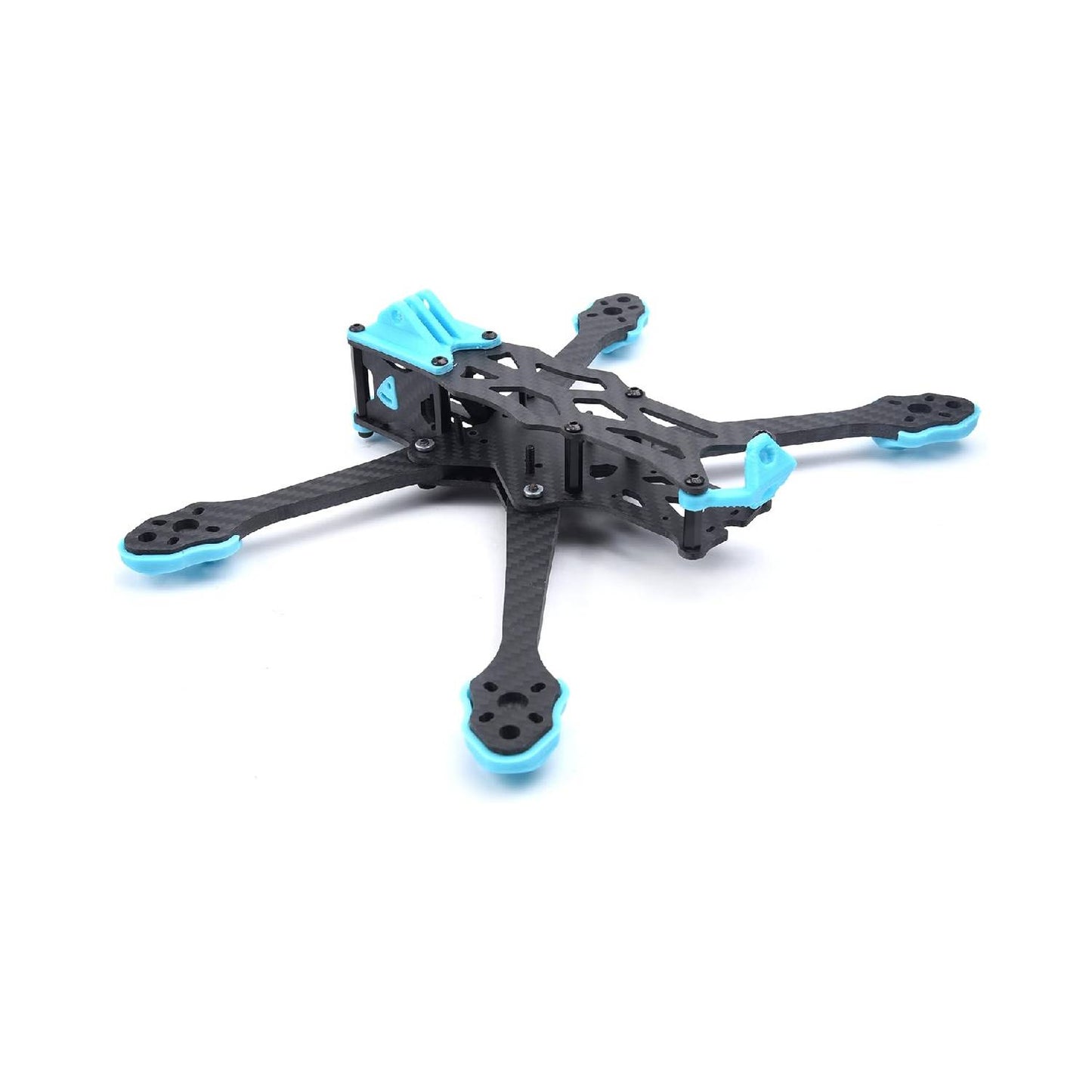

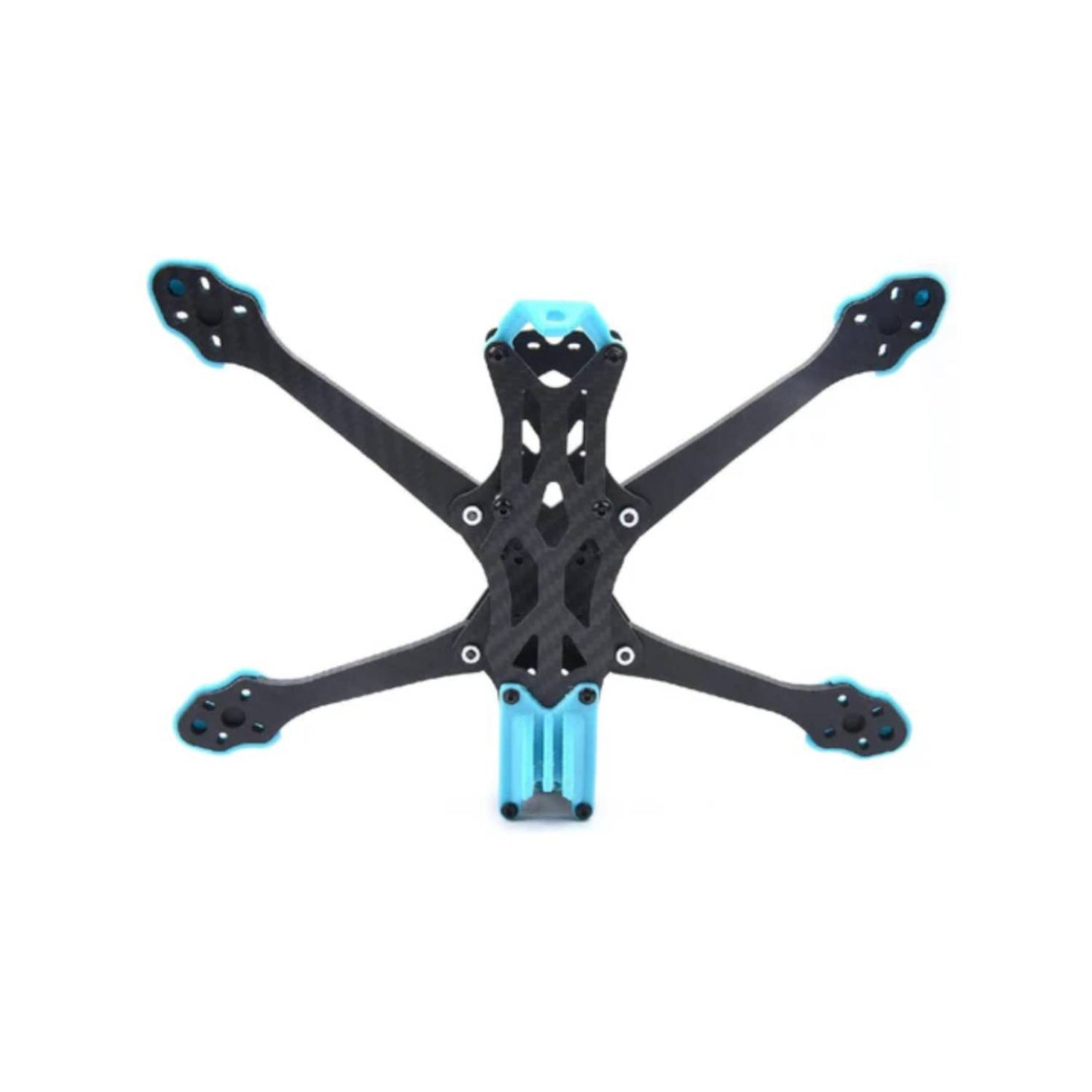

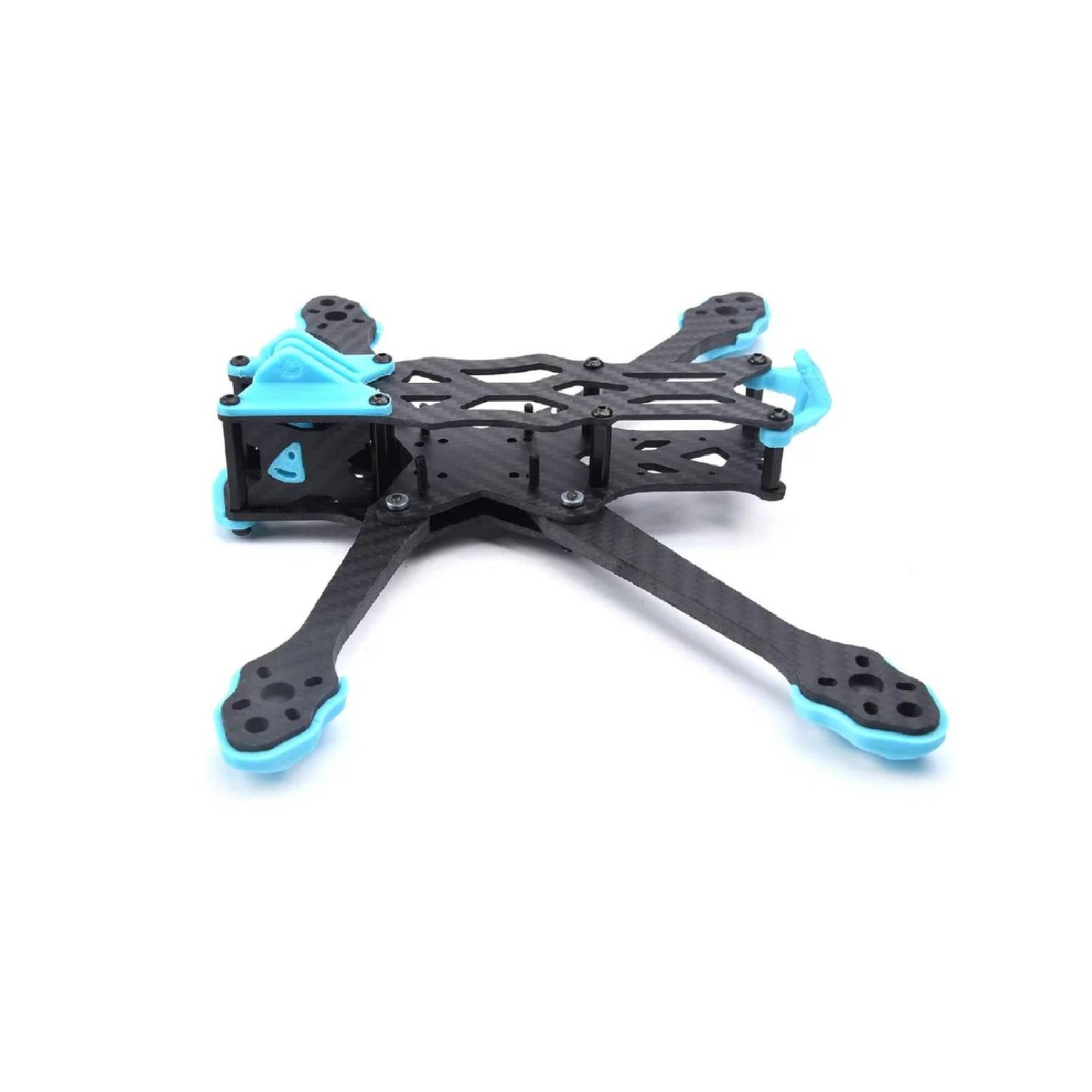

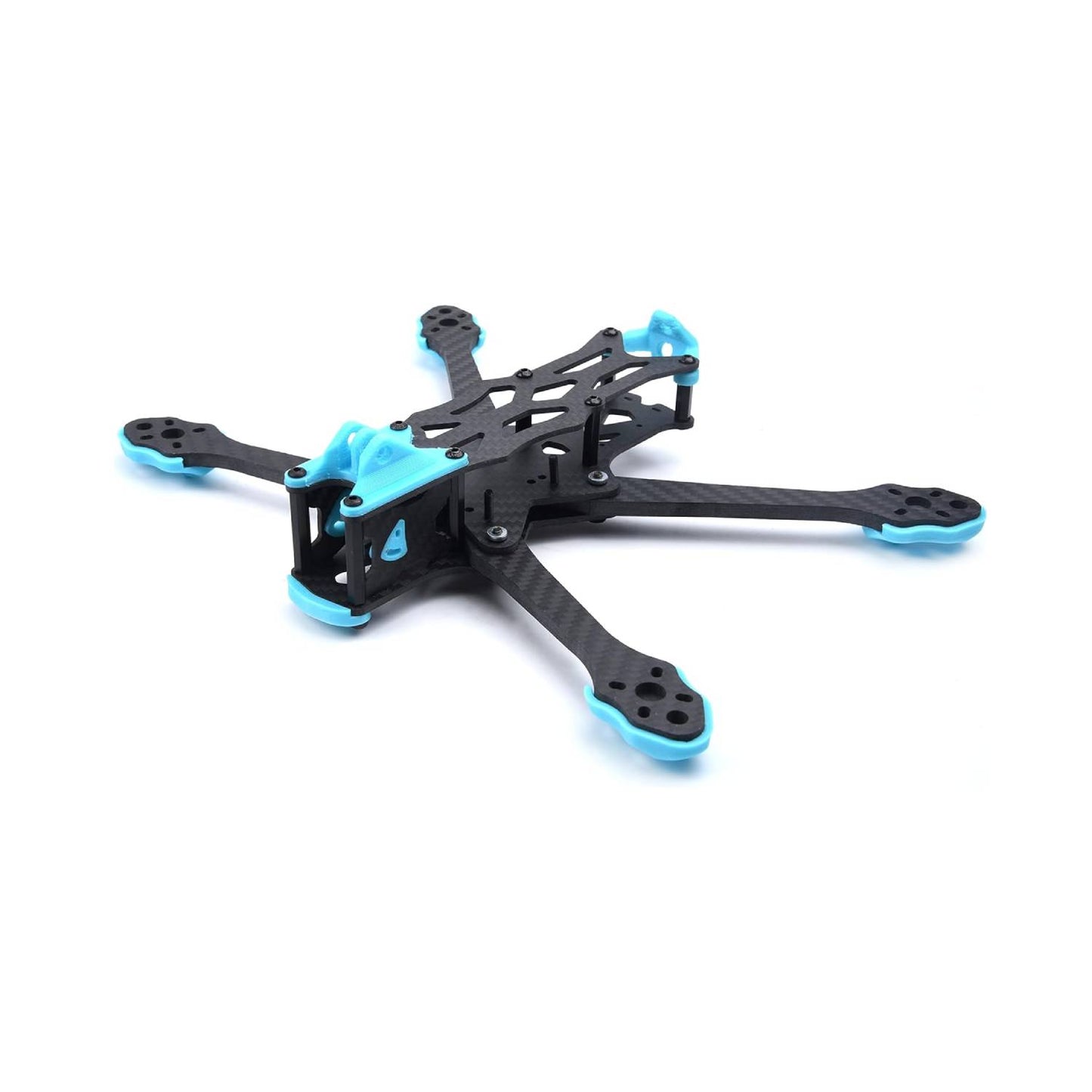

The Apex DC redefines the "dead cat" frame concept. Unlike traditional dead cat designs that compromise flight performance by shifting rear motors and impacting handling, the Apex DC maintains the balanced and responsive feel of a compressed-x geometry. We've cleverly aligned the front and rear motors, preserving the much-loved compressed-x layout without sacrificing the benefits of a dead cat configuration.
Addressing a key concern with the Caddx Vista system, the Apex DC incorporates redesigned 3D-printed insulation inserts. The Vista's grounded body can inadvertently ground the conductive carbon fiber and frame hardware, posing a risk. These precision-engineered inserts not only securely lock the camera in place, minimizing vibrations, but also provide crucial electrical isolation from the frame, enhancing safety and reliability.
Furthermore, the Apex DC maintains full compatibility with standard Apex arms. Through strategic modifications to the upper and lower main plates, the frame utilizes readily available 5" arms at the front and standard 6" arms at the rear. This design choice simplifies maintenance and part replacement, ensuring a streamlined build process.
Specifications:
- Color: Black and Blue
- Propeller: 5 inch
- Material: Carbon Fiber
- Arms plate: 5.5mm
- Bottom plate: 2.5mm
- Wheelbase: 250mm
- Top Plate: 2.0mm
- Side plate: 2.0mm
Features:
- This new 5-inch 250mm drone frame is fit for a DC HD FPV Freestyle RC Racing Drone.
- Super lightweight Freestyle frame, weight about: 163g.
- Made of full 3K carbon fiber material, lightweight and sturdy, with a long service life.
- This version of the drone frame uses a standard 5" arm at the front and a standard 6" arm at the rear.
- This drone frame is designed with 3D-printed insulating inserts.
Package Included:

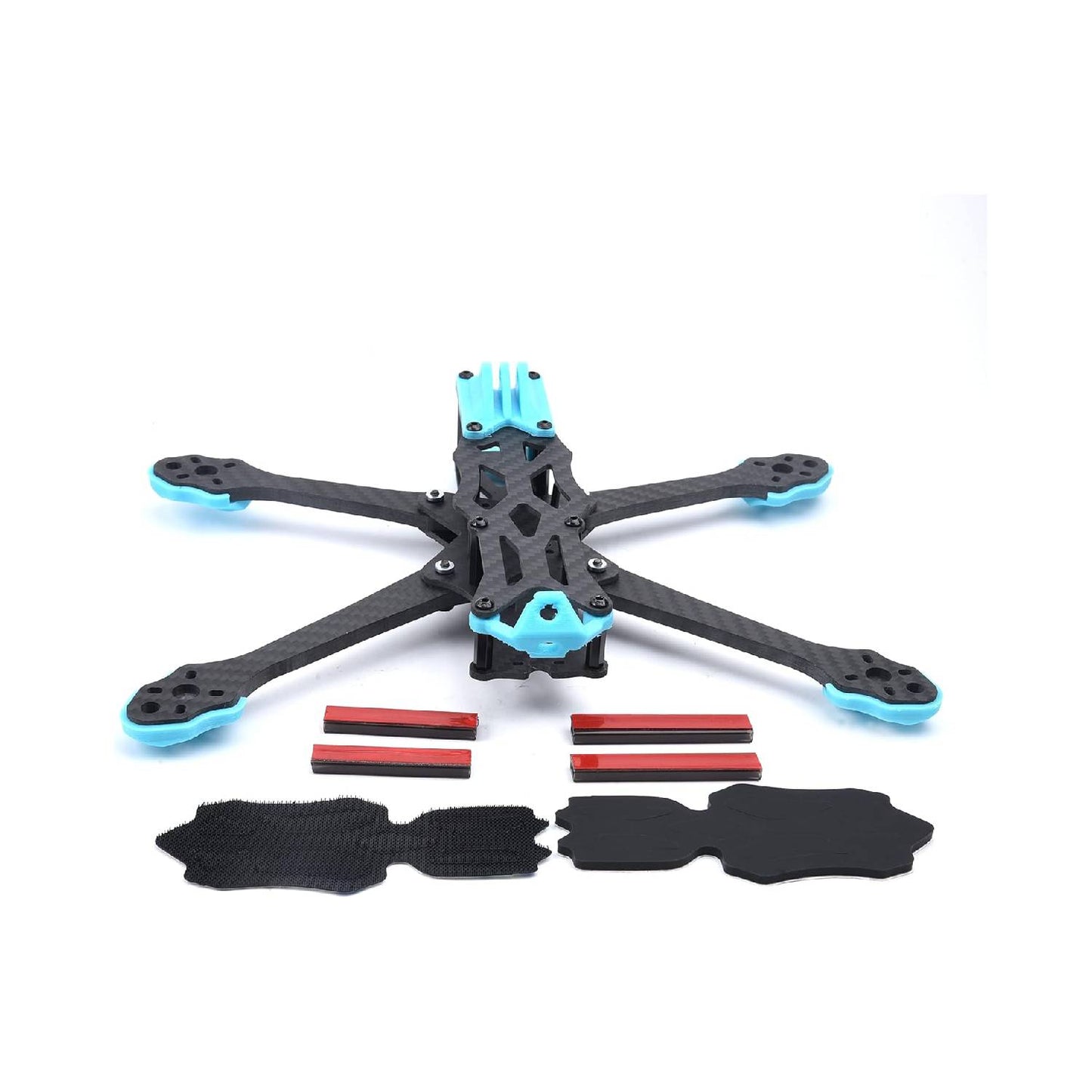

1 x APEX DC HD 5" FPV Drone Frame Kit
