Description:

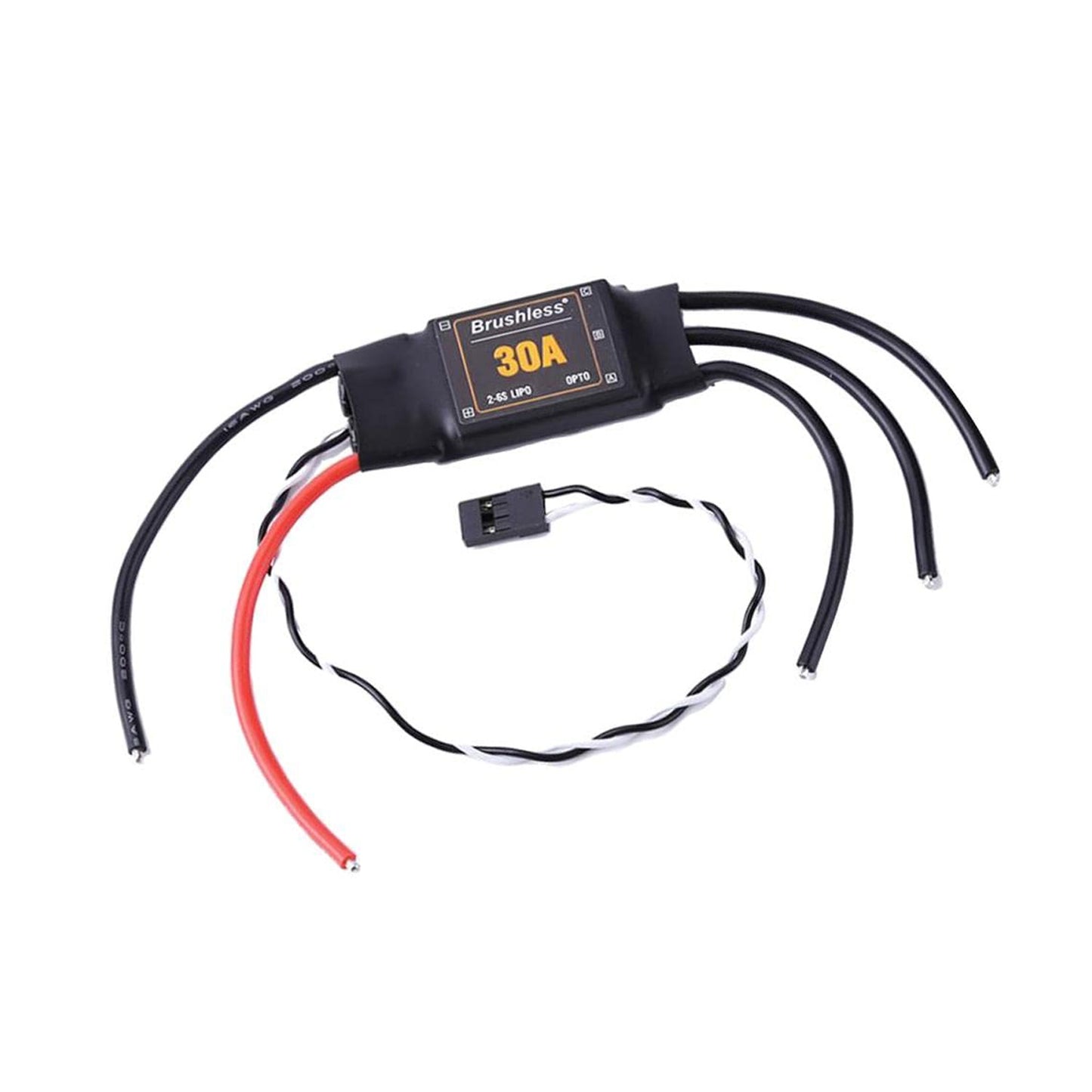

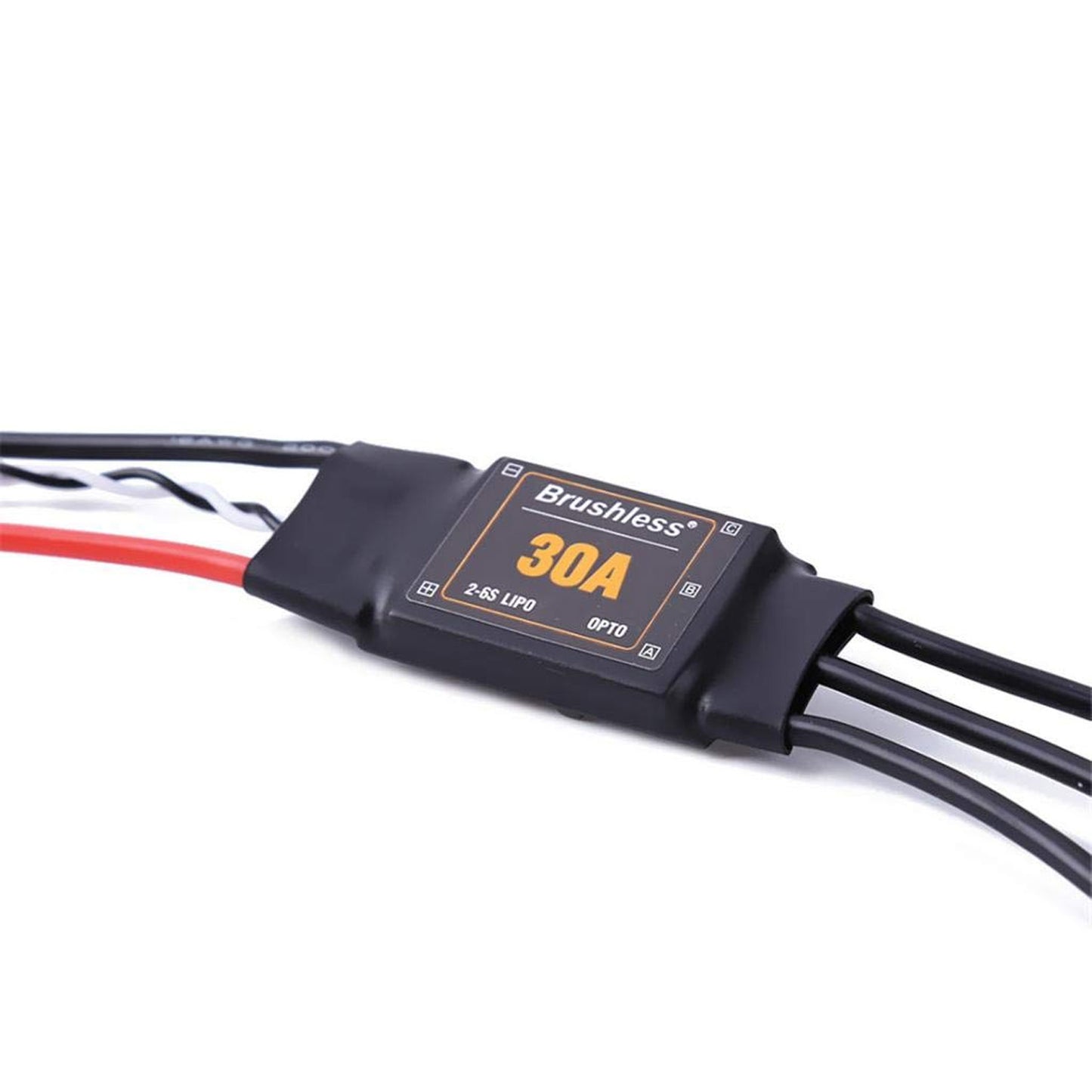

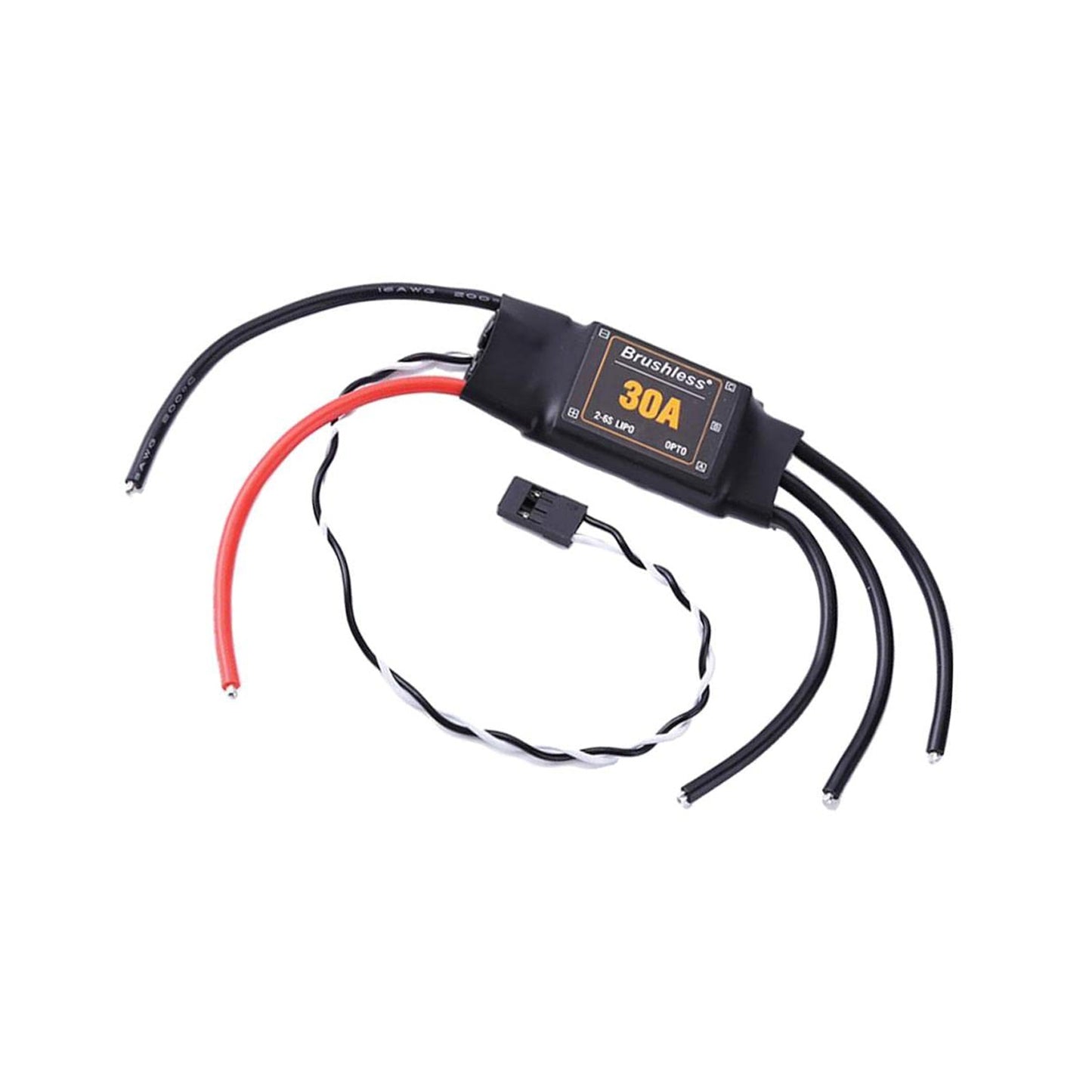

The Readytosky 30A ESC 2-6S Brushless Electronic Speed Controller is a reliable and well-made product for RC helicopter and quadcopter enthusiasts. The ESCs do not have a forward and reverse feature, so users should keep that in mind. They also need to be calibrated before use, with a calibration video provided for assistance.

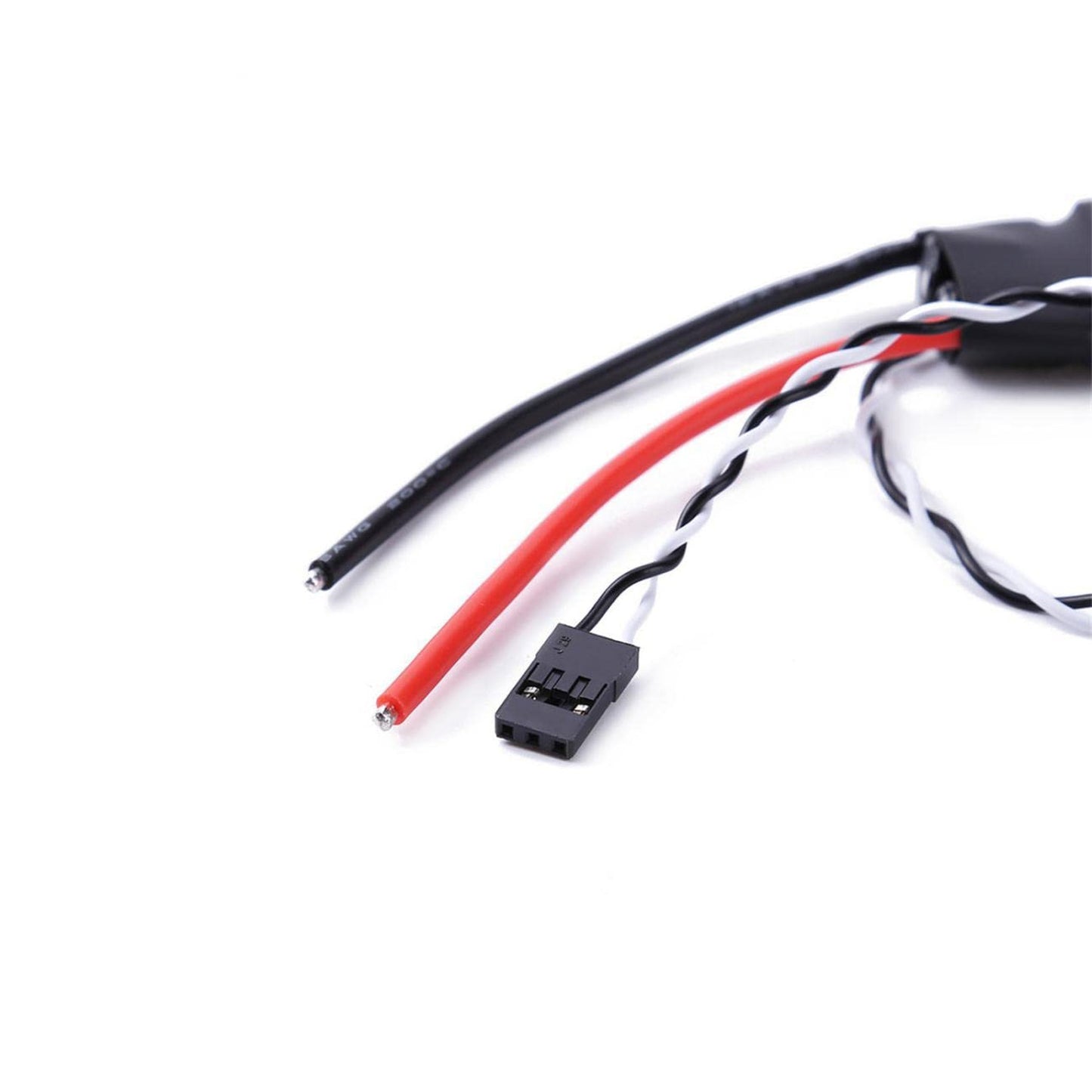

These ESCs work well with flight controls, but not directly with receivers. Users should ensure that their control supports PWM signal output. The firmware on these ESCs cannot be refreshed or updated, as it is from the manufacturer. The white wire on the control wires is for the PID signal, while the black wire is for the ground.
However, there is no ESC-type option for calibration in the mission planner. Users are encouraged to follow a provided video tutorial for calibration, and more assistance is available through messaging. Unfortunately, these ESCs do not support dshot ESC protocol.
Overall, customers have found the Readytosky 30A ESC to be of good quality and well-made. However, there has been a mention of the wires not reaching the PDB on the S500 frame. More updates on the performance of these ESCs are expected after flights.
Specifications:
- Cont. Current: 30A
- Max. Current: 40A
- BEC: No (OPTO ESC)
- Li-ion/Li0poly: 2-6S
Features:
- Specifically optimized firmware ESC, the ESC has very good compatibility;
- Highly intelligent, adaptive ability, extremely easy to use;
- Throttle signal line is a twisted pair, copper wire to reduce crosstalk signal generated
- Supports up to 621Hz refresh rates up to the throttle signal, compatible with a variety of flight control (Note: More than 500Hz signal of the throttle throttle are all non-standard signal)
- Use MOSFET special driver chip, performance and stability far beyond the driving circuit with discrete components built
Package Included:
1 x ReadytoSky 30A ESC Opto 2-6S Brushless Speed Controller For RC Quad Multicopter High-Current ESC For Drone Racing
