Description:
The digital servo RDS3235 Servo Motor features high torque, metal gear, fast heat dissipation, sensitivity, and responsiveness. With high quality and performance, the RDS3235 Servo Motor is tailored for RC hobbyists to provide different experiences and delight.
Specifications:
- Model: RDS3235
- Working Voltage: DC 5-7.4V
- Operating Speed: (5V) 0.13 sec/60°
- Operating Speed: (6.0V) 0.12 sec/60°
- Operating Speed: (7.4V) 0.11 sec/60°
- Stall Torque: (5.0V) 29 kg/cm
- Stall Torque: (6.0V) 32 kg/cm
- Stall Torque: (7.4V) 35 kg/cm
- Storage temperature range: -30-80 Celsius
- Operating temperature range: -15-70 Celsius

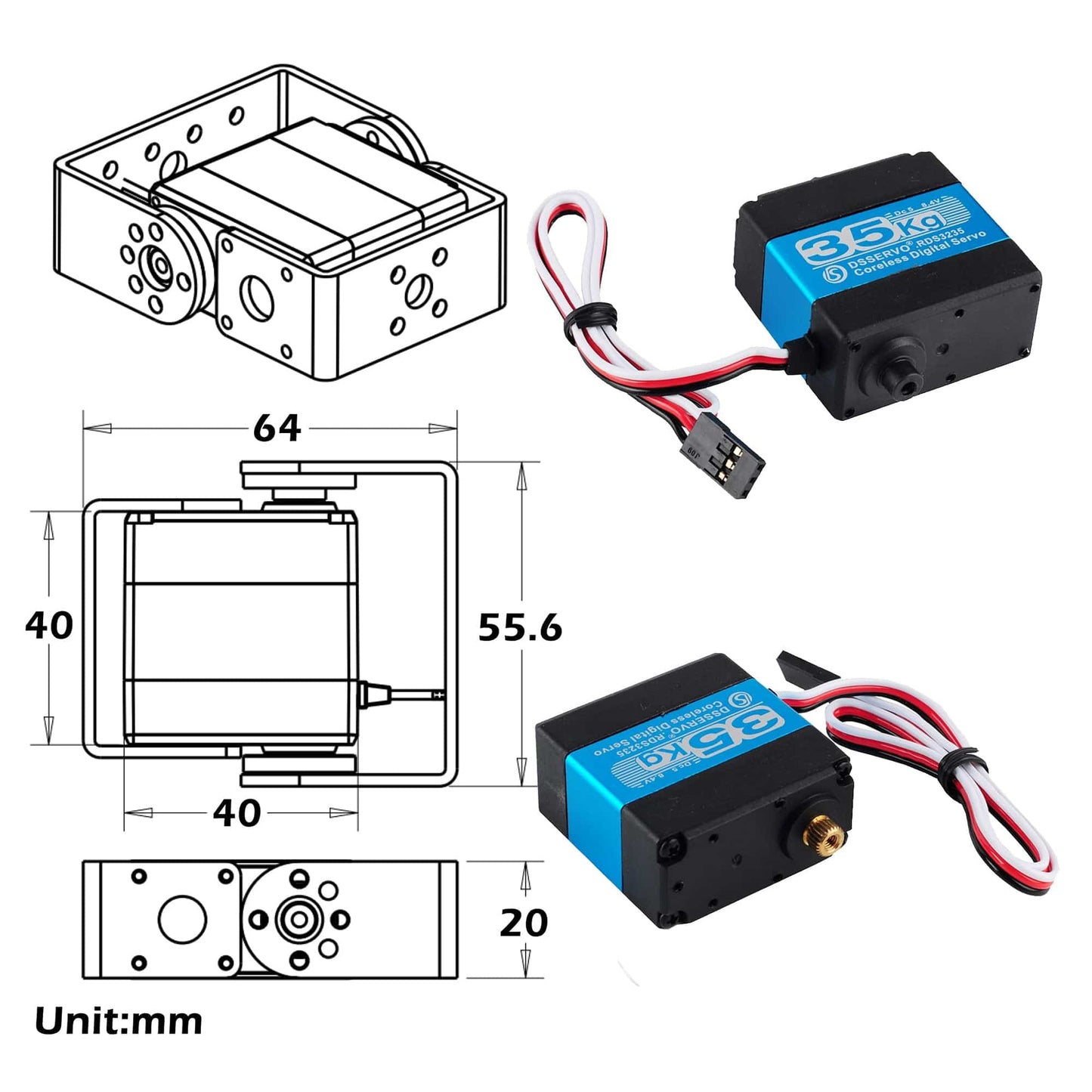

- Dimensions: 40X20X40mm
- Gear ratio: 373
- Bearing: Double bearing
- Motor: Coreless motor
- Maximum PW: 500-2500μs
- Operating frequency: 50-330Hz
Features:
- High-performance standard digital servo
- Used for RC robots, cars, trucks, boats, etc.
- Low operating noise, good linearity
- Servo control with MCU
Package Included:

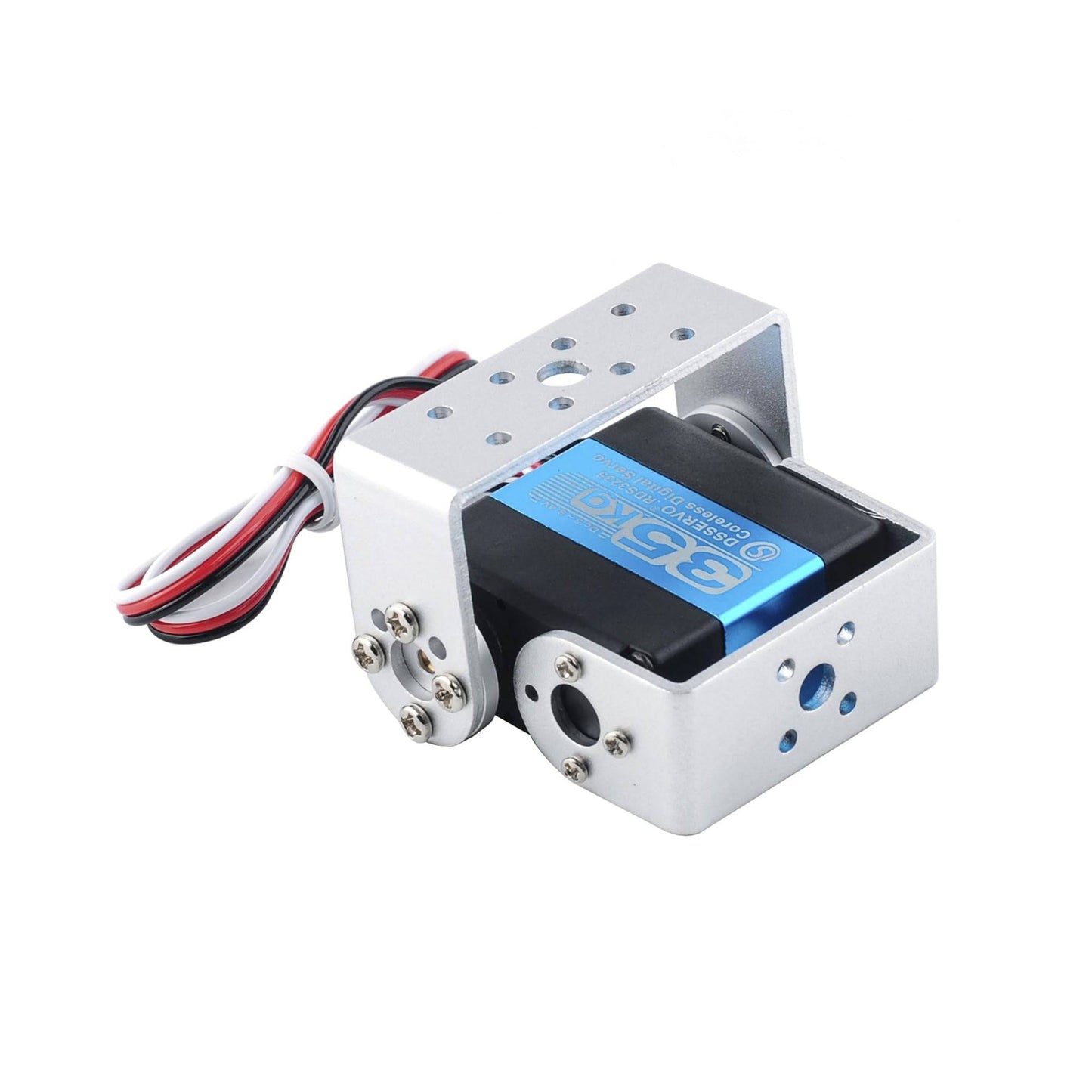

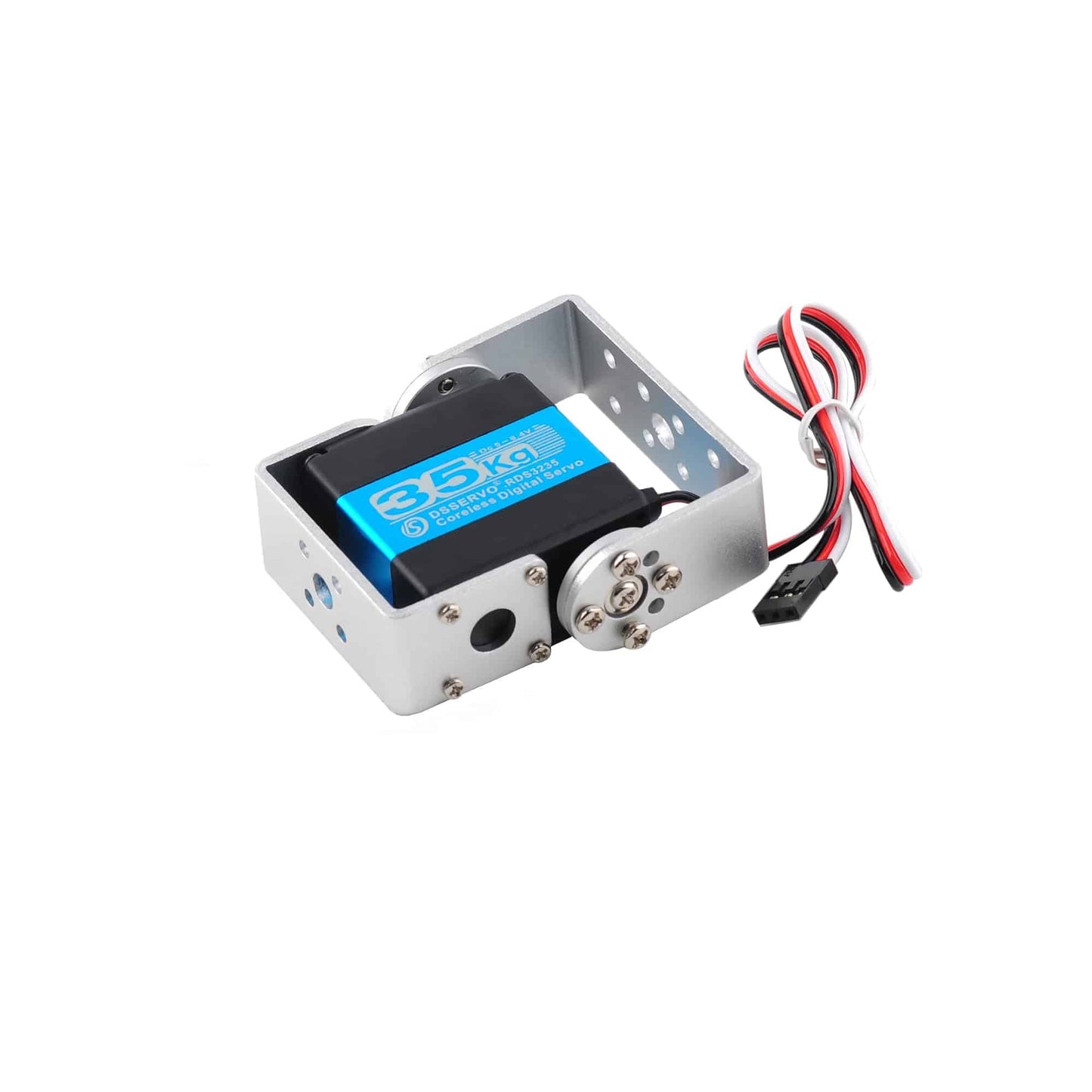

1 x RDS3235 Servo Motor RDS3235 Digital Servo Robot Servo Coreless Motor 35KG High Torque Metal Gear DC5-7.4V with U- Shaped Servo Bracket Arm Plate - 360 Degree
