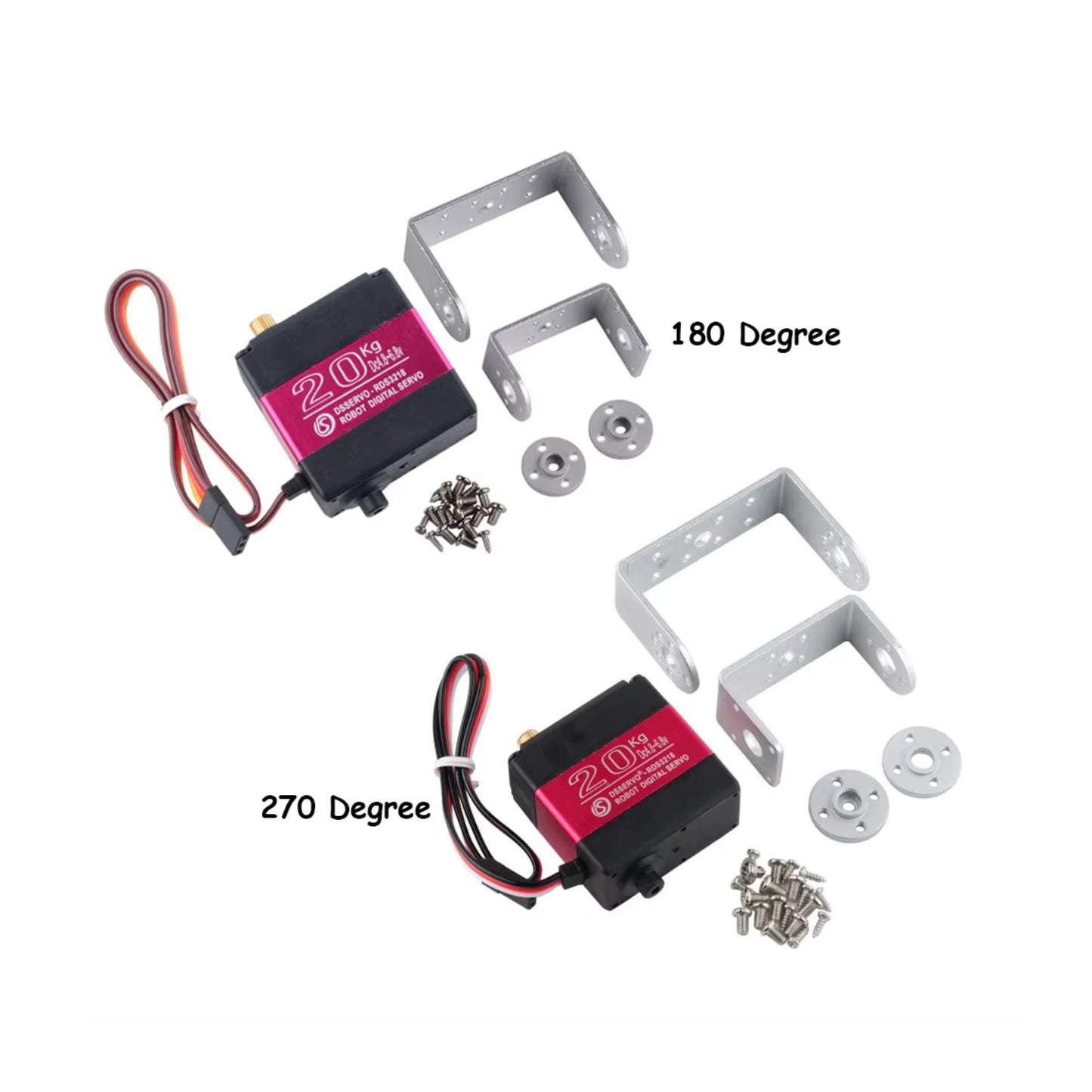

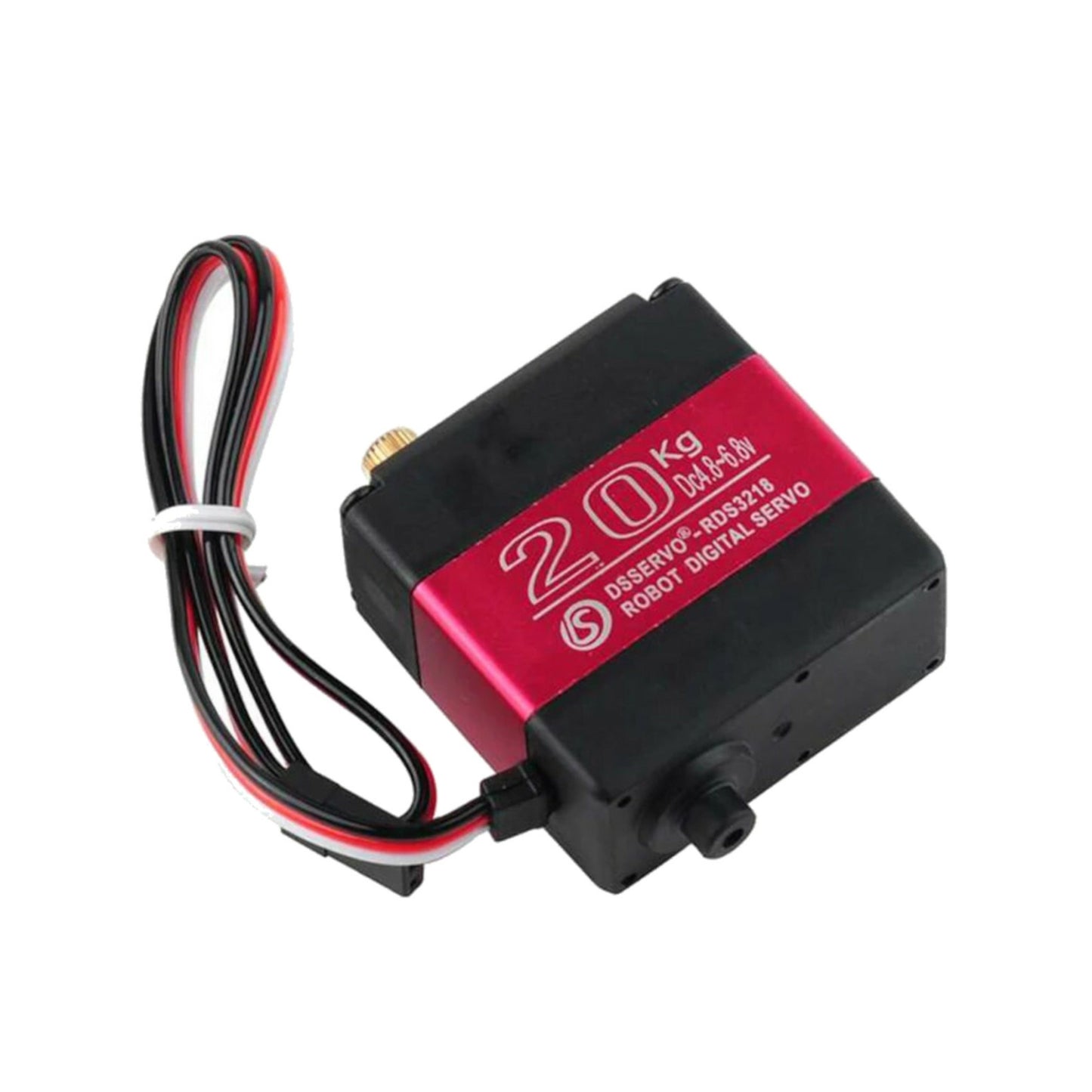

DSServo RDS3218MG 20KG Digital Servo High Torque Dual Shaft Servo Motor 180°, 270° (Optional) Degree Adjustable Servo Motor With U Bracket IP66 Waterproof Metal Gear Servo For RC Robot - RS8258

DSServo RDS3218MG 20KG Digital Servo High Torque Dual Shaft Servo Motor 180°, 270° (Optional) Degree Adjustable Servo Motor With U Bracket IP66 Waterproof Metal Gear Servo For RC Robot - RS8258

RS8258

In stock

Rs. 1,089.00
Rs. 1,089.00
Sale Sold out
Shipping calculated at checkout.
Degree

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

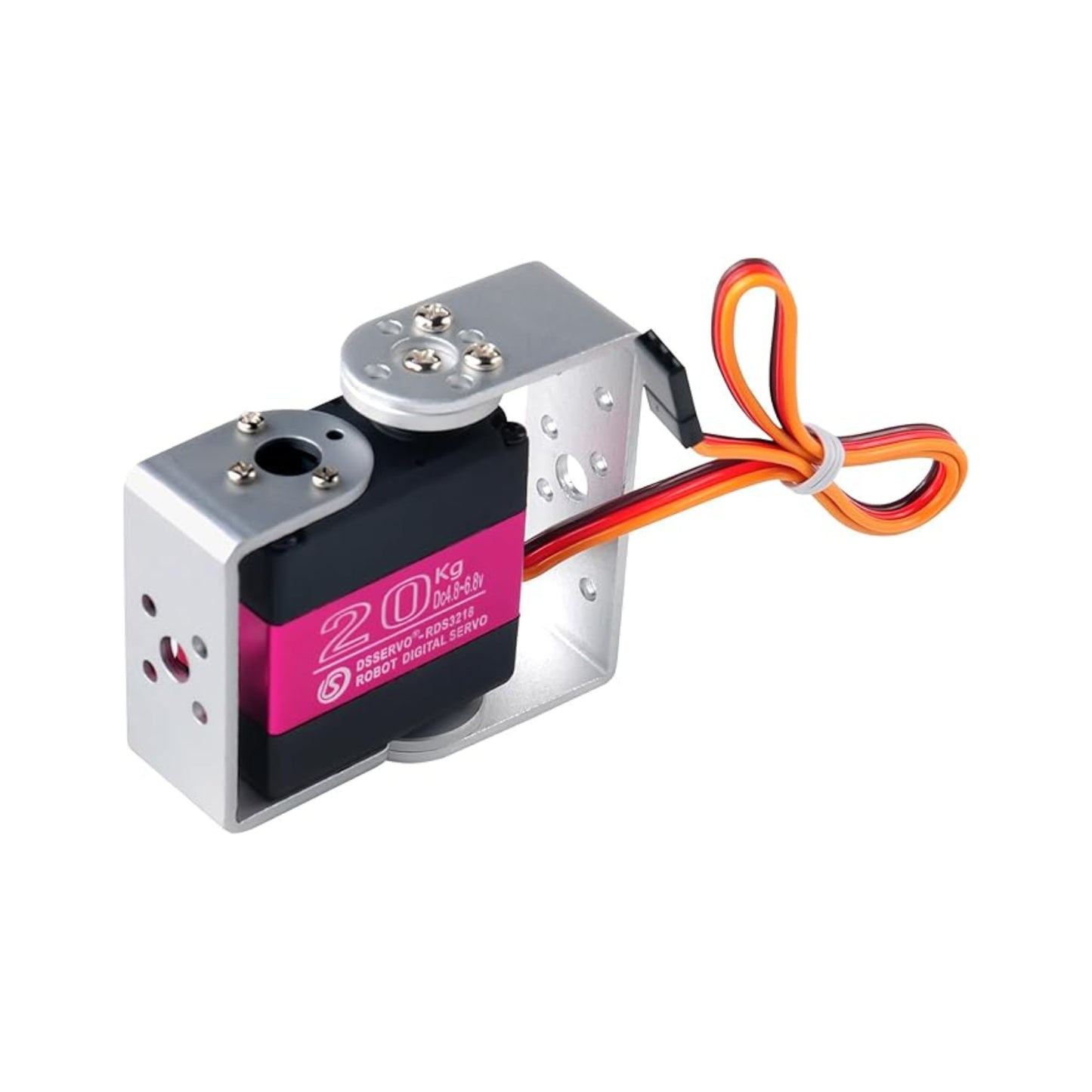

RDS3218 20KG Digital Servo comes with strong copper and aluminum gears, CNC aluminum center housing. High Torque Dual Shaft Servo Motor is Perfect for 1/8, 1/10, 1/12 scale crawler trucks, robot, boat, mechanical arms, climbing cars and remote control models. Digital Servo with U Mount Comes with U-shaped brackets. Can be connected in many ways. Free to use your imagination.

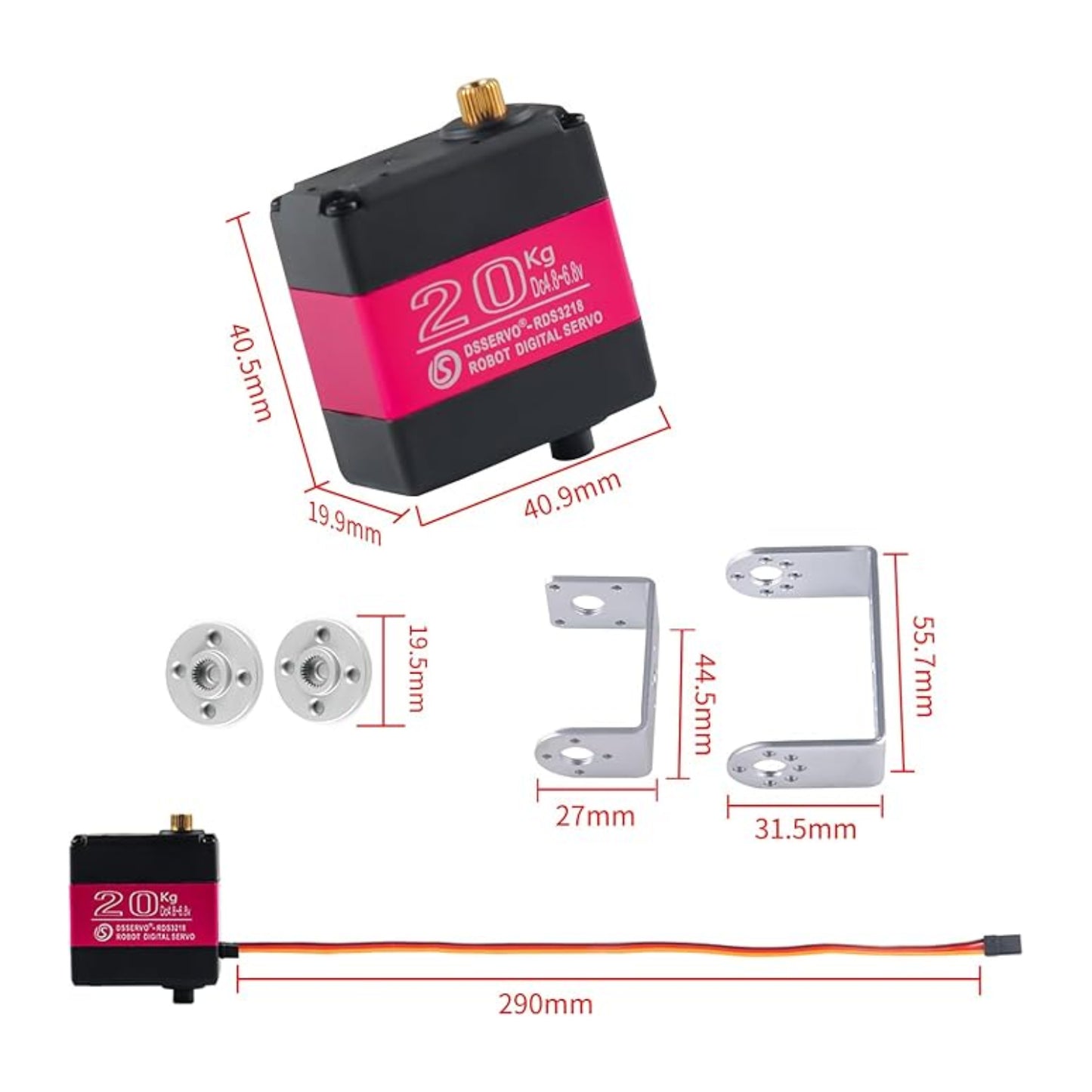

Specifications:

Model  RDS3218MG
Material Metal
Waterproof Rating  IP66
Angle  180°, 270°
Shaft Configuration Dual Shaft with U Bracket
Operating Speed

180°= ( 0.2sec/60°@5V )
270°= ( 0.17sec/60°@6.8V )
Stall torque  180°= ( 21.5kg·cm@5V
270°= ( 25kg·cm@6.8V )
Stall current  180°= ( 1.6A@5V )
270°=  ( 2.5A@6.8V )
Operating Frequency  50-330Hz
Dead band width  3μsec

Features:

  • Dual ball bearings.
  • CNC aluminum middle Shell.
  • High-performance digitalstandard servo.
  • High-precision metal gears with hard anodizing.

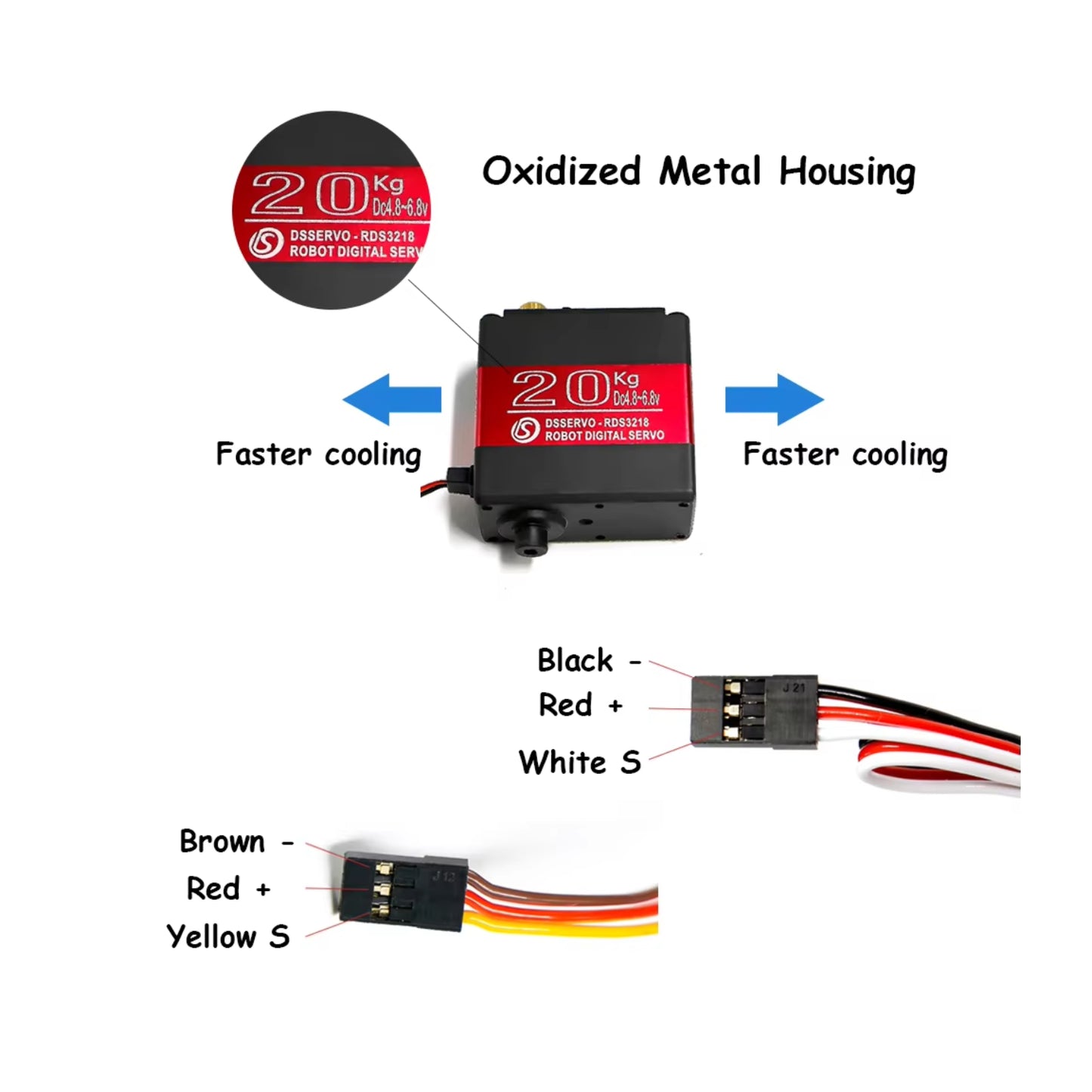

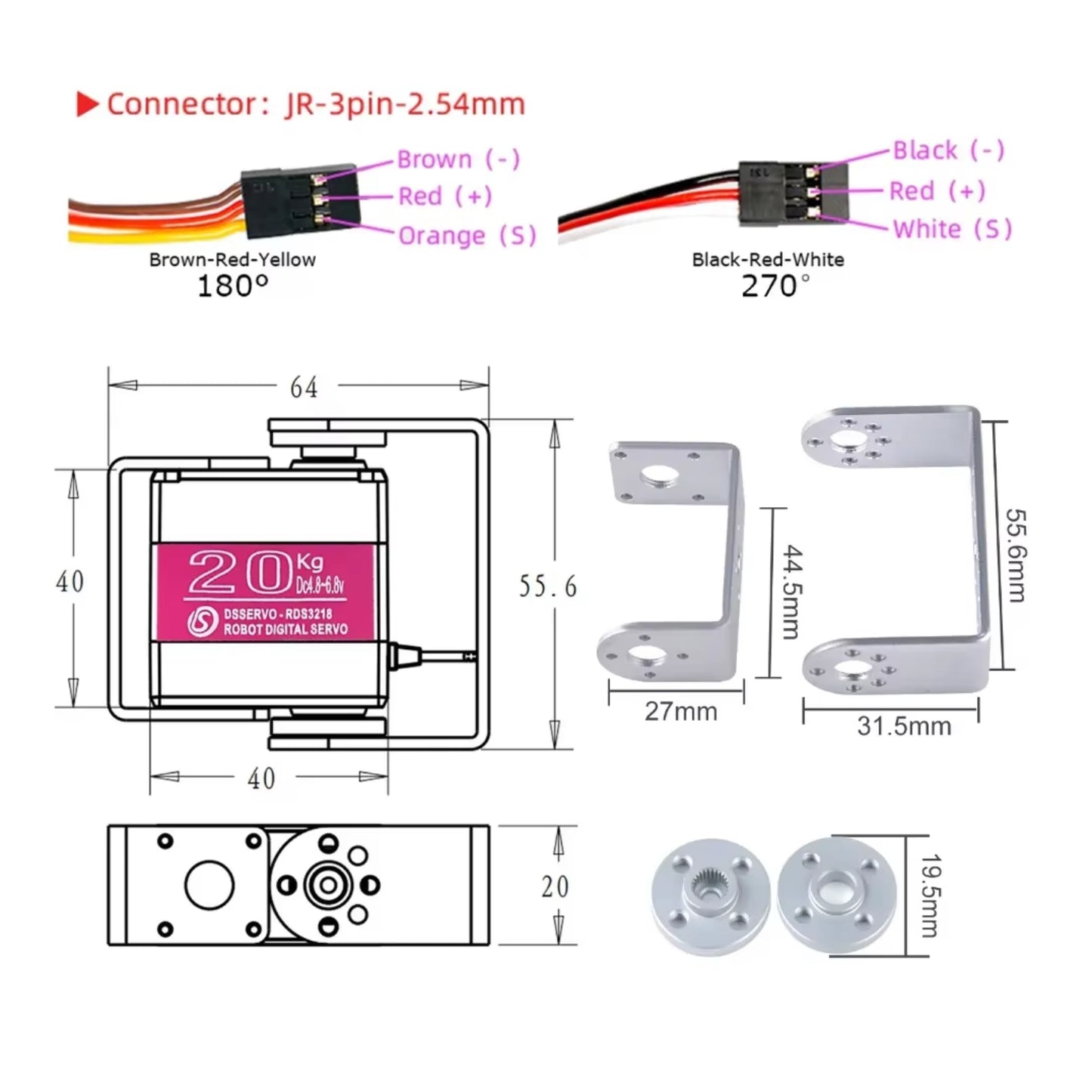

Pin Description:

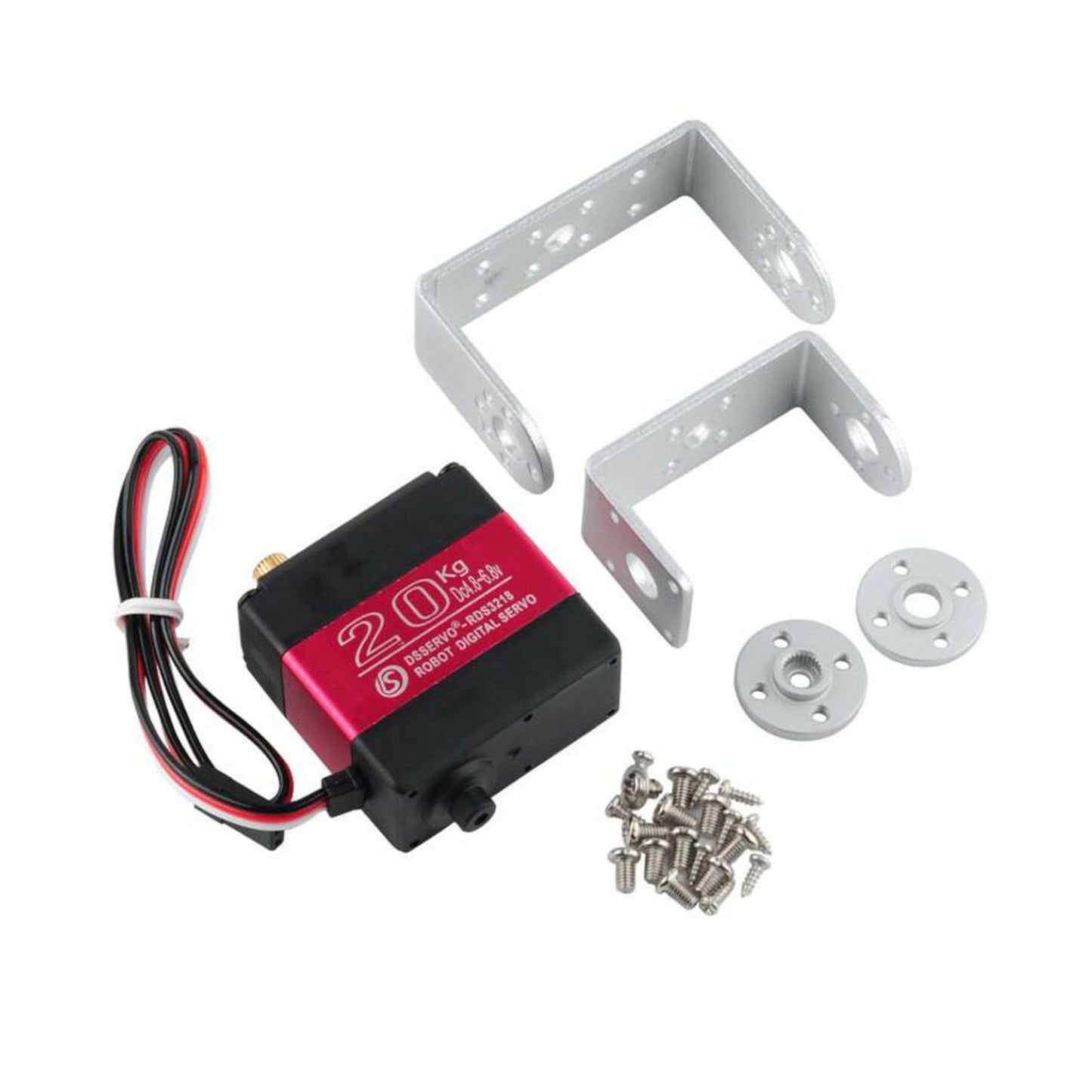

Package Included:

1 x DSServo RDS3218MG 20KG Digital Servo High Torque Dual Shaft Servo Motor 180°, 270° (Optional) Degree Adjustable Servo Motor With U Bracket  IP66 Waterproof Metal Gear Servo For RC Robot
