Description:

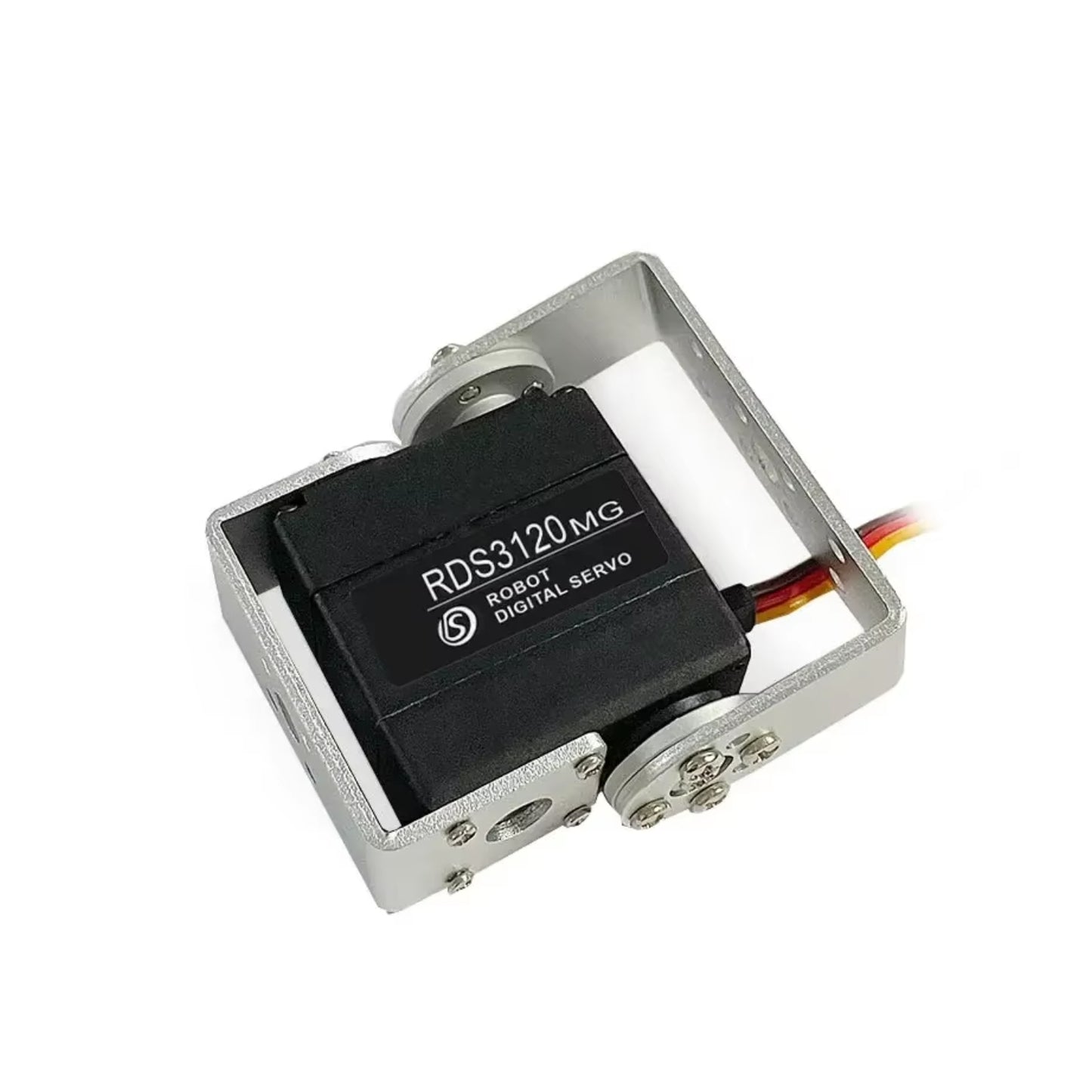

The RDS3120MG 20KG Metal Gear Digital Servo features a robust metal gear construction, ensuring durability and long-lasting performance. this servo is capable of delivering high torque and precise control, making it ideal for demanding robotics and automation projects. High Torque Servo Motor is suitable for use in robotics and Arduino projects.
Specifications:
| Model | RDS3120 |
| Material | Metal |
| Angle | 180º, 270º |
| Voltage | 4.8-6.8V |
|
Speed |
180º= 0.19sec/60 degree at(5v) 270º= 0.17sec/60 degree at(6.8v) |
| Torque |
180º=18.5kg.cm.at(5v) 270º= 21kg.cm.at(6.8v) |
Features:
-
Dual Ball Bearing.
- Durable Metal Gear.
- Original factory product.
- Bottom Side Axial Mount Hole.
- Programmable Digital Amplifier with Mosft Drive.
Package Included:

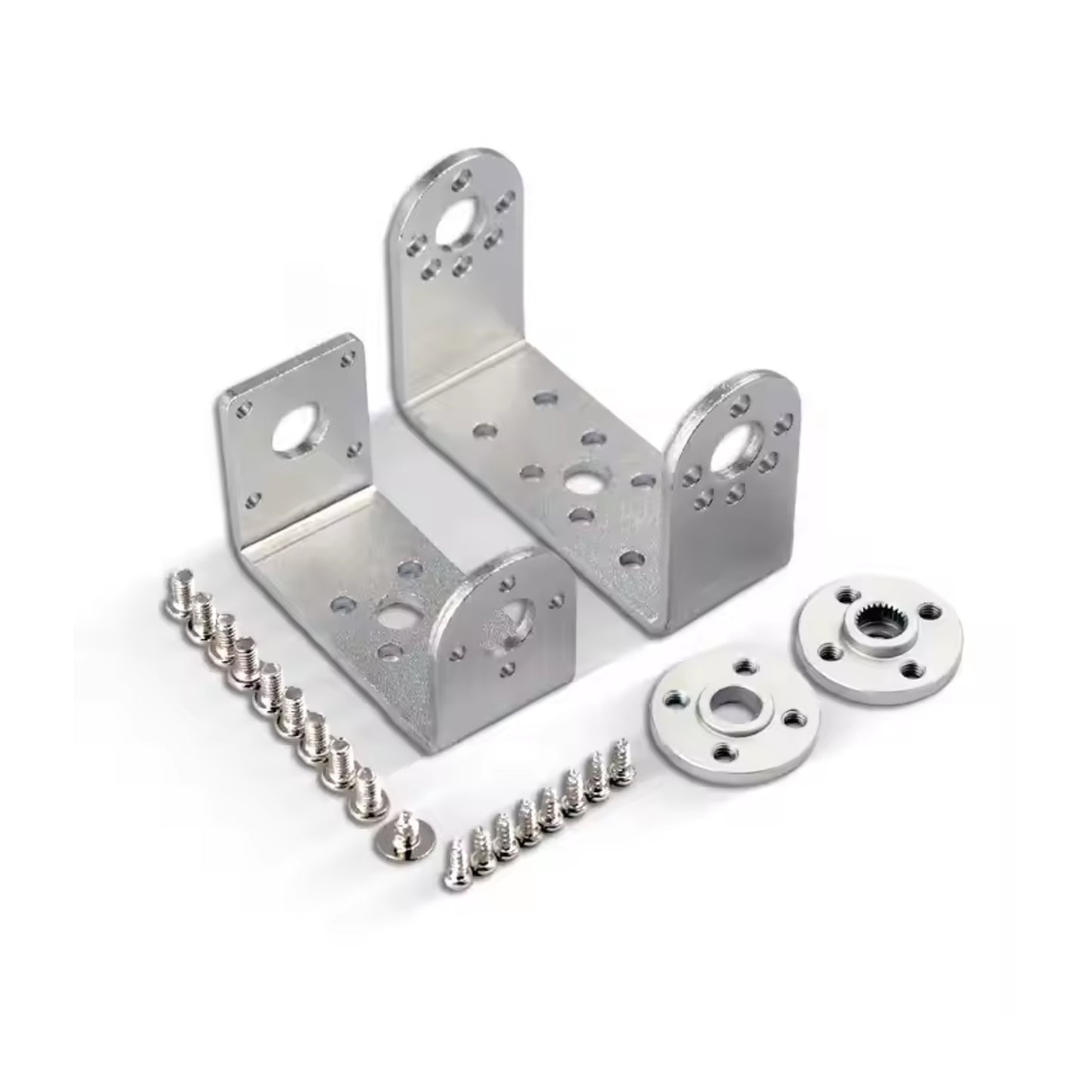

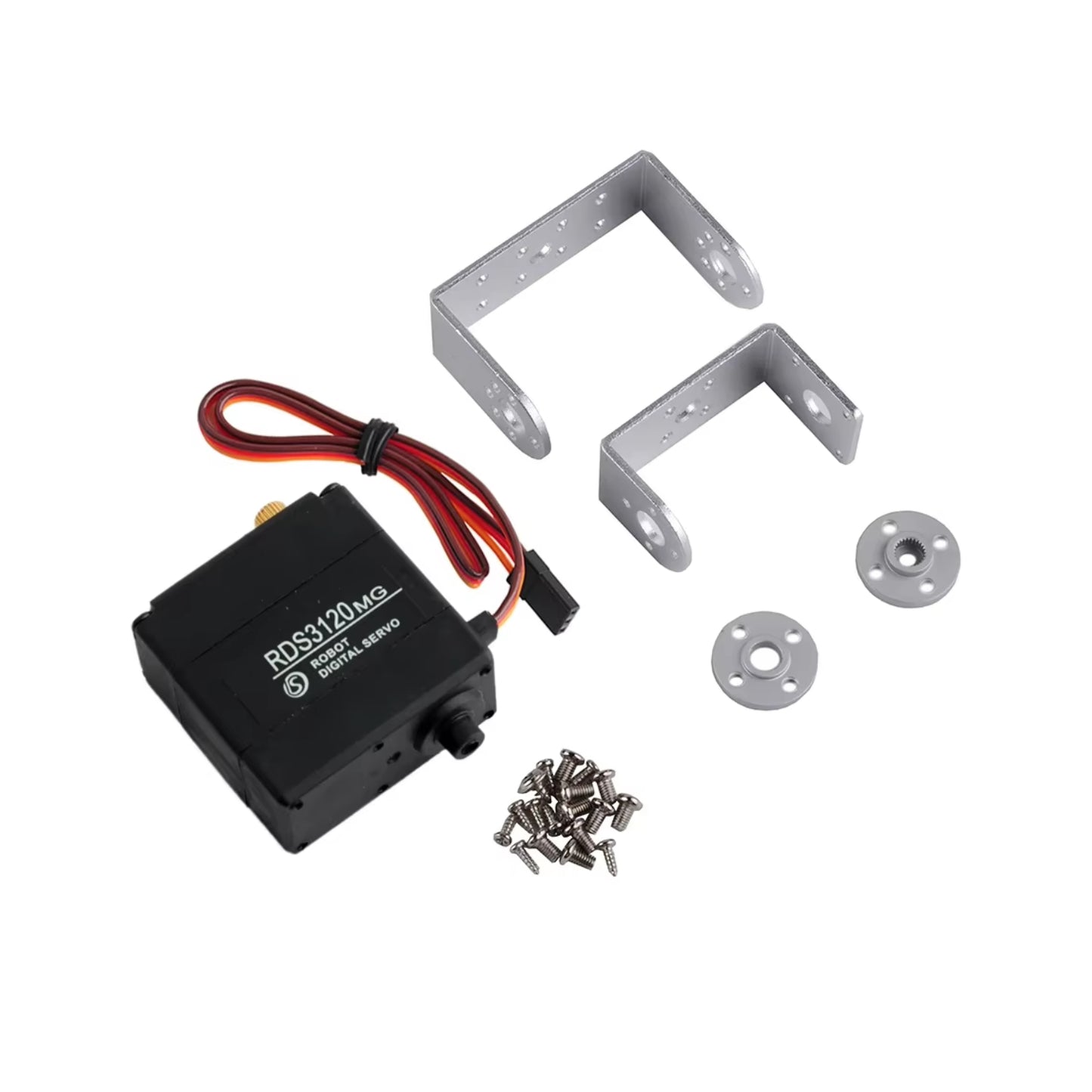

- 1 x RDS3120 Digital Metal Robotic Servo
- 1 x long U metal brackets
- 1 x Short U metal brackets
- 1 x Metal servo arm 25T
- 1 x Metal servo arm driven
- one set of screw(see the picture)
