Description:
RD6018 series has two versions: RD6018 and RD6018-W, RD6018-W have a WIFI board, and RD6018 don't have one. RD6018-W can use a WIFI board to connect the APP and a USB micro cable to connect PC software. RD6018 don't have a WIFI board, only supports PC software by connecting with a USB micro cable, and has no support APP. For the wifi board to connect PC software, now it does not support it. For PC software, it only supports Win 7 and above for now. For APP, it only supports Android 5.0 and above.
For APP and PC software, because there may be incompatibility problems, please download first before buying, if you can download and install, you can make an order, or else stop buying. If you don't test the PC software and APP function before buying and find that the products work fine except the PC software or APP, we refuse to refund. For the input AC-DC switch power supply, The input PSU we have is 800W, which is lower than the max output power of RD6018(1080W).
Specifications:
- Input Voltage: 6-70V
- Output Voltage: 0-60V
- Output Current: 0-18A
- Output Power: 0-1080W
Features:
- There is a BACKUP fuse in the RD6018/RD6018W box, if you burn the fuse, you can insert the fuse in the socket next to the burned one for temporary use, but the fuse cannot support a big current flow, so it is better to remove the damaged fuse and solder the good fuse on the same position.
- If RD6018W can connect to the hotspot shared by the mobile phone but cannot connect to the router, you need to shut down the client isolation/ AP isolation and WMM function.
Package Included:

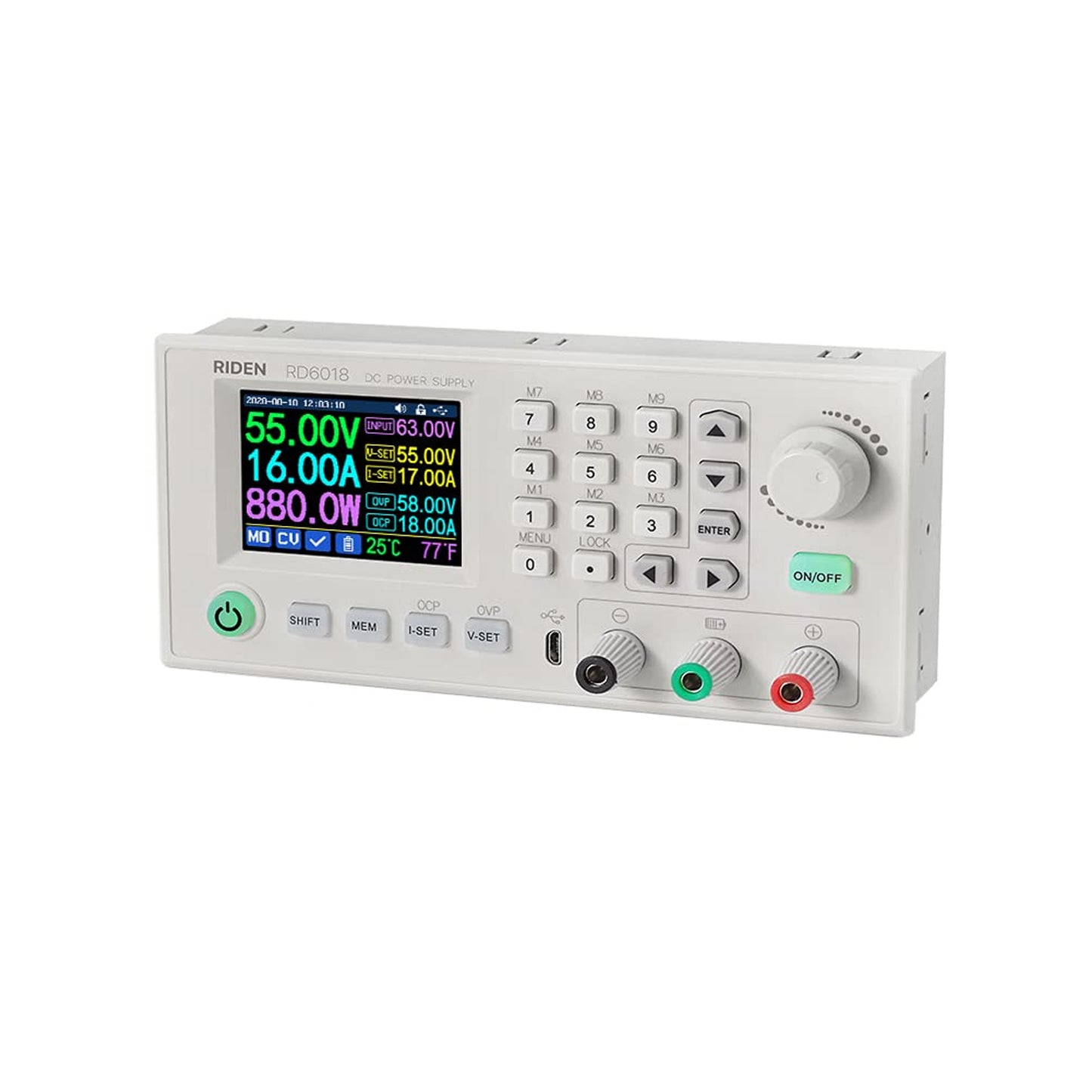

1 x RD6018W DC Power Supply Variable Adjustable Module Buck Converter Voltmeter Multimeter 60V 18A 1080W- RD6018
