Description:

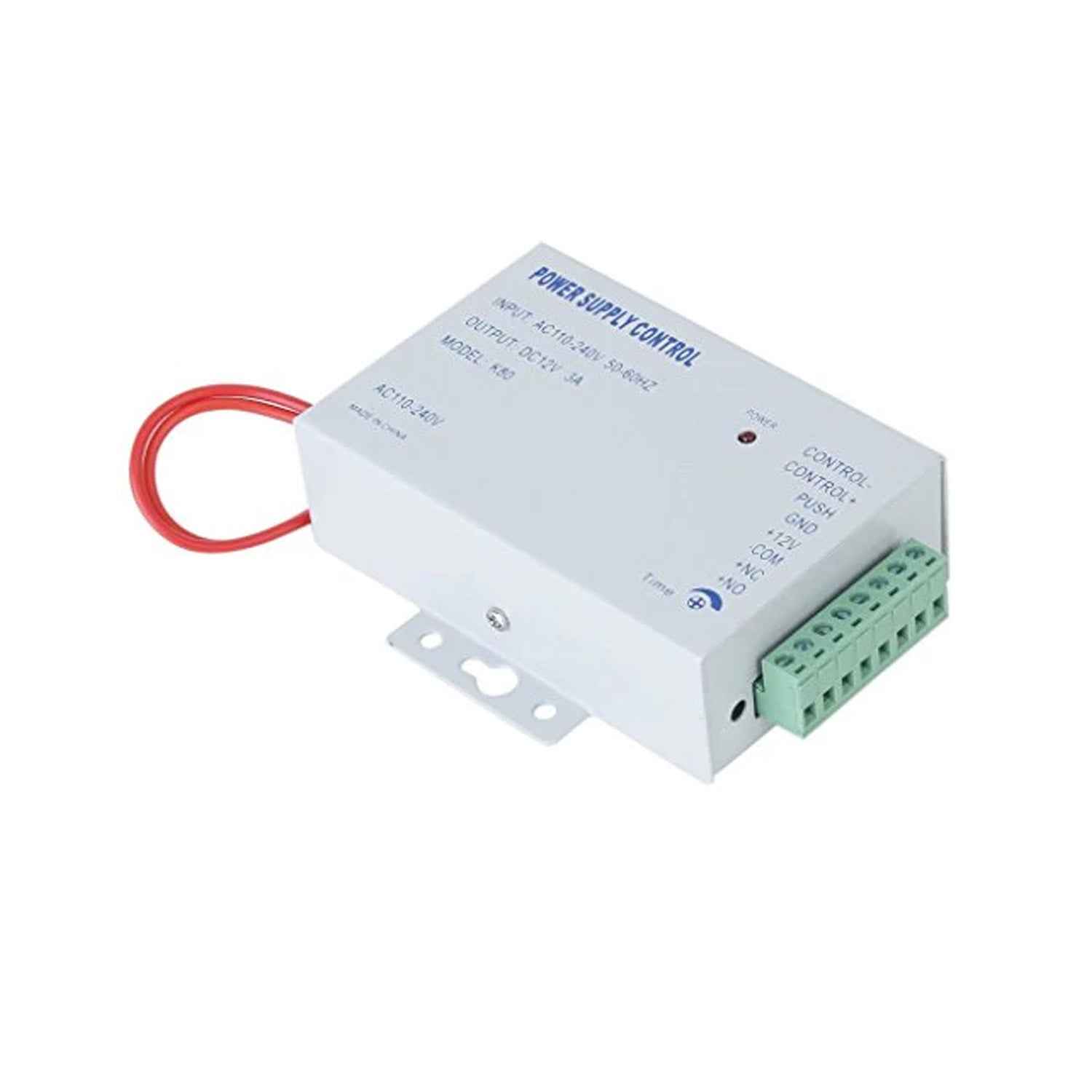

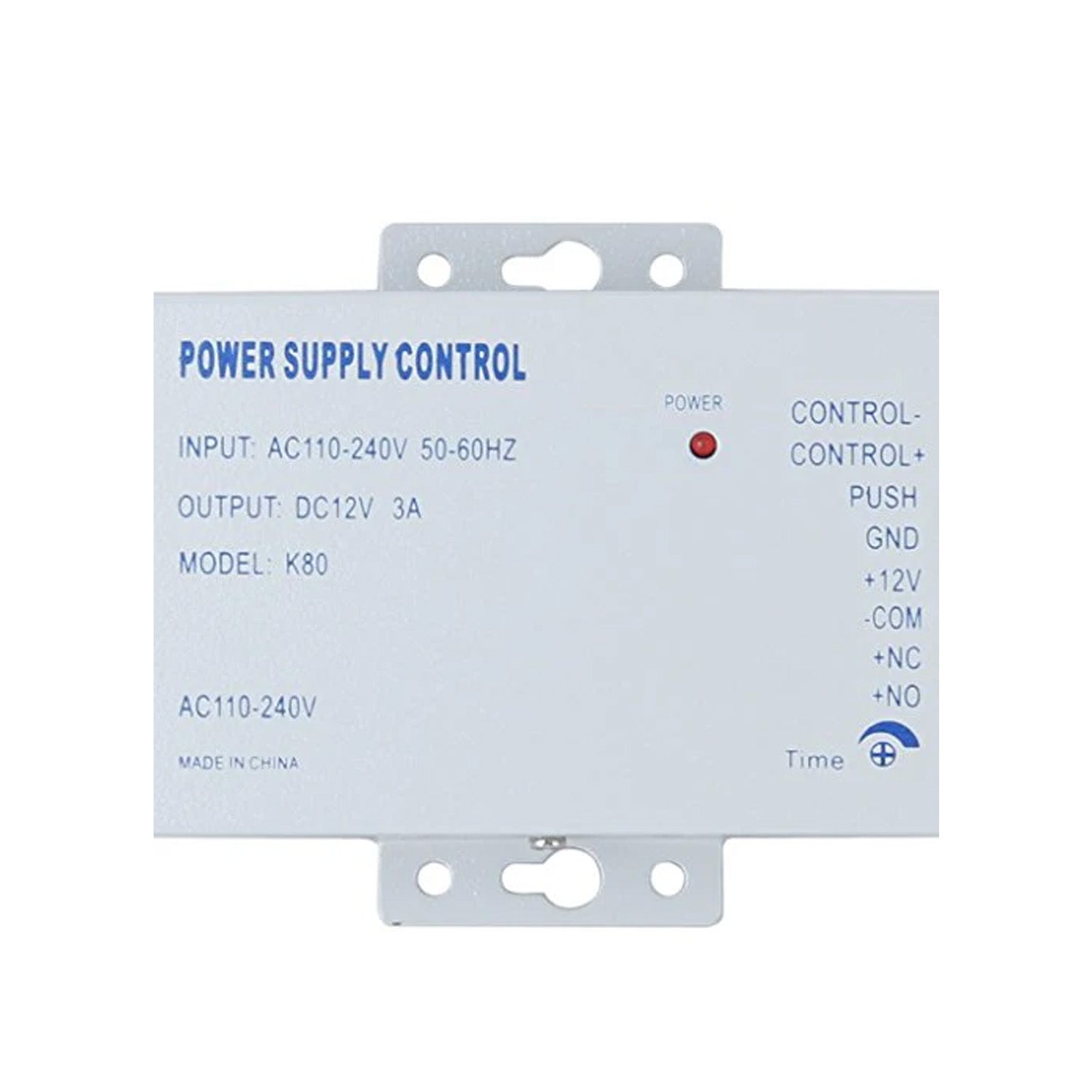

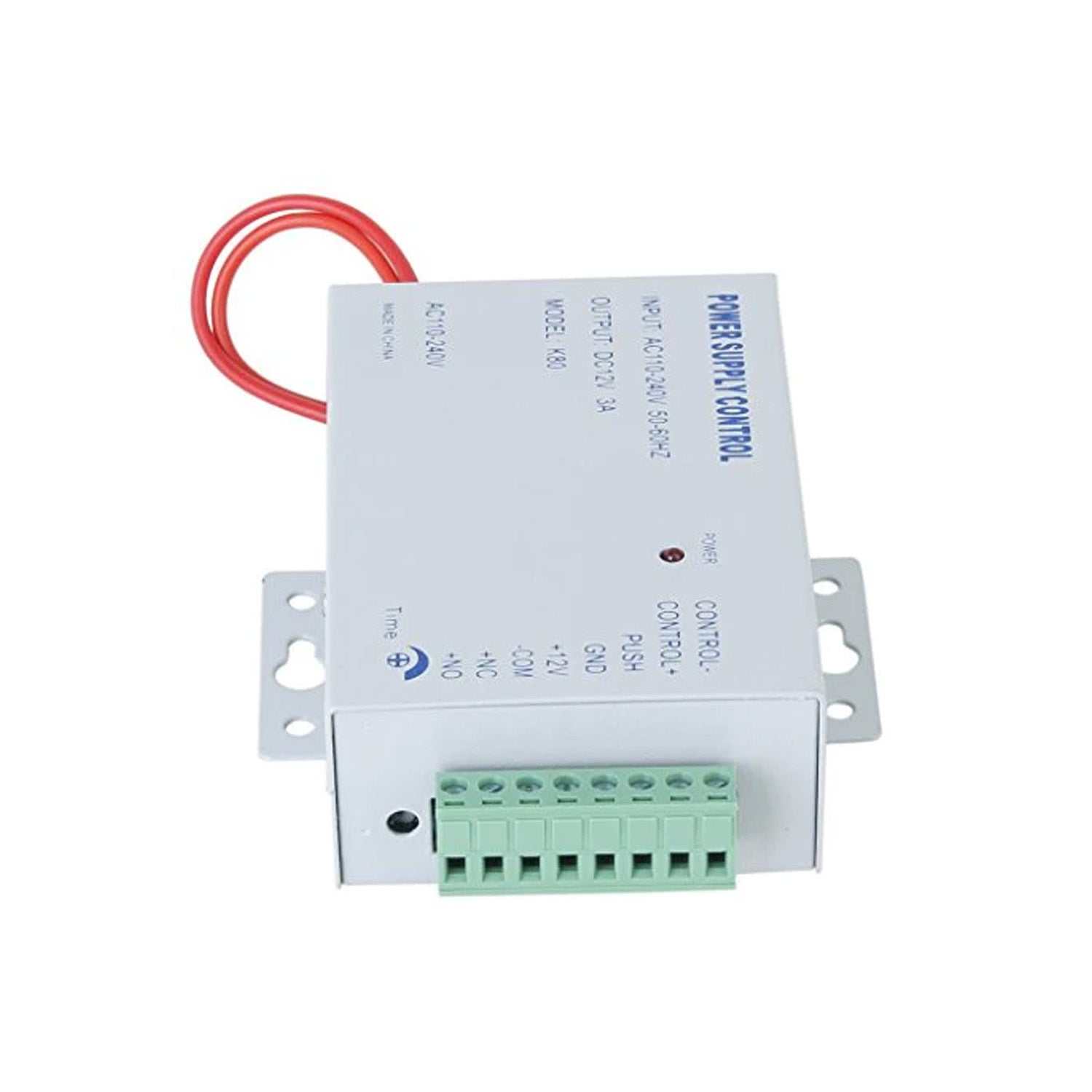

It is an RB-K80 12V3A Power Supply for the access control system, that can connect to an electric lock, access controller, and door exit. It is suitable for all kinds of access control electrical door locks.
Set NC / NO outputs can control various types of electric locks, Based delay control circuit, lock time can be in 0-15 seconds. Compact design and lightweight, Short-circuit and overload protection for safety use Can control various types of electric gate locks, electric strike locks, electric bolt locks, and magnetic locks.
Specifications:
- Material: Steel
- Output Power: 36W
- Durability Test: 500000 times
- Input Frequency: 50-60Hz
- Input Voltage: 110-240VAC
- Output Voltage: DC12V/3A
- Working Temperature: -20 to +65
- Time Delay: 0-15 seconds adjustable
Features:
- Less Power consumption, and high power. Small switching transistors, greatly improve the efficiency.
- The switch power supply is small in size and lightweight.
- Switch power supply regulator with a wide range, voltage regulator works well.
- Filtering efficiency gains, so that the capacity and size of the filter capacitor are greatly reduced.
Package Included:
1 x RB-K80 12V 3A Power Supply Door Access Control Power Switch Supply Input AC 110-240V Support NO/NC Electric Door Lock and Exit Button Video Doorbell Power Supply
