Description:

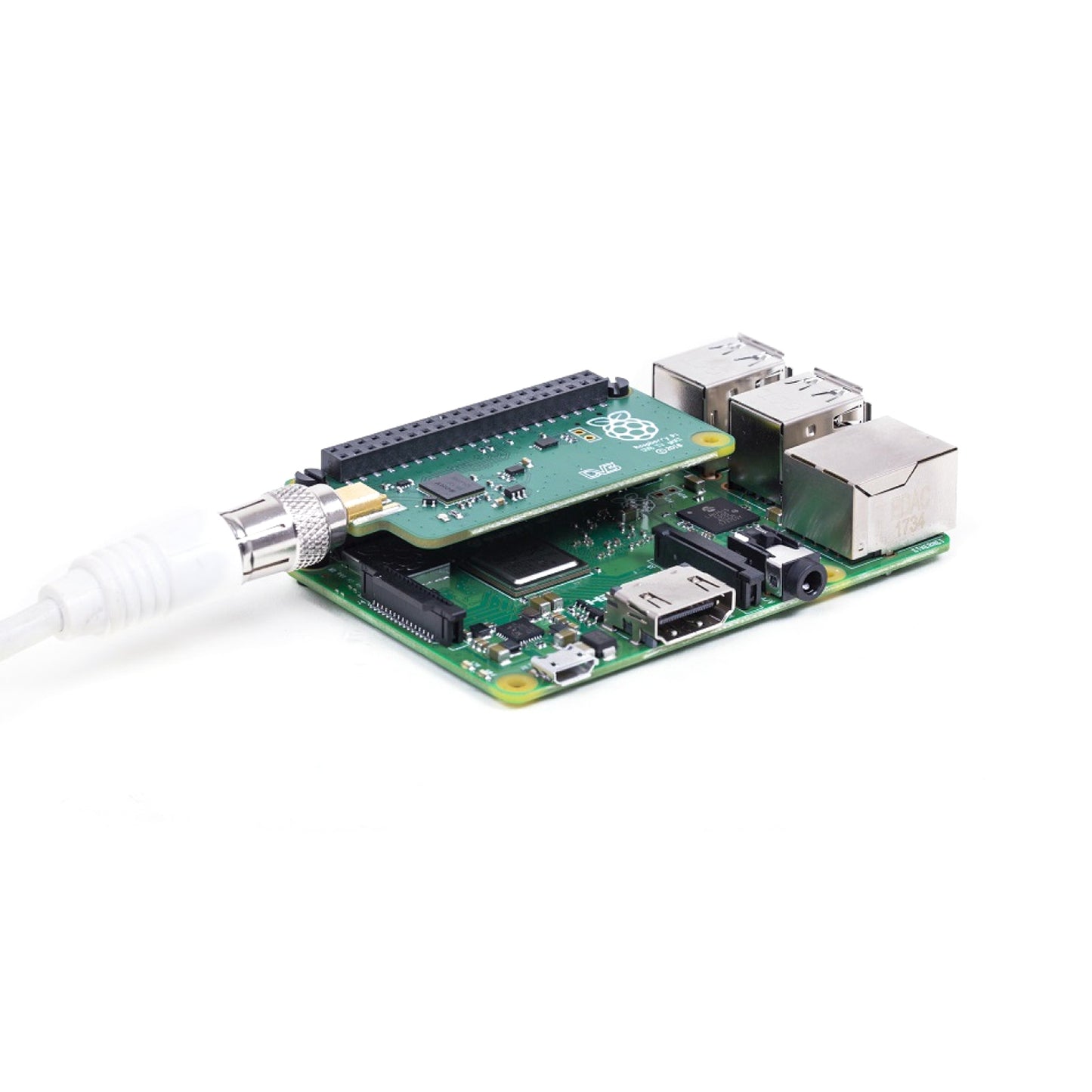

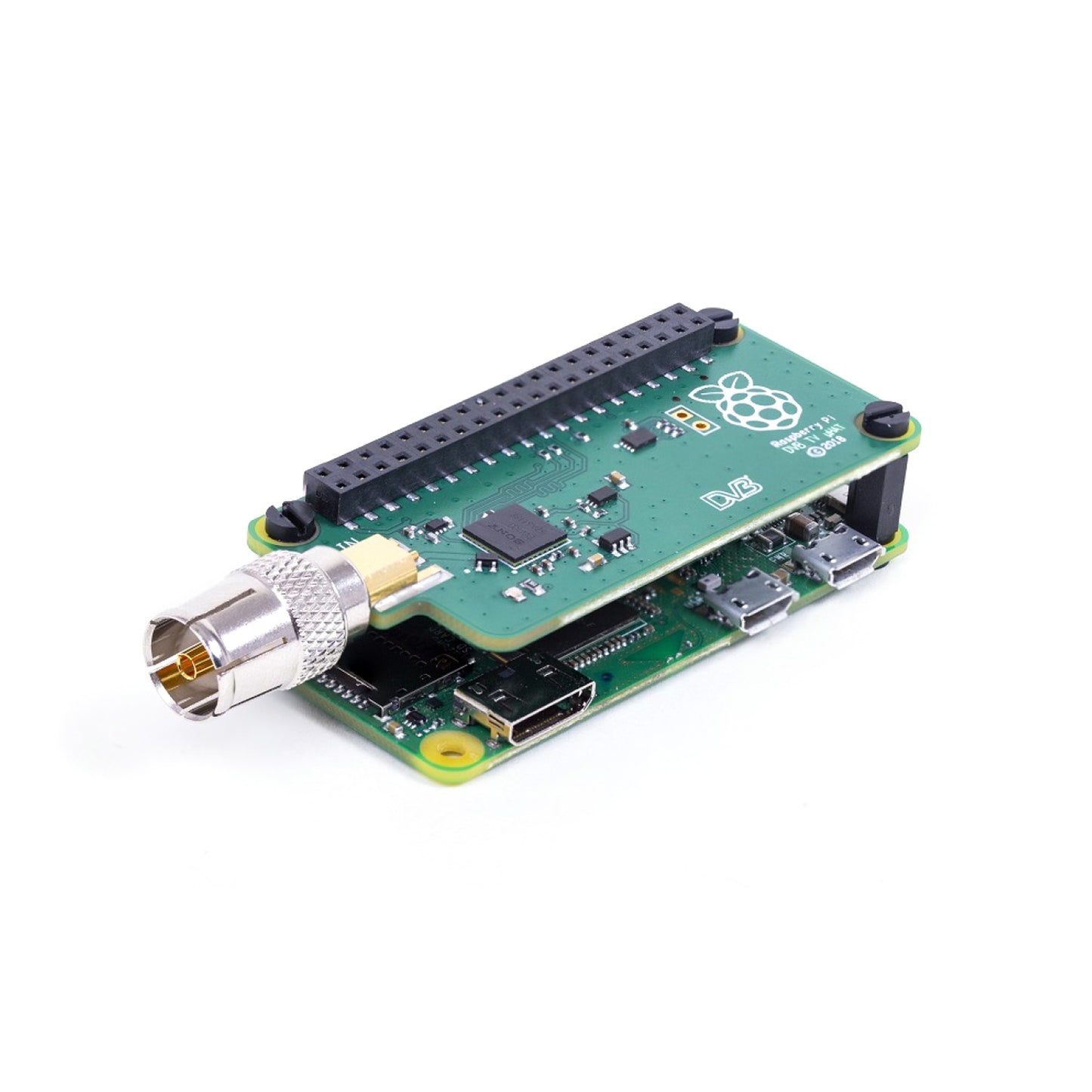

The Raspberry Pi TV HAT is a DVB-T2 Digital TV receiver add on for the Raspberry Pi, compatible with the Raspberry Pi 3 Model B+or Raspberry Pi Zero W (and older Raspberry Pi 2 & 3 models)
The Raspberry Pi TV HAT allows you to receive digital terrestrial TV broadcast systems which include DVB-T and DVB-T2 on a Raspberry Pi. This means that you can receive and view TV on a Raspberry Pi or create a TV server that allows you to stream received TV over a network to other devices (including PCs, tablets, smartphones (via apps), media centres and more)
The TV HAT can be used on all Raspberry Pi boards when running as a backend (server for other devices on the network), however when receiving and viewing TV directly on a Raspberry Pi it is recommended to use a Raspberry Pi 3 Model B+ (or older Raspberry Pi Model 3) to do this.
Specifications:
- Sony CXD2880 TV tuner
- Supported TV standards: DVB-T2, DVB-T
- Reception frequency: VHF III, UHF IV, UHF V
- Channel bandwidth:
- DVB-T2: 1.7MHz, 5MHz, 6MHz, 7MHz, 8MHz
- DVB-T: 5MHz, 6MHz, 7MHz, 8MH
Useful Links:
- Raspberry Pi TV HAT Datasheet
- Raspberry Pi TV HAT Mechanical Drawing
- Raspberry Pi Latest OS
- How To Getting Started With The TV HAT

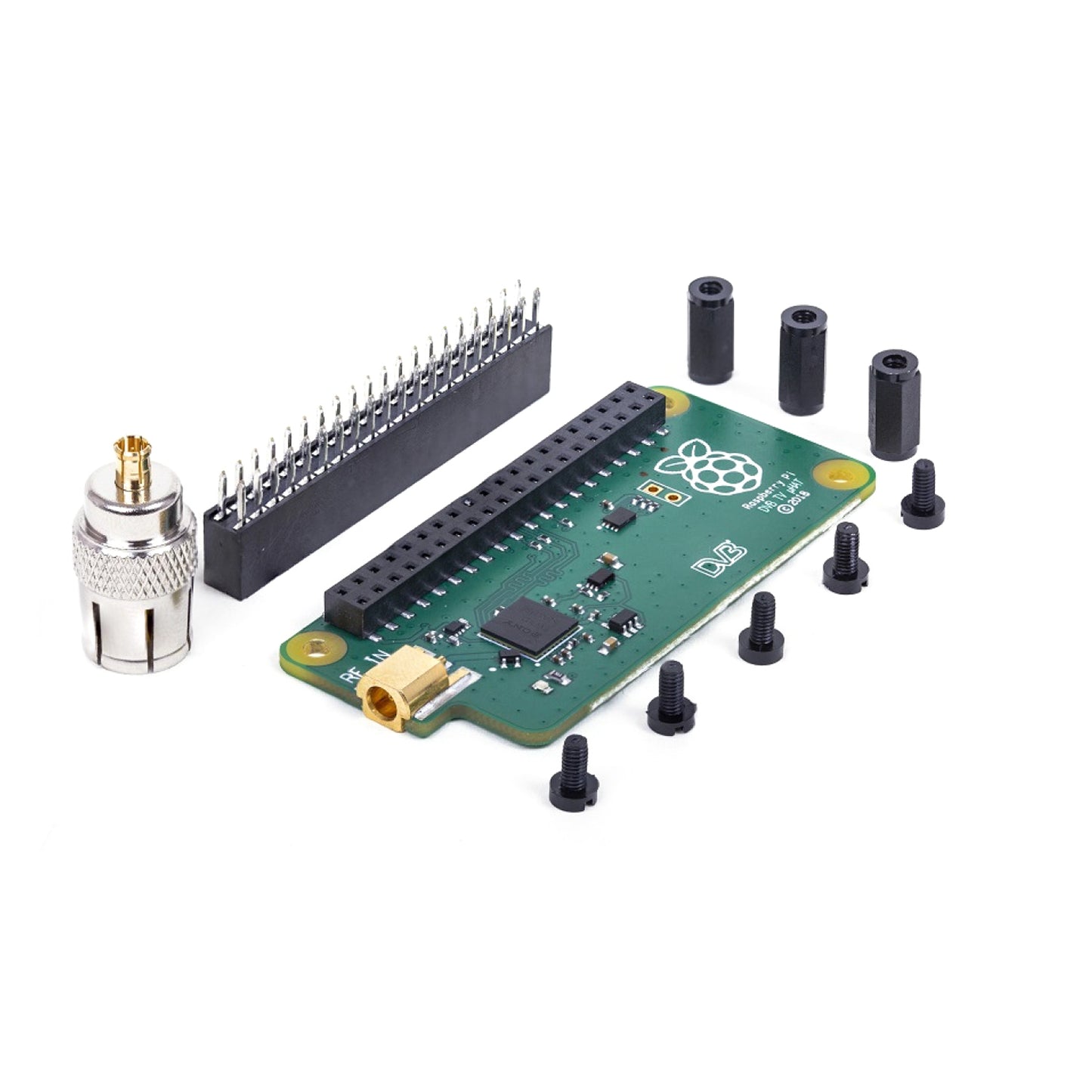

Package Included:
1 x Raspberry Pi TV HAT Pi TV HAT Turn Your Raspberry Pi Into a TV HDMI RPi TV Expansion Board Output For Raspberry Pi With TV HAT
