Description:

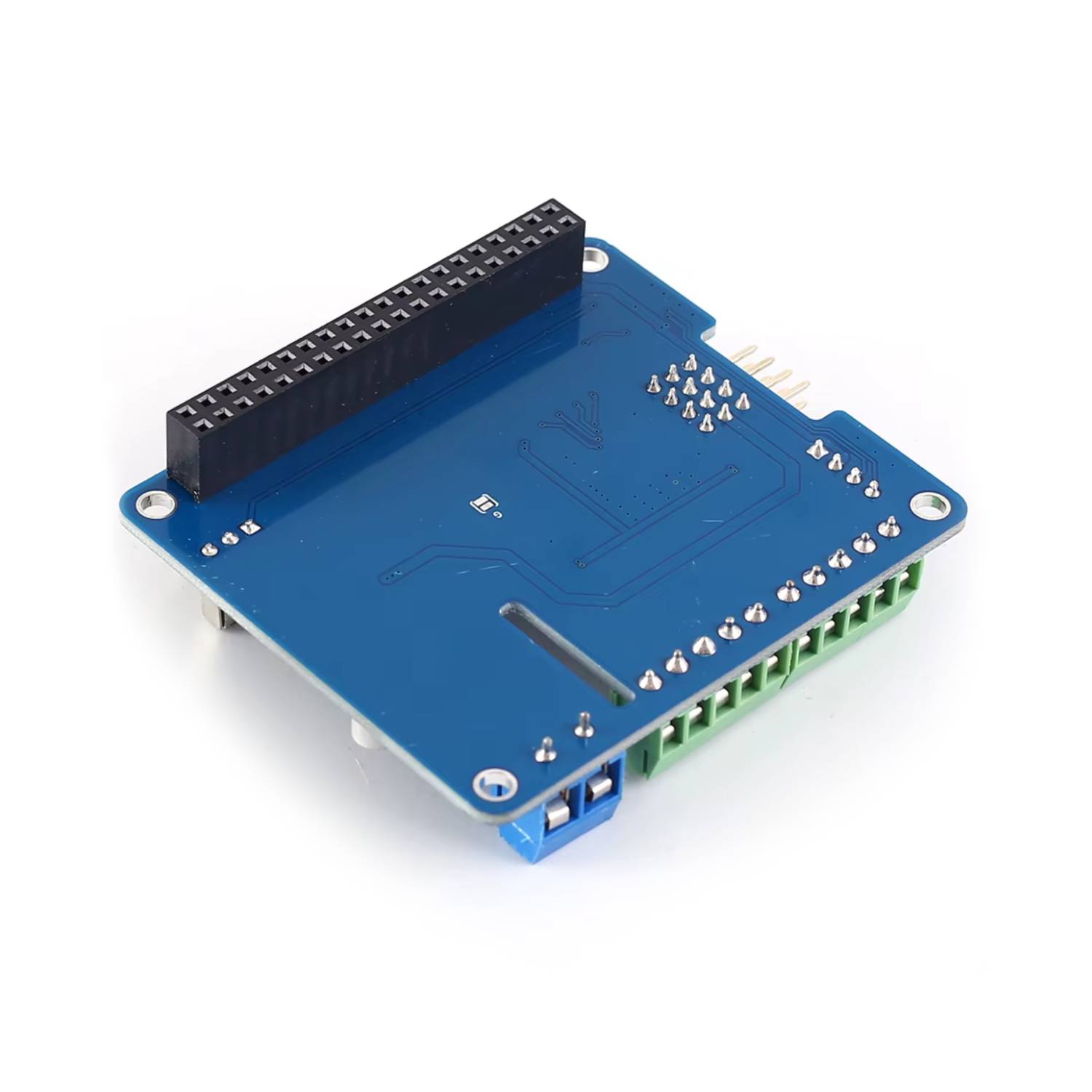

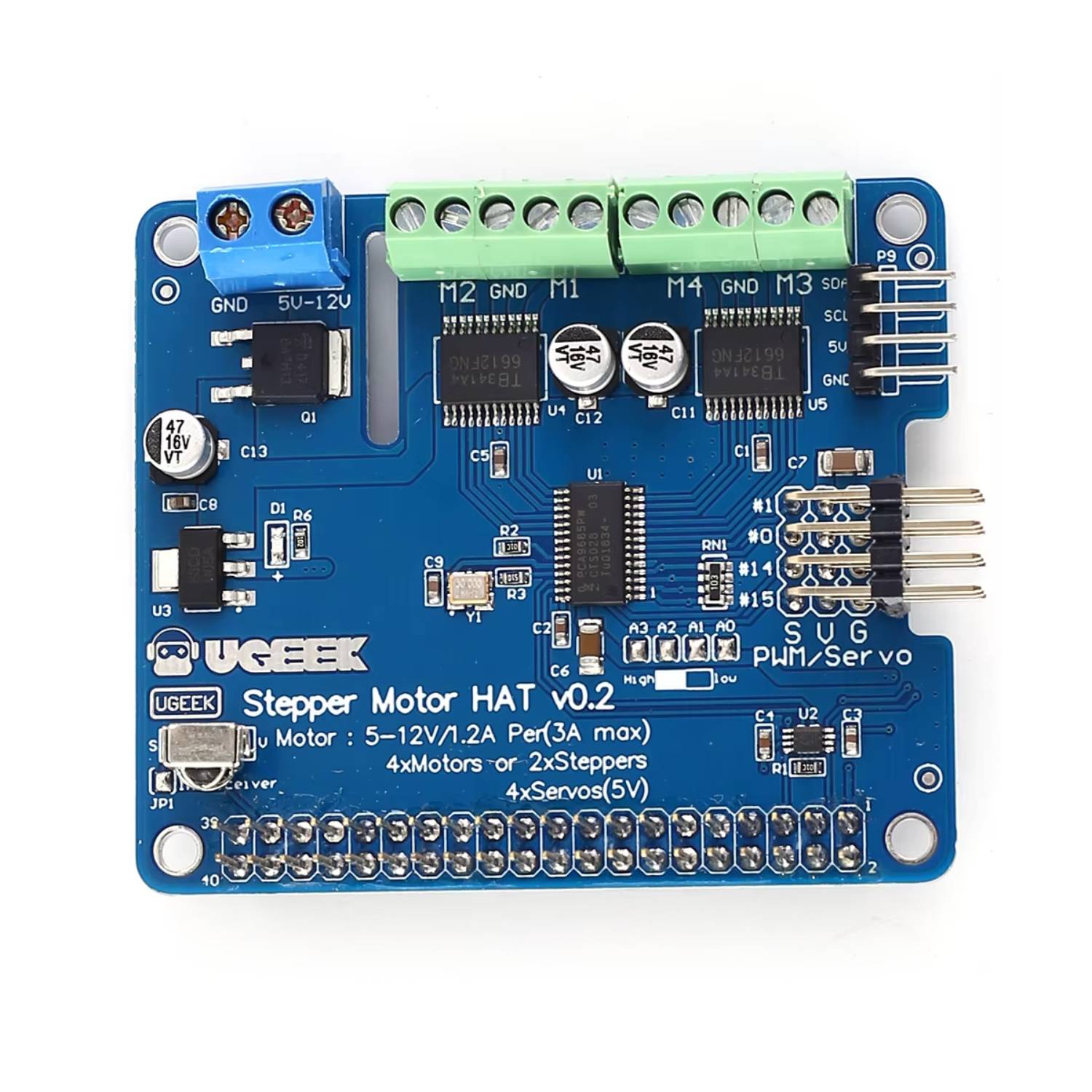

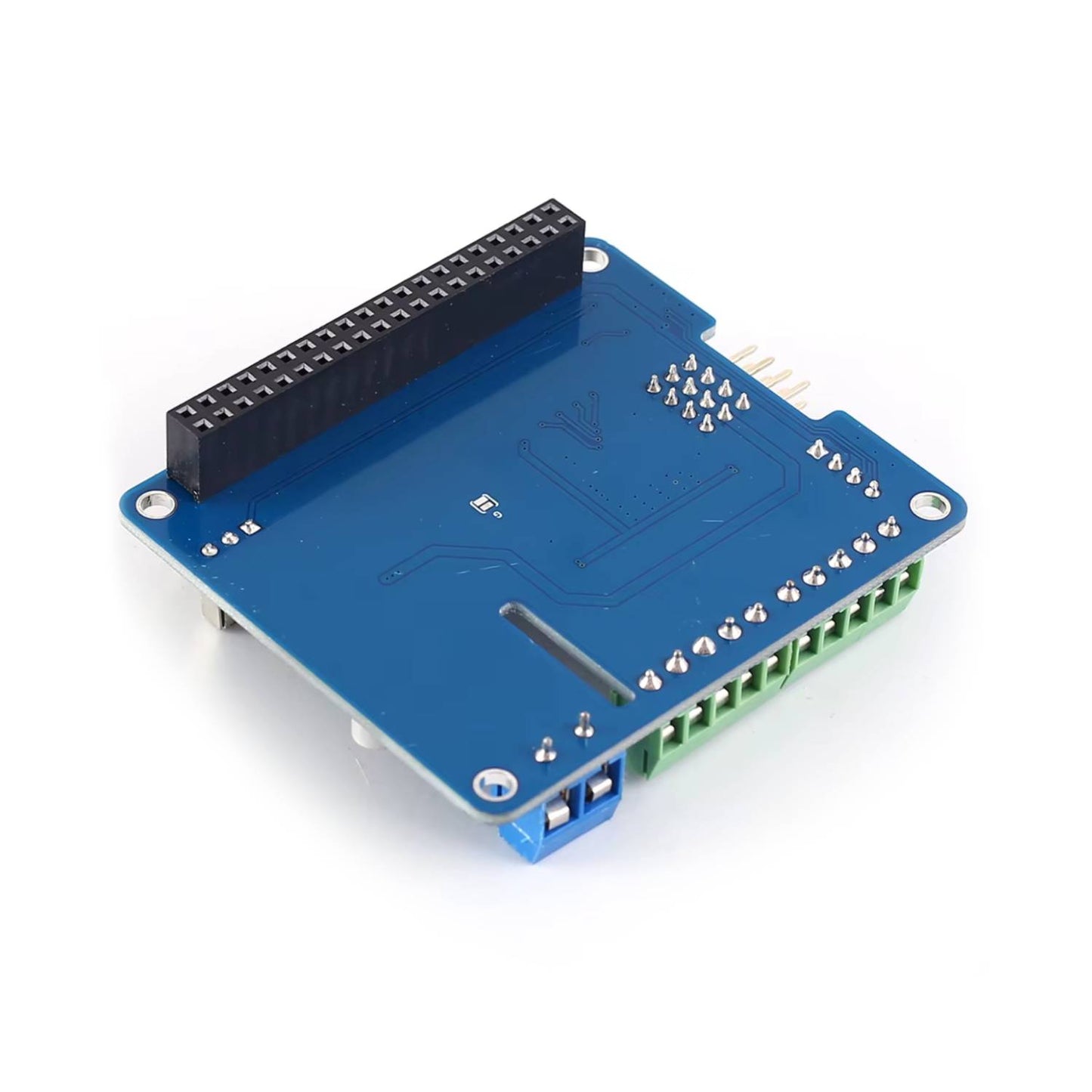

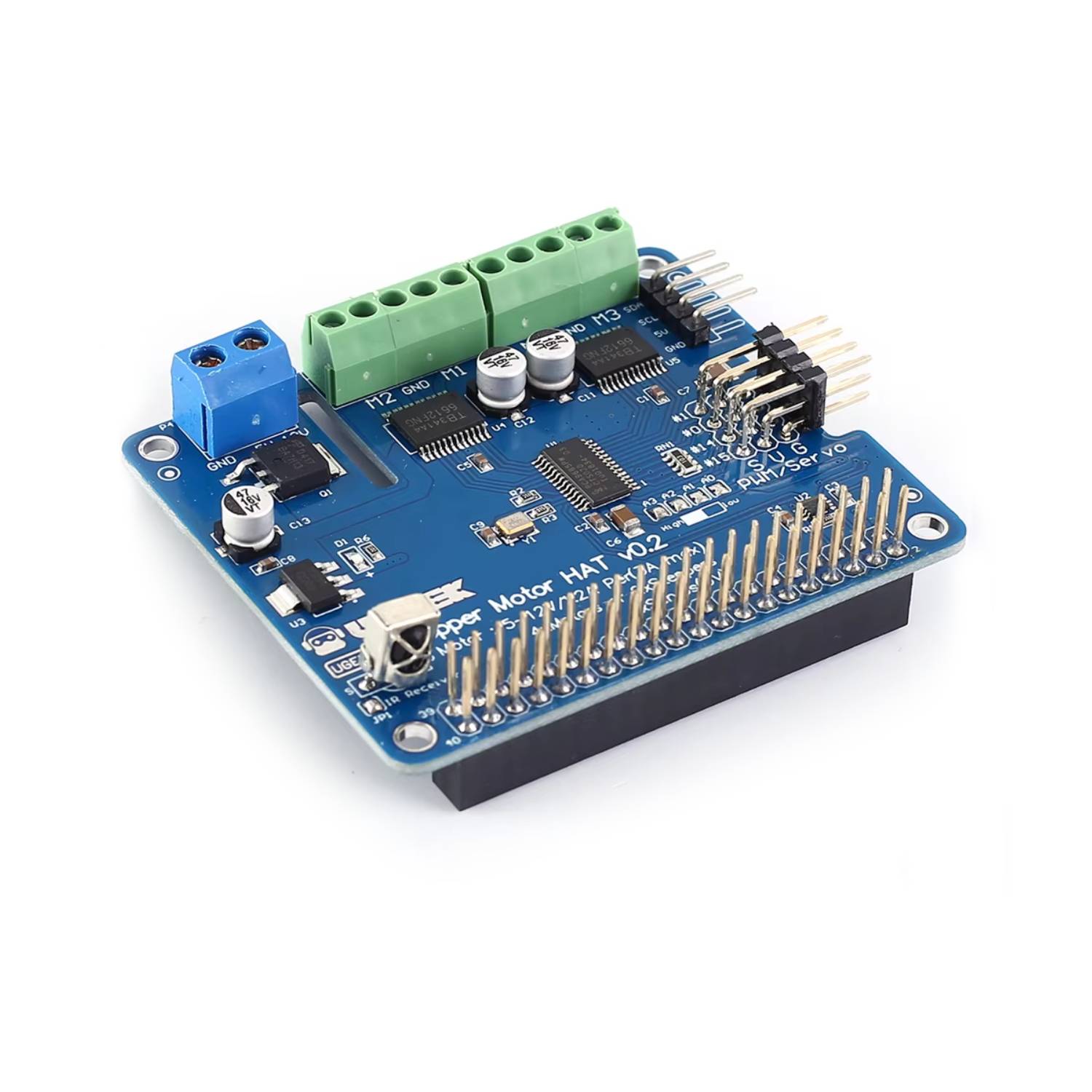

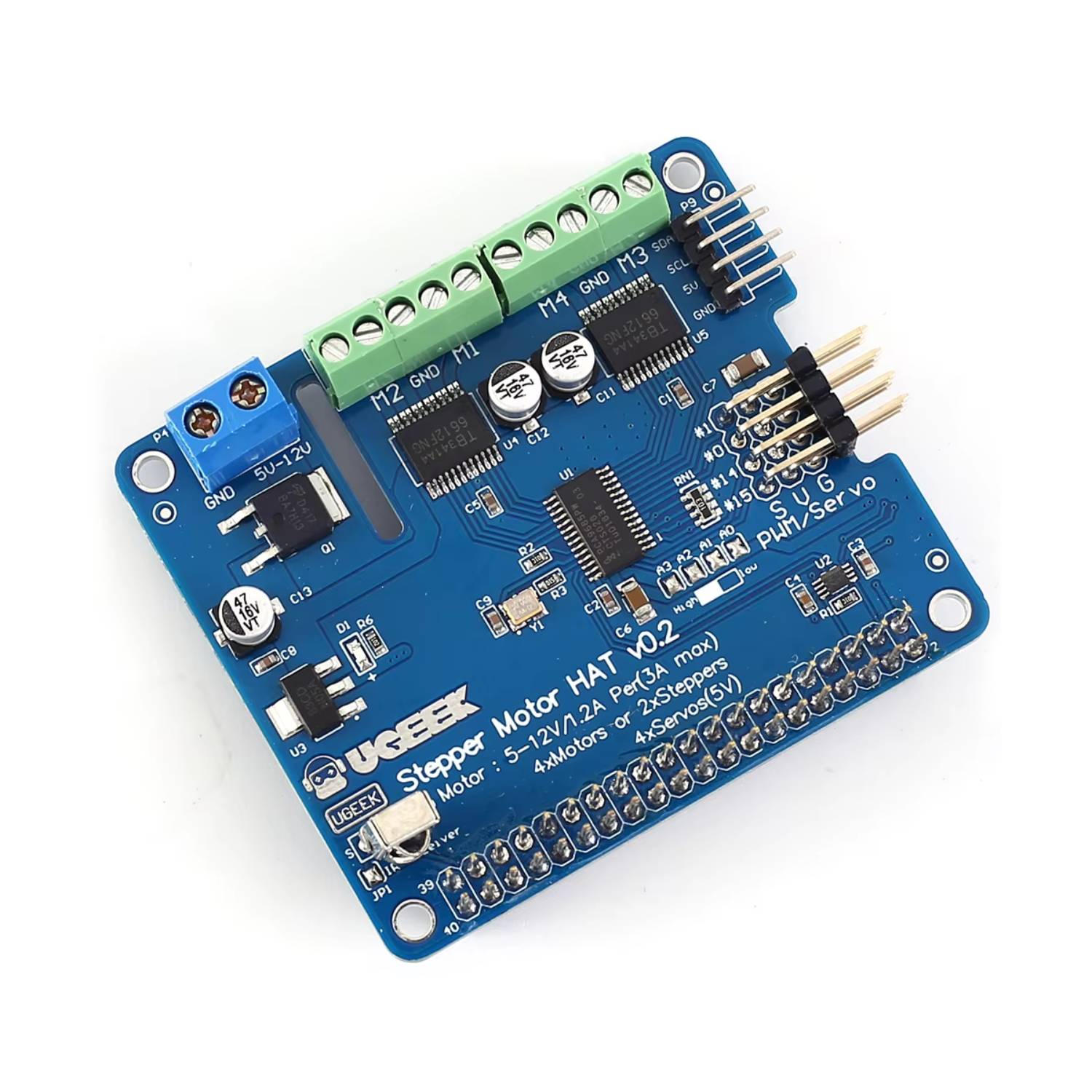

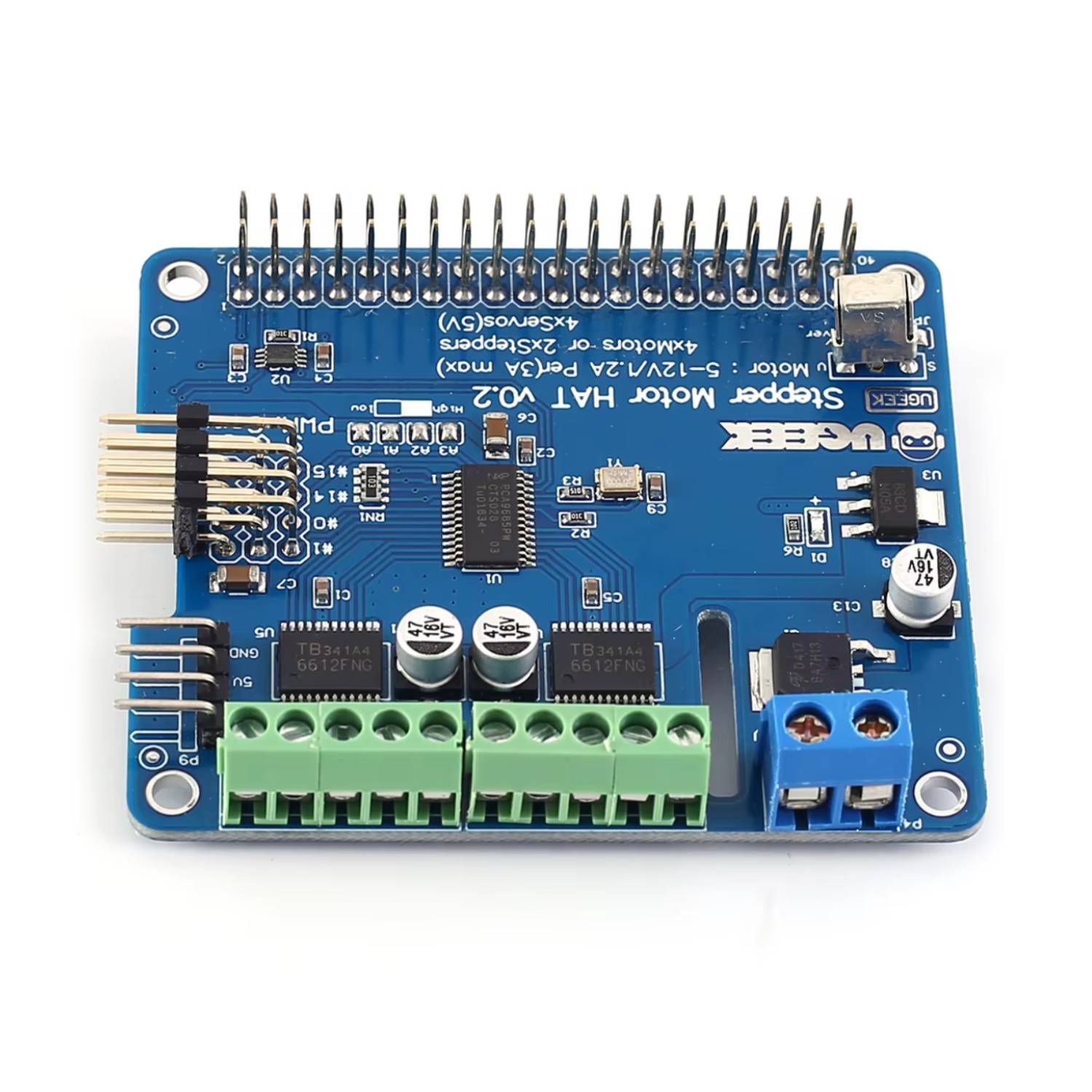

Raspberry Pi Stepper Motor HAT V2.0 is a full-featured robotic shield that supports multiple servo motor/DC motor/stepper motors simultaneously.
Specifications:
- Work Voltage: DC 5V-12V
- Communication Interface: IIC
- Servo Motor Interface: #0,#1,#14,#15
- DC Motor Interface: M1,M2,M3,M4
- stepper Motor Interface: M1 & M2, M3 & M4
- Operating Temperature: -20℃~85℃
- Operating Humidity: 5%~95%RH
Features:
- Support 2CH IIC Communication Interface
- 1CH IIC compatible with 5V for others controllers
- 1CH IIC control sensor
- 4Bit Programmable address support 16pcs in series
- Support 16bit PWM output
- 12Bit Resolution
- PWM maximum frequency 50KHz
- Support 4CH servo motor 3P interface
- Support 4CH DC 6V-12V DC motor
- Support 2CH DC 6V-12V stepper motor
- Support Raspberry Pi 2B/B+/A+
Package Included:
1 x Raspberry Pi Stepper Motor HAT V2.0 Stepper Motor Shield for Raspberry Pi Stepper Motor Control Shield Stepper Motor Driver Shield for Raspberry Pi 3B+/3B & 4B
