Description:

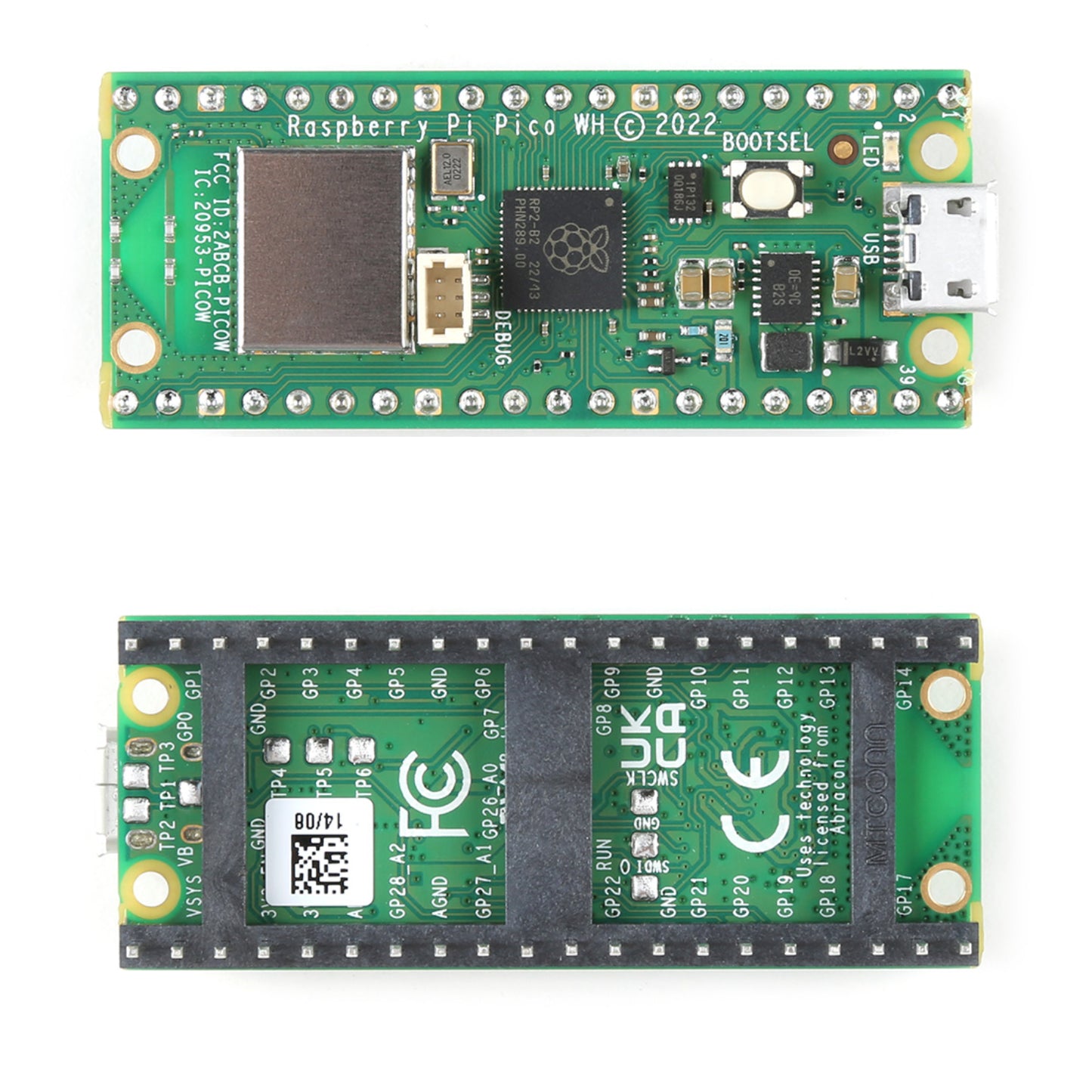

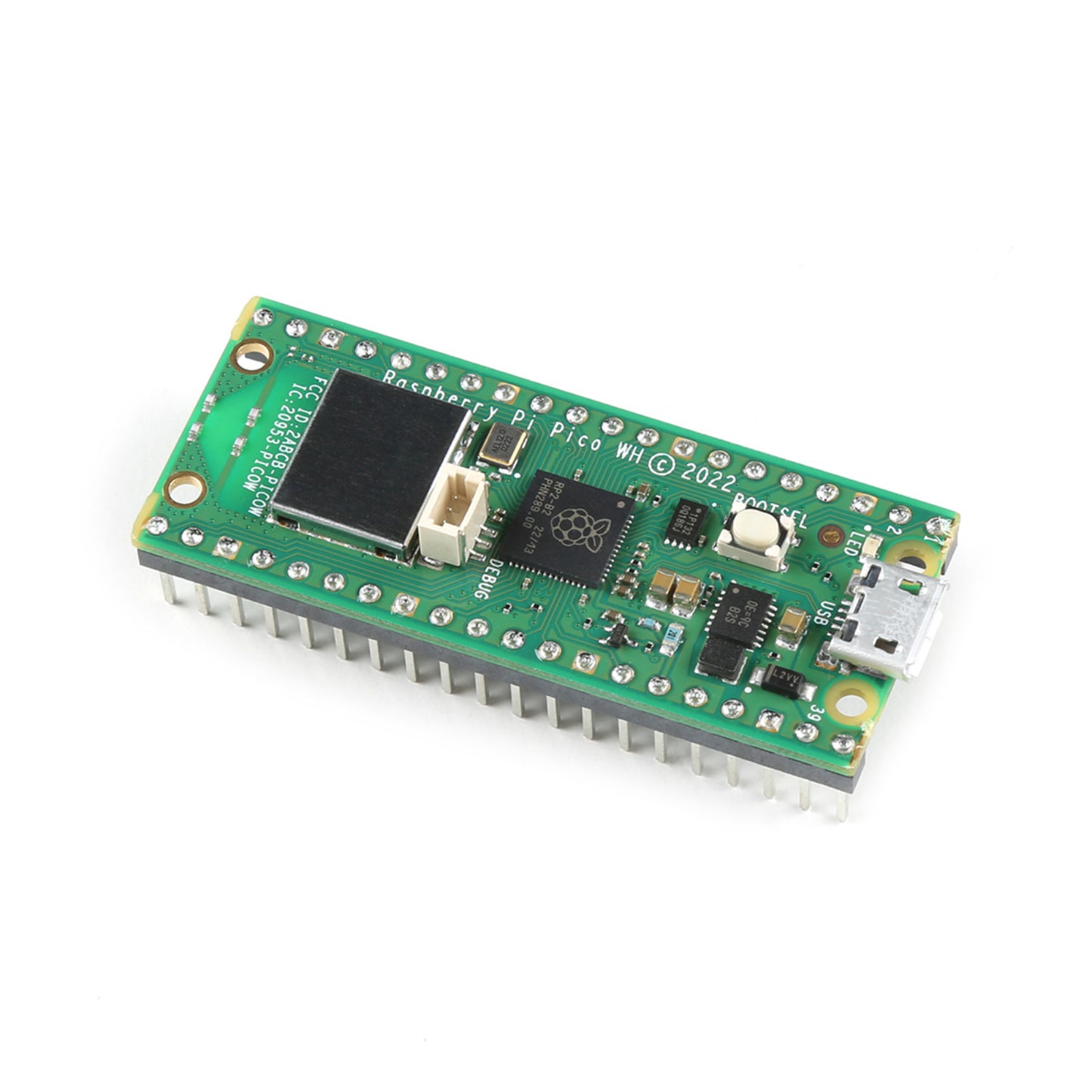

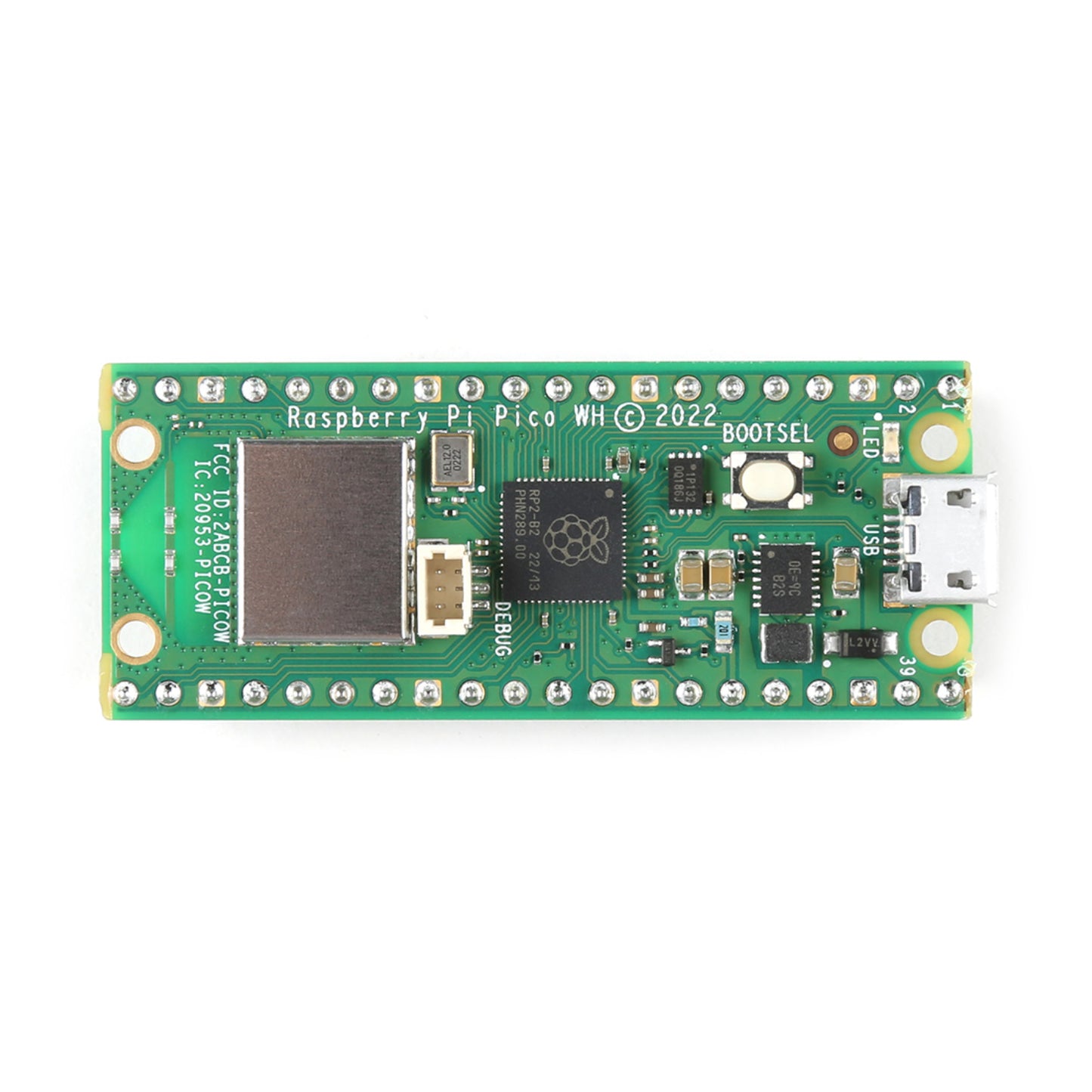

The Raspberry Pi Pico WH (with soldered headers) is a compact, powerful, and versatile microcontroller board built on the RP2040 chip designed by Raspberry Pi in the UK. It combines all the features of the original Pico with the added benefit of built-in WiFi, making it perfect for a wide range of applications.
Specification:
- Microcontroller Chip: RP2040 designed by Raspberry Pi
- Processor: Dual-core Arm Cortex-M0+, flexible clock running up to 133 MHz
- Memory: 264kB on-chip SRAM, 2MB on-board QSPI flash
- Wireless LAN: 2.4GHz 802.11n (Pico W and WH only)
- GPIO Pins: 26 multifunction, including 3 analogue inputs
- Interfaces: 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
- USB: 1 × USB 1.1 controller and PHY, with host and device support
- Custom Peripheral Support: 8 × Programmable I/O (PIO) state machines
- Power Supply: Supported input power 1.8–5.5V DC
- Operating Temperature: -20°C to +85°C (Pico and Pico H); -20°C to +70°C (Pico W and Pico WH)
- Additional Features: Low-power sleep and dormant modes, accurate on-chip clock, temperature sensor, accelerated integer and floating-point libraries on-chip

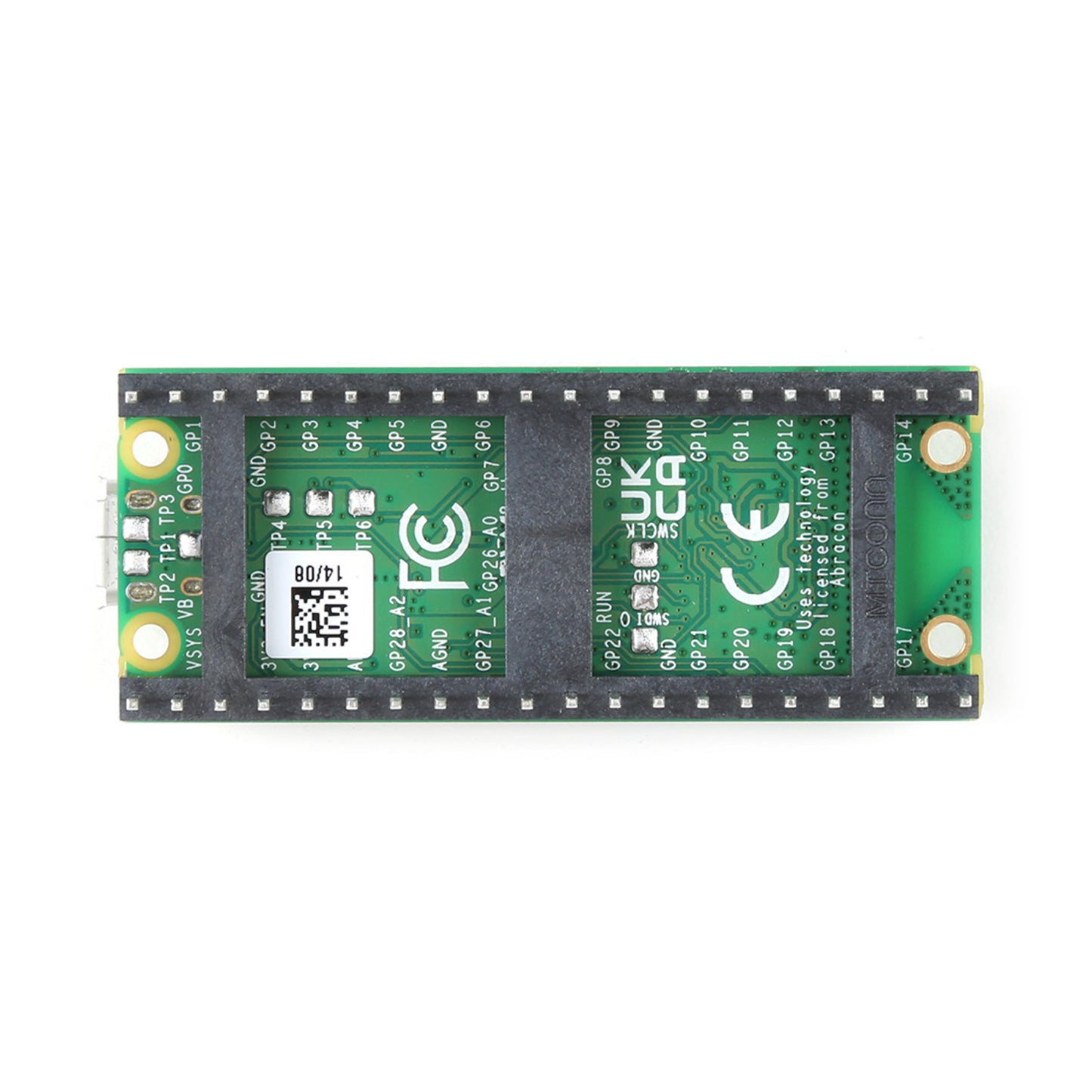

- Soldered Headers: Conveniently comes with soldered headers for easy integration.
Features:
- Built-in WiFi: The Raspberry Pi Pico W version includes 2.4GHz 802.11n wireless LAN, ideal for IoT applications requiring wireless communication.
- Versatile and Programmable: Supports programming in C and MicroPython, adaptable to various projects and skill levels.
- Comprehensive Peripheral Support: Features SPI, I2C, and eight Programmable I/O (PIO) state machines for custom peripheral development.
- Ease of Use: Drag-and-drop programming using mass storage over USB simplifies getting started.
Pin Description:
Package Included:
1 x Raspberry Pi Pico WH RPi Pico WH RP2040 Dual-Core Arm Cortex-M0+ CPU Processor With Low-Power Consumption Raspberry Pi Pico WH With Soldered Headers
