Description:
The Raspberry Pi foundation changed single-board computing when they released the Raspberry Pi computer, now they're ready to do the same for microcontrollers with the release of the brand new Raspberry Pi Pico W. This low-cost microcontroller board features their& powerful new chip, the RP2040, and all the fixin's to get started with IoT embedded electronics projects at a stress-free price.
Raspberry Pi Pico W brings WiFi + BLE& wireless networking to the Pico platform& while retaining complete pin compatibility with its older sibling.

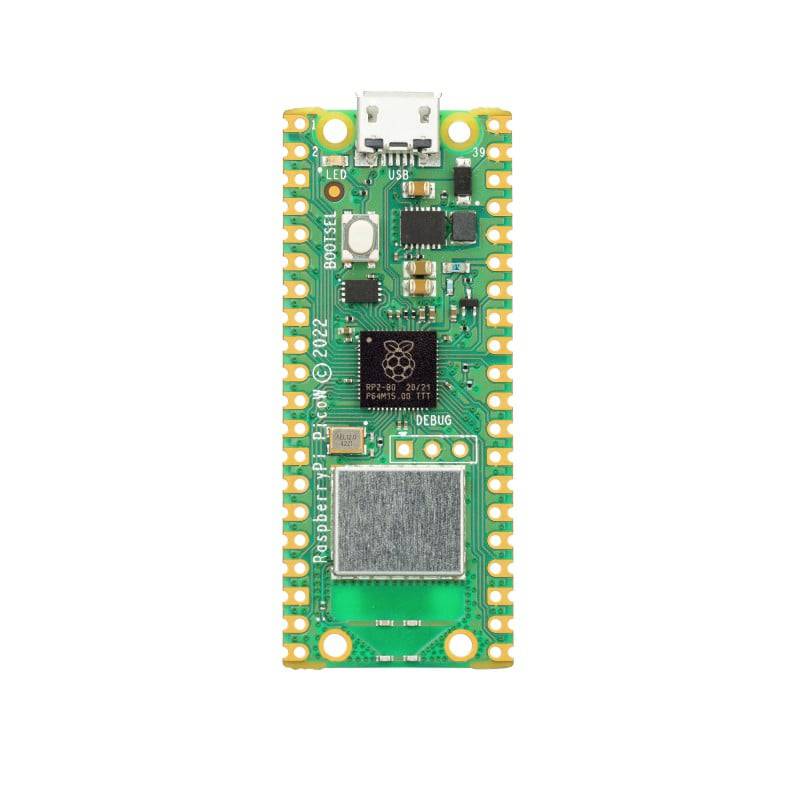

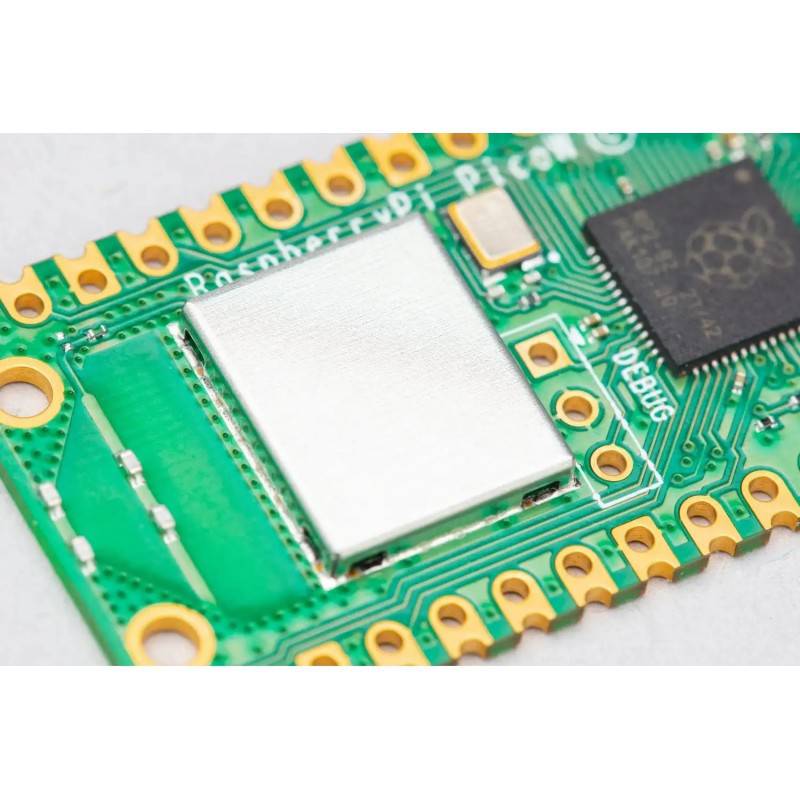

Raspberry Pi Pico W is just like the classic Pico but adds on-board single-band 2.4GHz wireless interfaces (802.11n) using the Infineon CYW43439 while retaining the Pico form factor.
Network your Pico for a complete IoT solution. Raspberry Pi PicoW comes with a fully certified module on board featuring 2.4GHz 802.11n wireless LAN, making it the perfect solution for loT applications and projects requiring wireless communication.
At the heart of each product is RP2040, a Raspberry Pi-designed chip, which features two ARM Cortex-M0+ cores clocked at 133MHz; 256KB RAM; 30 GPIO pins; and a broad range of interfacing options. This is paired with 2MB of onboard QSPI Flash memory for code and data storage. Raspberry Pi Pico W and Pico WH incorporate an Infineon CYW43439 wireless chip. CYW43439 supports IEEE 802.11 b/g/n wireless LAN, and Bluetooth 5.2; of these, only wireless LAN is supported at launch.
Specifications:
- CPU: Dual-core Arm Cortex-M0+ @ 133MHz
- Memory: 264KB on-chip SRAM; 2MB onboard QSPI flash
- Interfacing: 26 GPIO pins, including 3 analogue inputs
- Connectivity: 2.4GHz IEEE 802.11b/g/n wireless LAN, on-board antenna
- Input power: 1.8–5.5V DC
- Operating temperature: -20°C to +70°C
Features:
- RP2040 microcontroller with 2MB of flash memory
- On-board single-band 2.4GHz wireless interfaces (802.11n)
- Micro USB B port for power and data (and for reprogramming the flash)

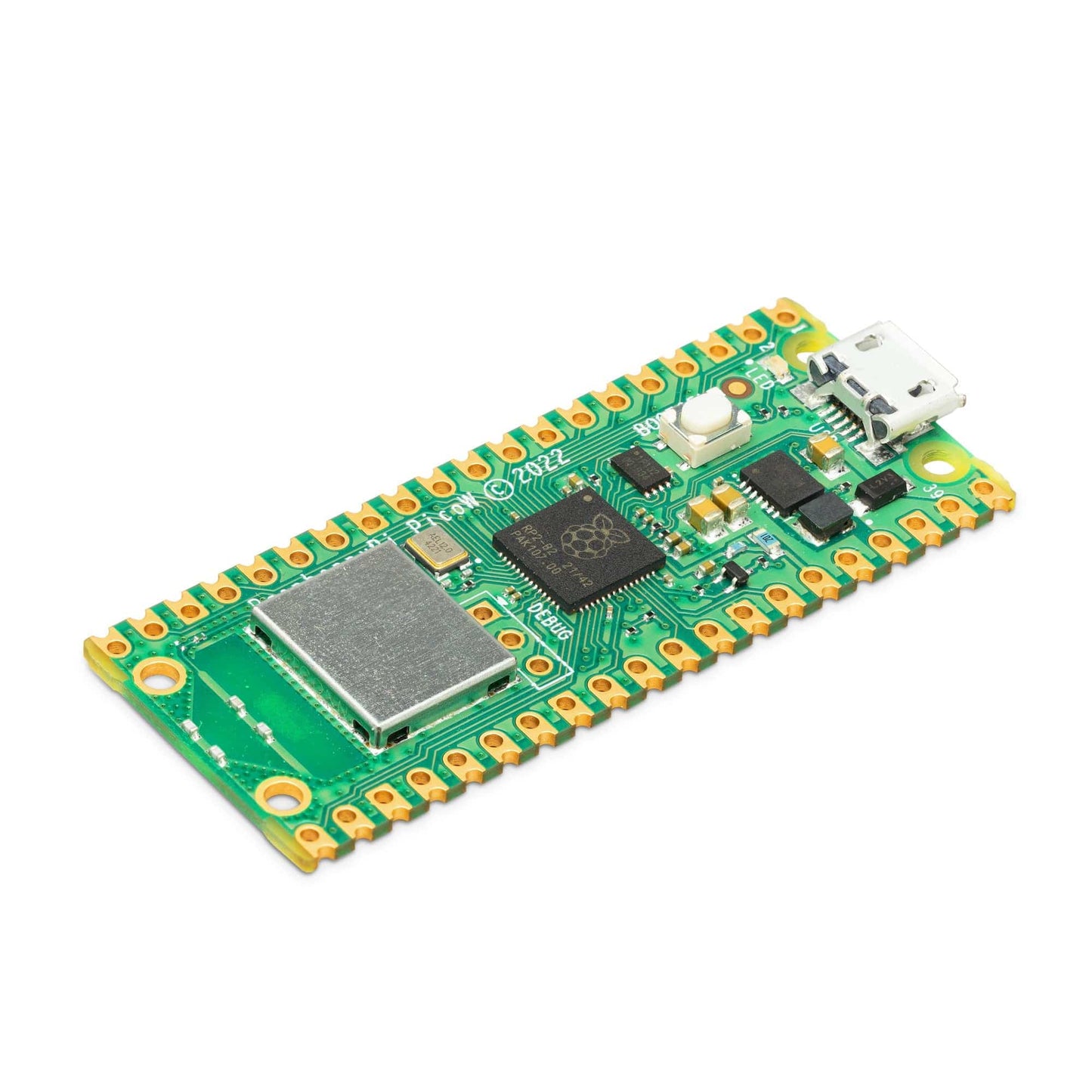

- 40 pin 21mmx51mm DIP style 1mm thick PCB with 0.1 through-hole pins also with edge castellations
- Exposes 26 multi-function 3.3V general purpose I/O (GPIO)
- 23 GPIO are digital-only, with three also being ADC-capable
- Can be surface-mounted as a module
- 3-pin ARM serial wire debug (SWD) port
- Simple yet highly flexible power supply architecture
- Various options for easily powering the unit from micro USB, external supplies or batteries
- High quality, low cost, high availability
- Comprehensive SDK, software examples, and documentation
- Dual-core Cortex M0+ at up to 133MHz
- On-chip PLL allows variable core frequency
- 264kByte multi-bank high-performance SRAM
Package Included:
1 x Raspberry Pi Pico W Development Board
