Raspberry Pi

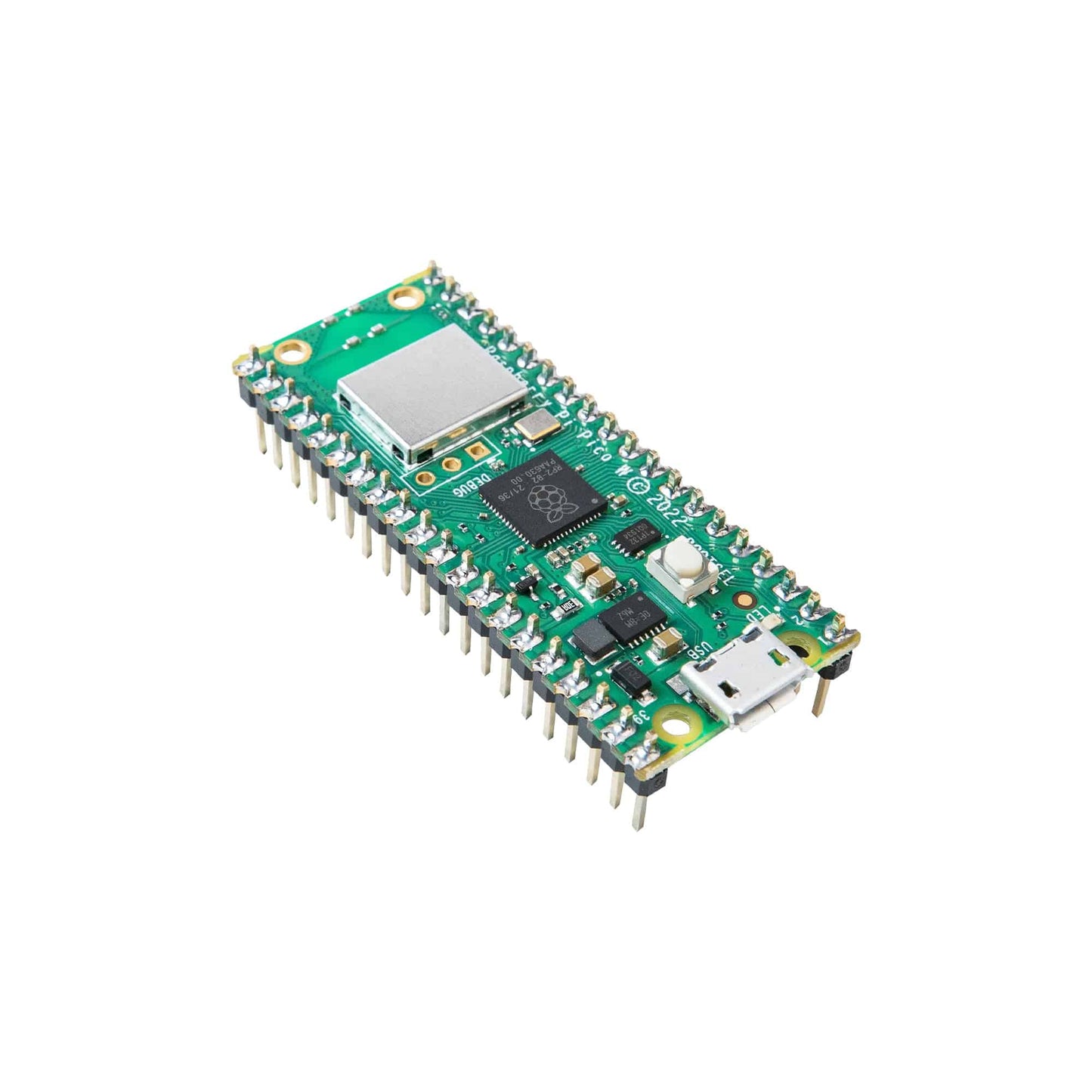

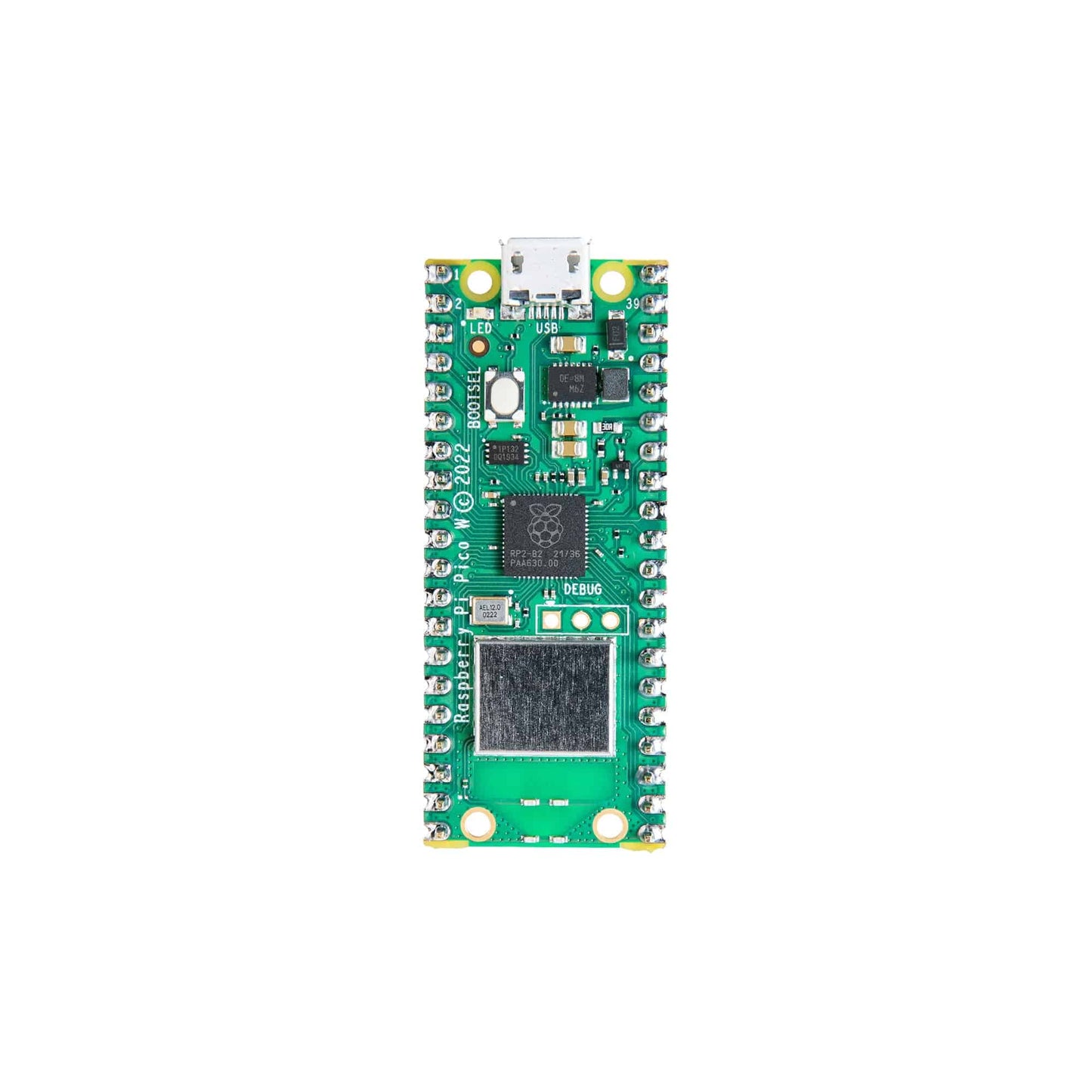

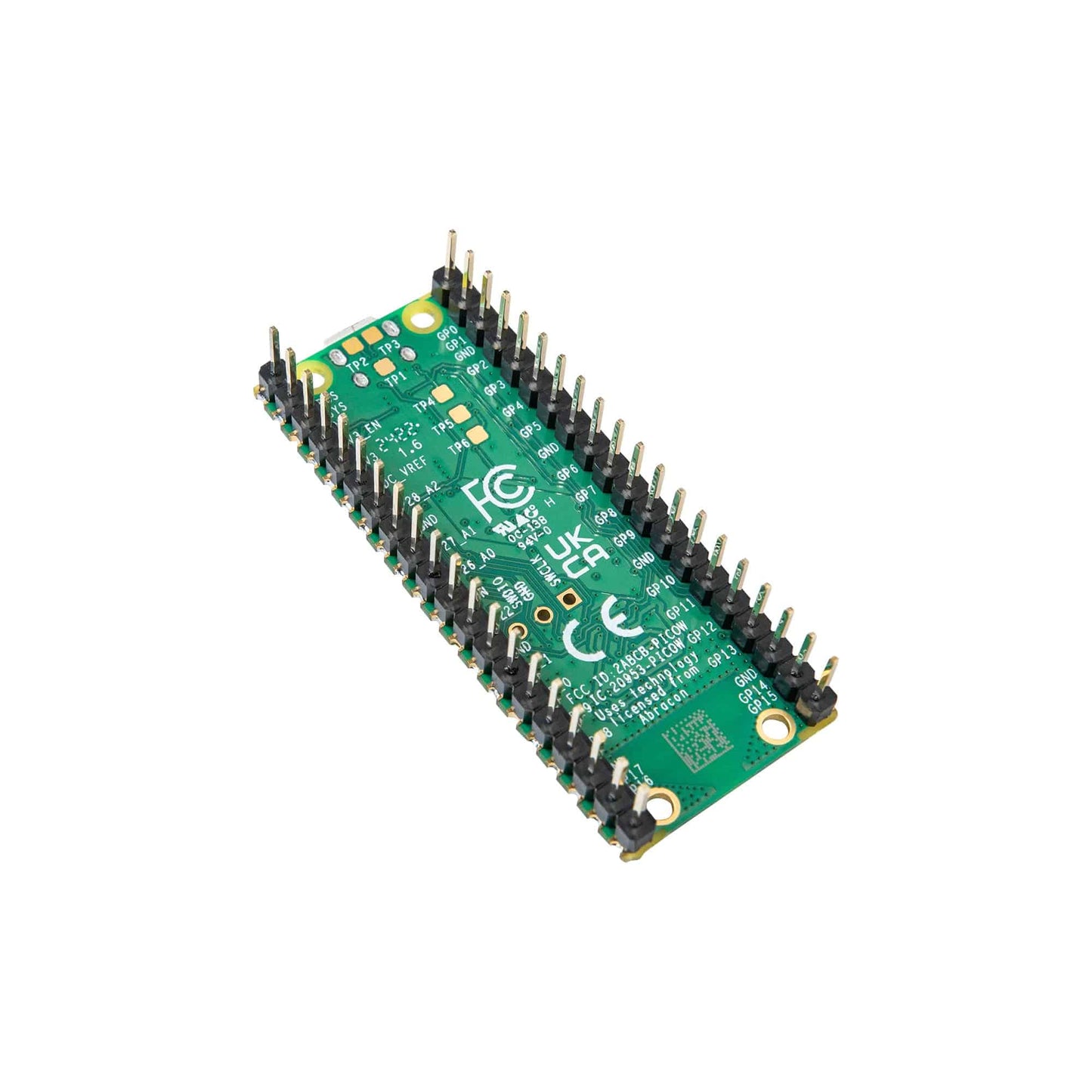

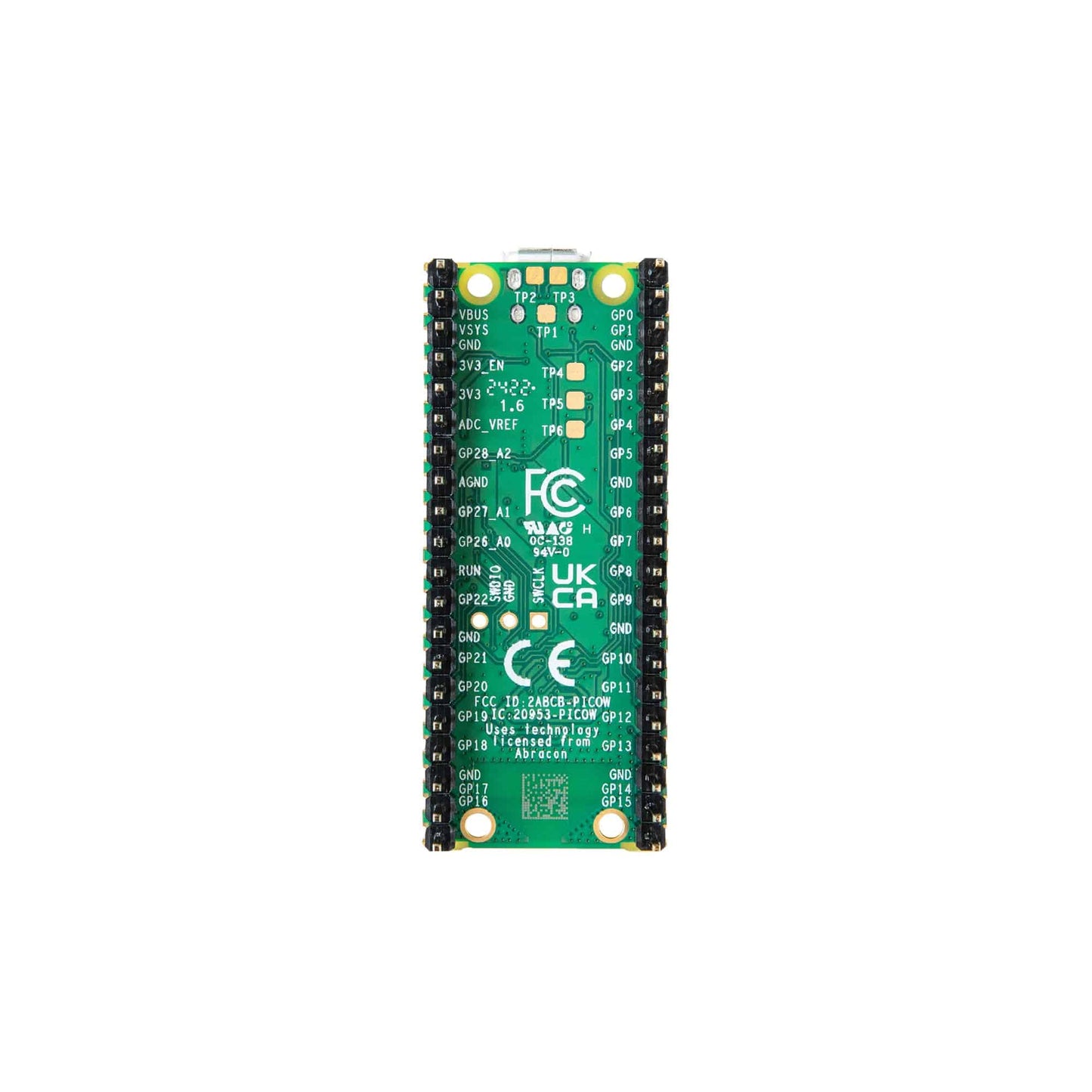

Raspberry Pi Pico W Development Board Soldered Header with Raspberry Pi RP2040 Chip, Built-in WiFi Support 2.4/5 GHZ Wi-Fi 4 - RS4919_H

Raspberry Pi Pico W Development Board Soldered Header with Raspberry Pi RP2040 Chip, Built-in WiFi Support 2.4/5 GHZ Wi-Fi 4 - RS4919_H

SKU:RS4919_H

3137 in stock

Regular price Rs. 569.00
Regular price Sale price Rs. 569.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

Raspberry Pi Pico W brings wireless connectivity to the best-selling Raspberry Pi Pico product line. Built around our RP2040 silicon platform, Pico products bring our signature values of high performance, low cost, and ease of use to the microcontroller space.

With a large on-chip memory, symmetric dual-core processor complex, deterministic bus fabric, and rich peripheral set augmented with our unique Programmable I/O (PIO) subsystem, RP2040 provides professional users with unrivalled power and flexibility. Offering detailed documentation, a polished MicroPython port, and a UF2 bootloader in ROM, it has the lowest possible barrier to entry for beginner and hobbyist users.

RP2040 is manufactured on a modern 40nm process node, delivering high performance, low dynamic power consumption, and low leakage, with various low-power modes to support extended-duration operation on battery power.

Raspberry Pi Pico W offers 2.4GHz 802.11 b/g/n wireless LAN support and Bluetooth 5.2, with an onboard antenna, and modular compliance certification. It is able to operate in both station and access-point modes. Full access to network functionality is available to both C and MicroPython developers.

Raspberry Pi Pico W pairs RP2040 with 2MB of flash memory, and a power supply chip supporting input voltages from 1.8–5.5V. It provides 26 GPIO pins, three of which can function as analogue inputs, on 0.1”-pitch through-hole pads with castellated edges. Raspberry Pi Pico W is available as an individual unit, or in 480-unit reels for automated assembly.

Specifications:

  • Form factor:  21 mm × 51 mm
  • CPU:  Dual-core Arm Cortex-M0+ @ 133MHz
  • Memory:  264KB on-chip SRAM; 2MB on-board QSPI flash
  • Interfacing:  26 GPIO pins, including 3 analogue inputs
  • Input power: 1.8–5.5V DC
  • Operating temperature:  -20°C to +70°C

Peripherals:

  • 2 × UART
  • 2 × SPI controllers
  • 2 × I2C controllers
  • 16 × PWM channels
  • 1 × USB 1.1 controller and PHY, with host and device support
  • 8 × PIO state machines

Connectivity:

2.4GHz IEEE 802.11b/g/n wireless LAN, on-board antenna Bluetooth 5.2

  • Support for Bluetooth LE Central and Peripheral roles
  • Support for Bluetooth Classic

Features:

  • Raspberry Pi Pico W has RP2040 microcontroller with 2MB of flash memory
  • Raspberry Pi Pico W has on-board single-band 2.4GHz wireless interfaces (802.11n)
  • Micro USB B port for power and data (and for reprogramming the flash)
  • Raspberry Pi Pico W has 40 pin 21mmx51mm DIP style 1mm thick PCB with 0.1 through-hole pins also with edge castellations
  • Exposes 26 multi-function 3.3V general purpose I/O (GPIO)
  • 23 GPIO are digital-only, with three also being ADC-capable
  • Raspberry Pi Pico W can be surface-mounted as a module

Package Included:

1 x Raspberry Pi Pico W Development Board Soldered Header with Raspberry Pi RP2040 Chip, Built-in WiFi Support 2.4/5 GHZ Wi-Fi 4
