Raspberry Pi Pico (RP2040) Starter Kit for Raspberry Pi Pico microcontroller development Board- KT1272

Raspberry Pi Pico (RP2040) Starter Kit for Raspberry Pi Pico microcontroller development Board- KT1272

SKU:KT1272

95 in stock

Regular price Rs. 615.00
Regular price Sale price Rs. 615.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details
  • Operating Voltage: 1.8 ~ 5.5V DC
  • Processor: RP2040 (Dual-core Arm Cortex M0+) By Raspberry Pi
  • Interface: 2 x UART, 2 x I2C, 2 x SPI, up to 16 PWM channels
  • RAM: 264 KB

Description:

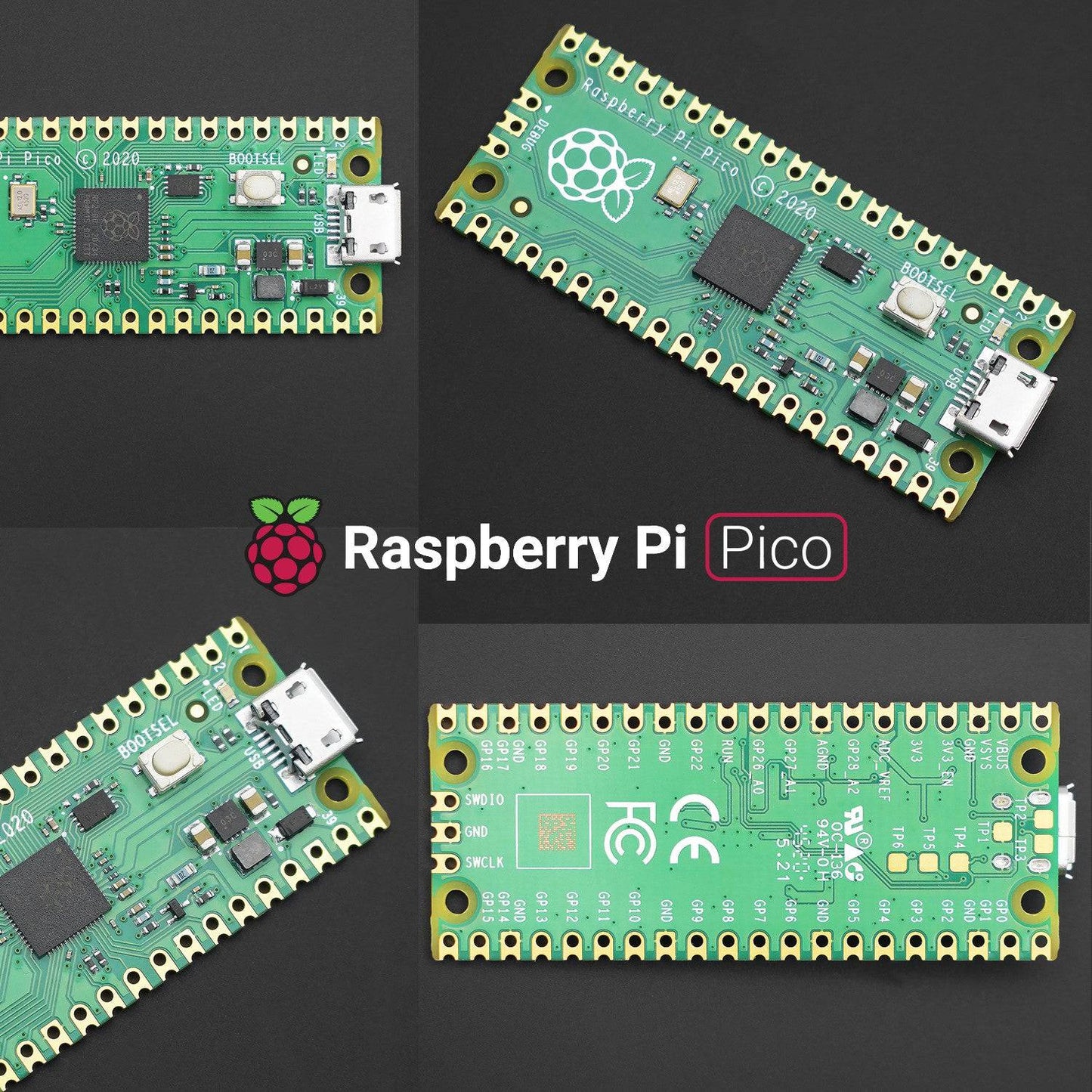

Raspberry Pi Pico is a tiny, fast, and versatile board built using RP2040, a brand new microcontroller chip. The main highlighted thing about RPi Pico is the Lowest cost and Smallest size development board from Raspberry Pi Foundation ever. On the technical side, it is equipped with an RP2040 Microcontroller chip developed by Raspberry Pi Foundation itself. RP2040 is their first dual-core ARM Cortex M0+ processor-based latest small-sized, budget-friendly microcontroller. The RP2040 is supported with both C/C++ and micro-python, meaning that if you’re a beginner and want to learn any of these languages, the Raspberry Pico would be the best product-option to start with.

Specification:

Operating Voltage

1.8 ~ 5.5V DC

Processor

RP2040 (Dual-core Arm Cortex M0+) By Raspberry Pi

Interface

2 x UART, 2 x I2C, 2 x SPI, up to 16 PWM channels

RAM

264 KB

GPIO

26 Pins

Clock Speed

133 MHz

On-Board Ports

Micro-USB 5V/2.5A DC Power Input Port

Operating Temperature Range

-20 to 85°C

Features:

  • RP2040 microcontroller chip designed by Raspberry Pi
  • Dual-core Arm Cortex M0+ processor, the flexible clock running up to 133 MHz
  • 264KB of SRAM, and 2MB of onboard Flash memory
  • The castellated module allows soldering directly to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 26 × multi-function GPIO pins
  • 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Onboard temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support

Tutorial:

Click on the link to download- https://drive.google.com/file/d/1fg_gl5LufaIN264QRhErj7yf-WAzgClL/view?usp=share_link

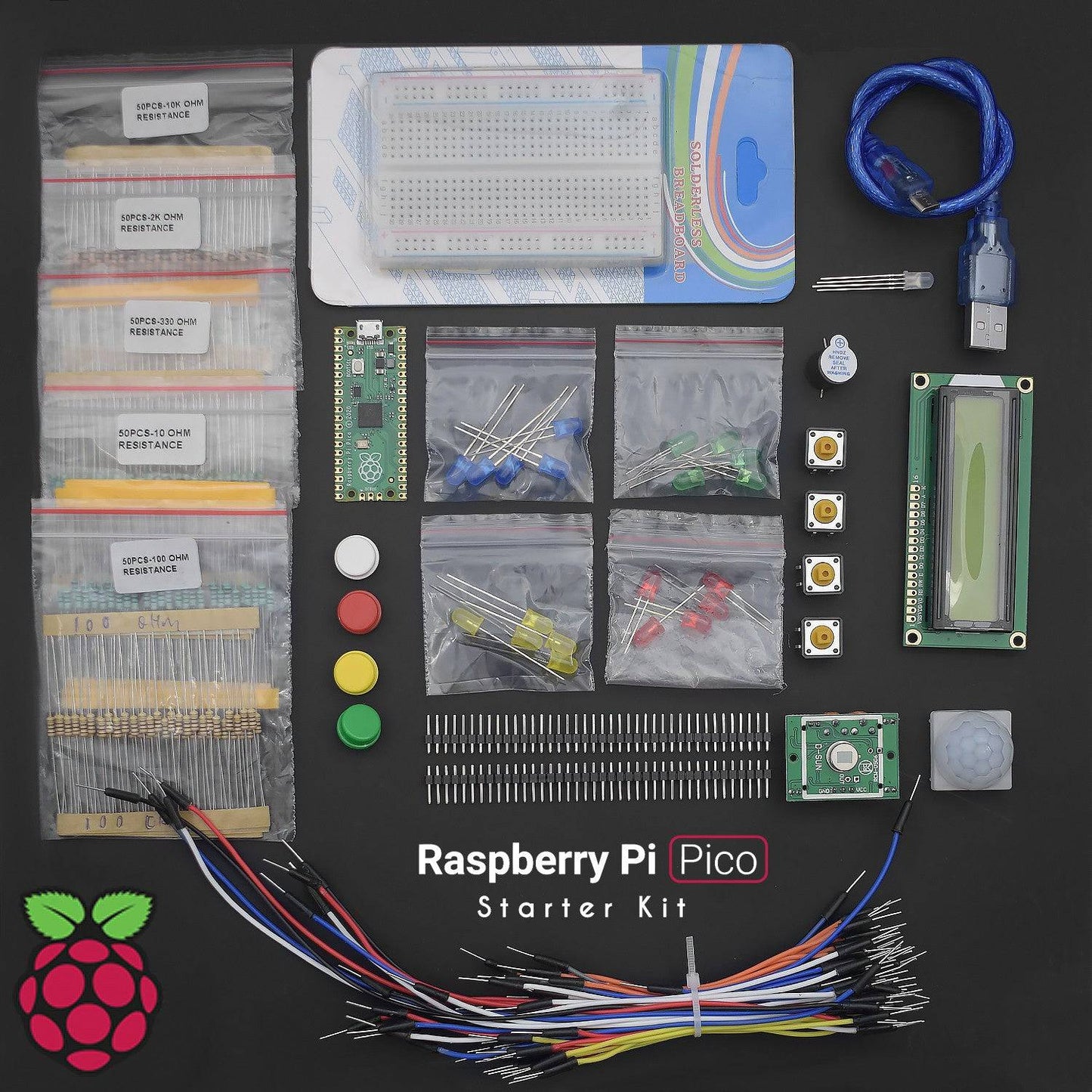

Package Included:

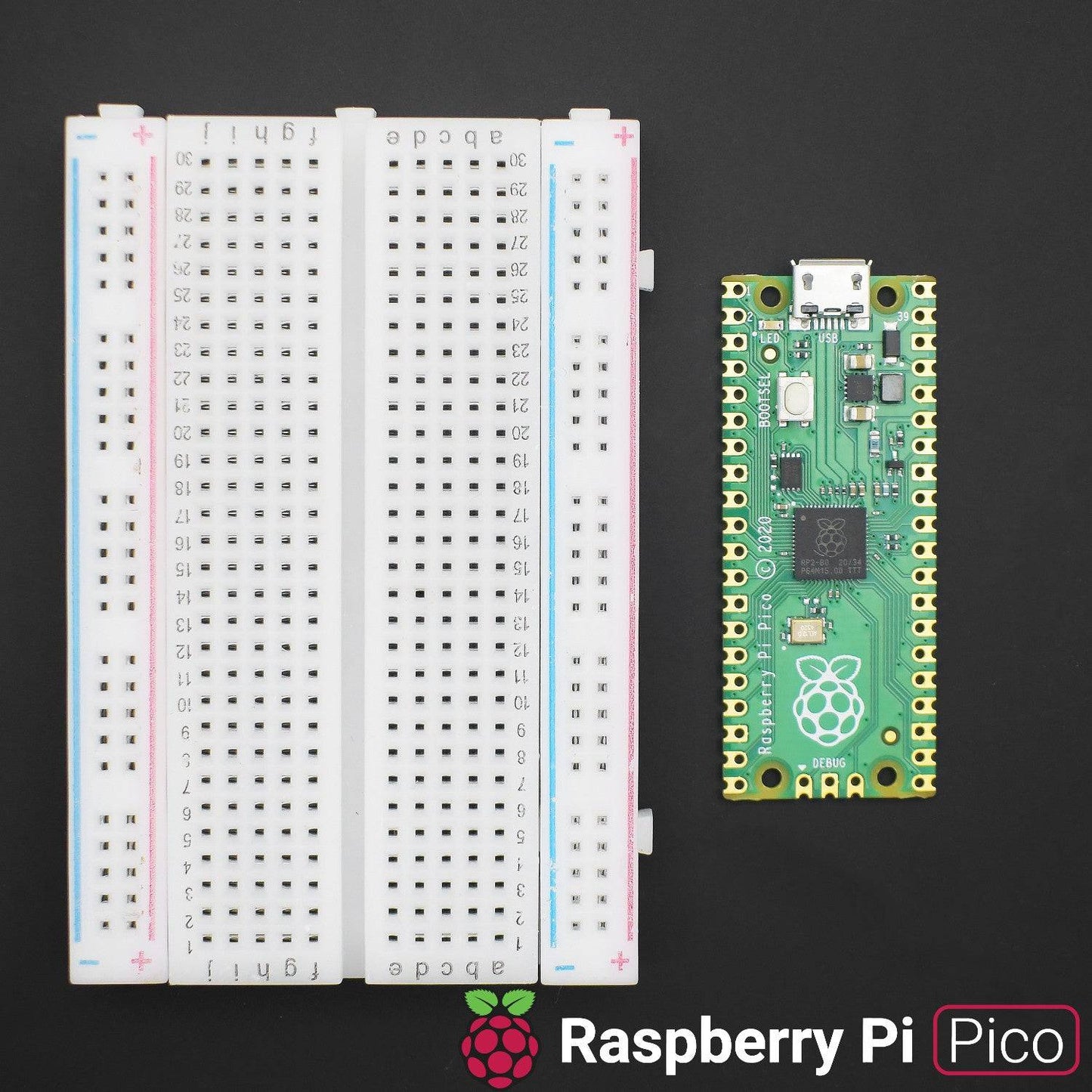

  • 1 x Raspberry Pi Pico
  • 1 x USB Cable

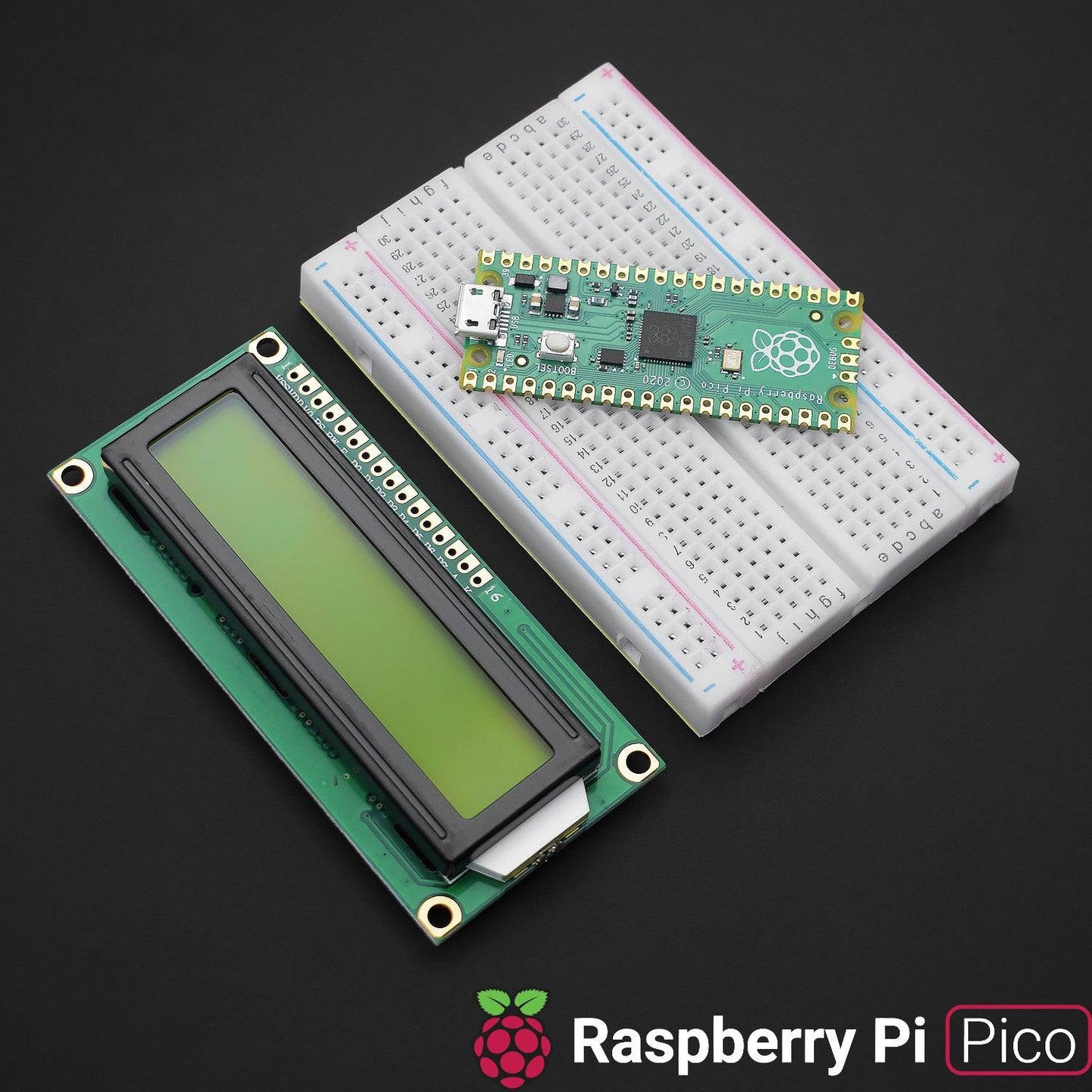

  • 1 x 16*2 LCD
  • 1 x 400 Point Breadboard Point
  • 1 x 65pcs Jumper Wire Set
  • 1 x PIR Sensor
  • 1 x B-10 Buzzer
  • 1 x RGB Led
  • 4 x Push Button
  • 1 x Push Button Cap- Red
  • 1 x Push Button Cap- Green
  • 1 x Push Button Cap- Yellow
  • 1 x Push Button Cap- Blue
  • 5 x Red Led
  • 5 x Green Led
  • 5 x Yellow Led
  • 5 x Blue Led
  • 2 x Male Header

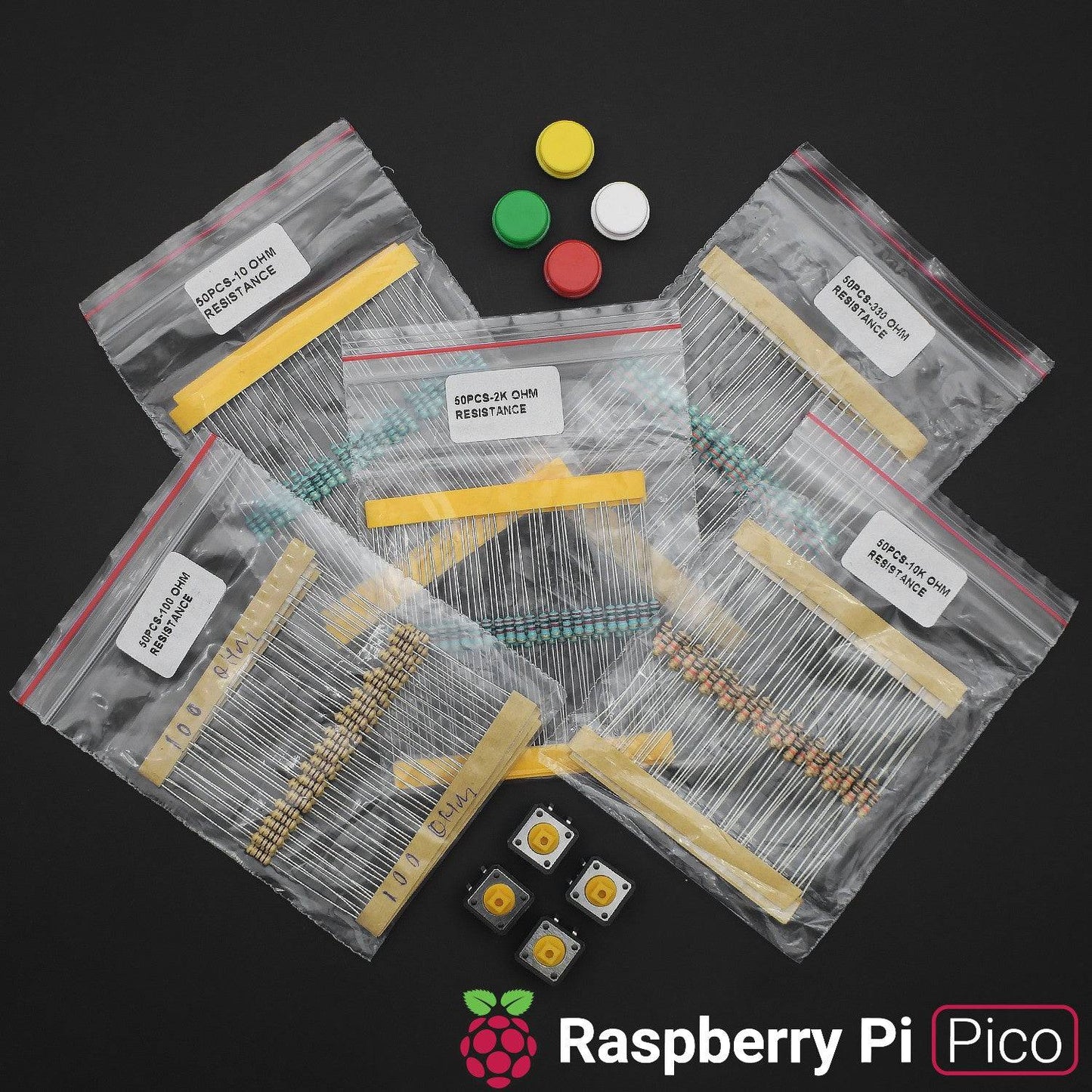

  • 50 x 10 OHM Resistance
  • 50 x 100 OHM Resistance
  • 50 x 330 OHM Resistance
  • 50 x 2K OHM Resistance
  • 50 x 10K OHM Resistance
