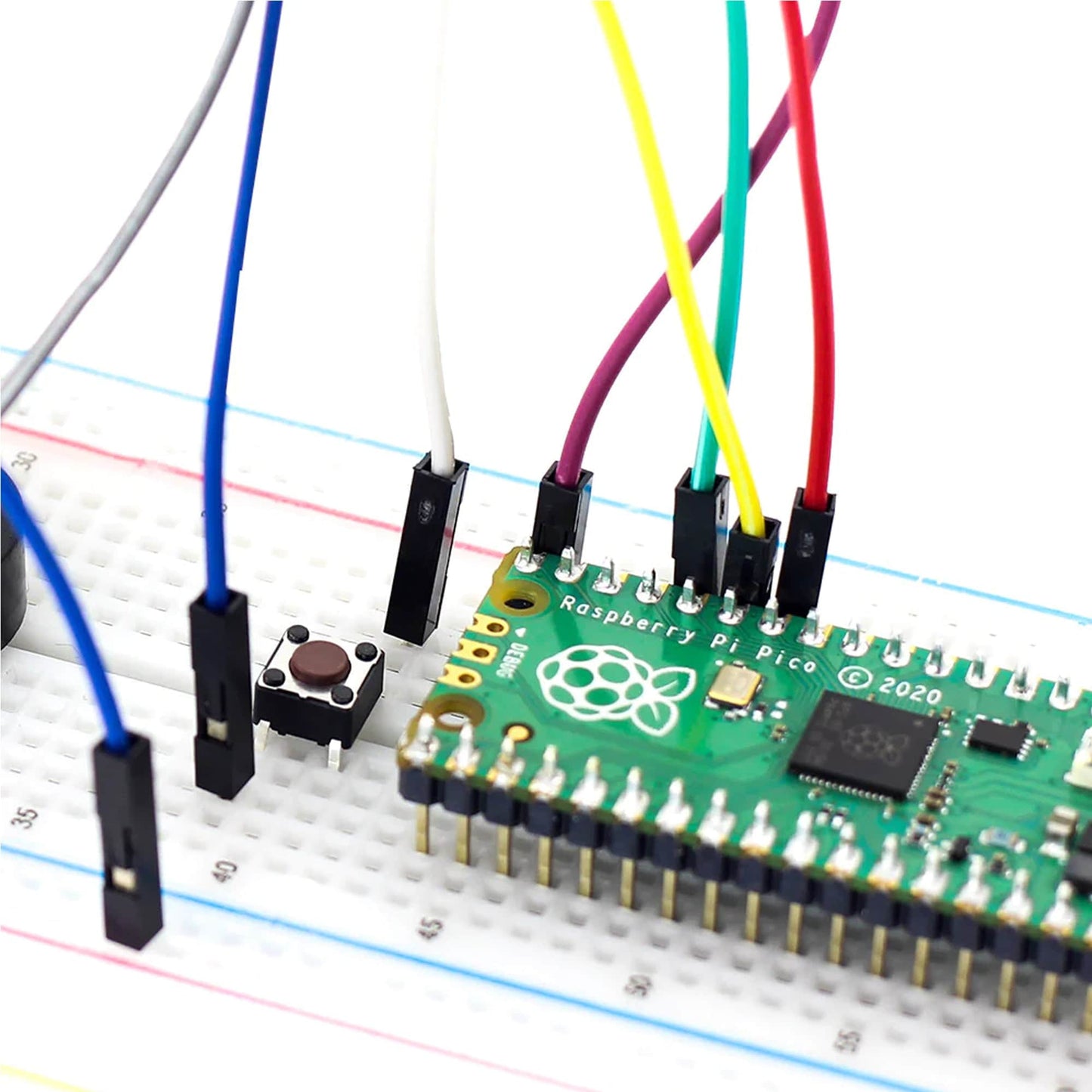

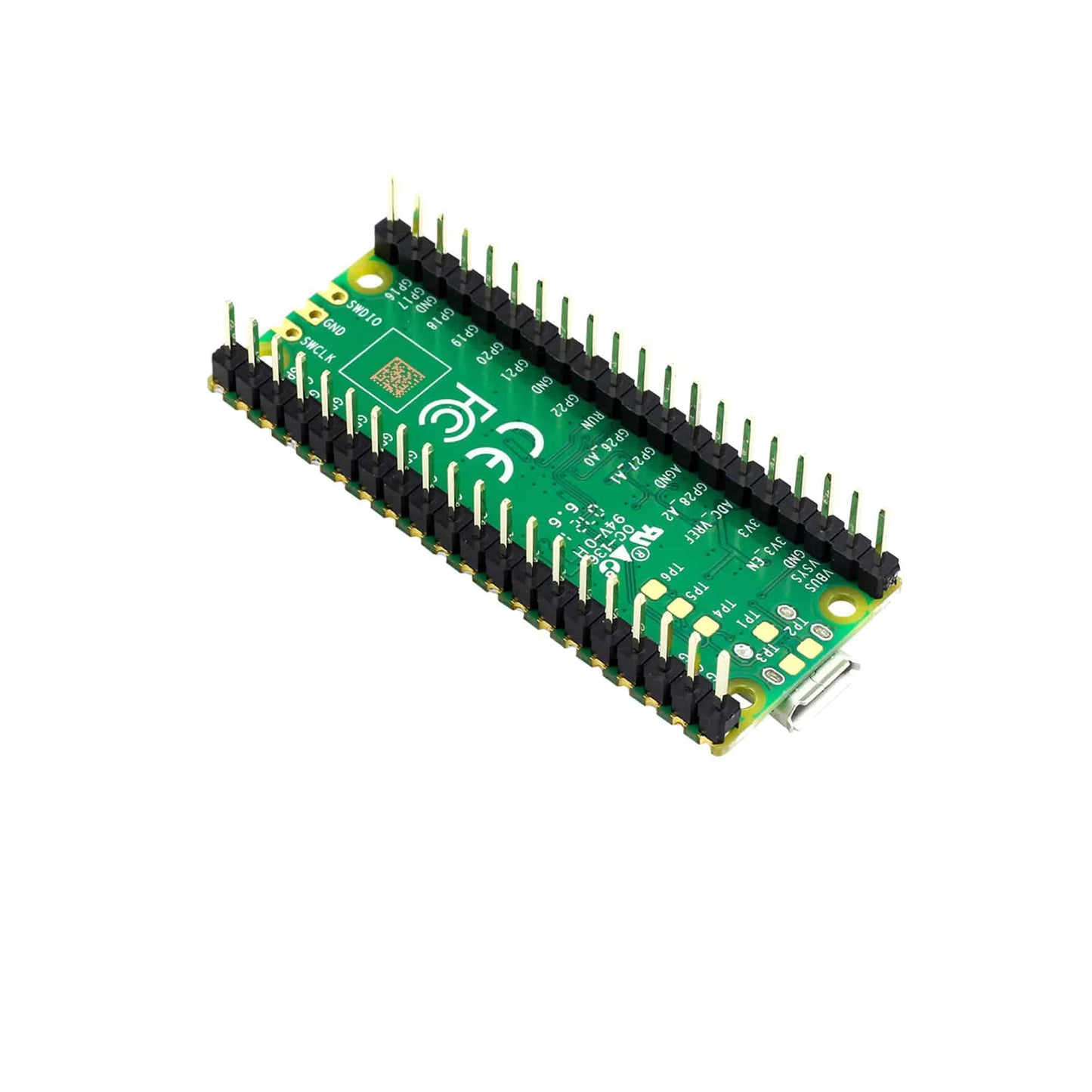

Raspberry Pi Pico Microcontroller Development Board with Soldered Headers Built Using RP2040 Chip - RS2650/RS4911_H

Description:

Raspberry Pi Pico is the debut microcontroller-class board from Raspberry Pi. Built around our RP2040 silicon platform, Pico brings our signature values of high performance, low cost, and ease of use to the microcontroller space.

With a large on-chip memory, symmetric dual-core processor complex, deterministic bus fabric, and rich peripheral set augmented with our unique Programmable I/O (PIO) subsystem, RP2040 provides professional users with unrivalled power and flexibility. With detailed documentation, a polished MicroPython port, and a UF2 bootloader in ROM, it has the lowest possible barrier to entry for beginner and hobbyist users.

RP2040 is manufactured on a modern 40nm process node, delivering high performance, low dynamic power consumption, and low leakage, with various low-power modes to support extended-duration operation on battery power.

Raspberry Pi Pico pairs RP2040 with 2MB of Flash memory, and a power supply chip supporting input voltages from 1.8-5.5V. It provides 26 GPIO pins, three of which can function as analogue inputs, on 0.1”-pitch through-hole pads with castellated edges. Raspberry Pi Pico is available as an individual unit, or in 480-unit reels for automated assembly.

Specifications:

• CPU:  Dual-core Arm Cortex-M0+ @ 133MHz
• Input power: 1.8–5.5V DC
• Operating temperature:  -20°C to +85°C
• Memory:  264KB on-chip SRAM; 2MB on-board QSPI flash
• Interfacing:  26 GPIO pins, including 3 analogue inputs

Peripherals:

• 2 × UART
• 2 × SPI controllers
• 2 × I2C controllers
• 16 × PWM channels
• 1 × USB 1.1 controller and PHY, with host and device support
• 8 × PIO state machine

Features:

• RP2040 microcontroller chip designed by Raspberry Pi
• Raspberry Pi Pico has dual-core Arm Cortex M0+ processor, the flexible clock running up to 133 MHz
• 264KB of SRAM, and 2MB of onboard Flash memory
• The castellated module allows soldering directly to carrier boards
• Raspberry Pi Pico has USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• Raspberry Pi Pico have 26 × multi-function GPIO pins

Package Included:

1 x Raspberry Pi Pico Microcontroller Development Board with Soldered Headers Built Using RP2040 Chip
