Description:
Raspberry Pi Pico is a tiny, fast, and versatile board built using RP2040, a brand-new microcontroller chip. The main highlighted thing about RPi Pico is the Lowest cost and Smallest size development board from Raspberry Pi Foundation. On the technical side, it is equipped with an RP2040 Microcontroller chip developed by Raspberry Pi Foundation. RP2040 is their first dual-core ARM Cortex M0+ processor-based latest small-sized, budget-friendly microcontroller. The RP2040 is supported with both C/C++ and micro-python, meaning that if you’re a beginner and want to learn any of these languages, the Raspberry Pico would be the best product option to start with.
Specifications:
| Operating Voltage | 1.8 ~ 5.5V DC |
| Processor | RP2040 (Dual-core Arm Cortex M0+) By Raspberry Pi |
| Interface | 2 x UART, 2 x I2C, 2 x SPI, up to 16 PWM channels |
| RAM | 264 KB |
| GPIO | 26 Pins |
| Clock Speed | 133 MHz |
| On-Board Ports | Micro-USB 5V/2.5A DC Power Input Port |
| Operating Temperature Range | -20 to 85°C |
Features:
- RP2040 microcontroller chip designed by Raspberry Pi
- Dual-core Arm Cortex M0+ processor, the flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of onboard Flash memory
- The castellated module allows soldering directly to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 26 × multi-function GPIO pins
- 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Onboard temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
Package Included:

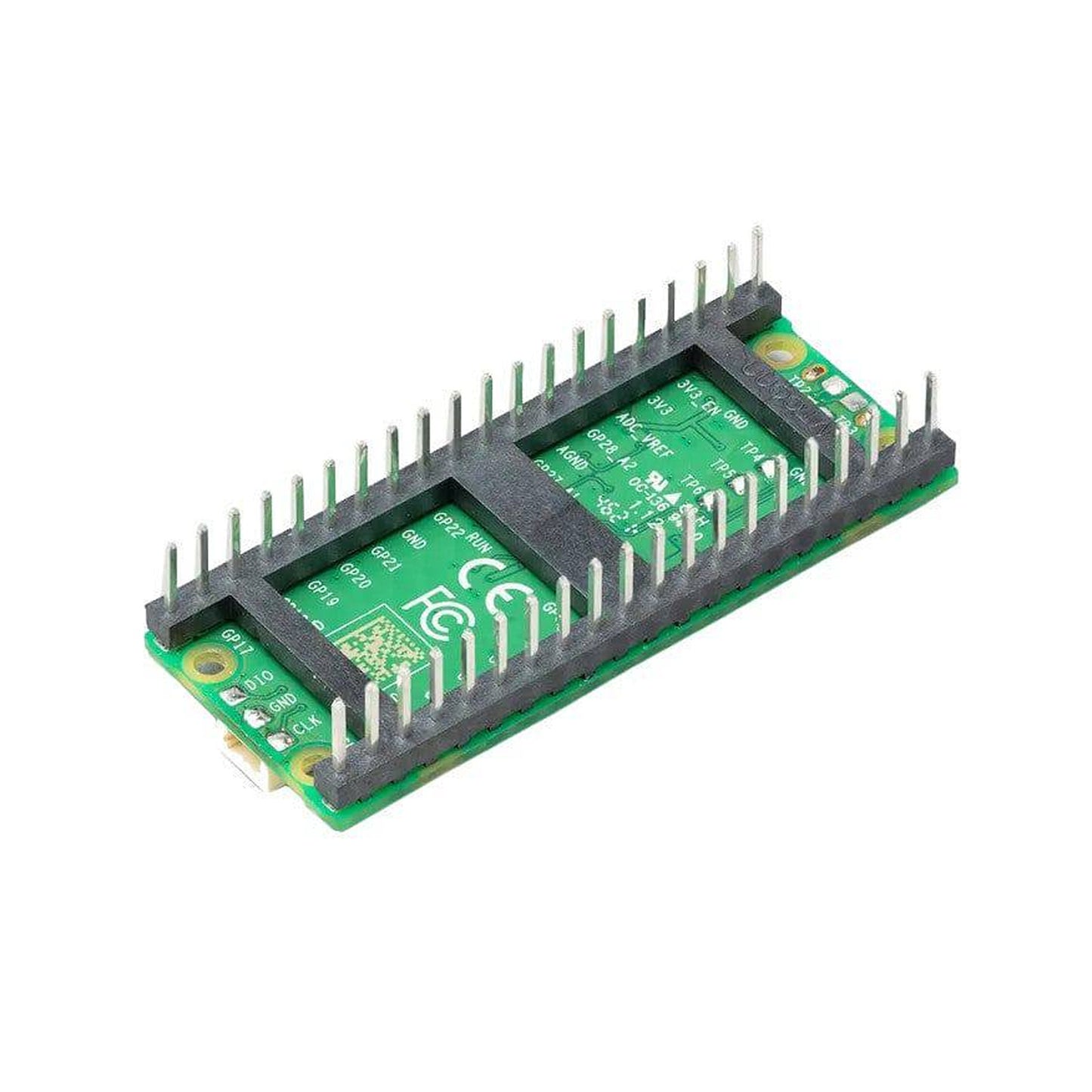

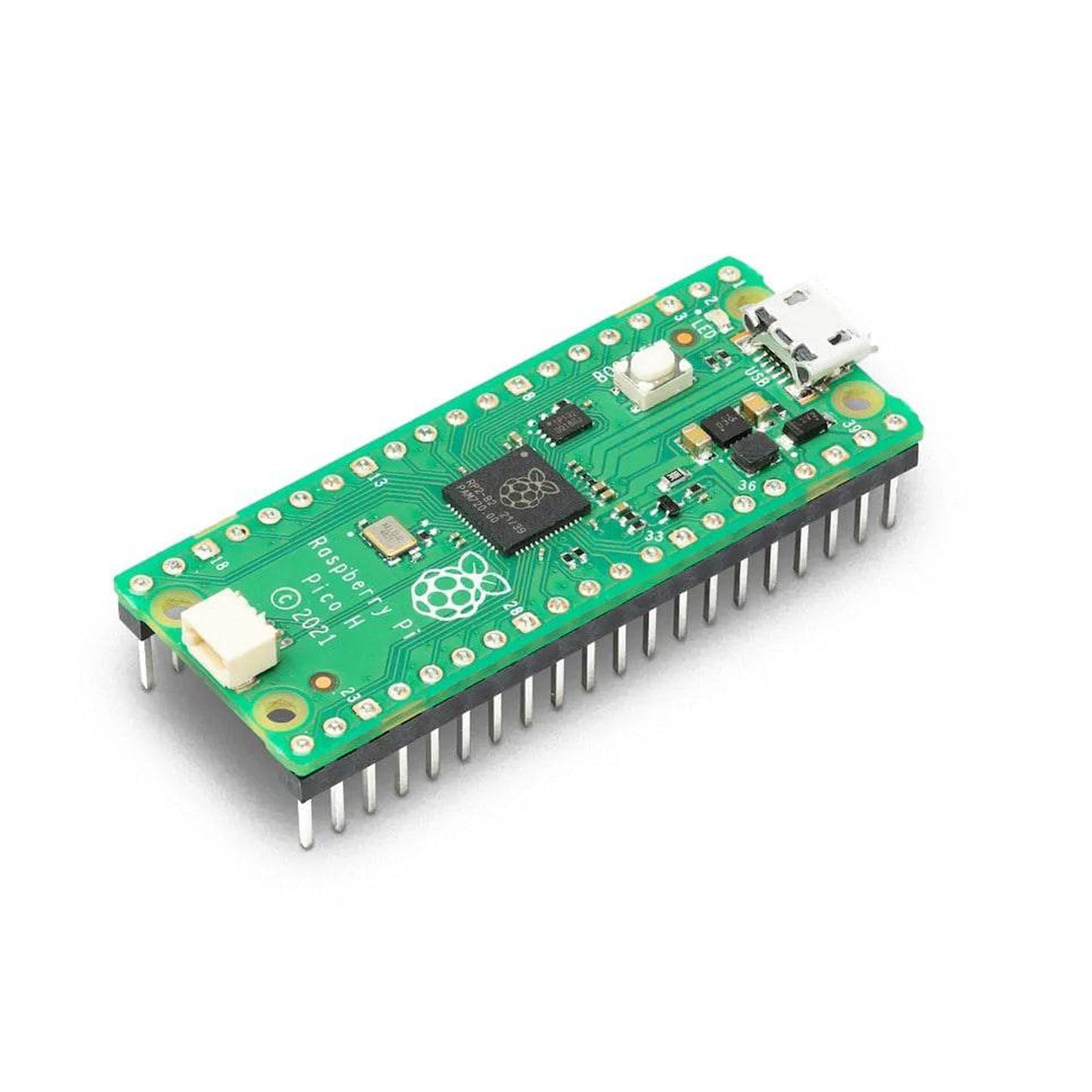

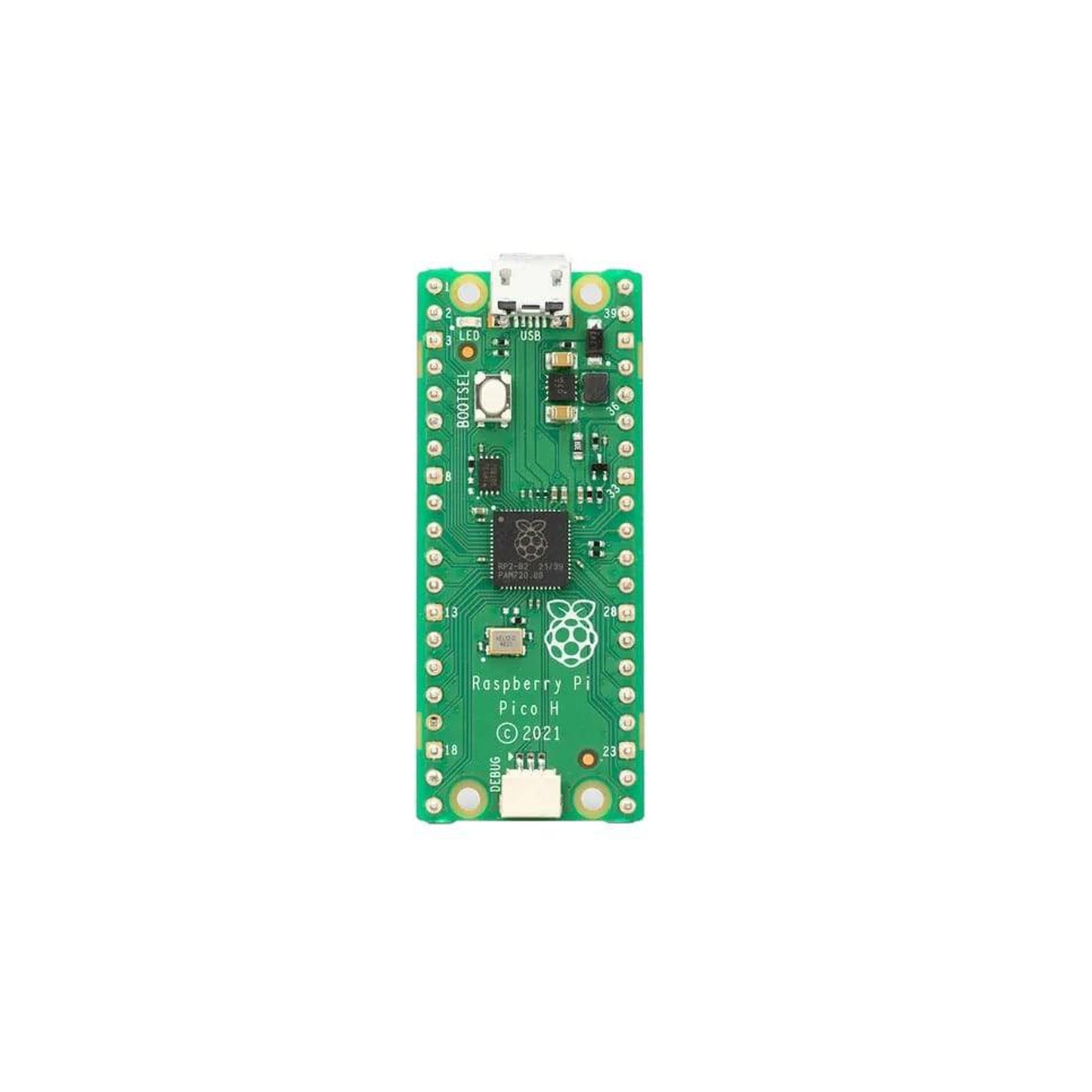

1 x Raspberry Pi Pico H RP2040 Microcontroller Chip Development Board
