Description:

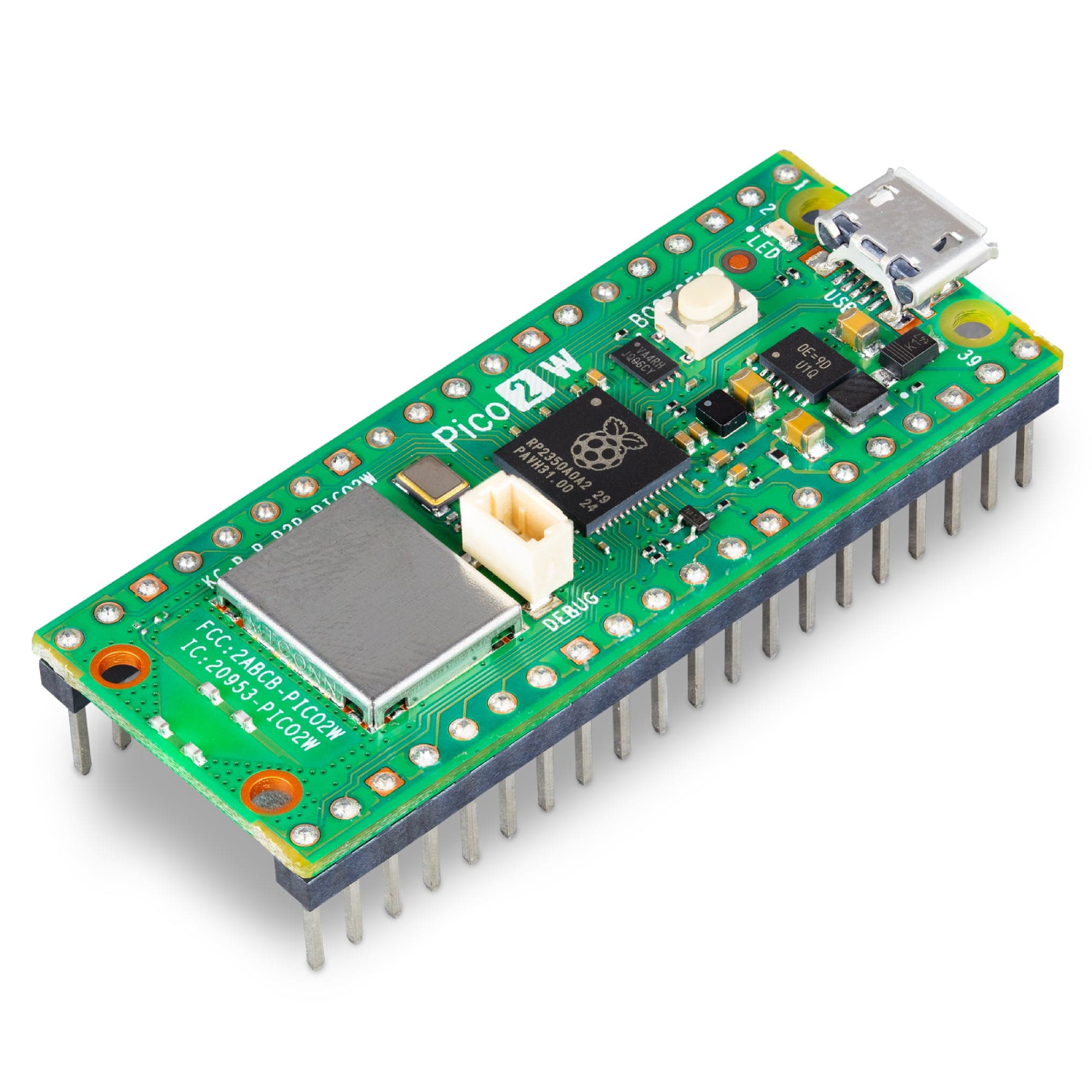

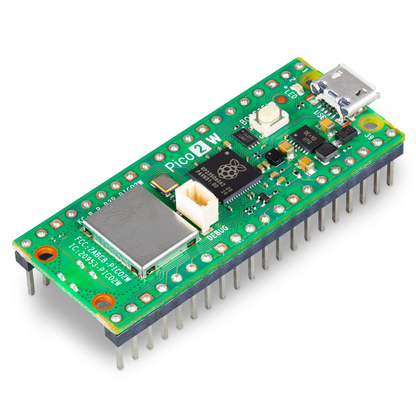

Meet the Raspberry Pi Pico 2 WH, the wireless sibling to the Pico 2! It adds 2.4GHz 802.11n wireless LAN and Bluetooth 5.2 to all the great features of the Pico 2. Available with or without pre-soldered headers, it's ready for your connected projects.
Powering this board is the Raspberry Pi RP2350, the latest in Raspberry Pi's line of high-performance, secure microcontroller chips. It builds on the success of the original RP2040, delivering even more capability for your projects.
The Raspberry Pi Pico 2 WH is a massive upgrade from the original! It packs a higher core clock speed, double the on-chip SRAM, double the on-board flash memory, and more powerful Arm (with optional RISC-V) cores. Plus, you get brand-new security features and significantly upgraded interfacing capabilities.
Despite its significant performance and feature boosts, the Raspberry Pi Pico 2 WH retains the same familiar form factor, GPIO pinout, and micro-USB connector. This means you can easily upgrade your existing projects and continue using your collection of Raspberry Pi Pico add-ons, cables, and accessories with full software compatibility.
Programmed with ease in C/C++ and Python, and backed by comprehensive documentation, the Raspberry Pi Pico 2 WH is the perfect microcontroller board for both enthusiasts and professional developers.
Specifications:
| CPU | Dual Arm Cortex-M33 or dual RISC-V Hazard3 processors @ 150MHz |
| Memory | 520 KB on-chip SRAM; 4 MB on-board QSPI flash |
| Connectivity | 2.4GHz 802.11n wireless LAN and Bluetooth 5.2 |
| Interfacing | 26 multi-purpose GPIO pins, including 3 that can be used for ADC |
| Peripherals | 2 × UART |
| 2 × SPI controllers | |
| 2 × I2C controllers | |
| 24 × PWM channels | |
| 1 × USB 1.1 controller and PHY, with host and device support | |
| 12 × PIO state machines | |
| Wireless | Yes |
| Input power | 1.8–5.5V DC |
| Operating temperature | -20°C to +85°C |
Features:
- Next-Gen Performance: Powered by an upgraded microcontroller with dual Arm Cortex-M33 and optional RISC-V cores for significantly enhanced processing power.
- Increased Storage: Comes with 4MB Flash memory, providing ample space for wireless firmware, project code, and data.
- Built-in Wireless: Features the integrated CYW43439 module, supporting both 2.4GHz Wi-Fi (802.11n) and Bluetooth 5.2 for seamless connectivity.
- Advanced Power Management: Optimized for low-power consumption, making it ideal for battery-operated applications.
- Enhanced Security: Includes ARM TrustZone technology for robust and secure development.
- Compact & Versatile: Perfect for a wide range of applications including IoT, robotics, and complex embedded systems.
Useful Links:
- Raspberry Pi Pico 2 W Product Brief
- Raspberry Pi Pico 2 W Datasheet
- Raspberry Pi Pico 2 W Pinout
- Raspberry Pi Pico 2 W MicroPython SDK
- Raspberry Pi Pico 2 W C/C++ SDK
- Raspberry Pi Pico 2 W Documentation
- Connecting to the Internet with Raspberry Pi Pico W-series
Package Included:
1 x Raspberry Pi Pico 2 W with Headers
