Description:

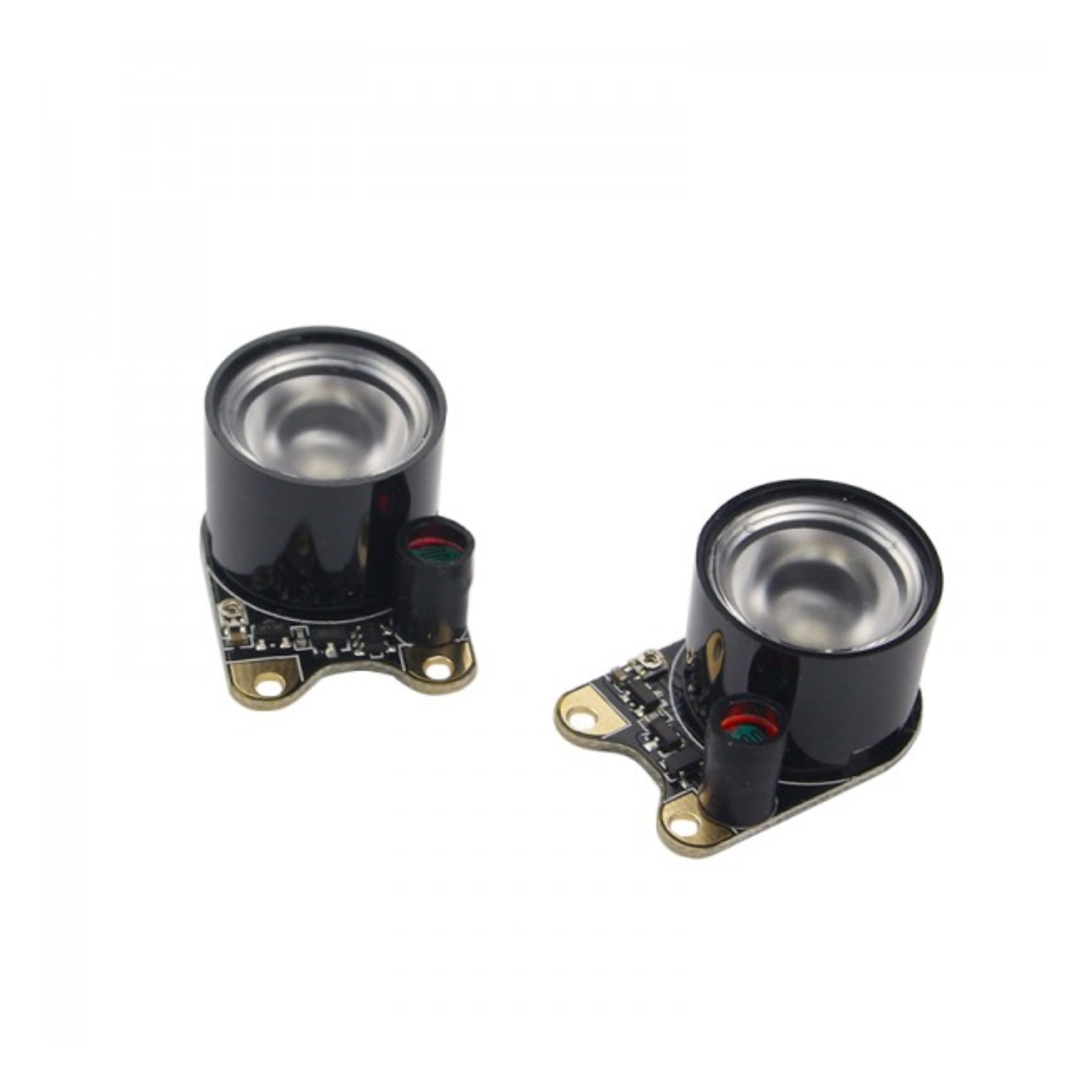

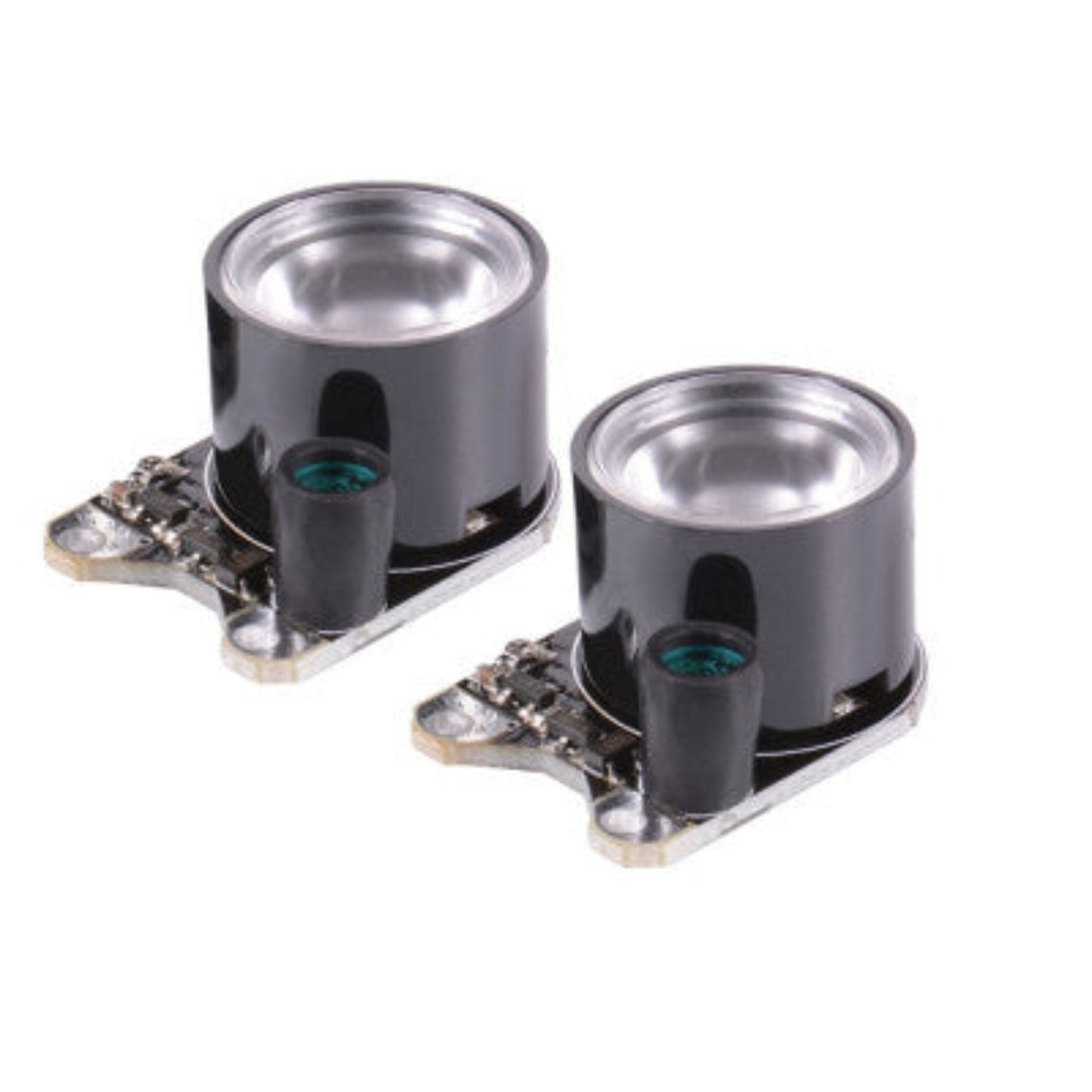

The Night Vision Sensitive Infrared Light 3W for Raspberry Pi Camera features an Onboard photoresistor for ambient light detection. Also, the Onboard adjustable resistor controls the ambient light threshold of toggling the infrared LED. This is the additional focus that can be added to your night vision surveillance camera project using Raspberry Pi.

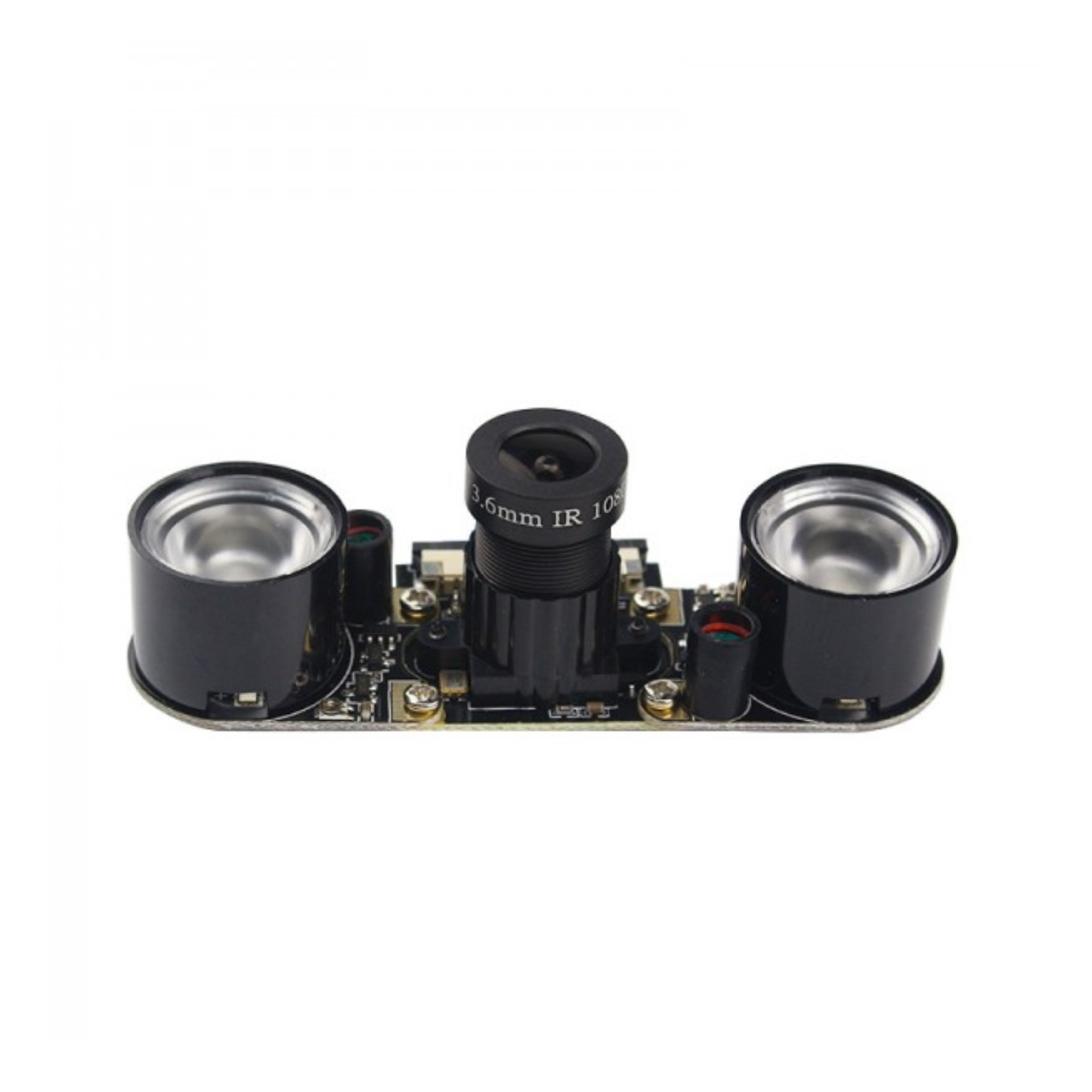

This tiny infrared light perfectly fits with our Infrared IR Night Vision Surveillance Camera Module 500W Webcam.
Specifications:
- Power(W): 3
- Operating Voltage (VDC): 5
- Max. Operating Current (mA): 600
- Compatibility: Night Vision Surveillance Camera Module
Features:
- Easy to use
- Small size and Lightweight module.
- Equips onboard photoresistor and adjustable resistor
- Allows adding night vision function to RPI Camera (E) or RPI Camera (F).
- Compatible with our Night Vision Surveillance Camera Module 500W Webcam
How to Use:

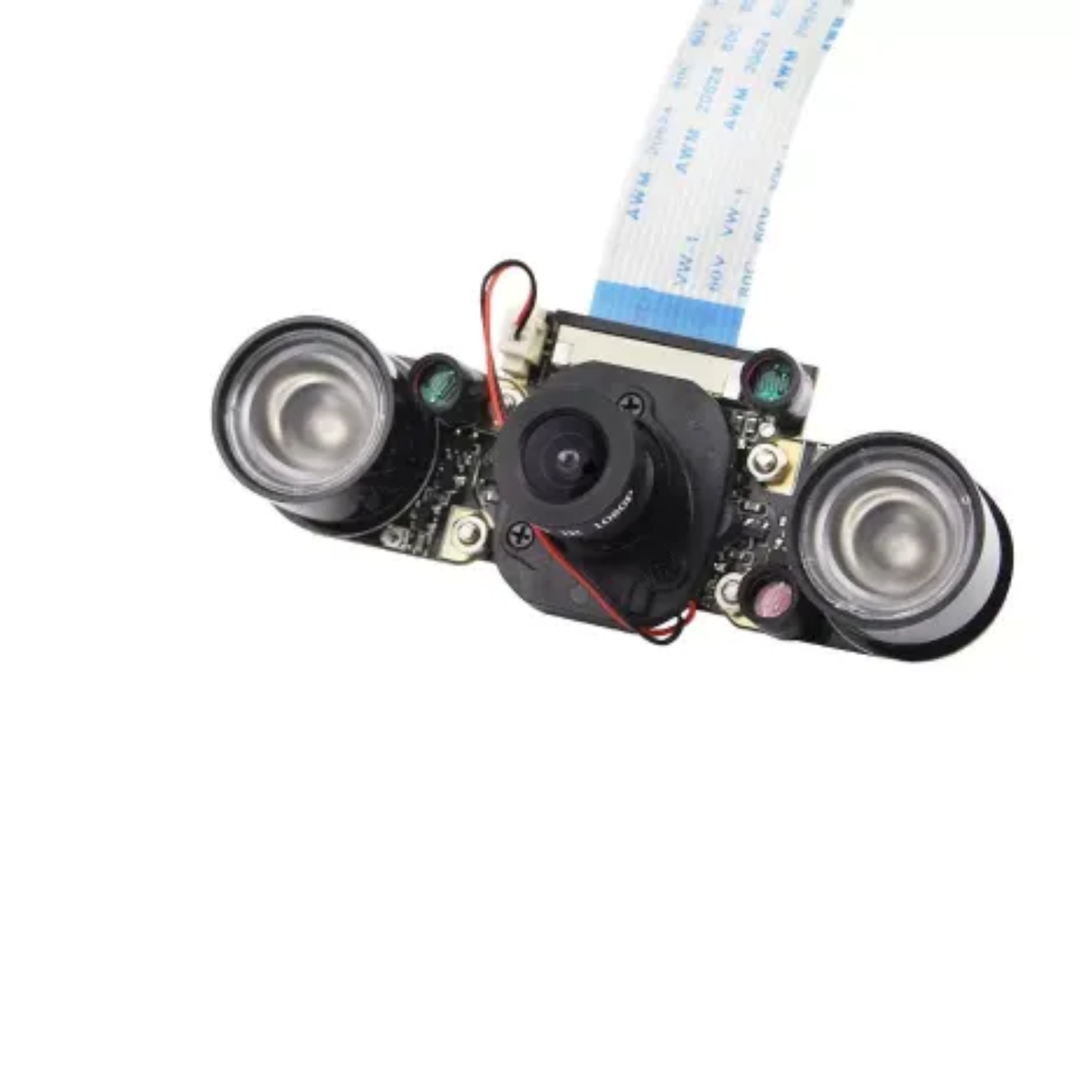

1. Connect the Infrared LED Board to the camera PCB by screws.
2. The screw holes are used for both attachment and power supply.
3. Adjust the adjustable resistor to set a proper ambient light threshold, which toggles the infrared LED automatically.
4. When ambient light is lower than the threshold value, the infrared LED is on, vice versa.
Pin Description:
Note:
1st – The 3W high-power infrared LED might cause the Pi to increase heating, heat sinks are suggested.
2nd – Ideal imaging distance is within 3m. When the distance goes up to 6m, the night vision camera can just capture blurry outlines.
Package Included:
1 x Night Vision Sensitive Infrared Light 3W for Raspberry Pi Camera
