Raspberry Pi M.2 HAT+ Compact for Pi 5 Case | NVMe SSD 2230 Support, Single-Lane PCIe 2.0 - RS9383

Description:

The Raspberry Pi M.2 HAT+ Compact is the perfect way to add lightning-fast NVMe storage to your Raspberry Pi 5. Designed as a new, compact version of the M.2 HAT+, this board lets you harness the full speed of the PCIe 2.0 interface, with data transfer rates of up to 500 MB/s.

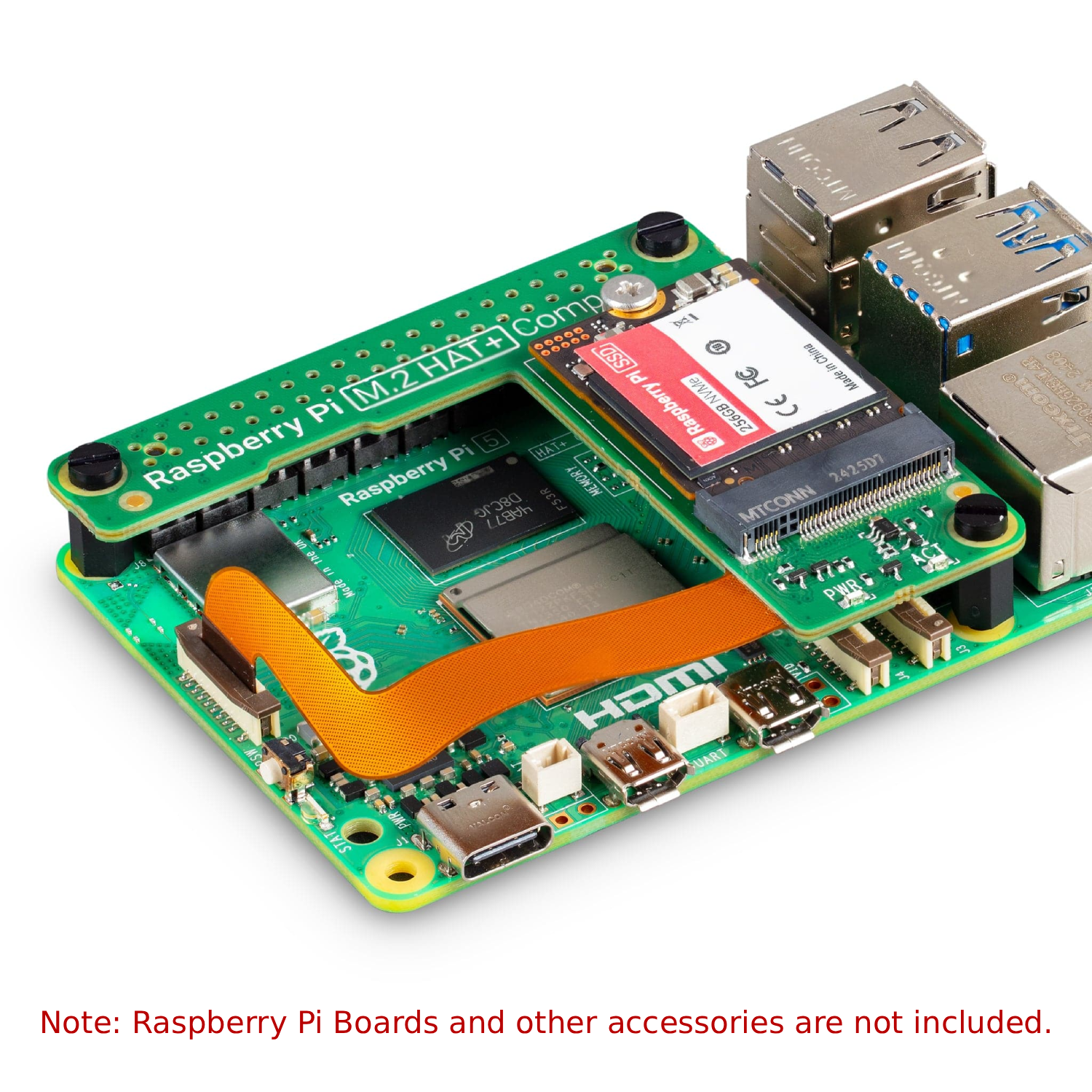

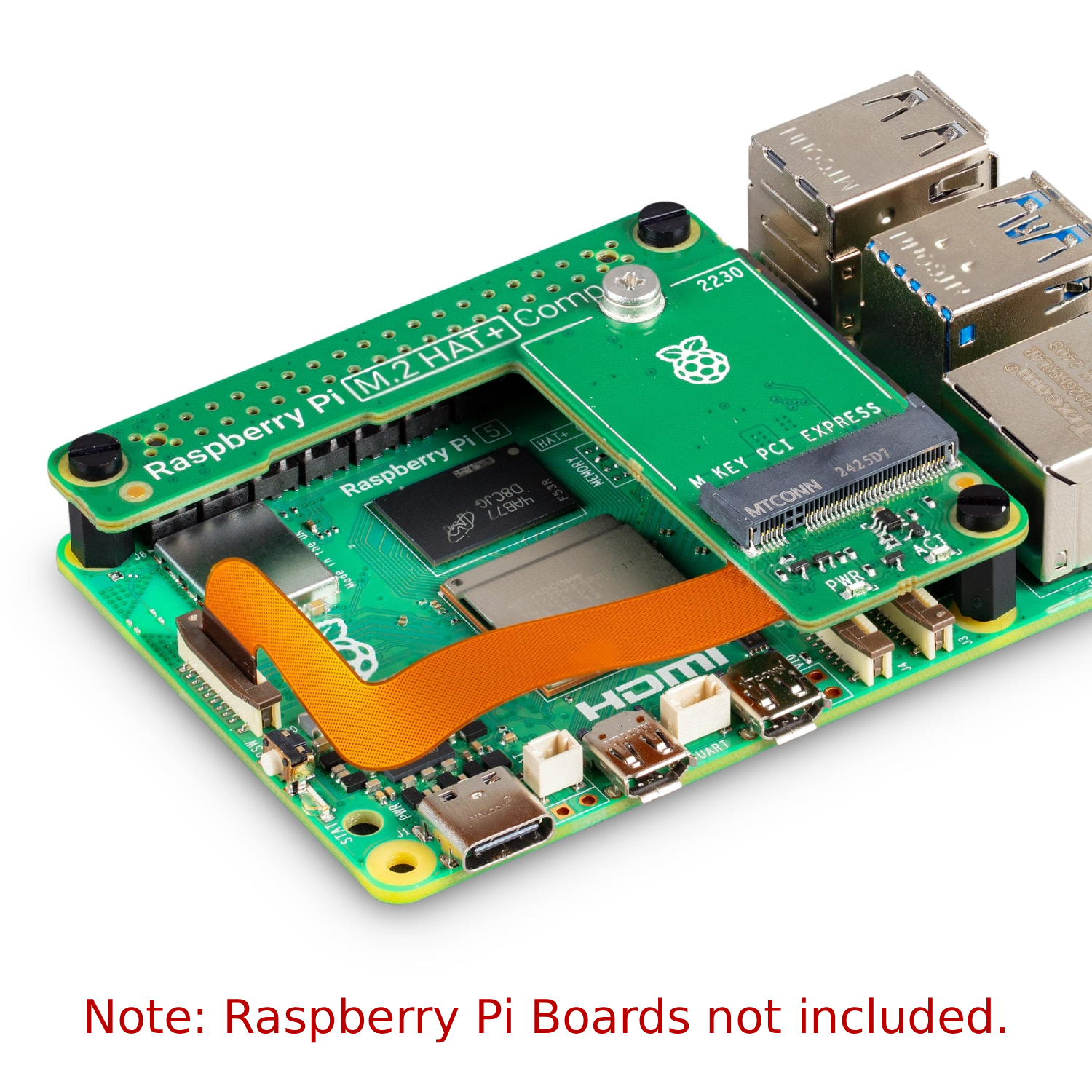

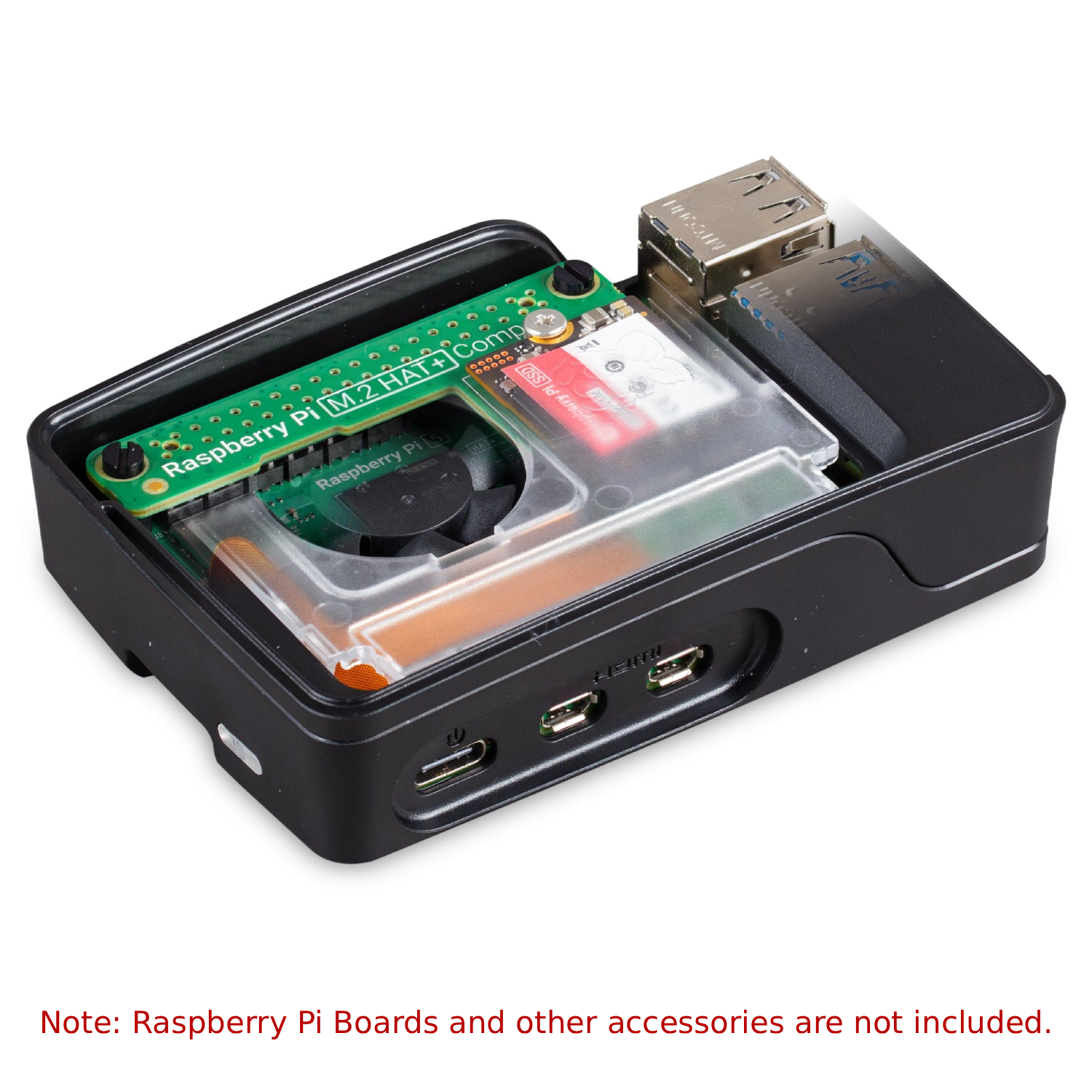

Unlike other HATs, this one is engineered to work perfectly with the official Raspberry Pi 5 Case. Its clever L-shaped design and low-profile header allow it to fit without blocking the case's cooling fan or heatsinks, even with the lid on. Just connect the built-in PCIe ribbon cable and GPIO header, and you're ready to go—no extra cables needed.

Features:

• Designed for use with Raspberry Pi 5 and the official Raspberry Pi 5 Case
• Compact design avoids interference with the official case fan and heatsink
  • Not compatible with the Active cooler
• Supports 2230-size NVMe SSDs

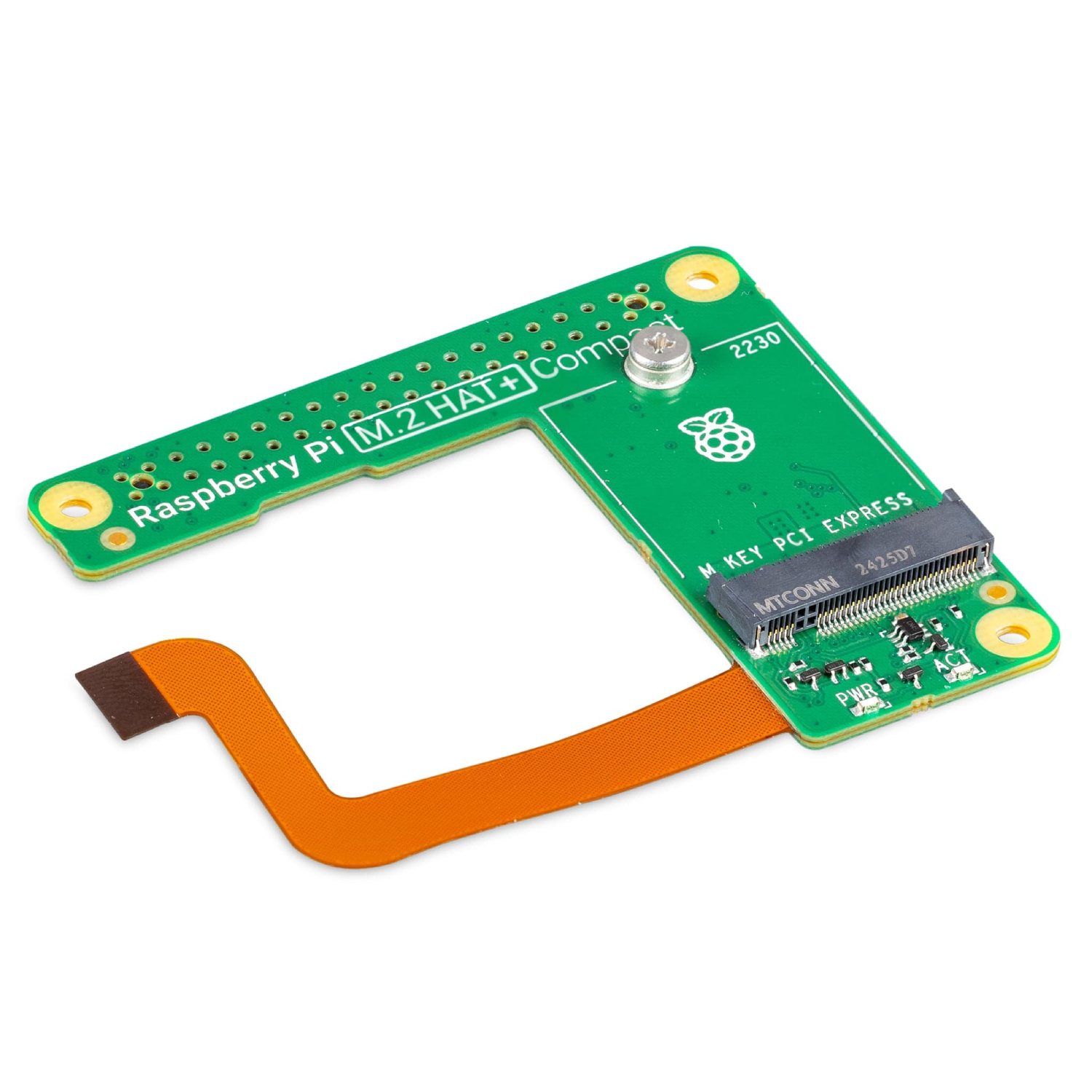

• Connects via fixed PCIe ribbon cable and GPIO header (no extra cables required)
• Supports M.2 M key edge connector devices
• Single-lane PCIe 2.0 interface (up to 500 MB/s transfer rate)
• Supplies up to 3A to a connected M.2 device
• Includes power and activity LEDs
• Conforms to the Raspberry Pi HAT+ specification
• Operating Temperature: 0° to 50° (Ambient)

Useful Links:

• Raspberry Pi M.2 HAT+ Compact assembly instructions
• Raspberry Pi M.2 HAT+ Compact Product Brief
• Raspberry Pi M.2 HAT+ Compact schematics

Package Included:

1 x Raspberry Pi M.2 HAT+ Compact
